LANDYINDUS Forklift Sweeper Attachment Heavy Duty Push Broom 1200–2400mm 6/9/12 Row F-EA-SW Series

SKU: F-EA-SW12-6

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email +(1) 657-271-9801

Product Overview

Struggling with coarse debris that breaks standard sweepers? The LANDYINDUS Forklift Sweeper Attachment delivers low-maintenance, heavy-duty sweeping for materials that rotary brooms can't handle.

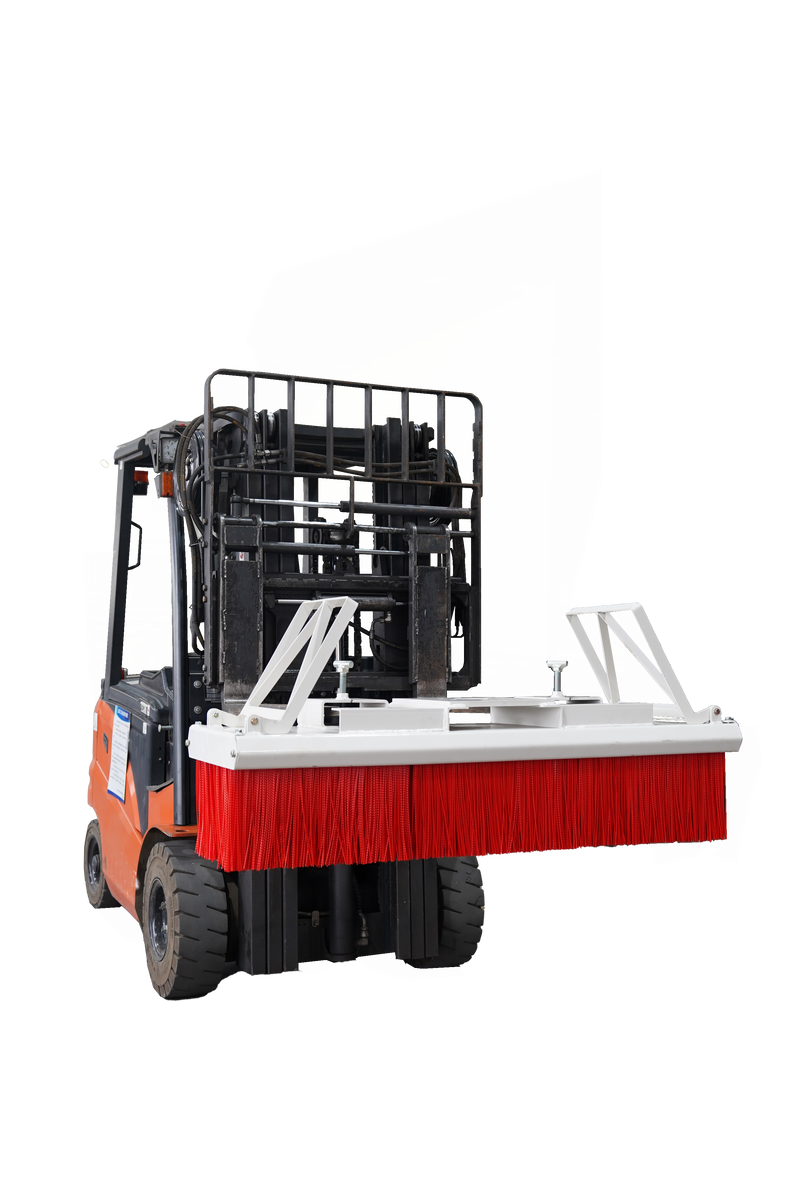

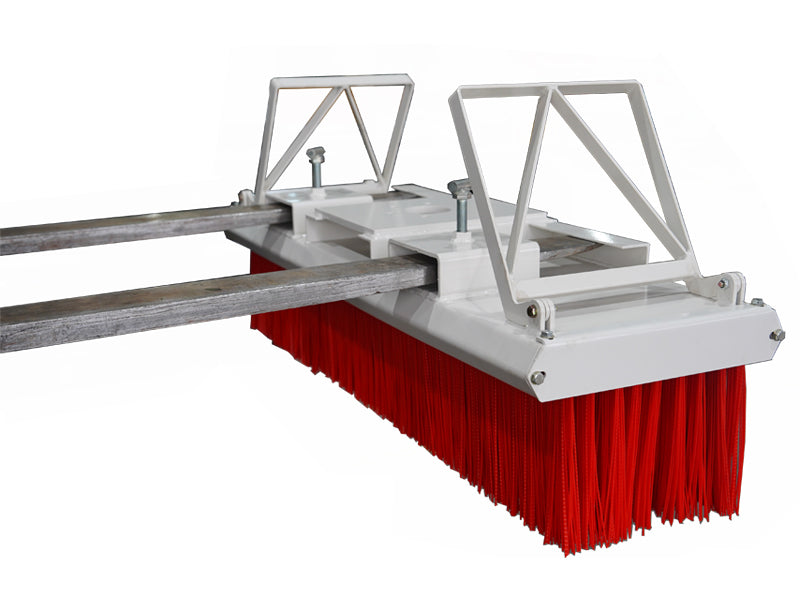

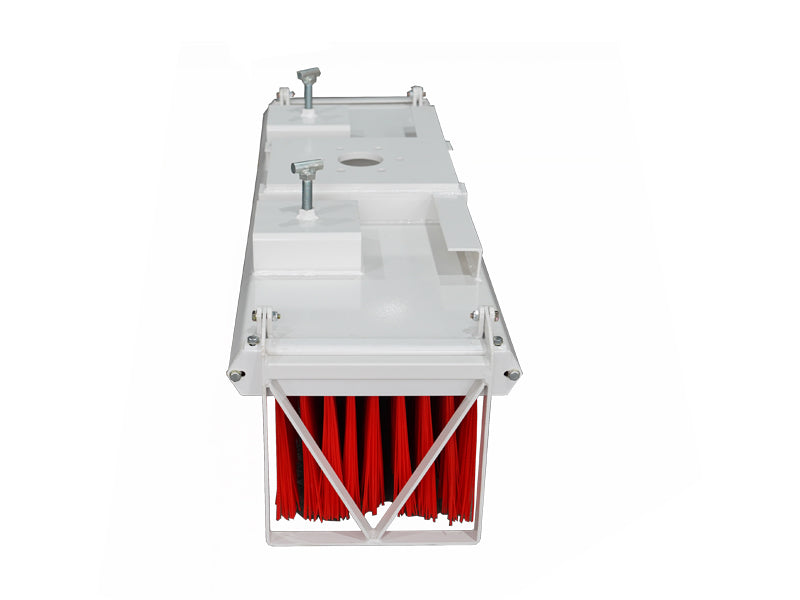

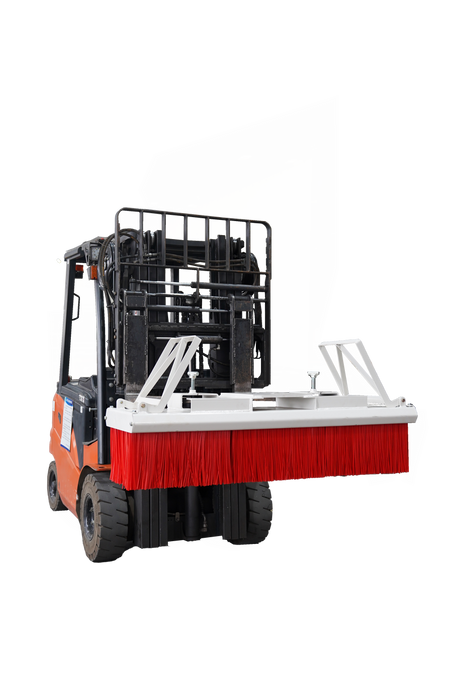

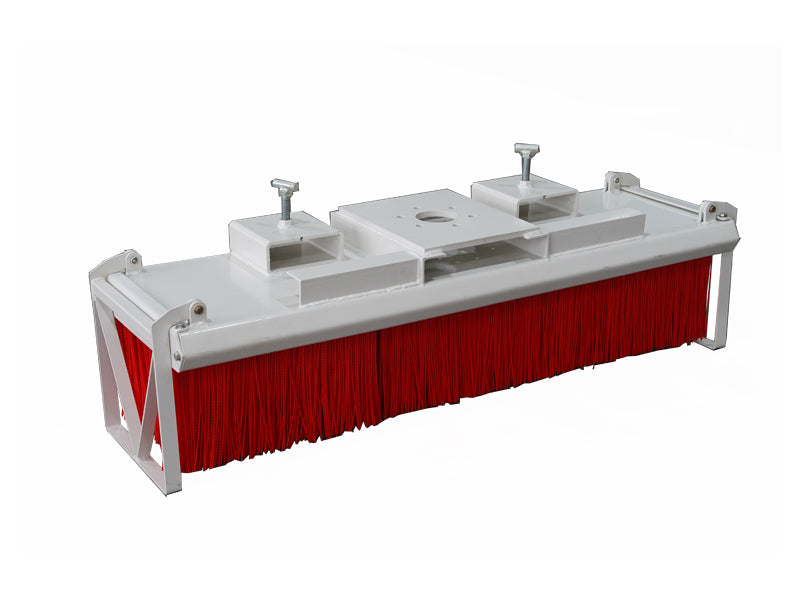

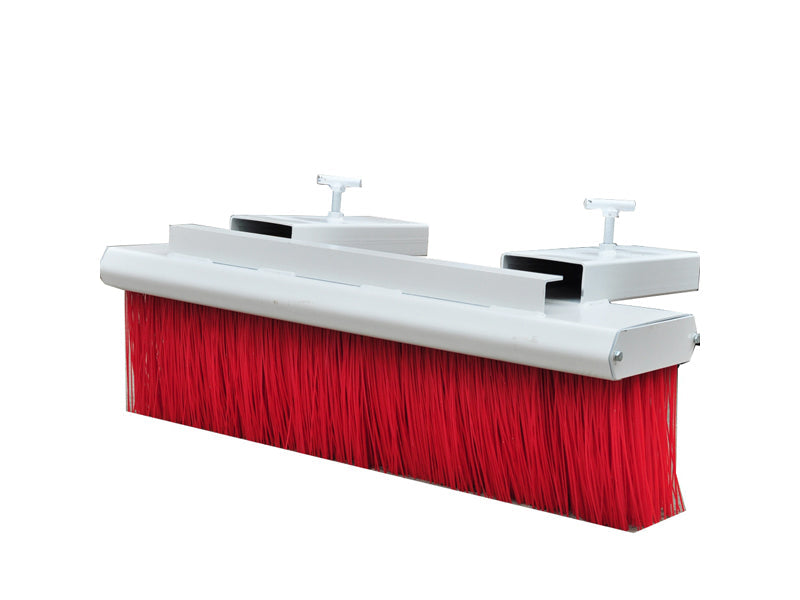

The Forklift Sweeper Attachment is a heavy-duty push broom attachment engineered to sweep and collect a wide range of bulk debris materials — including grain, sand, gravel, rocks, rubbish, plastic shrink wrap, and welding wire — that cannot be effectively handled by rotary broom sweepers or vacuum-based sweeping machines. Available in six configurations spanning blade widths from 1200mm to 2400mm and bristle row counts of 6, 9, or 12 rows, this forklift broom attachment scales to suit everything from narrow aisle clearance tasks to wide-area yard and warehouse floor sweeping operations. All models feature a 330mm bristle height and a standard pocket size of 185×65mm with 700mm pocket centres for broad forklift compatibility.

Core Selling Points

  • No Moving Parts: Operates without motors, hydraulics, or electrical components, delivering a highly economical and low-maintenance sweeping solution.
  • Handles Coarse Debris: Effectively sweeps materials that defeat rotary brooms and vacuums, including wire, shrink wrap, and large aggregate.
  • Customizable Sweeping Power: Available in 6-row, 9-row, and 12-row bristle configurations to match material type and surface conditions.
  • Fast, Tool-Free Installation: Mounts directly onto standard forklift forks in minutes via integrated pocket channels, maximizing forklift utilization.

Specifications

Type Dimension (L×W×H)/mm Bristle Length /mm Bristle Height /mm Bristle Rows Pocket Size (a×b)/mm Pocket Centres /mm Weight /kg
F-EA-SW12-6 1230×345×365 1200 330 6 185×65 700 81
F-EA-SW18-6 1820×345×365 1800 330 6 185×65 700 110
F-EA-SW15-9 1520×485×365 1500 330 9 185×65 700 134
F-EA-SW18-9 1820×485×365 1800 330 9 185×65 700 173
F-EA-SW18-12 1820×635×365 1800 330 12 185×65 700 211
F-EA-SW24-12 2420×635×365 2400 330 12 185×65 700 263

Technical Drawing

⚠️ Safety & Compatibility Warnings

  • Mounting Compatibility: Ensure your existing forklift forks are compatible with the specified pocket size (185×65mm) and pocket centres (700mm) prior to use.
  • Installation & Retention: The attachment must be securely locked onto the forklift forks using designated retention pins or chains to prevent it from sliding off during pushing operations or sudden stops.
  • Surface Considerations: Ensure the bristle configuration (6, 9, or 12 rows) is appropriate for your floor type to avoid excessive bristle wear or ineffective debris collection.
  • Load Capacity: While lightweight (81kg to 263kg), the attachment extends the load center. Always operate the forklift at safe sweeping speeds and be aware of the altered turning radius.
