LANDYINDUS F-TJCL45 Forklift Tilt Long Jib Boom | 4.5T Heavy-Duty SWL | 3.53m Max Reach | 2.23m Height Gain | Zinc Plated

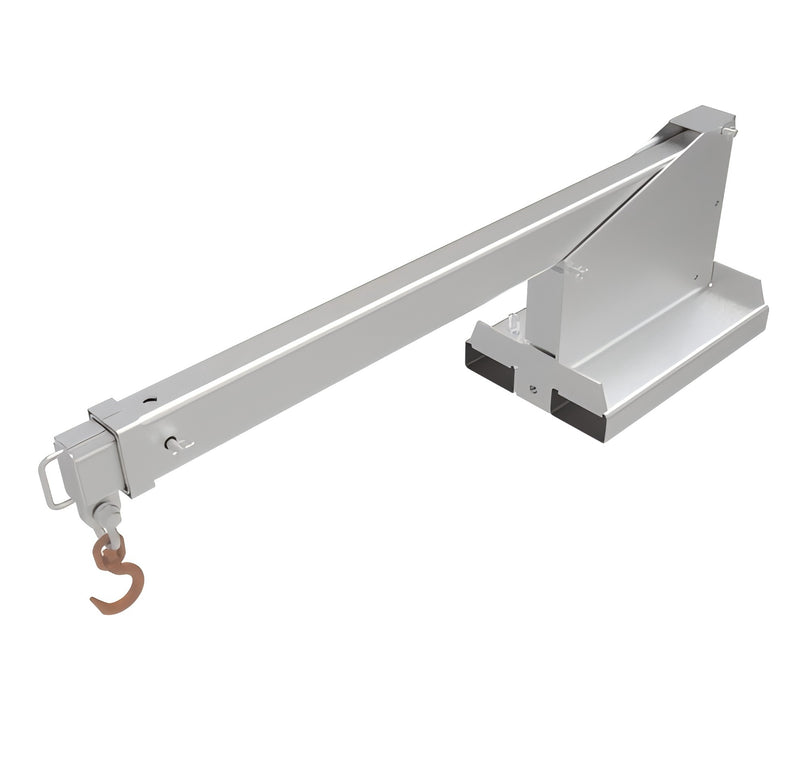

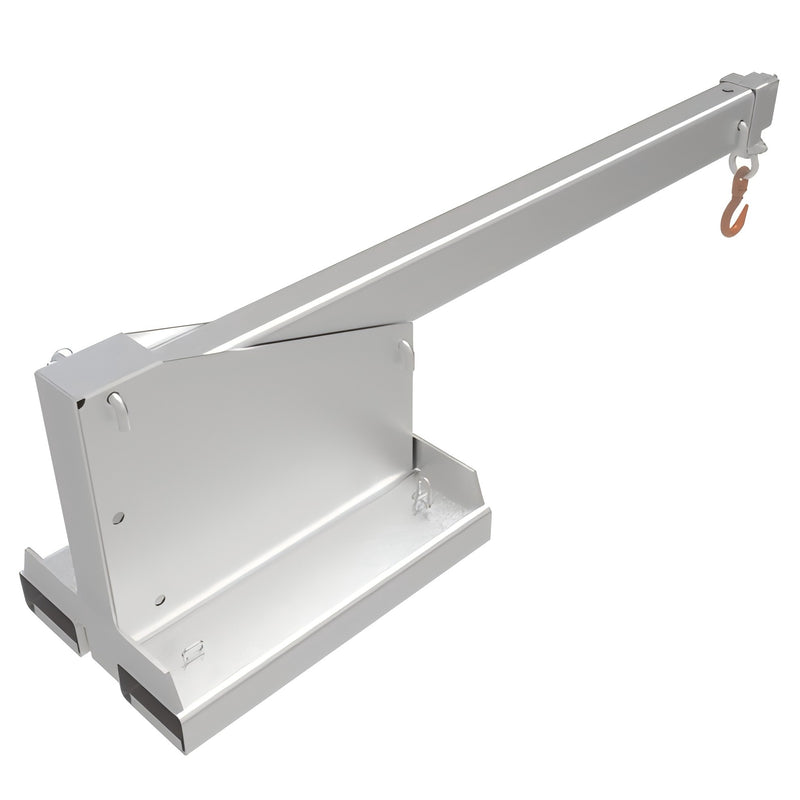

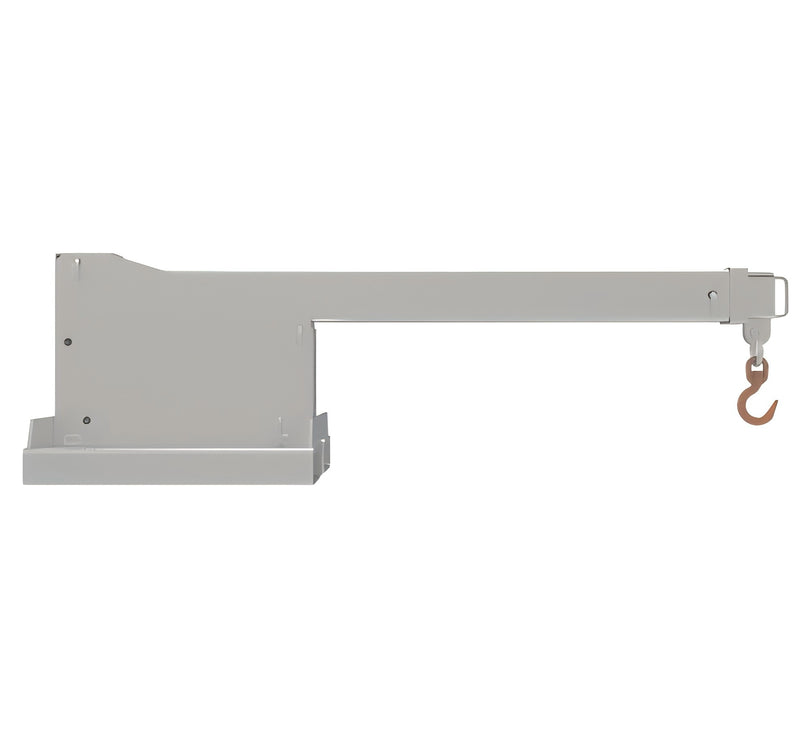

The LANDYINDUS F-TJCL45 Forklift Tilt Long Jib Boom is one of the most versatile and capable jib attachments in our range, engineered for heavy-duty lifting operations that demand both extended reach and significant height gain. Rated at a massive 4.5 tonnes (4,500kg) safe working load (SWL) — the highest capacity in our forklift jib series — this attachment transforms a heavy counterbalance forklift into a powerhouse mobile crane.

Delivering a maximum reach of 3.53 metres and an additional lifting height of up to 2.23 metres when fully extended and tilted upward, it is the go-to crane jib attachment for construction sites, heavy industrial facilities, port operations, and large-scale equipment yards where standard jib attachments fall short.

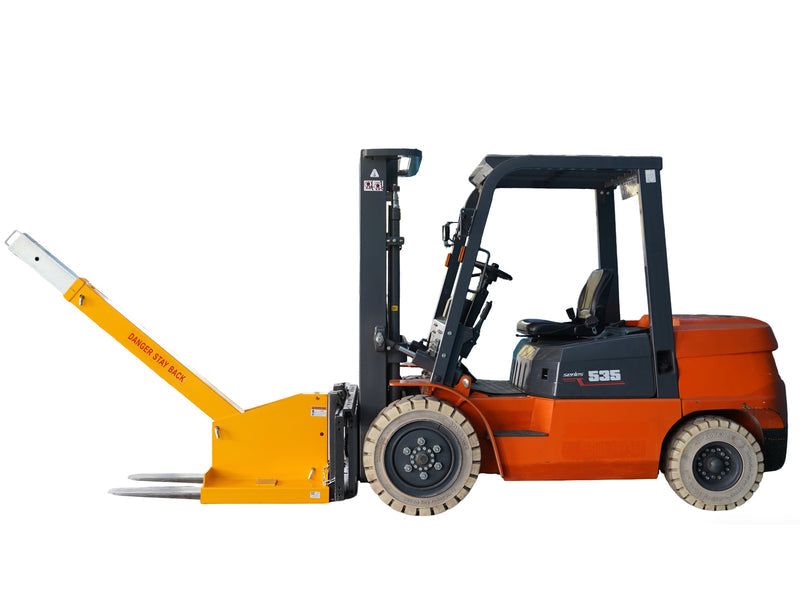

Tilt Adjustable — 2.23m Overhead Height Gain

The tilting jib mechanism allows operators to adjust the boom angle to suit the specific geometry of each lift. By angling the boom upward, the F-TJCL45 can achieve up to 2.23 metres of vertical height gain above the standard fork carriage.

This angular adjustability is critical for:

• Compensating for the combined length of lifting hooks and rigging slings
• Lifting loads over high safety barriers, fencing, or deep trenches
• Positioning loads at precise heights onto elevated platforms or second-story mezzanines
• Reaching deep into the back of shipping containers or enclosed transport trucks

This lifting envelope far exceeds fixed-angle jib alternatives, reducing the need to reposition the forklift between lifts and significantly improving operational throughput on high-volume sites.

4.5T Heavy-Duty Capacity | Slip-On Installation

Engineered for the demands of heavy industrial lifting, the F-TJCL45 features reinforced steel construction to safely manage up to 4.5 tonnes of load (at the retracted position). Despite its massive capacity, the attachment weighs a manageable 190kg, preserving the maximum possible lifting capacity of the host forklift.

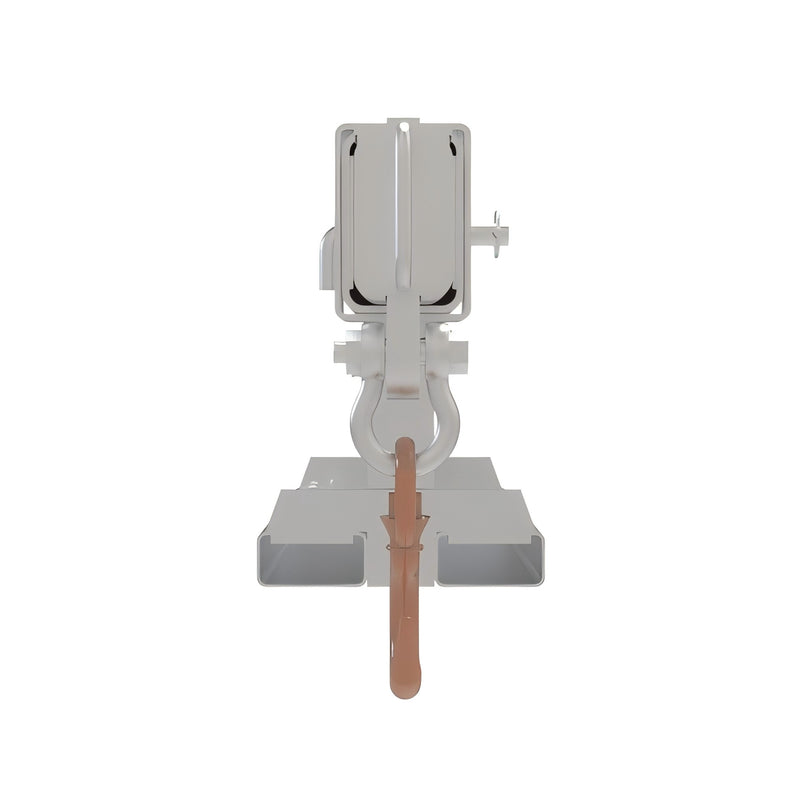

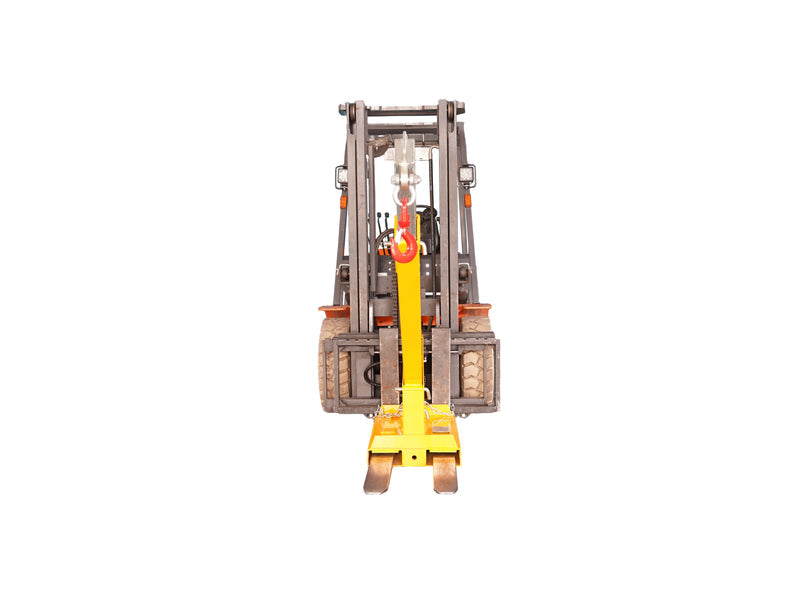

The tool-free slip-on design allows for rapid deployment across multiple forklift units on the same site. It features large 188×88mm fork pockets set at 319mm centres, designed to accommodate the thicker, wider forks typically found on 4.5-tonne and larger forklifts. The attachment is secured firmly to the forklift carriage with a heavy-duty safety chain, preventing accidental jib displacement under dynamic load conditions.

Premium Zinc Plated Finish

Finished with a durable zinc-plated coating, the 4.5-tonne tilt jib is built to withstand the demands of outdoor heavy industrial environments. The zinc-plated finish provides superior long-term corrosion resistance against moisture, chemicals, and salt spray common to construction yards, mining sites, and port facilities — significantly outlasting standard painted steel alternatives and keeping the telescoping inner beam operating smoothly.

Applications

• Heavy Construction & Rigging — lifting structural steel beams, precast concrete, and heavy timber
• Port Operations & Logistics — extracting heavy, unpalletised cargo from shipping containers
• Industrial Manufacturing — positioning large-scale machinery, dies, and heavy industrial motors
• Mining & Equipment Yards — a high-capacity, cost-effective alternative to hiring mobile cranes

Key Features

• 4.5 Tonne (4,500kg) Heavy-Duty Safe Working Load
• Telescopic inner beam extends to 3.53 metres
• Tilt adjustable — achieves up to 2.23m of extra vertical height
• Premium zinc-plated finish — extreme outdoor corrosion resistance
• Slip-on design with heavy-duty safety chain locking
• Oversized 188×88mm fork pockets for heavy-duty forklift tines
• Weighs 190kg — balances reach capability with forklift stability

Specifications

Note: Custom reach lengths, SWL ratings, tilt configurations, and pocket dimensions are available on request.

Technical Drawing
