LANDYINDUS Forklift Tipping Bin Roll Over Bin 1000kg 0.9m³ Liquid Tipping 4-Way Pockets F-ROB9
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!
Product Overview
Need a safe, controlled way to dump bulk materials and liquids? The LANDYINDUS Forklift Roll Over Tipping Bin delivers smooth, low-impact emptying directly from the driver's seat.
The Forklift Roll Over Tipping Bin is a heavy-duty forklift bin attachment engineered for smooth, controlled load dumping of both solid and liquid materials, with a safe working load of 1000kg and a generous 0.9m³ capacity. Designed around a roll-over tipping mechanism, this forklift tipping bin delivers a smooth, low-impact emptying action that minimizes product spillage and structural stress during each tipping cycle, making it suitable for high-frequency dumping operations in manufacturing, waste management, and bulk material handling environments. The bin is constructed with a 3mm main plate throughout and mounts to standard forklift forks via integrated four-way fork pockets with a 190×90mm pocket size and 850mm pocket centres for broad forklift compatibility.
Core Selling Points
- Optimized for Liquids: Features a specialized cutaway front lip engineered for clean, controlled tipping of liquid products, slurries, and semi-fluid materials without excessive spillage.

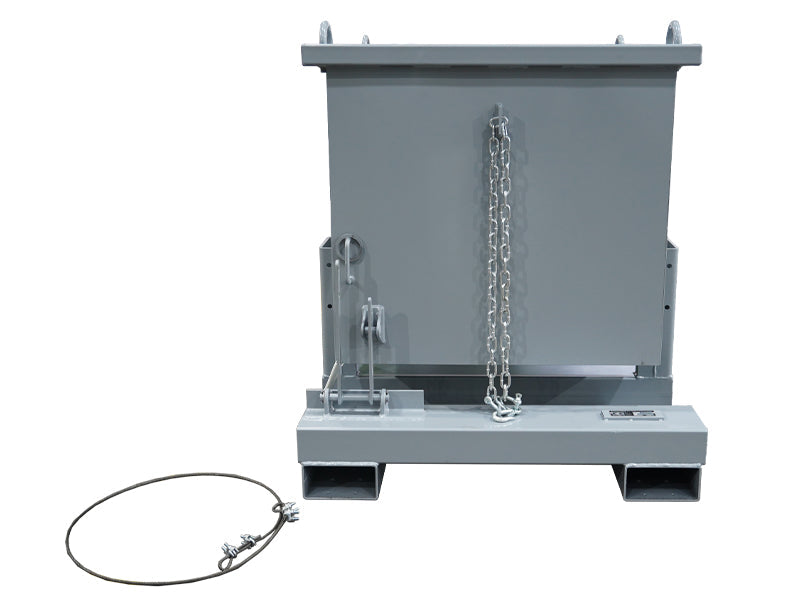

- Safe Remote Operation: A pull cord release mechanism allows operators to initiate the tipping action directly from the driver's seat, eliminating the need to dismount.

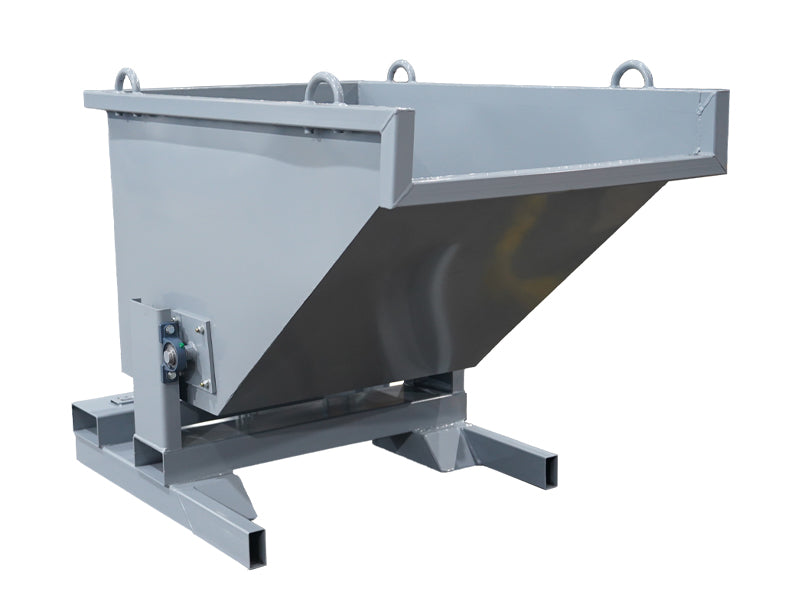

- Stable Roll-Over Action: Integrated side bearing assemblies prevent the bin from dislodging or shifting laterally during the roll-over motion, ensuring safe tipping under full load.
- 4-Way Entry: Four-way fork pockets enable the bin to be picked up and tipped from all four sides, providing maximum flexibility in confined spaces and narrow aisles.
Specifications
| Type | SWL/kg | Dimension (L×W×H)/mm | Main Plate Thickness /mm | Pocket Size (a×b)/mm | Pocket Centres /mm | Volume /m³ | Weight /kg |
|---|---|---|---|---|---|---|---|
| F-ROB9 | 1000 | 1500×1050×1095 | 3 | 190×90 | 850 | 0.90 | 245 |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- Mounting Compatibility: Ensure your forklift forks are compatible with the specified pocket size (190×90mm) and pocket centres (850mm) prior to lifting.
- Dynamic Load Shift: Tipping 1000kg of material (especially liquids or slurries) causes a rapid shift in the center of gravity. Ensure your forklift has sufficient de-rated capacity and only tip when stationary on level ground.
- Clearance Zone: Ensure the drop zone is entirely clear of personnel and equipment before pulling the release cord from the driver's seat.
- Installation & Retention: Even with 4-way entry, the bin must be properly secured to the forklift carriage to prevent the entire unit from slipping off the forks during the tipping cycle.
