LANDYINDUS Forklift Tow Ball Jib | 2.0T Lift | 500kg Tow | 50mm Tow Ball | F-FST200

LANDYINDUS F-FST200 Forklift Tow Ball Jib | 2.0T Lift / 500kg Tow | Dual Hook | 50mm Tow Ball | Slip-On

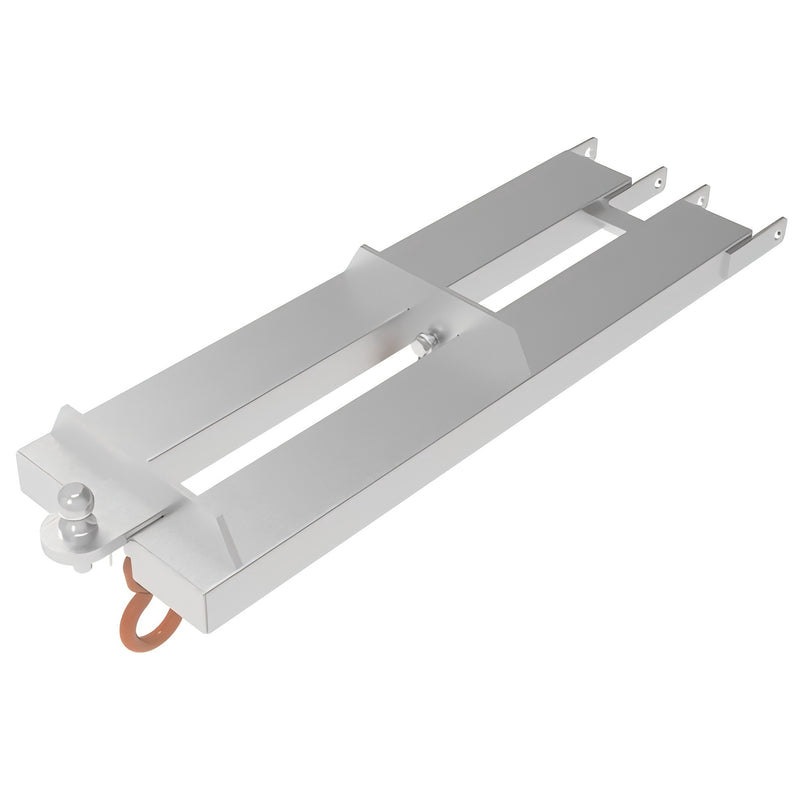

The LANDYINDUS F-FST200 is a versatile 2-tonne forklift tow ball jib attachment that combines heavy-duty lifting capability with integrated towing functionality in a single, compact slip-on unit.

Designed for industrial and commercial operations that require both overhead load lifting and vehicle or trailer towing from the same forklift, the F-FST200 eliminates the need for separate attachments and reduces equipment changeover time without compromising on performance.

Dual-Purpose Design: Lifting & Towing

This attachment functions as both a crane jib and a towing hitch:

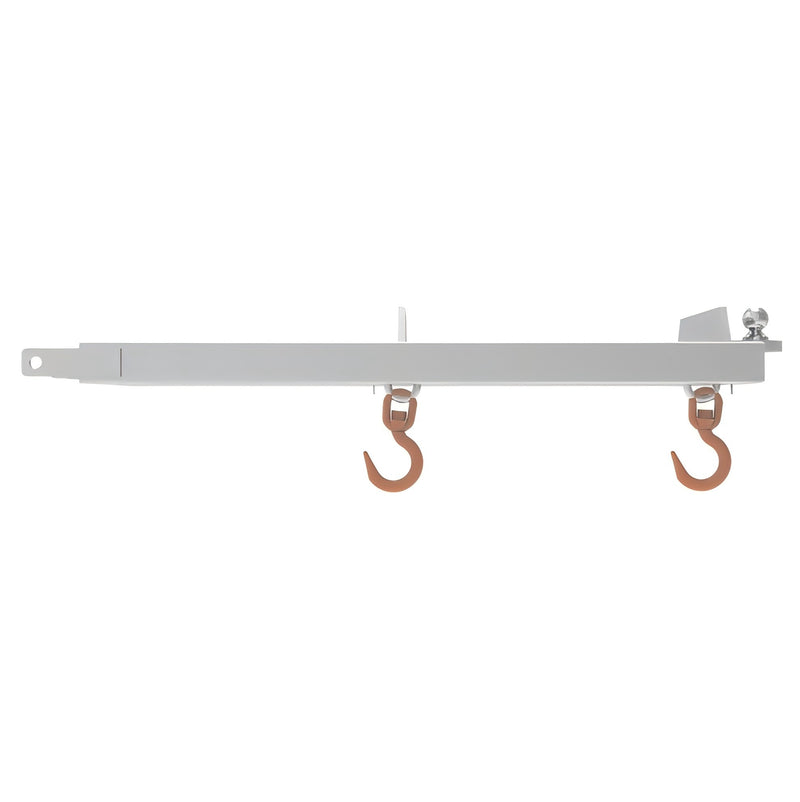

• Lifting (2,000kg SWL): Features two hook positions (spaced 585 mm apart) to accommodate a range of lifting configurations and load types.

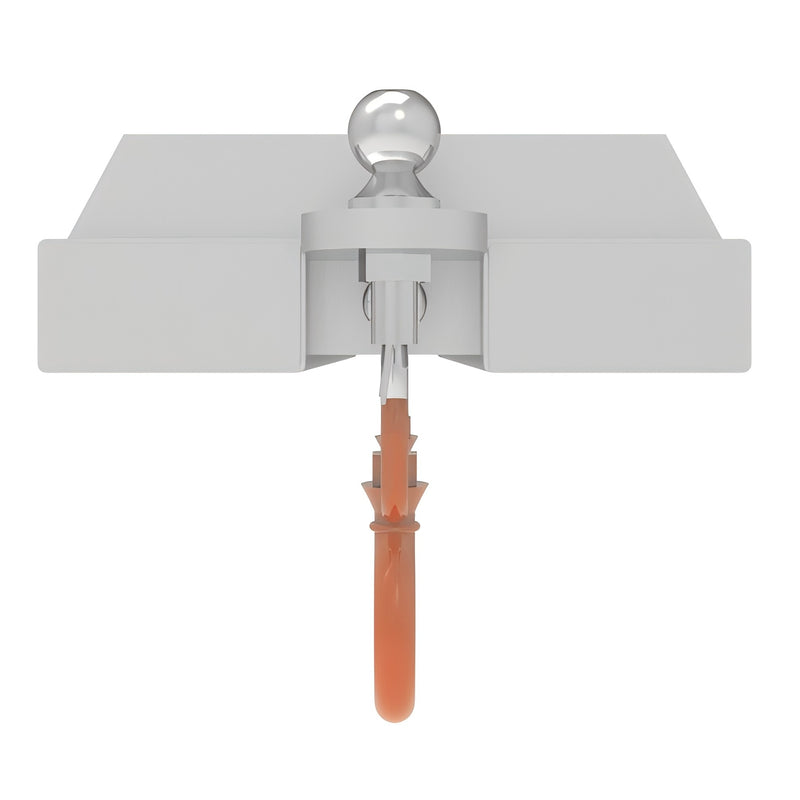

• Towing (500kg Capacity): A standard 50 mm diameter tow ball is integrated into the end of the jib, providing a maximum towing capacity of 500 kg. This makes it a highly practical attachment for facilities that regularly move small trailers, carts, caravans, or wheeled equipment alongside standard lifting tasks.

Tool-Free Slip-On Installation with Toggle Pins

Engineered as a slip-on attachment, the F-FST200 mounts directly onto standard forklift tines in seconds. Unlike attachments that rely solely on a safety chain, this unit is supplied with and secured by two fork arm retaining toggle pins that lock directly behind the heel of the forklift tines.

This provides a fast, tool-free installation and an incredibly stable, rigid connection that prevents the attachment from sliding forward during sudden braking or heavy towing.

Compact & Lightweight Profile

Weighing just 44 kg, the F-FST200 is exceptionally lightweight and manageable. A single operator can easily lift and install it manually without requiring a second person or lifting aids.

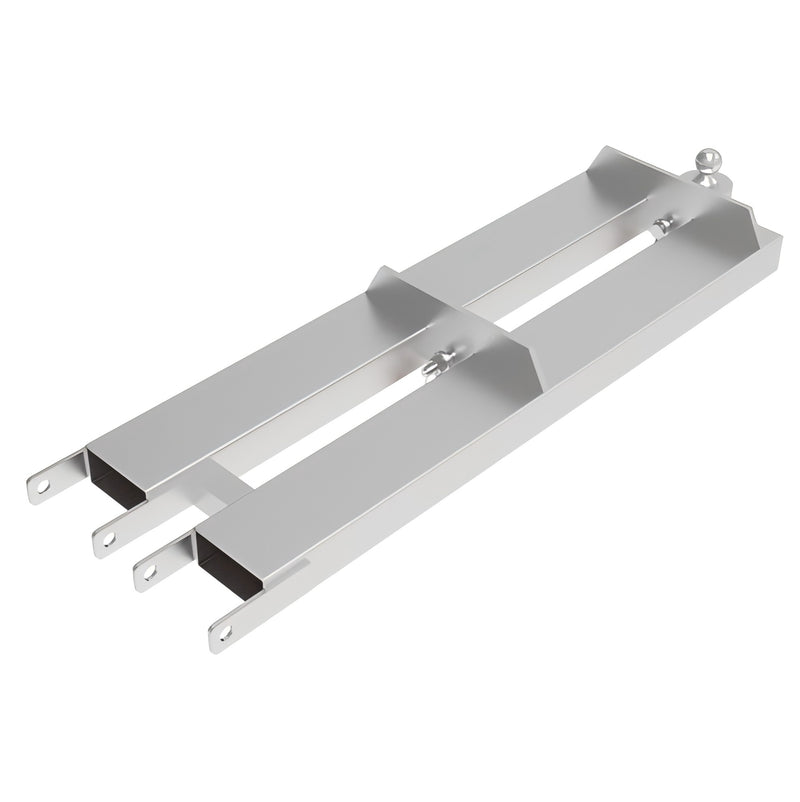

Its compact dimensions (1,415 × 416 × 140 mm) ensure it doesn't take up excessive storage space in your warehouse when not in use. The 140 × 65 mm fork pockets with 250 mm centres ensure compatibility with the vast majority of standard 2-tonne class counterbalance forklifts.

Applications

• Warehousing & Logistics — lifting heavy components and towing flatbed carts
• Facilities Management — moving maintenance trailers and lifting equipment
• Marine & Boat Yards — towing boat trailers and lifting marine engines
• Caravan Parks — precisely manoeuvring caravans into tight spaces

Key Features

• 2.0 Tonne (2,000kg) Safe Working Load for lifting
• 500kg Maximum Towing Capacity
• Integrated 50mm standard tow ball
• Dual lifting hook positions (spaced 585mm apart)
• Slip-on design secured by 2 heavy-duty retaining toggle pins (included)
• Ultra-lightweight 44kg profile for easy manual handling

Specifications

Technical Drawing
