LANDYINDUS Forklift Wheelie Bin Tipper & Carrier | 240L | 500kg SWL | Drawcord Tip — No Hydraulics Required | Safety Chain | Operator Stays in Cab | Cradle Design | Warehouse, Recycling & Industrial | F-FWE24

LANDYINDUS F-FWE24 Forklift Wheelie Bin Tipper & Carrier | 240L | 500kg SWL | Drawcord Tipping Mechanism — No Hydraulic Circuit Required | Safety Chain | Operator Never Leaves Seat | Cradle-and-Lift Design | Warehouse, Manufacturing, Recycling & Industrial

The LANDYINDUS F-FWE24 Forklift Wheelie Bin Tipper & Carrier is purpose-built for safely and efficiently emptying and transporting standard 240-litre plastic wheelie bins in busy industrial environments. Designed to mount on any standard forklift truck, this heavy-duty steel attachment eliminates the need for manual bin handling — reducing workplace injury risks and improving overall waste management efficiency.

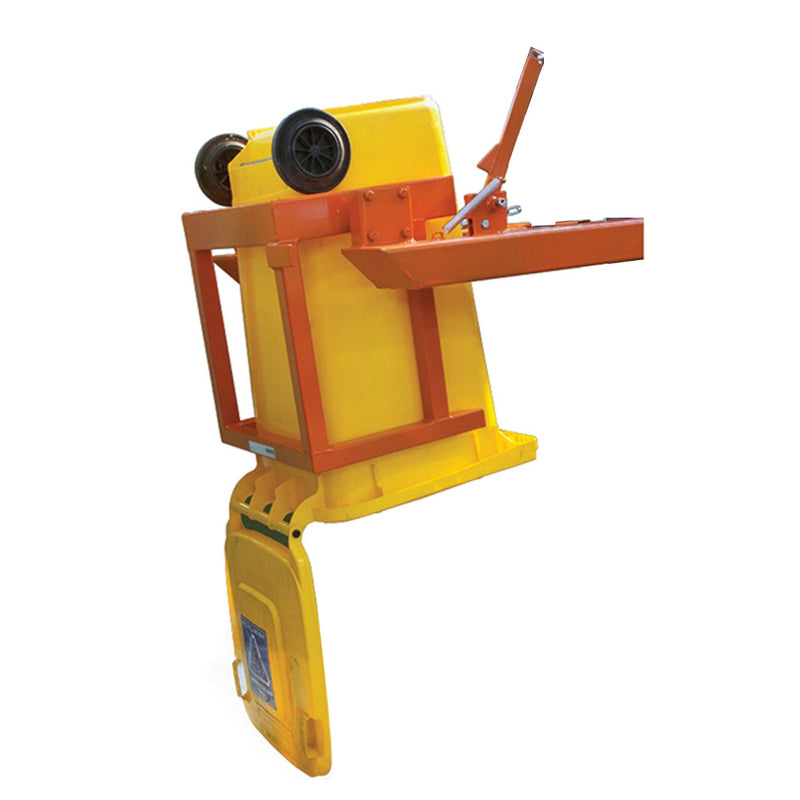

Drawcord Tipping Mechanism — No Hydraulic Circuit Required, Tip from the Seat

The operator activates the tipping action via a simple drawcord mechanism — meaning the operator never needs to leave their seat throughout the entire operation. The drawcord tip is a key differentiator: unlike hydraulic bin tippers (F-NWB-T1, F-NWB-T2) that require an auxiliary hydraulic circuit, the F-FWE24 requires no hydraulic connection whatsoever — making it compatible with any standard forklift regardless of hydraulic auxiliary availability.

Wheelie Bin Tipper Comparison — Drawcord vs Hydraulic, Single vs Dual

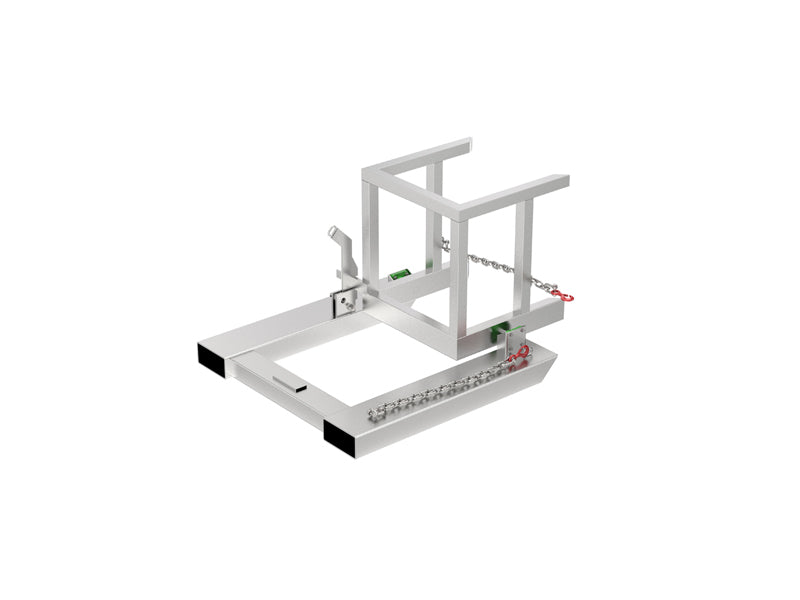

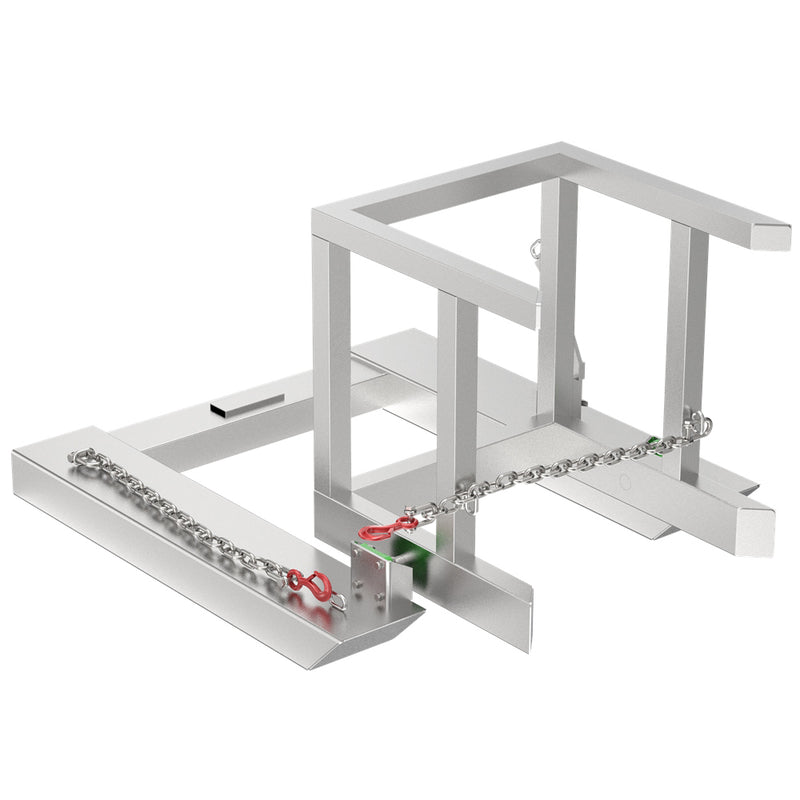

Cradle-and-Lift Design — Bin Transport + Tipping in One Attachment

The cradle-and-lift design allows the F-FWE24 to function as both a bin carrier and a bin tipper in a single attachment. The bin is secured within the cradle using a robust safety chain — the forklift can then transport the bin across the workplace to the emptying point and tip it, all without the operator leaving the seat or the bin touching the ground.

Simple Setup, Minimal Training Required

The straightforward cradle-and-lift design requires no complex setup, allowing teams to get to work immediately with minimal training — ideal for facilities with high staff turnover or multiple operators sharing equipment across shifts.

Applications

• Warehouses & logistics hubs — packaging waste, mixed waste, no aux hydraulics
• Manufacturing facilities — production waste, floor-to-skip bin emptying
• Recycling centres — sorted waste stream bin handling and tipping
• Council depots — municipal waste, outdoor use
• Food processing plants — waste bin transport and tip in one operation
• Any site with non-hydraulic or basic forklifts

Key Features

• Drawcord tipping — no hydraulic circuit required, any standard forklift
• Cradle design — bin carrier + tipper in one attachment
• 500kg SWL — fully loaded 240L wheelie bins
• Safety chain — bin secured during lifting and transport
• Operator never leaves seat — drawcord activation from cab
• 80kg — lightest in the wheelie bin tipper series
• 1,000mm load centre — shorter than hydraulic models (1,200mm)
• Fork pockets 185×65mm / 840mm centres

Technical Drawing:

Specifications
