LANDYINDUS Front Loader Hydraulic Adapter Z602 to A Quick Connect | Heavy Duty Tractor

LANDYINDUS T-Z6022 TO A-H Front Loader Hydraulic Adapter Z602 to A Quick Connect | Heavy Duty Tractor

The LANDYINDUS T-Z6022 TO A-H Front Loader Hydraulic Adapter is a heavy-duty hydraulic coupler plate engineered specifically for Z602 bracket loader systems, enabling seamless conversion to A-type hydraulic interface standards. Designed for professional agricultural and construction use, this adapter allows operators to run A-type hydraulic attachments on Z602-equipped front loaders without modifying the host machine or replacing existing loader hardware.

16 MPa / 60 LPM — Full Hydraulic Pressure & Flow Integrity Under Extended Working Cycles

Rated for a maximum operating pressure of 16 MPa and a hydraulic flow capacity of 60 LPM, this adapter is built to meet the full hydraulic demands of modern tractor loader applications. The high-pressure rating ensures reliable performance when powering hydraulic-driven attachments such as grapples, augers, hydraulic buckets, and bale handlers — maintaining consistent flow and pressure integrity throughout extended working cycles without risk of leaks or pressure loss.

Z602 to A-Type Direct Bolt-On Conversion — No Custom Fabrication Required

The Z602 loader bracket standard is widely used across a range of European and international tractor and loader platforms. This adapter provides a direct, bolt-on interface that eliminates the need for custom fabrication or third-party conversion kits. The A-type hydraulic output face is machined to tight tolerances, ensuring a secure, leak-free connection to compatible A-standard hydraulic attachments without any modification to the host machine or existing loader hardware.

Precision-Machined Mounting Surfaces — Hydraulic Alignment Under Load, Vibration Fatigue Resistant

Measuring 1,104 × 226 × 718mm and weighing 88kg, the adapter is constructed for structural rigidity and long-term field durability. The precision-machined mounting surfaces maintain hydraulic alignment under load — protecting both the adapter body and connected hydraulic lines from stress, vibration fatigue, and premature wear during heavy-duty operation.

Key Features

• Converts Z602 front loader frame to A-type hydraulic interface — direct bolt-on, no fabrication
• 16 MPa max operating pressure — full compatibility with modern tractor loader hydraulics
• 60 LPM hydraulic flow capacity — consistent delivery across extended working cycles
• A-type output face machined to tight tolerances — secure, leak-free connection
• Precision-machined mounting surfaces — hydraulic alignment & vibration fatigue resistance under load
• Suits hydraulic grapples, augers, bale handlers & hydraulic buckets on A-type systems
• No host machine modification required — preserves existing Z602 loader hardware
• 1,104×226×718mm | 88kg — structural rigidity for long-term field durability

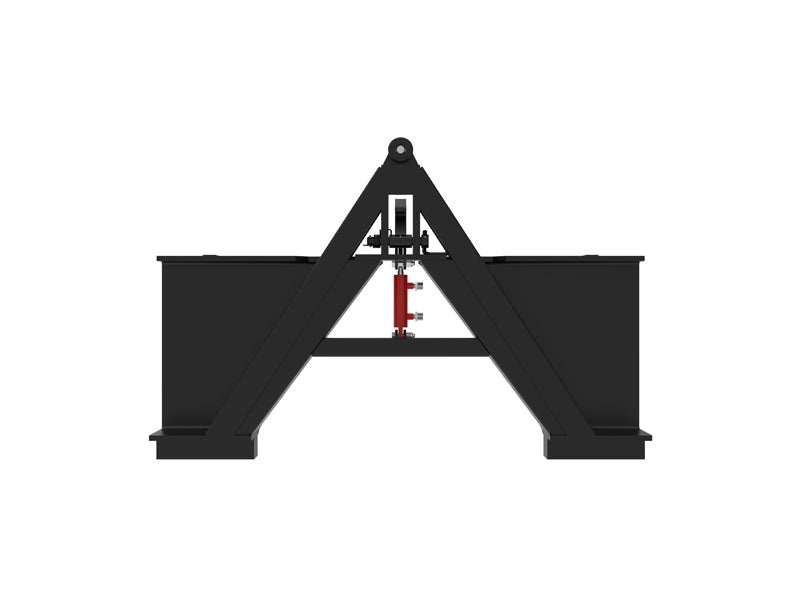

Technical Drawing:

Specifications
