LANDYINDUS Galvanized Foldable Brick Cage 2000kg SWL Overhead Crane Lifting WS-BSN6
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!
Product Overview

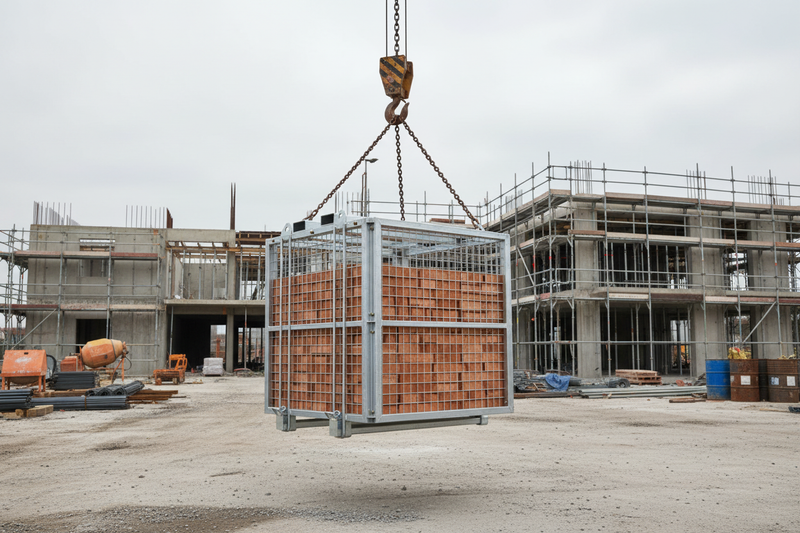

Need a safe, reliable way to lift palletized bricks and masonry to elevated job sites? The LANDYINDUS Galvanized Foldable Brick Cage delivers 2000kg SWL overhead lifting in a durable, flat-pack design.

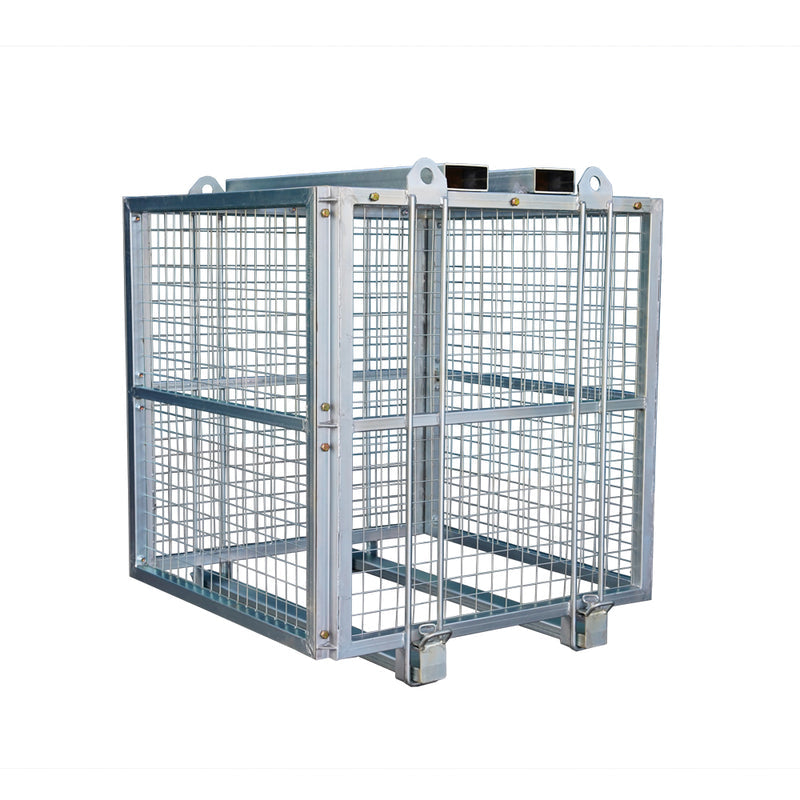

The LANDYINDUS Heavy Duty Galvanized Foldable Brick Cage is purpose-built for the safe overhead crane lifting and transportation of brick pallets, concrete blocks, pavers, tiles, and similar loose construction materials to elevated or hard-to-reach work locations. Rated at 2000kg Safe Working Load (SWL), this crane lifting cage provides reliable, high-capacity performance on demanding construction sites, masonry projects, and building renovation works. The cage is designed to fit 1200mm square pallets (1240mm clear internal width) with an overall height capacity of up to 1500mm, accommodating standard pallet loads with ease.
Core Selling Points
- Heavy-Duty 2000kg SWL: Built to securely lift high-density palletized bricks, masonry blocks, and building materials to upper levels without structural flexing.
- Standard Pallet Sizing: Accommodates 1200mm square pallets (1240mm clear inside width) with an overall load height capacity up to 1500mm.
- Hot-Dip Galvanized Coating: Delivers superior, long-lasting corrosion protection against harsh outdoor construction site elements and weathering.

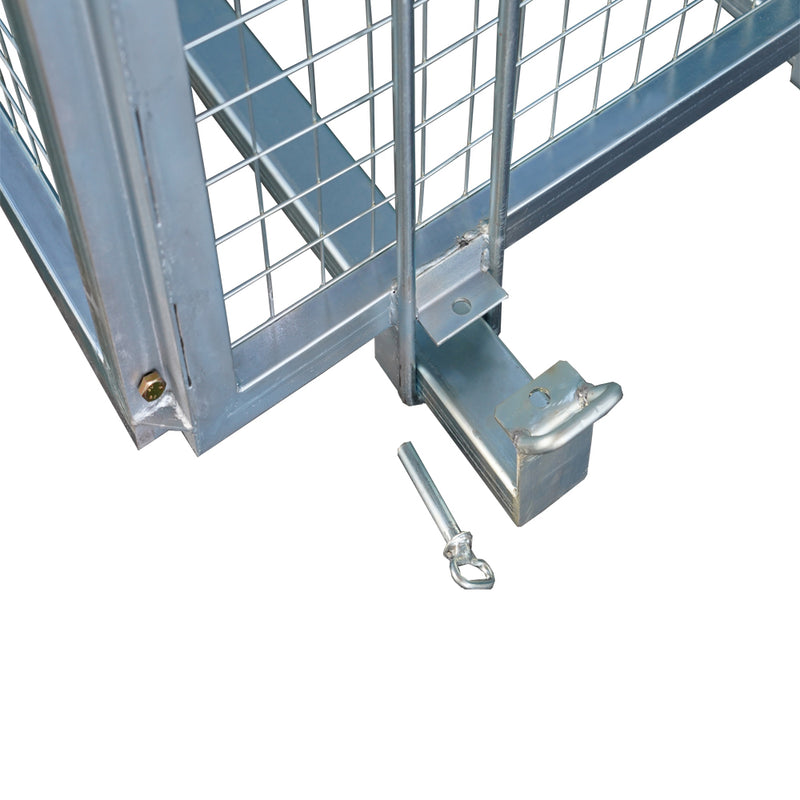

- Foldable Flat-Pack Design: Compact bolted self-assembly requires no welding or specialist tools, dramatically reducing storage footprint and site-to-site transit costs.
Specifications
| Type | SWL / kg | Dimension (L×W×H) / mm | Pocket Size (a×b) / mm | Pocket Centres / mm | Weight / kg |
|---|---|---|---|---|---|
| WS-BSN6 | 2000 | 1545×1340×1719 | 165×65 | 370 | 250 |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- Safe Working Load (SWL): Do not exceed the certified 2000kg capacity. Always ensure brick and block loads are strapped or wrapped to prevent loose items from falling during flight.
- Overhead Crane Rigging: Must be lifted using certified 4-leg lifting chains or slings rated for the full 2000kg load. Inspect all lifting points and shackles before every lift.
- Fork Pocket Compatibility: When handling with a forklift, ensure tines match the pocket dimensions (165×65mm) and pocket centres (370mm). Lock securely to prevent slippage.
- Bolted Joint Inspection: Regularly inspect all bolted connections and tighten to specification, especially after site re-assembly or rough transport.
