LANDYINDUS Heavy Duty 3 Point Box Blade Scraper 55" | Cat 0 & Cat 1 Tractor

LANDYINDUS Heavy Duty 3 Point Box Blade Scraper 55" 1400mm | Cat 0 & Cat 1 Tractor

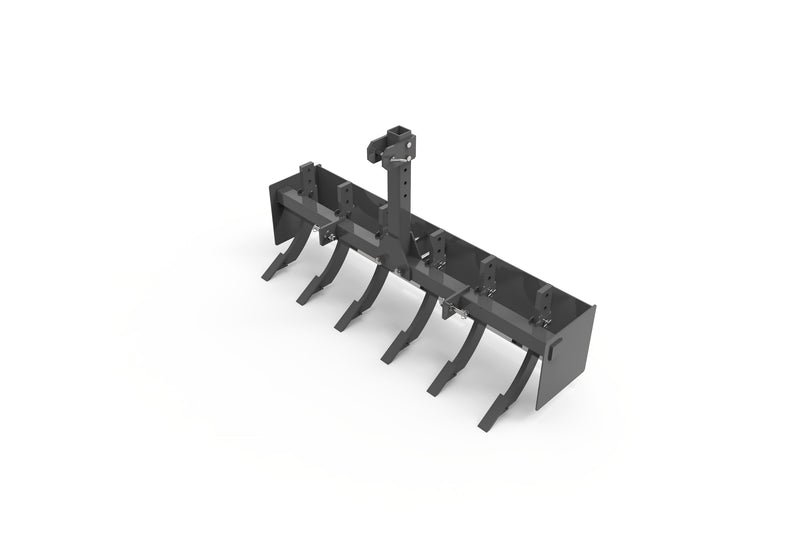

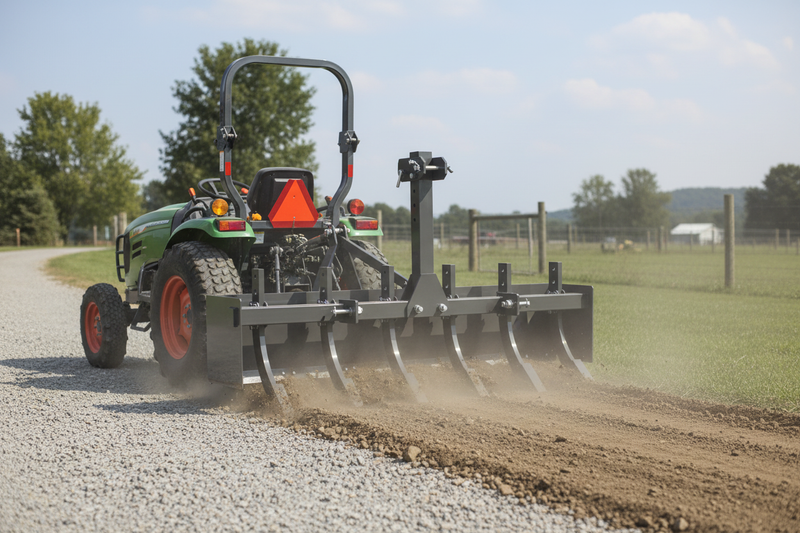

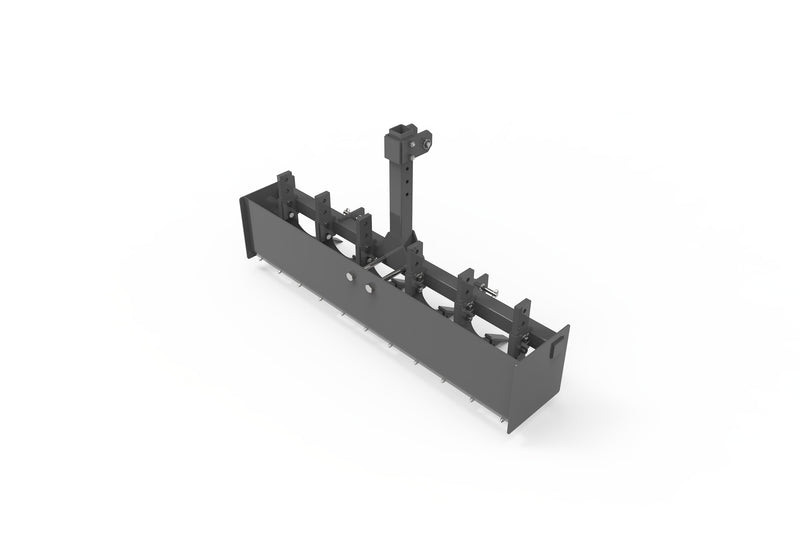

The LANDYINDUS T-RP1400-6S Heavy Duty Box Blade Scraper is a professional-grade 3 point hitch attachment built for Cat 0 and Cat 1 tractors, designed to handle the full range of land grading, soil leveling, backfilling, and driveway maintenance tasks with speed and precision. With a working width of 1,400 mm (55 inches), this box scraper covers significantly more ground per pass compared to narrower alternatives — reducing the number of passes needed and cutting total job time on everything from garden preparation to large-scale site grading.

Six Adjustable Scarifier Teeth — Break Compacted Soil Before Grading

Fitted with six independently adjustable scarifier teeth (20mm thickness), the box blade breaks up compacted soil, loosens hardpan, and prepares rough terrain before the blade redistributes and levels the material. Penetration depth is adjustable based on soil hardness and the specific task — whether working through dry, compacted clay or loosening softer topsoil ahead of seeding or landscaping work. The combination of aggressive scarifying and precise blade control makes this attachment effective across a wide range of ground conditions.

Direct Cat 0 & Cat 1 3-Point Hitch Fit — No Adapters Required

The frame is engineered for universal compatibility with both Cat 0 and Cat 1 three-point hitch systems, with pre-fitted mounting brackets that allow direct installation without additional modifications, adapters, or custom fabrication. The overall depth of 426 mm and blade height of 809 mm give the unit the capacity to handle substantial material volumes in a single pass — practical for both finish grading and heavier earthmoving applications.

Heavy-Duty Steel Construction — 83kg | Long Service Life in Demanding Conditions

Built from heavy-duty steel throughout, the box blade is designed to withstand repeated use in demanding conditions including rocky ground, hard-packed soil, and wet clay. At 83 kg, the unit carries enough weight to maintain consistent ground contact and blade pressure without being difficult to mount or transport. The robust construction ensures long service life with minimal maintenance — a reliable long-term addition to any compact tractor attachment lineup.

Key Features

• 1,400mm (55") working width — more ground covered per pass than narrower alternatives
• Six independently adjustable scarifier teeth — 20mm thickness, variable penetration depth
• Scarify & grade in sequence — break compacted soil then level in a single workflow
• Direct Cat 0 & Cat 1 3-point hitch fit — no adapters or custom fabrication required
• 426mm depth × 809mm blade height — high material capacity per pass
• Heavy-duty steel throughout — suits rocky ground, hard clay & wet conditions
• 83kg — consistent ground contact and blade pressure on compact tractors
• Suited to paddock leveling, driveway reshaping, foundation backfill & field preparation

Technical Drawing:

Specifications
