LANDYINDUS Heavy-Duty Container Loading Ramp | 8,000kg SWL | 8mm Steel — 60% Thicker Than Standard | Flip-Up Front + Fixed Side Fork Pockets | Full-Length Side Guard Plates | 2,300mm Wide | Shipping Container & Industrial | F-CRS8

LANDYINDUS F-CRS8 Heavy-Duty Container Loading Ramp | 8,000kg SWL | 8mm Steel Plate — 60% Thicker Than Standard | Flip-Up Front Tine Pockets + Fixed Side Fork Pockets | Full-Length Side Guard Plates | 2,300mm Wide Platform | Shipping Container & Industrial

The LANDYINDUS F-CRS8 is a premium-grade steel container loading ramp engineered for safe, high-capacity loading and unloading of shipping containers in warehouses, logistics terminals, distribution centres, construction yards, and industrial facilities. The F-CRS8 represents the highest specification in the LANDYINDUS container ramp series — combining 8,000kg SWL, 8mm steel plate, three-directional fork pockets, full-length side guard plates, and a 2,300mm wide platform in a single premium-grade unit.

8mm Steel Plate — 60% Thicker Than Industry-Standard 5mm, Maximum Structural Integrity

Constructed from high-strength structural steel with an 8mm main plate thickness — 60% thicker than the industry-standard 5mm, the F-CRS8 delivers superior resistance to deformation under repeated high-cycle loading at 8,000kg SWL. The heavy-gauge steel construction ensures long-term dimensional stability across years of intensive use — maintaining a flat, true ramp surface that does not bow or deflect under load even after thousands of operational cycles.

F-CRS8 vs F-CRN8 — Both 8,000kg SWL, Different Specification Level

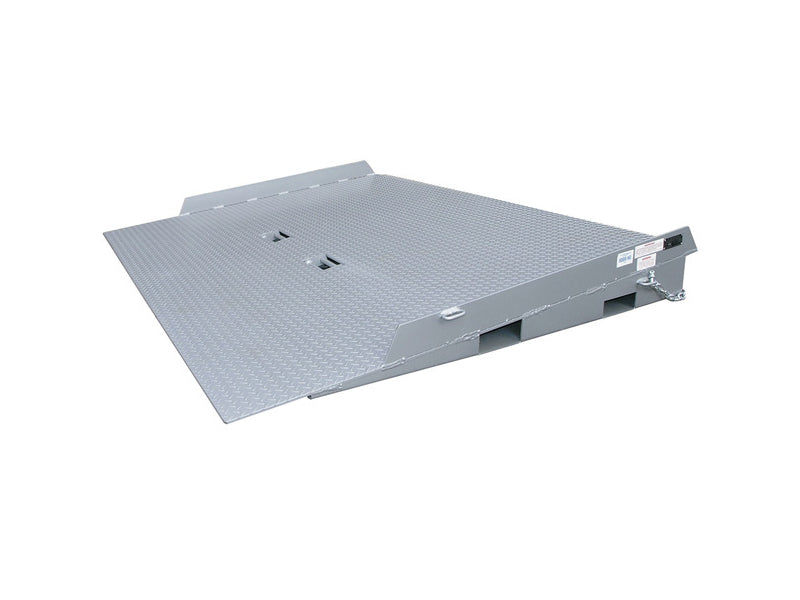

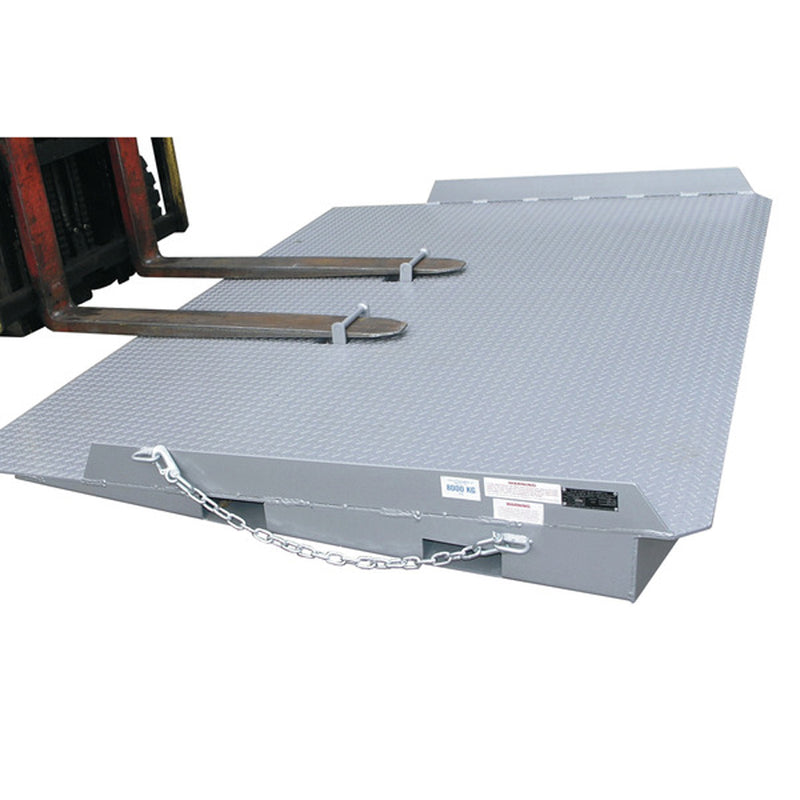

Flip-Up Front Tine Pockets + Fixed Side Fork Pockets — Three-Directional Repositioning

Fixed fork pockets on both sides combined with innovative flip-up front tine pockets give forklift operators three-directional access for repositioning — allowing the ramp to be moved, aligned, and placed precisely even in tight loading bays, narrow container yards, or restricted dock areas where conventional ramps cannot be easily handled.

• Flip-up front tine pockets: fold flush when not in use — no protruding hazards during loading operations. Flip up for direct forward forklift approach during repositioning.
• Fixed side fork pockets (160×60mm, 510mm centres): for lateral repositioning in spaces where a front approach is blocked.

Full-Length Raised Side Guard Plates — Prevents Forklift Tine & Wheel Drift Off Edge

The F-CRS8 features raised steel side plates running the full length of the ramp platform, creating a physical barrier that prevents forklift tines and wheels from drifting off the edge during loading and unloading operations. This is a critical safety feature absent from all other models in the LANDYINDUS container ramp series — at 8,000kg SWL with large forklifts, a tine or wheel drifting off the ramp edge creates a serious tip and injury hazard that the side guards physically prevent.

2,300mm Wide Platform — Widest in the Series, Full Compatibility with Large Forklifts

The 2,300mm platform width is the widest in the LANDYINDUS container ramp series — 100mm wider than the standard 2,200mm of other models — accommodating wide-span forklift tines and oversized pallet loads. This ensures full compatibility with the large forklifts (4–5+ tonne class) that typically operate at the 8,000kg SWL level, where tine spans and machine widths are greater than smaller forklift classes.

Complete Container Ramp Series — Full Specification Comparison

Applications

• High-throughput freight terminals — premium 8T capacity, full-length side guard safety
• Large-scale distribution warehouses — wide loads, large forklift class, high-cycle
• Construction yards — heavy machinery, equipment staging, 8mm plate durability
• Industrial facilities — maximum structural integrity for years of intensive use
• Tight loading bays — three-directional fork pocket repositioning

Key Features

• 8,000kg SWL — maximum capacity in the series
• 8mm steel plate — 60% thicker than standard 5mm, long-term dimensional stability
• Flip-up front tine pockets + fixed side fork pockets — three-directional repositioning
• Full-length raised side guard plates — prevents tine/wheel drift, high-traffic safety
• 2,300mm wide platform — widest in series, large forklift class compatible
• Smooth sloped entry — load shock minimised, stable forklift crossing
• 395kg | 1,780×2,300×155mm

Specifications

Technical Drawing
