LANDYINDUS Heavy Duty Flail Mower | 116" (2,950mm) | 30 Hot-Forged Flails | Hydraulic Offset | SKF Bearings | 540 PTO | Cat 2-3 | 100-150HP | T-FLM3000

LANDYINDUS T-FLM3000 Heavy Duty Flail Mower | 116" (2,950mm) Working Width | 30 Hot-Forged Hammer Flails | Electronically Balanced Rotor | Optional Hydraulic Offset | SKF 100mm Bearings | 540 PTO with Free-Wheel | Cat 2-3 | 100–150HP

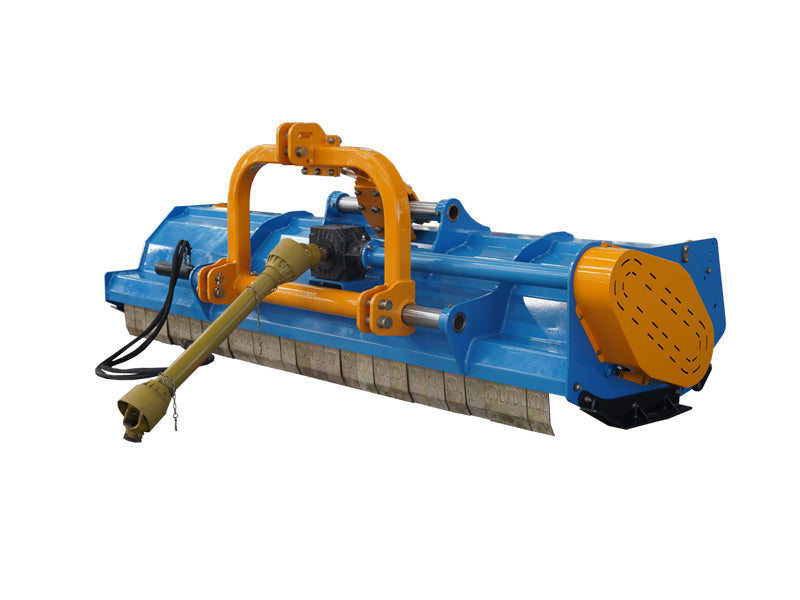

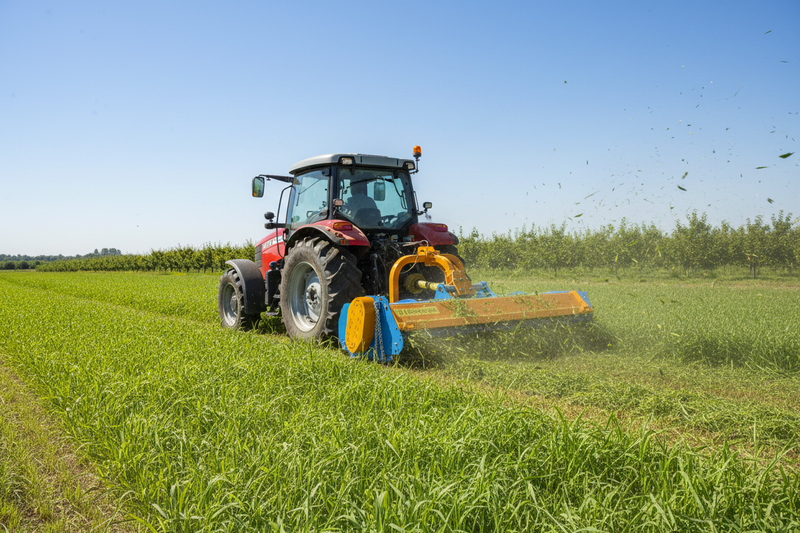

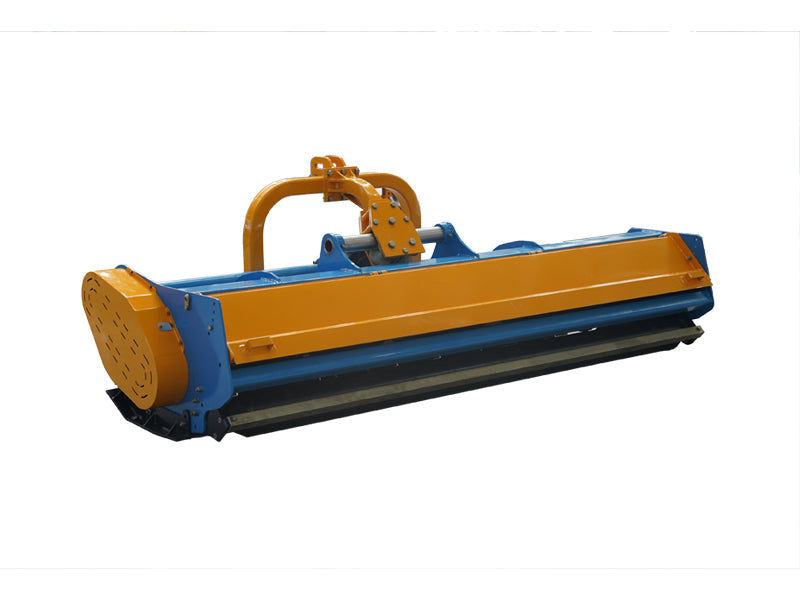

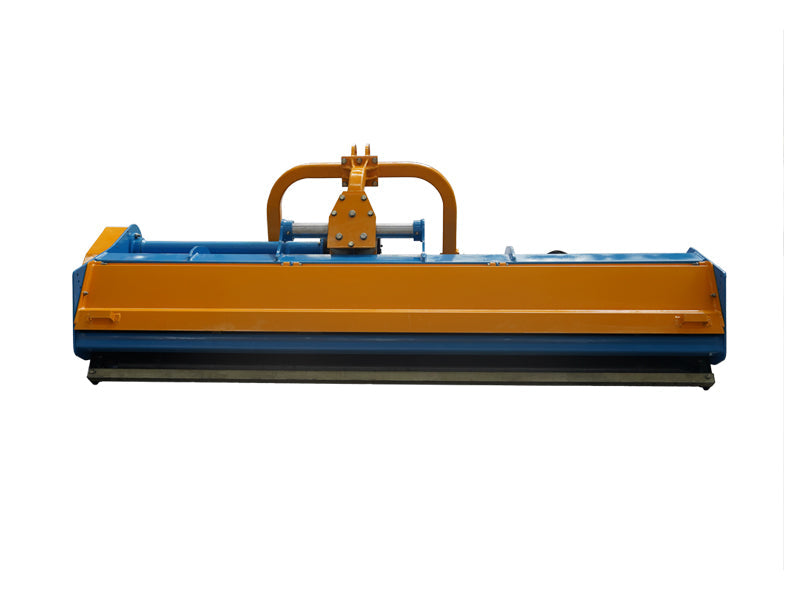

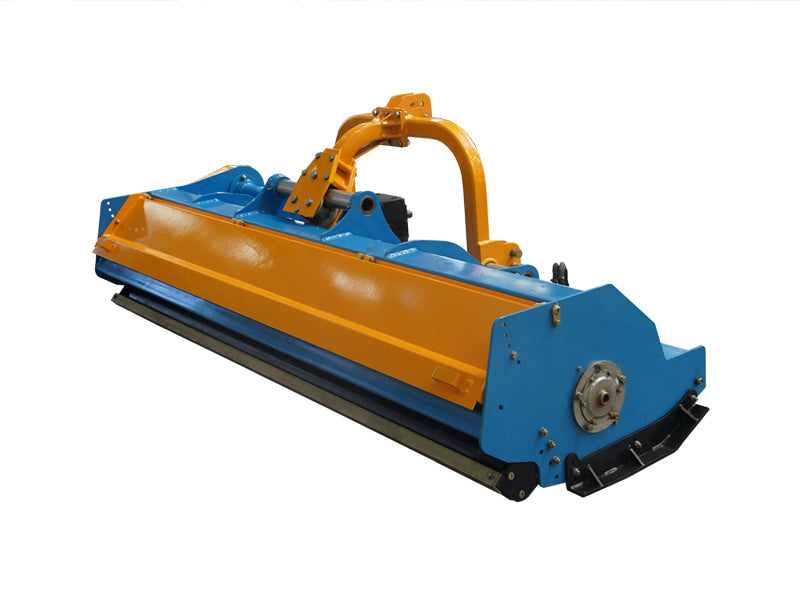

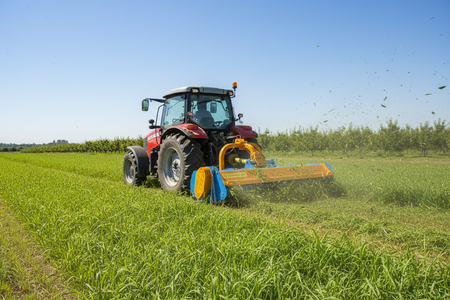

The LANDYINDUS T-FLM3000 is a professional-grade heavy-duty flail mower for tractor three-point hitch systems, with a working width of 2,950mm (116 inches) and a 30-flail rotor designed for tractors in the 100 to 150 horsepower range. Built for high-output grass mowing, twig shredding, vine cutting, and pruning residue management across open fields, orchards, olive groves, and vineyard rows, this PTO-driven flail mower delivers the cutting width, structural strength, and component quality required for professional agricultural and land management operations.

Adjustable Offset — Mechanical Standard, Optional Hydraulic In-Cab Adjustment for Orchard and Vineyard Row Work

The adjustable offset design allows the mower deck to be positioned laterally relative to the tractor centerline, enabling the operator to cut along fence lines, orchard rows, drainage channels, and road verges without driving the tractor directly over the area being mowed. Mechanical offset is standard; optional hydraulic side-shift is available for operators who require in-cab adjustment without stopping. This hydraulic offset capability is particularly valuable in orchard and vineyard applications where the mower needs to be repositioned frequently between tree rows of varying width, allowing consistent cutting coverage without repeated manual adjustments.

30 Hot-Forged Hammer Flails — Denser Steel Microstructure, Greater Impact Resistance vs Cast or Stamped Alternatives

The electronically balanced rotor carries 30 hot-forged hammer flails (50mm), each manufactured to precise dimensional tolerances to ensure even mass distribution and eliminate vibration under high-speed operation. Hot forging produces a denser, more impact-resistant steel microstructure than cast or stamped alternatives, giving each flail significantly greater resistance to deformation and fracture when striking rocks, stumps, and woody debris embedded in the cutting zone.

Electronically Balanced Rotor — Vibration-Free High-Speed Operation Across Full 2,950mm Working Width

The electronically balanced rotor ensures vibration-free operation at full working speed across the entire 2,950mm cutting width. Electronic balancing is critical on a rotor of this width — even minor mass imbalance at high RPM generates significant vibration that accelerates bearing wear, fatigues the mower frame, and transmits through the tractor three-point linkage to the cab.

SKF Bearings | 100mm Bore | Rotor Side Plates — Load Capacity and Service Life for Continuous High-Speed Operation

SKF bearings with a 100mm bore diameter are positioned at the rotor side plates, providing the load capacity and service life required for continuous high-speed operation under the lateral and radial forces generated by a 2,950mm rotor at full working speed. SKF is the global benchmark for agricultural machinery bearing specification — this is not a generic bearing substitution.

540 PTO Gearbox with Free-Wheel — Gearbox and Tractor PTO Shaft Protected from Shock Loads on Impact

The rotor is driven through a PTO gearbox rated at 540 rpm with an integrated free-wheel mechanism that protects the gearbox and tractor PTO shaft from shock loads generated by sudden rotor deceleration on impact. The free-wheel is a critical protection feature on a heavy rotor of this size — without it, sudden rotor arrest on a large rock or stump can transmit destructive torque spikes back through the driveline to the tractor PTO.

Single-Door Rear Bonnet — Fast Rotor, Flail and Bearing Access for Routine Maintenance

The rear bonnet opens on a single door for straightforward access to the rotor, flails, and bearing housings during routine maintenance and flail replacement, reducing service time compared to designs requiring full bonnet removal.

Full Safety and Ground-Following Specification

• Front safety chains — debris containment
• EC safety guards — regulatory compliance
• Adjustable side skids — consistent cutting height on uneven terrain
• Adjustable roller unit — ground following across variable terrain
• Adjustable stretcher and outer belt adjustment

Key Features

• 2,950mm (116") working width | 100–150HP tractor
• 30 hot-forged hammer flails (50mm) — impact resistance vs cast/stamped
• Electronically balanced rotor — vibration-free high-speed operation
• SKF 100mm bore bearings — rotor side plates, continuous heavy-duty service life
• 540 PTO gearbox with free-wheel — driveline shock load protection
• Mechanical offset standard | optional hydraulic in-cab side-shift
• Single-door rear bonnet — fast maintenance access
• Cat 2-3 three-point hitch | 1,230kg
• Grass, twigs, vines, pruning residue — fields, orchards, vineyards, road verges

Specifications
