LANDYINDUS Heavy Duty Forestry Root Rake | 20–40mm Hardened Steel Tines Scaled to Excavator Class | 140–185mm Wide Gap | Reinforced Lower Plate | 1,200–2,000mm | S30–S70 | 1–18T | Root Removal, Stump Clearing, Land Clearing & Site Preparation

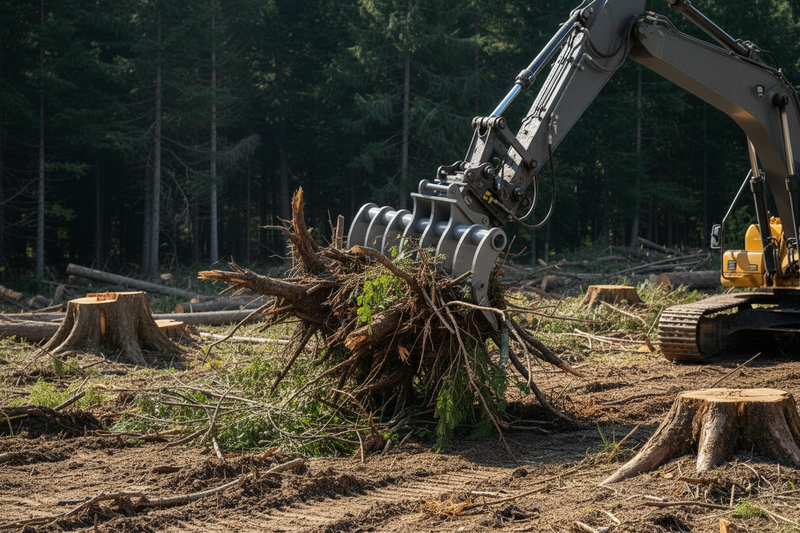

The LANDYINDUS Heavy Duty Forestry Root Rake is a professional-grade land clearing rake engineered for 1–18 ton excavators, purpose-built for forestry site preparation, root and stump removal, land clearing, brush raking, firebreak maintenance, and post-harvest site cleanup where standard light-duty rakes lack the structural strength and tine durability required for continuous heavy-load operation in demanding ground conditions.
E-RK Light Duty vs Forestry Root Rake — Two Rakes, Two Completely Different Applications
| Feature | E-RK Light Duty Rake | Forestry Root Rake (This) |
|---|---|---|
| Tine thickness | 10mm | 20–40mm — 2–4× thicker |
| Tine gap | ~70 mm | 140–185mm — 2× wider |
| Excavator class | 1–6T mini/compact | 1–18T full range |
| Ground engagement | Surface raking only | Root ripping, stump levering, rock clearing |
| Lower plate | Standard | Reinforced hardened steel — bending & wear protection |
| Applications | Gravel, ditch cleaning, landscaping | Forestry, land clearing, root removal, firebreaks |
| Weight range | 50–103kg | 64–712kg |
20–40mm Tine Thickness Scaled to Excavator Class — Maximum Durability Matched to Operating Forces
The tine thickness scales precisely with excavator operating weight to match tine strength to the digging and levering forces each machine class generates:
| Excavator Class | Tine Thickness | Tine Gap | Rationale |
|---|---|---|---|
| 1–2T (S30) | 20mm | 140mm | Compact machine — lower forces, weight-sensitive |
| 2–3.5T (S40) | 20mm | 150mm | Mini excavator — standard forestry forces |
| 4–6T (S45) | 20mm | 150mm | Compact — increased reach and leverage |
| 6–8T (S50) | 25mm | 150mm | Mid-range — higher ripping and levering forces |
| 10–14T (S60) | 30mm | 175mm | Large mid-range — significant root and stump forces |
| 16–18T (S70) | 40mm | 185mm | Large excavator — maximum tine strength for heavy forestry |
140–185mm Wide Tine Gap — Soil & Fine Debris Pass Through, Roots, Stumps & Rocks Retained
The wide tine spacing of 140–185mm allows loose soil, fine debris, and small stones to pass freely through the rake while retaining roots, stumps, large rocks, timber offcuts, and heavy brush for collection and removal. This makes the forestry root rake the ideal attachment for:
- Separating organic material from topsoil on land development sites
- Clearing root systems after tree felling — soil falls through, roots stay on tines
- Preparing ground for replanting, construction, or agricultural use
- Firebreak maintenance — clear brush and debris while leaving soil in place
Reinforced Lower Hardened Steel Plate — Bending & Wear Protection on Rocky, Root-Bound Terrain
The reinforced hardened steel lower plate provides additional structural protection against bending and wear during aggressive raking, pushing, and levering operations on rocky, root-bound, or heavily compacted terrain, significantly extending service life and reducing maintenance costs compared to standard rake attachments used in equivalent heavy-duty forestry environments.
Six Models — S30 to S70, 1T to 18T
| Model | Width (mm) | Dimensions W×D×H (mm) | Tine Thickness (mm) | Tine Gap (mm) | Bracket | Excavator | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ME-02T.FRR.1200-140-S30 | 1,200 | 1,200×438×414 | 20 | 140 | S30 | 1–2T | 64 |
| ME-03T.FRR.1300-150-S40 | 1,300 | 1,300×539×503 | 20 | 150 | S40 | 2–3.5T | 76 |
| ME-06T.FRR.1500-150-S45 | 1,500 | 1,500×611×587 | 20 | 150 | S45 | 4–6T | 169 |
| E-08T.FRR.1500-150-S50 | 1,500 | 1,500×762×730 | 25 | 150 | S50 | 6–8T | 237 |
| E-14T.FRR.1800-175-S60 | 1,800 | 1,800×869×858 | 30 | 175 | S60 | 10–14T | 400 |
| E-18T.FRR.2000-185-S70 | 2,000 | 2,000×1,077×1,008 | 40 | 185 | S70 | 16–18T | 712 |
Applications
- Forestry site preparation — root and stump removal after felling
- Land clearing — brush, scrub, heavy vegetation removal
- Firebreak maintenance — clear combustible material, leave soil
- Post-harvest site cleanup — timber offcuts, root systems, debris
- Civil site preparation — clear roots before construction
- Agricultural land development — prepare cleared land for cultivation
- Utility right-of-way maintenance — vegetation and root clearing
Key Features
- 20–40mm hardened steel tines — scaled to excavator class, maximum durability
- 140–185mm wide tine gap — soil passes through, roots/stumps/rocks retained
- Reinforced lower hardened steel plate — bending & wear protection
- 1,200–2,000mm working width — compact to large excavator coverage
- S30 / S40 / S45 / S50 / S60 / S70 — direct bracket fitment, no custom adapters
- 1–18T full excavator range | 64–712kg

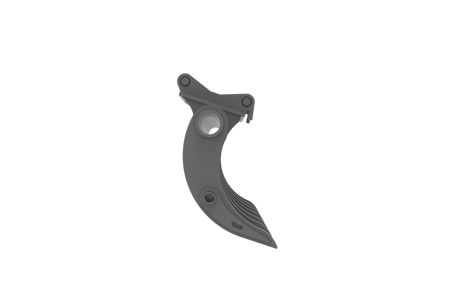

Technical Drawing:
