LANDYINDUS Heavy Duty Forklift Carriage Mounted Jib | Class 2A/3A/4A | Up to 6 Tonne | F-CNJ Series

LANDYINDUS F-CNJ Carriage Mounted Jib | 1.5T to 6.0T SWL | Class 2A, 3A, 4A | Heavy-Duty Forklift Crane

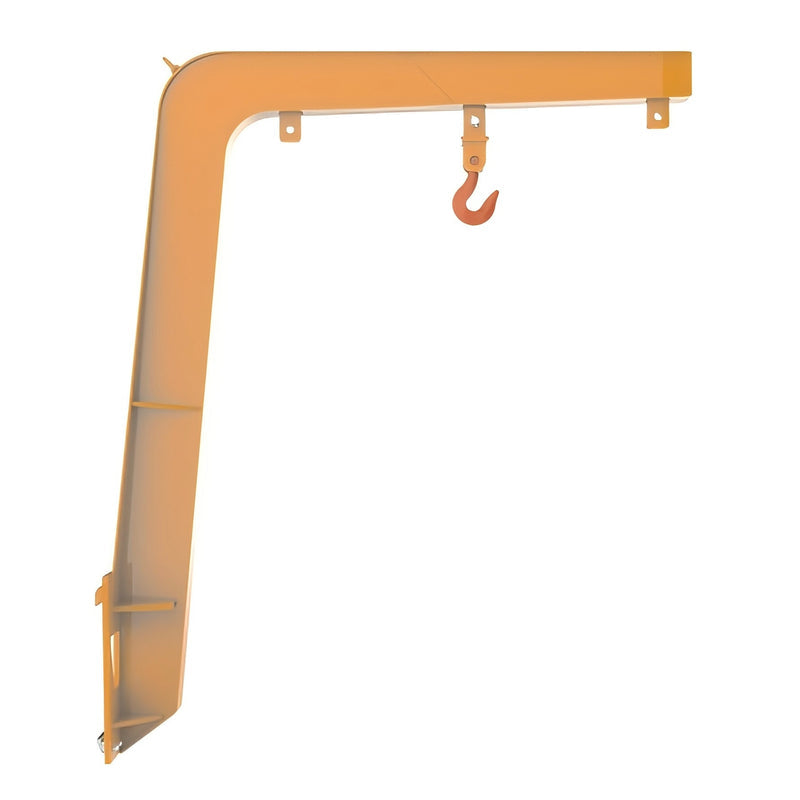

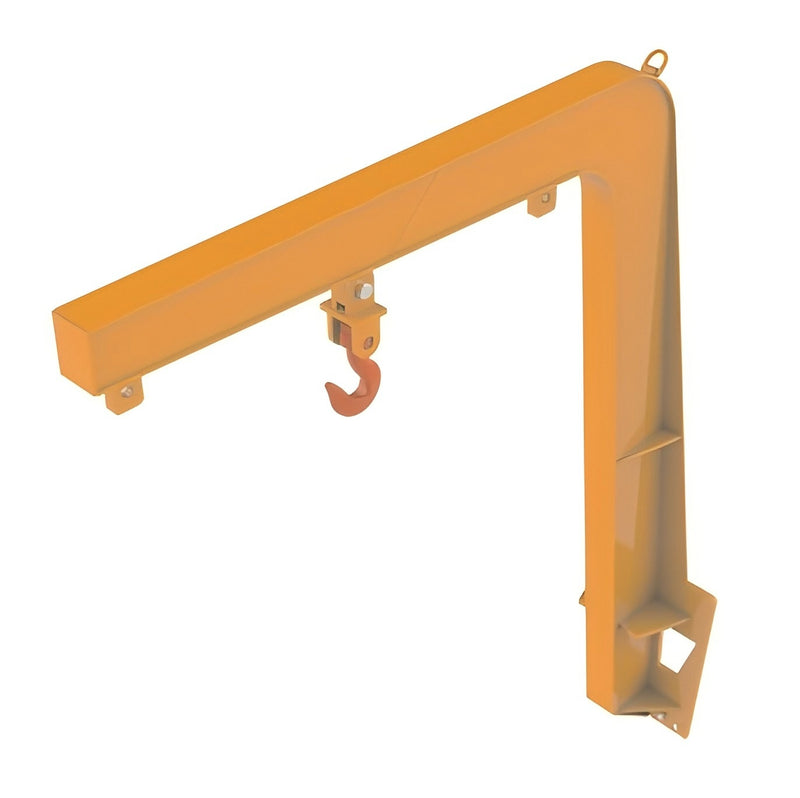

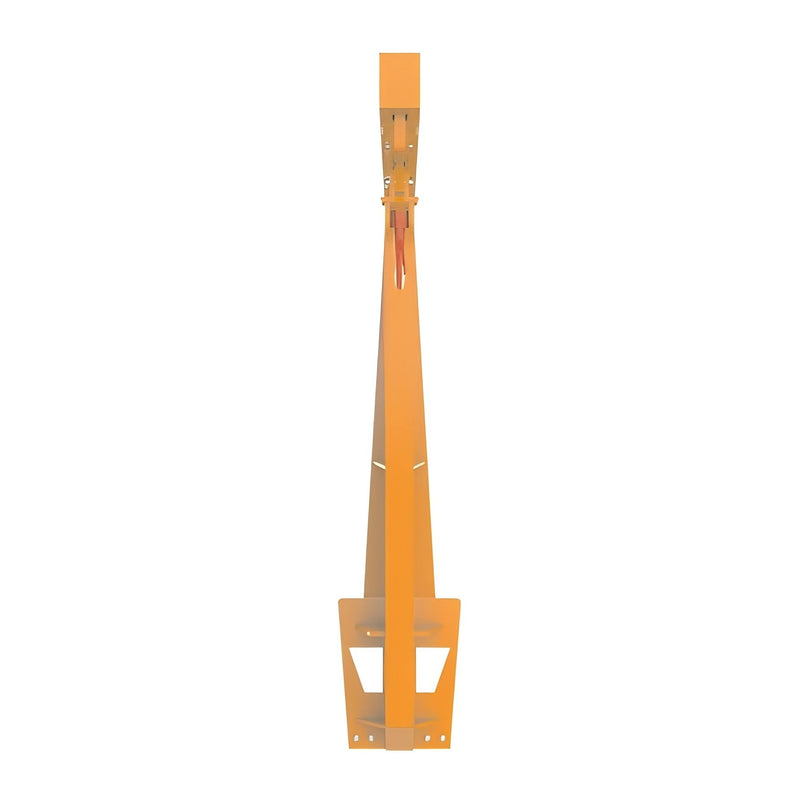

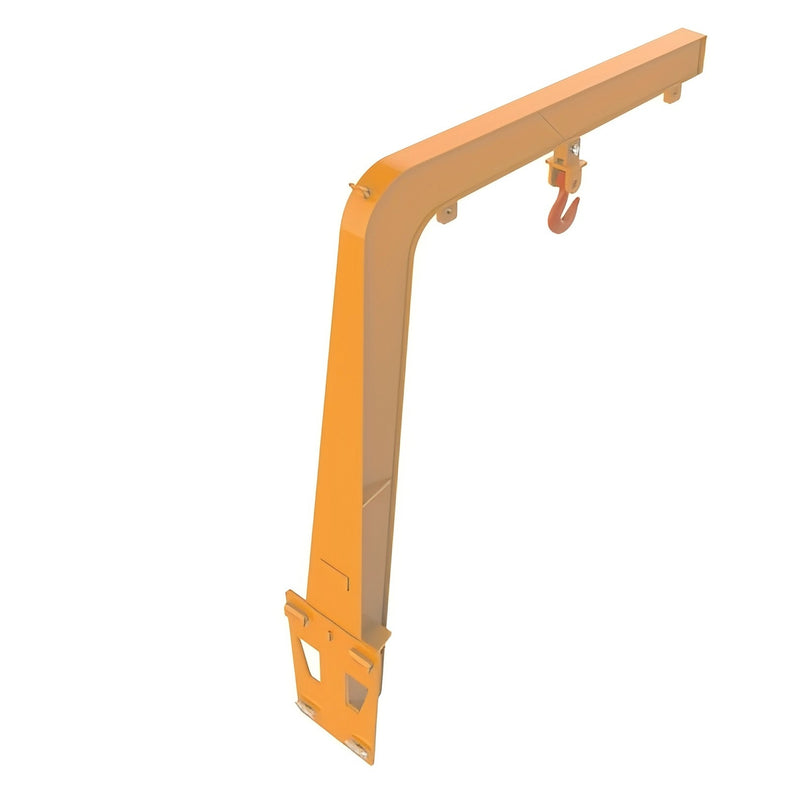

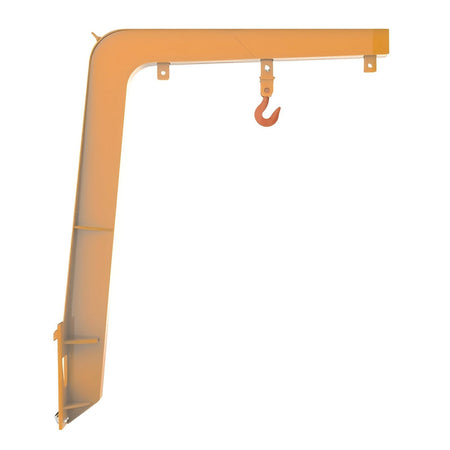

The LANDYINDUS F-CNJ Series is a heavy-duty carriage-mounted forklift jib attachment designed to deliver superior height, reach, and manoeuvrability for demanding industrial lifting operations.

Unlike standard slip-on jib attachments that slide over the tines, the F-CNJ mounts directly to the forklift carriage (replacing the standard forks). This provides a significantly more rigid and stable lifting platform that is particularly suited to precision lifts, elevated working heights, and applications where load control is critical.

Massive Capacity Range: 1.5 to 6.0 Tonnes

Compatible with standard forklift carriage classes 2A, 3A, and 4A, the F-CNJ series covers a massive safe working load (SWL) range from 1,500 kg up to 6,000 kg across multiple configurations. This makes it one of the most versatile carriage-mounted jib solutions available for counterbalance forklifts used in warehousing, construction, steel fabrication, heavy manufacturing, and infrastructure projects.

3 Hook Positions — Optimised Load Balancing

Three hook positions are incorporated into the F-CNJ design, giving operators the flexibility to select the optimal lift point based on load dimensions, weight distribution, and working clearance requirements. This multi-position hook system significantly expands the range of loads and lift scenarios the attachment can handle, reducing the need for repositioning the forklift between lifts and improving overall operational efficiency on site.

Multiple Height & Length Configurations

The F-CNJ series is available in a range of length and height configurations — with jib lengths from 1,500 mm to 2,000 mm and heights from 1,500 mm to 2,000 mm. This allows procurement teams to specify the exact combination that matches their forklift class, facility layout, and maximum overhead clearance requirements.

Class 2A Models (1.5T SWL)

Class 3A Models (2.5T – 4.0T SWL)

Class 4A Models (4.5T – 6.0T SWL)

Applications

• Steel Fabrication — stable, high-precision overhead lifting of heavy steel beams
• Precast Concrete — placing heavy concrete elements where standard forks lack reach
• Heavy Manufacturing — lifting industrial engines, dies, and machinery
• Construction — an affordable alternative to dedicated mobile cranes

Key Features

• Carriage mounted (removes forks) for maximum structural rigidity
• Massive capacity range: 1,500kg up to 6,000kg
• Compatible with standard Class 2A, 3A, and 4A forklift carriages
• 3 hook positions for optimal load balancing
• Multiple length (1.5m to 2.0m) and height (1.5m to 2.0m) profiles available
• Heavy-duty industrial-grade steel construction (up to 525kg attachment weight)

Technical Drawing
