LANDYINDUS Hydraulic Heavy-Duty Multi-Jaw Orange Peel Waste Grab | 605–1,977mm Opening Range | Class 3A (4–4.5T) | Requires 3 Aux Hydraulic Circuits | High-Volume Scrap Metal & Logging Waste

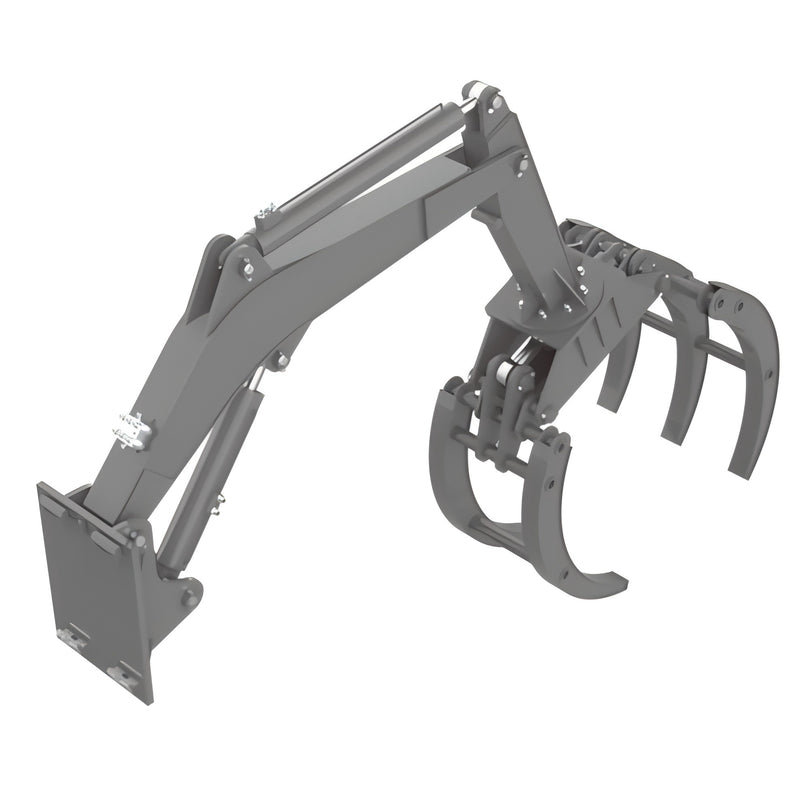

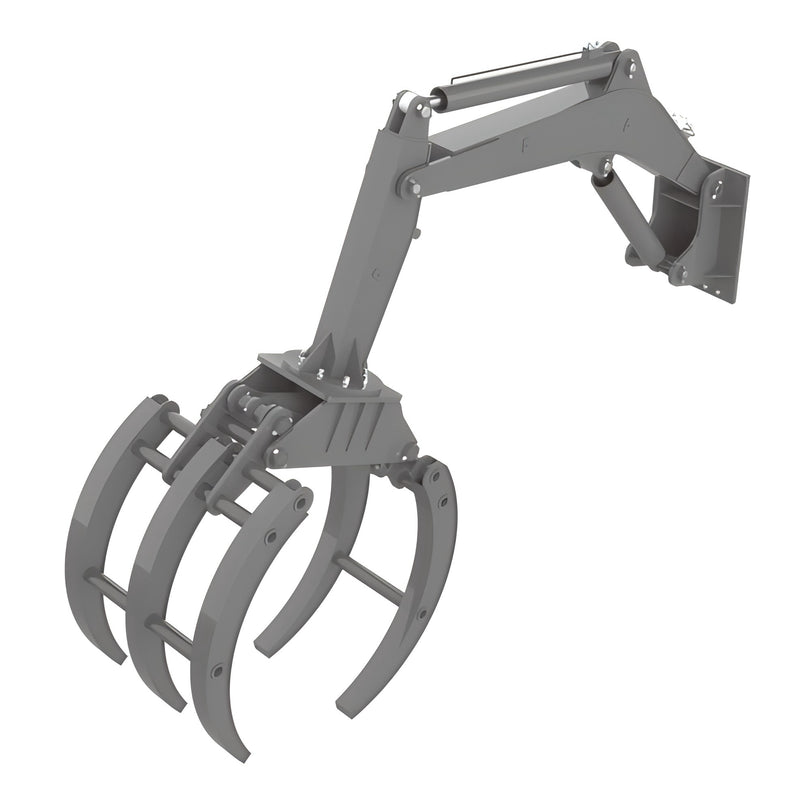

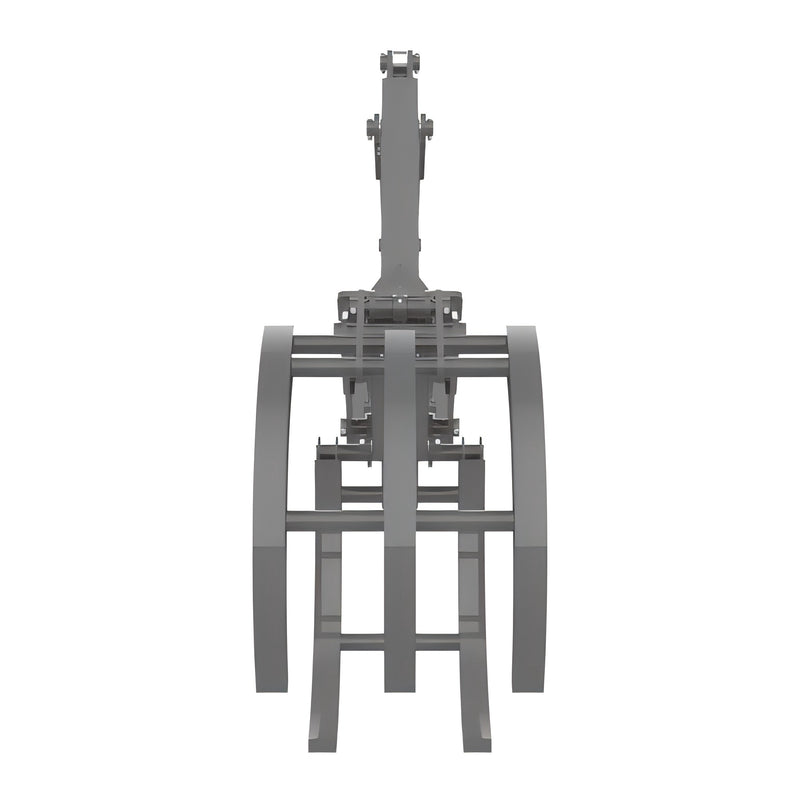

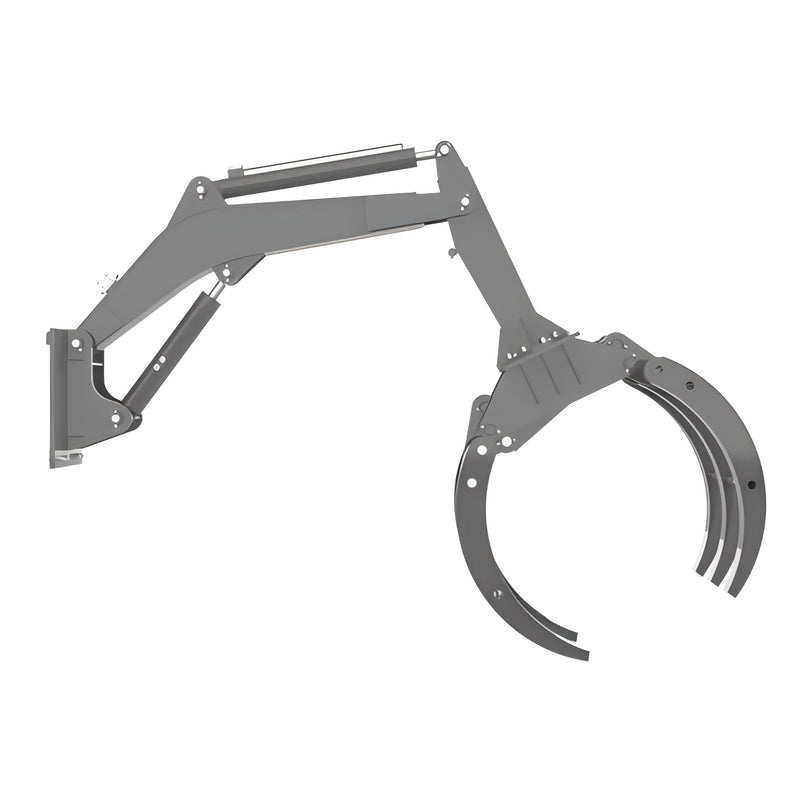

The LANDYINDUS Hydraulic Heavy-Duty Orange Peel Waste Grab is a large-format forklift attachment engineered for high-volume scrap metal collection, bulk industrial waste handling, and large-format log and timber waste processing. Designed specifically for Class 3A forklifts in the 4–4.5 tonne range, this hydraulic waste grab delivers the jaw capacity, opening range, and structural mass required to handle larger, denser, and higher-volume material loads that exceed the operational limits of lighter 3-tonne class attachments.
1,977mm Massive Opening Range — High-Volume Material Collection
The large-format multi-jaw grab mechanism operates across a working opening range of 605mm to 1,977mm — a jaw spread that accommodates the full range of large-volume scrap metal accumulations, oversized iron pin bundles, large-diameter log sections, and high-density mixed industrial waste loads.
- Maximum Opening (1,977mm): Provides the massive jaw spread required to envelop and collect large-volume loose material piles in a single grab cycle, reducing the total number of forklift passes required to clear a site.
- Minimum Opening (605mm): Ensures that the grab maintains positive clamping engagement and compression on dense material loads even when fully closed.
This wide operating range makes the grab equally effective across the full spectrum of material densities and pile configurations encountered in heavy industrial scrap and waste handling operations.
760kg Heavy-Duty Frame — Built for 4–4.5 Tonne Forklifts
Measuring 810mm wide, 2,860mm deep, and 2,105mm high, and weighing 760kg, the heavy-duty grab frame is dimensioned and constructed for the structural demands of 4–4.5 tonne class forklift operations. The attachment mass, jaw force, and structural rigidity are scaled to match the higher hydraulic output and load capacity of the host forklift.
The larger frame dimensions provide a broader jaw engagement envelope compared to the 3-tonne class (F-DBFLJ3A30) grab configurations, allowing the attachment to reach deeper into high-volume scrap piles and waste accumulations without requiring multiple partial-load grab cycles to clear the material.
Multi-Jaw Grab Series Comparison — 3T vs 4.5T Class
| Feature | F-DBFLJ3A30-330 (3T) | F-DBFLJ3A30-800 (3T) | Heavy-Duty Model (4.5T - This) |
|---|---|---|---|
| Suit Forklift | 3–3.5 T | 3–3.5 T | 4–4.5 T |
| Opening Range | 380–1,225 mm | 440–1,366 mm | 605–1,977 mm — Massive Spread |
| Dimensions (H) | 1,560 mm | 1,600 mm (approx) | 2,105 mm |
| Weight | 595 kg | 680 kg (approx) | 760 kg — Heavy Industrial |
| Hydraulics | 3 Aux Circuits | 3 Aux Circuits | 3 Aux Circuits |
| Best For | Standard scrap & swarf | Higher-volume waste | Max throughput, large logs, dense scrap |
3 Auxiliary Hydraulic Circuits Required — Full Multi-Axis Control
The three-circuit hydraulic system provides independent control of jaw opening and closing, rotational positioning, and additional actuation axes required for full multi-directional grab operation from the forklift cab. The system operates at a working pressure of 16 MPa with a hydraulic flow requirement of 60 LPM.
The three-circuit configuration enables simultaneous control of jaw position and grab orientation, allowing the operator to align the grab precisely with irregularly positioned material piles and to orient the collected load accurately for deposit into processing equipment (e.g. shredders, balers), transport vehicles, and waste containers without dismounting.
Applications
- Heavy-duty scrap metal recycling yards — loading large-volume scrap iron accumulations onto transport vehicles
- Steel processing plants & Foundries — handling dense iron pin and swarf waste
- Large-scale waste processing facilities — managing high-volume mixed industrial waste
- Timber processing & Forestry — collecting and transporting large-diameter log waste
- Heavy industrial manufacturing — clearing bulk material accumulations across large sites
Key Features
- 605mm to 1,977mm massive opening range — high-volume collection per cycle
- Engineered specifically for 4–4.5 tonne Class 3A forklifts
- Requires 3 auxiliary hydraulic circuits for full multi-axis control from cab
- 16 MPa / 60 LPM hydraulic parameters
- 760kg heavy-duty structural mass — deeper pile penetration
- High-strength steel construction — withstands impact and abrasion in harsh environments
Specifications
| Model | Class | Dimensions W×D×H (mm) | Opening Range (mm) | Pressure (MPa) | Flow (LPM) | Weight (kg) | Suit Forklift |
|---|---|---|---|---|---|---|---|
| F-DBFLJ3A40 (Heavy-Duty) | 3A | 810×2,860×2,105 | 605–1,977 | 16 | 60 | 760 | 4–4.5 T |
Technical Drawing
1. 3 Auxiliary Circuits Required: This is a highly complex multi-axis attachment that requires three independent auxiliary hydraulic circuits (valves) on the forklift to operate grab opening/closing and rotation simultaneously. Standard forklifts do not typically have 3 spare circuits. Confirm your forklift has 3 available auxiliary circuits before ordering.
2. Carriage Class Verification: Confirm your forklift has an ISO Class 3A carriage and is rated in the 4–4.5T capacity range before ordering.
3. Heavy Application Warning: The attachment itself weighs 760kg and pushes the load centre forward significantly. When handling dense materials like scrap iron, the combined weight can easily exceed the forklift's Safe Working Load (SWL). Always consult your forklift's de-rated capacity chart.
