Product Overview

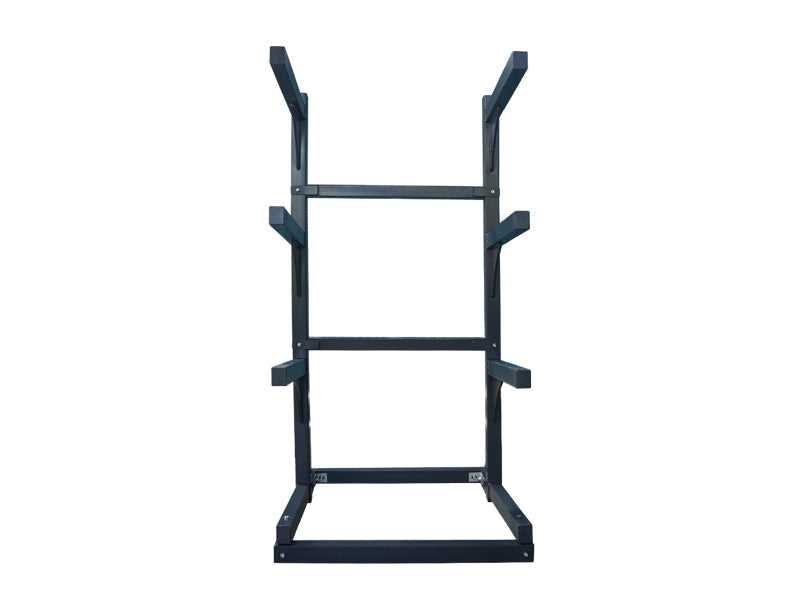

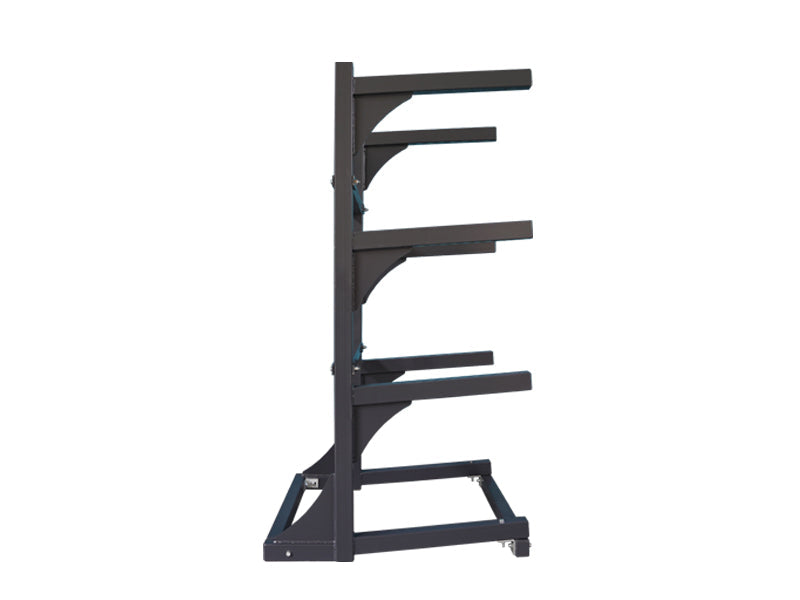

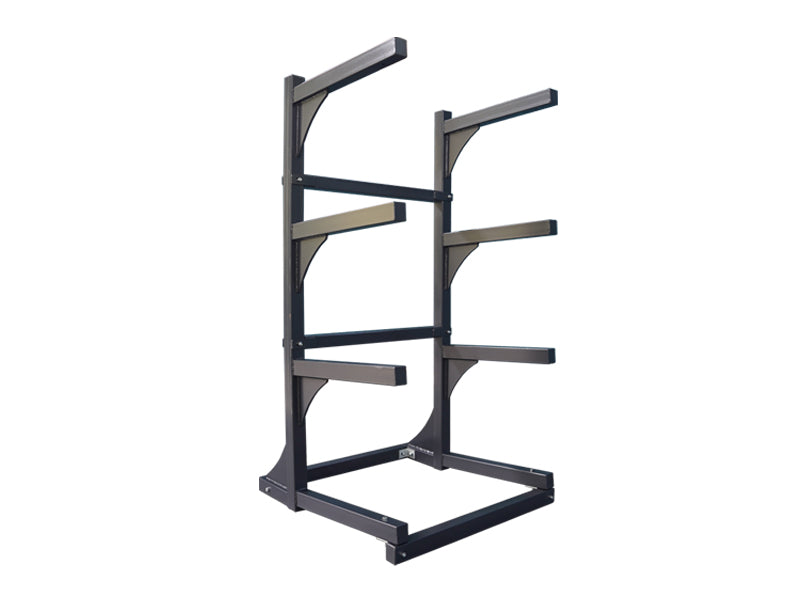

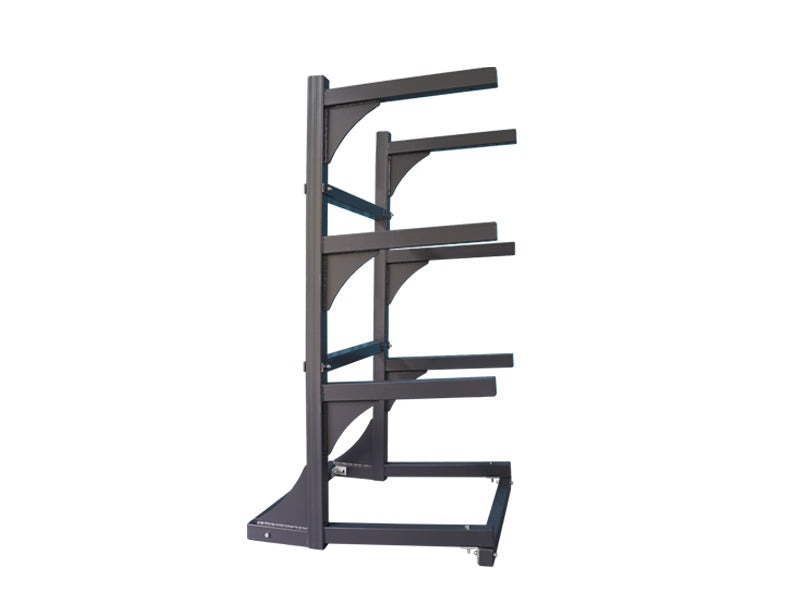

Tired of cluttered equipment yards and damaged bucket cutting edges? The LANDYINDUS G-BBR Series Heavy-Duty Skid Steer Bucket Rack organizes 4 or 8 attachments vertically in an ultra-sturdy welded steel frame.

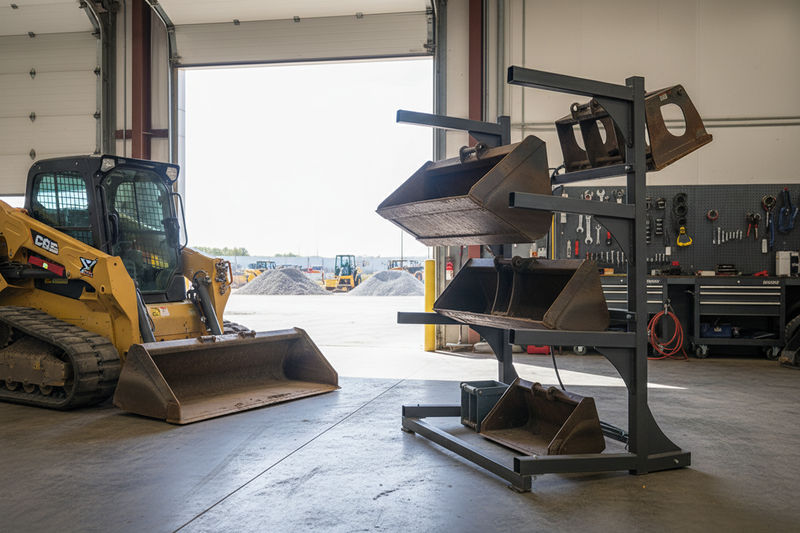

The LANDYINDUS G-BBR Series heavy-duty bucket storage racks are engineered specifically for skid steer loaders, compact track loaders, and agricultural tractors. Designed to solve equipment yard congestion and attachment wear, this heavy-gauge vertical racking system safely organizes multiple digging, trenching, material, and 4-in-1 buckets on job sites, equipment rental yards, farms, and industrial maintenance depots.
Core Selling Points
- High-Capacity 4 & 8 Bucket Formats: Available in G-BBR-4 (holds 4 buckets, 384kg tare) and G-BBR-8 (holds 8 buckets, 524kg tare) to match single-machine operations or multi-fleet equipment yards.
- Vertical Space-Saving Footprint: Compact design standing up to 2,865mm high reclaims valuable workshop yard space while keeping bucket cutting edges off wet soil to eliminate rust and corrosion.
- Heavy-Gauge Welded Steel Construction: Fabricated with thick structural steel tubing and reinforced bracing to easily withstand the punishing weight of commercial excavator and skid steer attachments.
- Fast Drive-In Attachment Changes: Tiered staging allows operators to align quick-attach hitches effortlessly, speeding up attachment swaps between digging, grading, and material handling jobs.
Specifications
| Type | Bucket Capacity | Dimension (W×D×H) / mm | Weight / kg |
|---|---|---|---|
| G-BBR-4 | Holds up to 4 Buckets | 1400×1520×2780 | 384 |
| G-BBR-8 | Holds up to 8 Buckets | 1400×2090×2865 | 524 |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- Concrete Anchor Bolt Requirement: Due to the tall vertical profile (~2.8m), this rack MUST be securely anchored to a solid, level concrete foundation using heavy-duty masonry anchors before loading any attachments.
- Loading Sequence & Anti-Tip Protocol: Always load the bottom tiers first and unload the top tiers first to keep the centre of gravity low and prevent structural tipping.
- Mechanical Loading Only: Position and retrieve buckets strictly using skid steer quick-attach plates or certified forklifts. Never attempt manual lifting or positioning of heavy buckets.
- Bucket Clearance & Seating Check: Verify that bucket widths and cutting edge depths rest squarely across the rack support beams without hazardous overhang.
