LANDYINDUS Heavy Duty Skid Steer Grapple Bucket Attachment | 63 67 72 85 Inch | MP1140 Universal Quick Attach

LANDYINDUS Heavy Duty Skid Steer Grapple Bucket Attachment | 63 / 67 / 72 / 85 Inch | MP1140 Universal Quick Attach

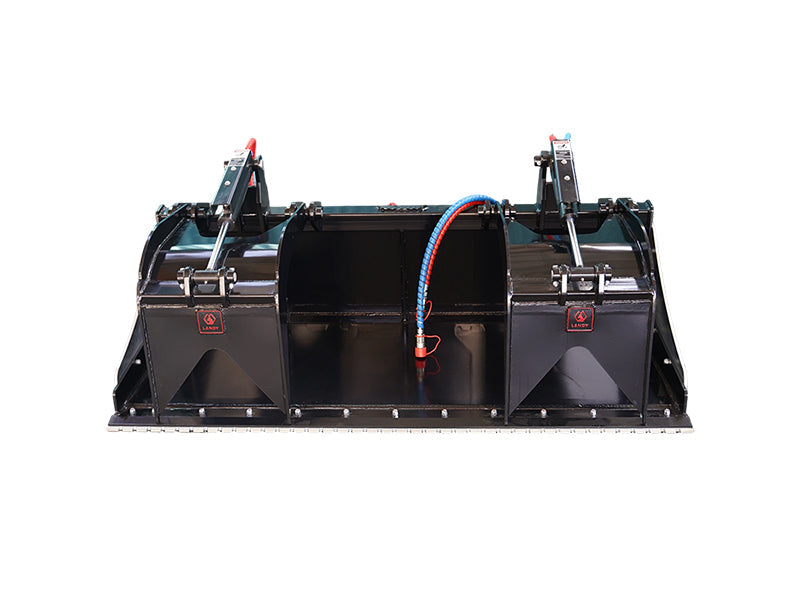

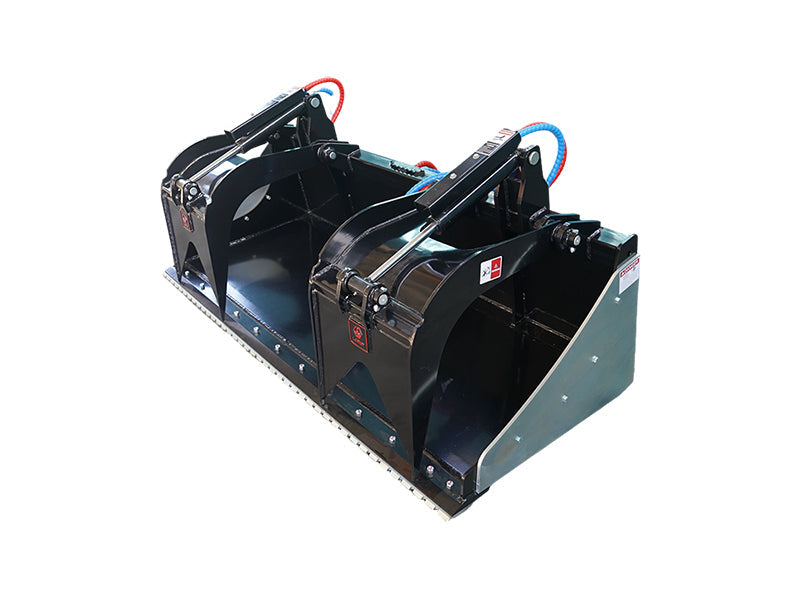

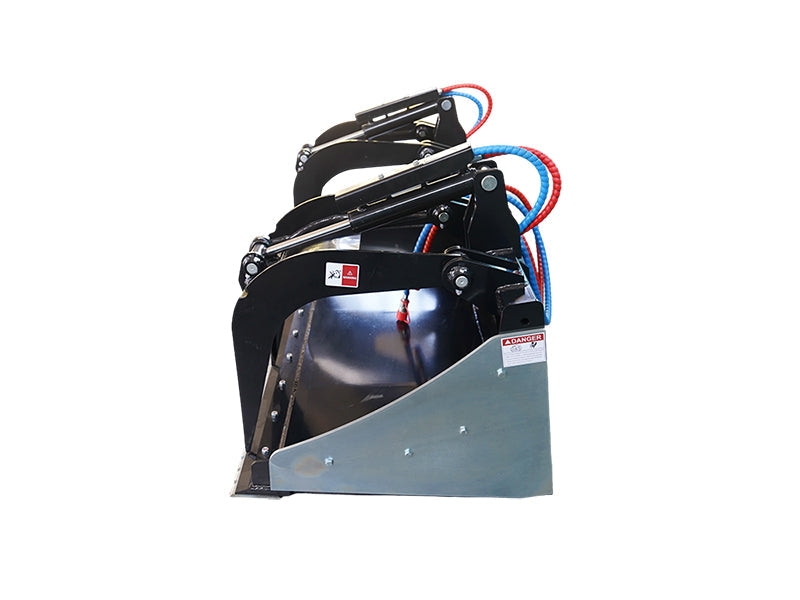

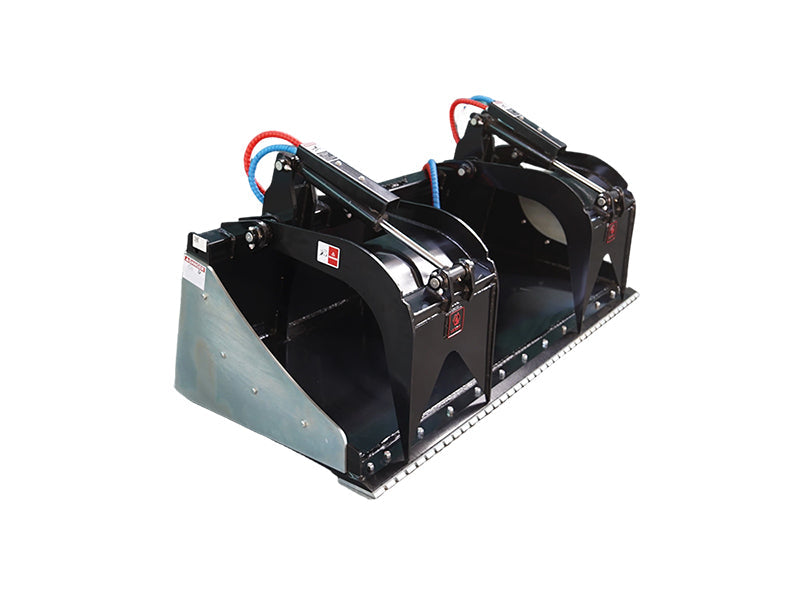

The LANDYINDUS Skid Steer Grapple Bucket is a heavy-duty attachment engineered for demanding land clearing, rock handling, brush removal, and debris cleanup applications. Whether working on a construction site, farm, or forestry project, this grapple bucket delivers the gripping strength and bucket capacity to handle large, irregular loads that standard buckets simply cannot manage — loading, lifting, and sorting boulders, logs, loose debris, and brush piles with precision and efficiency.

10mm Steel Body & Tines | 20mm Welded Cutting Edge | Reinforced Ribbed Bottom — Superior Penetration & Long-Term Durability

Built to withstand the toughest job site conditions, the grapple bucket features a 10mm reinforced steel body and 10mm tines paired with a 20mm welded cutting edge for superior penetration and long-term durability. The deepened bucket design increases loading capacity per cycle, reducing the number of passes needed to clear a work area. A reinforced ribbed bottom adds structural integrity under heavy loads, while grease fittings at all pivot points ensure easy maintenance and extended service life.

Enclosed Cylinders & Hoses | 2" Bore / 254mm Stroke | Tubing-Routed Hydraulic Lines — Full Protection from Debris Impact

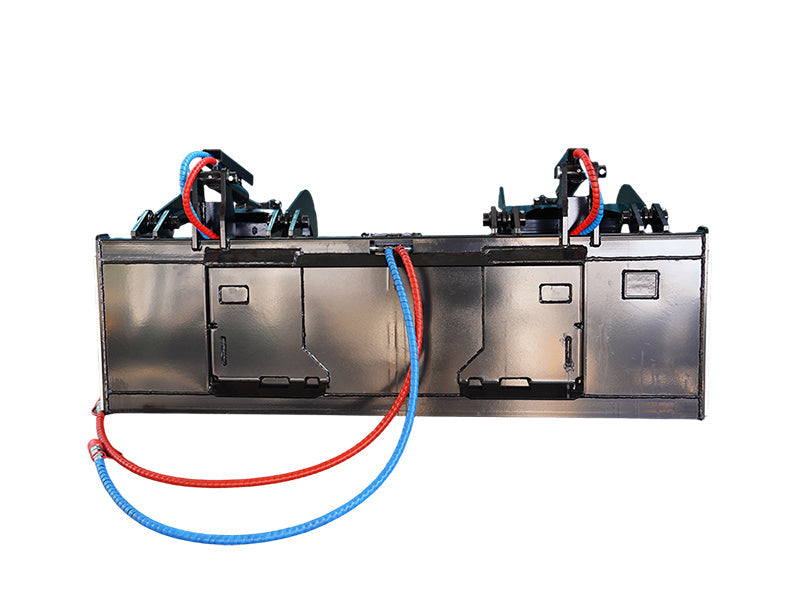

The hydraulic system features 2-inch bore and 254mm (10") stroke cylinders supporting an operating pressure of up to 16 MPa and a hydraulic flow of 60 LPM. All hydraulic lines are tubing-routed for wear resistance, and the enclosed cylinders and hoses are fully protected from debris impact during operation. A cylinder protection cover is included as standard — optional rod covers available for additional protection in extreme environments. Optional reversible bolt-on cutting edge also available.

980mm Opening Range | 1,280–1,725kg SWL — Four Widths for Every Machine & Application

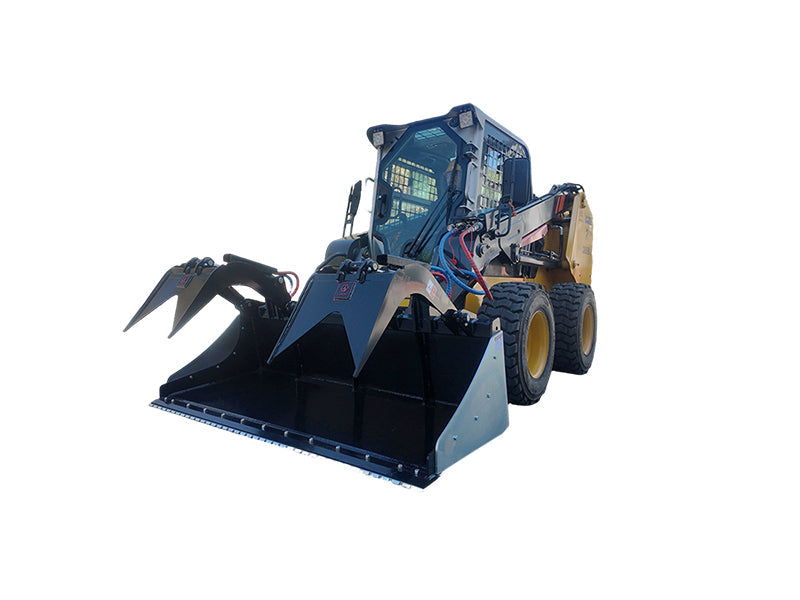

Available in four widths — 63", 67", 72", and 85" — with a full opening range of 980mm and safe working loads ranging from 1,280kg to 1,725kg depending on model. Compatible with most standard skid steer loaders and compact track loaders equipped with a universal MP1140 quick attach plate.

Key Features

• 10mm steel body & tines | 20mm welded cutting edge — superior penetration & durability
• Deepened bucket design — larger loading capacity per cycle, fewer passes
• Reinforced ribbed bottom — structural integrity under heavy loads
• Enclosed cylinders & hoses — fully protected from debris impact during operation
• Cylinder protection cover included as standard — optional rod covers available
• 2" bore / 254mm stroke cylinders | 16 MPa | 60 LPM
• Tubing-routed hydraulic lines — wear-resistant routing throughout
• Grease fittings at all pivot points — easy maintenance, extended service life
• 980mm full opening range | 1,280–1,725kg SWL across four widths
• Universal MP1140 quick attach — most skid steer loaders & compact track loaders

Technical Drawing:

Specifications
