LANDYINDUS S-HDPS610(125-520)-MP1140 Heavy Duty Skid Steer Pole Setter | Double Cylinder Rotating | 610kg SWL | 125–520mm Jaw | Utility & Power Pole Installation | MP1140 Universal Quick Attach

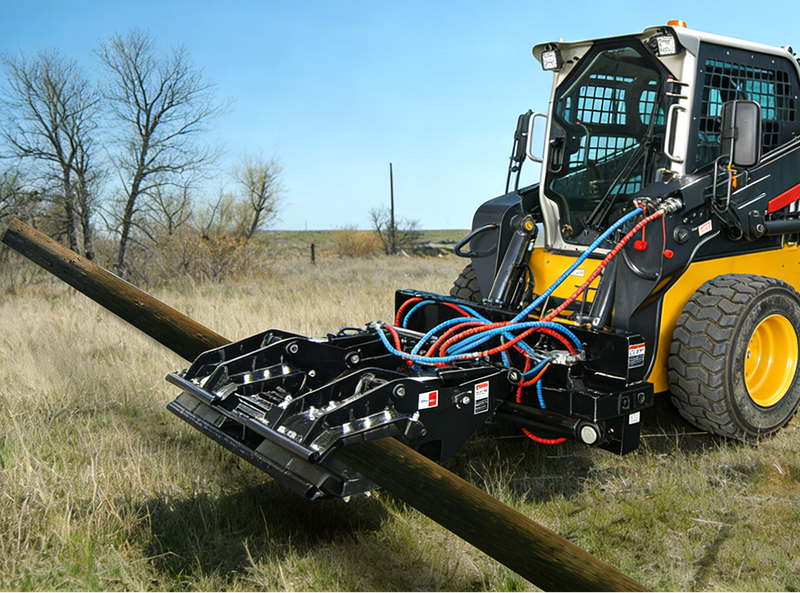

The LANDYINDUS S-HDPS610 Heavy Duty Skid Steer Pole Setter is engineered for operators who need to pick up, transport, and set large utility poles, power poles, and heavy fence posts — directly from the ground or off a trailer — without leaving the cab. With a safe working load of 610kg (1,345 lbs) and the ability to handle poles up to 45 feet long, this hydraulic utility pole setter attachment is built for the most demanding commercial and municipal installation jobs.

Two 3″ × 6″ Hydraulic Cylinders | Double Cylinder Rotating Base — Swing Pole from Horizontal to Vertical with Precision & Control

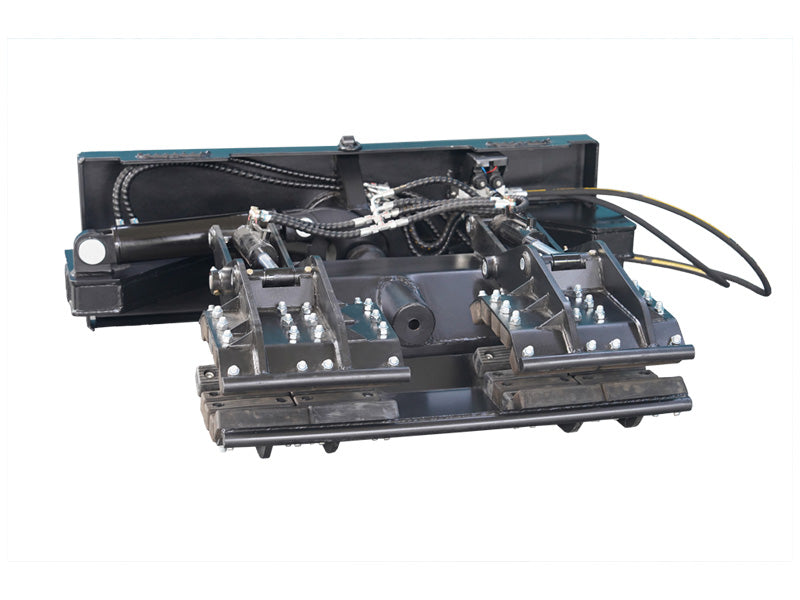

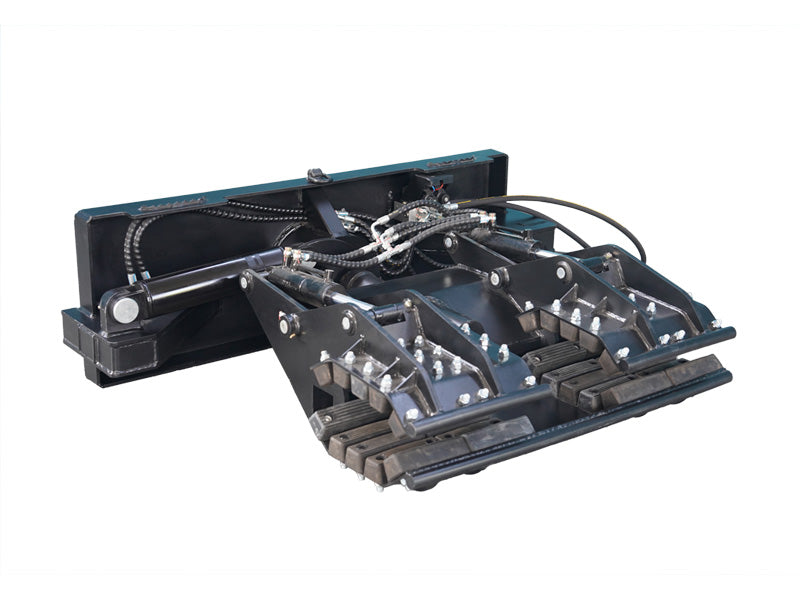

Clamping force is delivered by two 3-inch × 6-inch hydraulic cylinders — significantly larger than standard pole setter cylinders — providing the clamping force required for heavy utility and power poles. The double cylinder rotating base allows the operator to swing the pole from horizontal to vertical with precision and control from the cab. The attachment features two independent jaws that open and close in sequence, keeping the pole locked and stable throughout every phase of the lift, rotate, and placement cycle.

½" Grade 80+ Steel | Integrated Backing Plate — Maximum Durability, Pole Held Above Machine During Transport

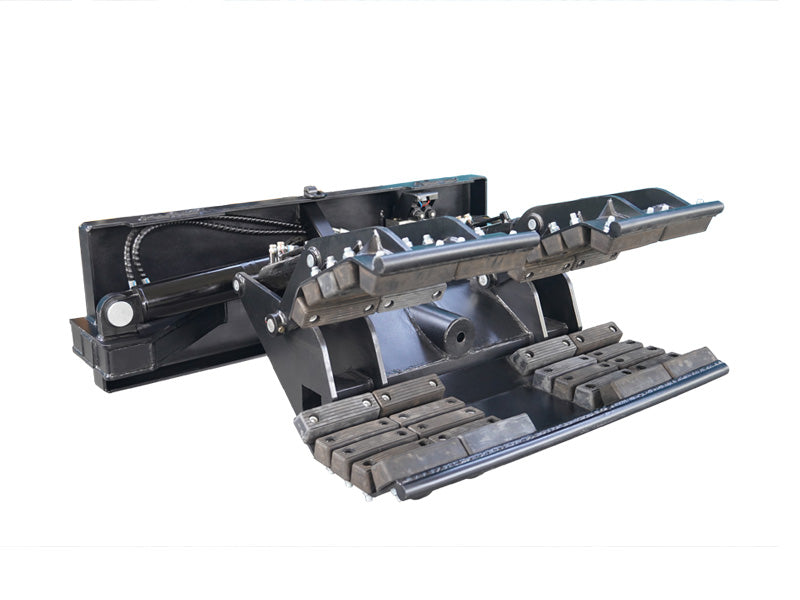

The entire structure is fabricated from ½-inch Grade 80 or higher steel for maximum durability under continuous heavy-use conditions. The integrated backing plate holds the pole above the skid steer during transport, minimising swing and movement — a critical safety feature when transporting long, heavy poles across active job sites. Rubber lining on each jaw protects the pole surface from damage during clamping.

125–520mm Jaw Opening | 16 MPa | 60 LPM — Wide Pole Diameter Range, Standard Skid Steer Hydraulics

With an opening range of 125–520mm, this heavy-duty pole setter accommodates a significantly wider range of pole diameters than the standard S-PS540 (75–355mm) — covering large-diameter utility poles, power poles, and heavy structural posts. Operating at 16 MPa with a hydraulic flow requirement of 60 LPM, the S-HDPS610 integrates seamlessly with most standard skid steer hydraulic systems. At 605kg with overall dimensions of 1,640 × 1,328 × 505mm.

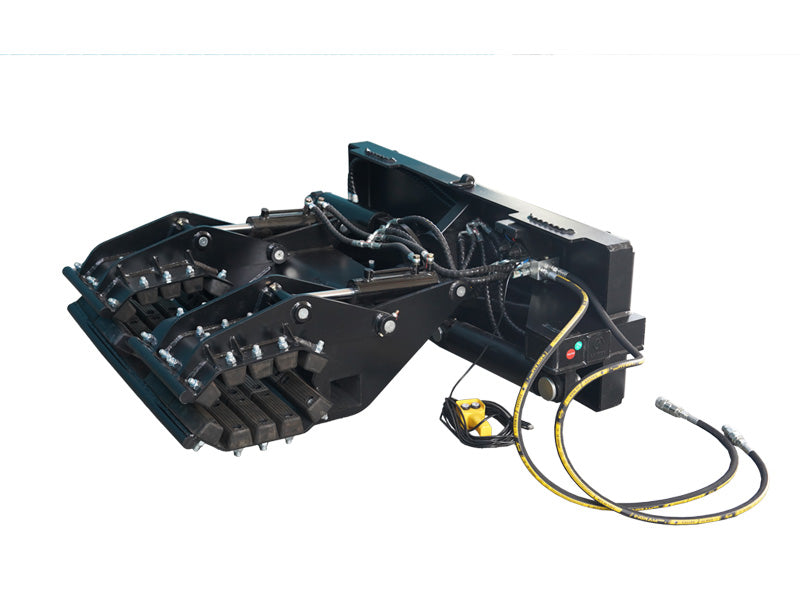

Ready to Work Out of the Box — Flush-Faced Couplers, Spring Hose Mount & Wiring Harness Included

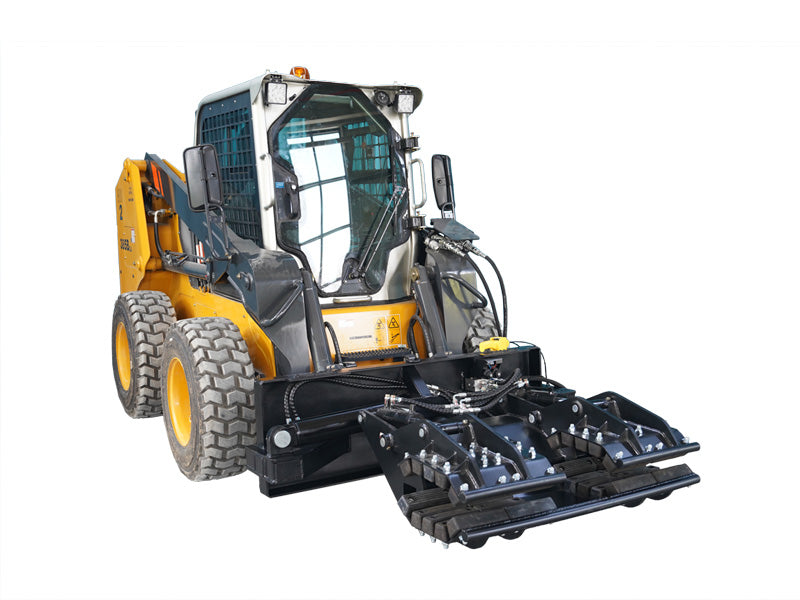

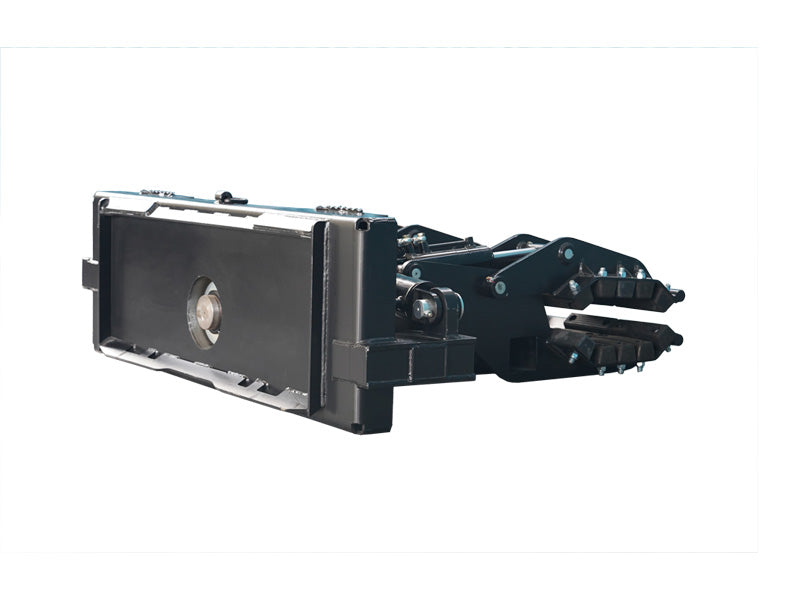

The attachment mounts to any skid steer loader via universal MP1140 quick-attach plate and comes complete with flush-faced couplers, a spring hose mount, and a wiring harness — ready to work straight out of the box with no additional hardware purchases required.

S-HDPS610 vs S-PS540 — When to Choose the Heavy Duty Model

Key Features

• 610kg (1,345 lbs) SWL — utility poles, power poles & heavy fence posts up to 45 ft
• Two 3″×6″ hydraulic cylinders — heavy-duty clamping force for large-diameter poles
• Double cylinder rotating base — horizontal to vertical swing with cab-controlled precision
• Two independent sequential jaws — pole locked & stable throughout lift, rotate & placement
• ½″ Grade 80+ steel construction — maximum durability under continuous heavy-use
• Integrated backing plate — pole held above machine during transport, minimises swing
• Rubber-lined jaws — protects pole surface from clamping damage
• 125–520mm jaw opening — wide-diameter utility & power poles
• 16 MPa | 60 LPM — standard skid steer auxiliary hydraulics
• 1,640×1,328×505mm | 605kg
• Flush-faced couplers, spring hose mount & wiring harness included — ready out of box
• Universal MP1140 quick attach — fast tool-free installation on any skid steer
