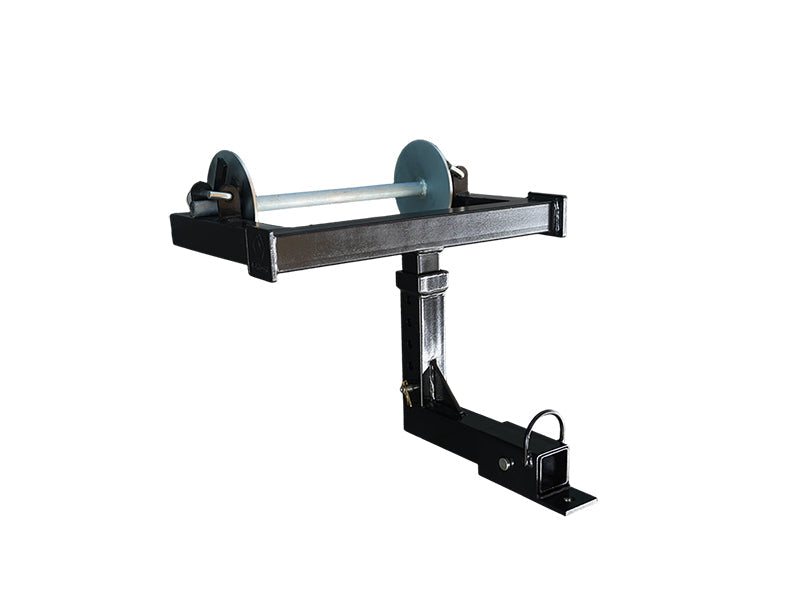

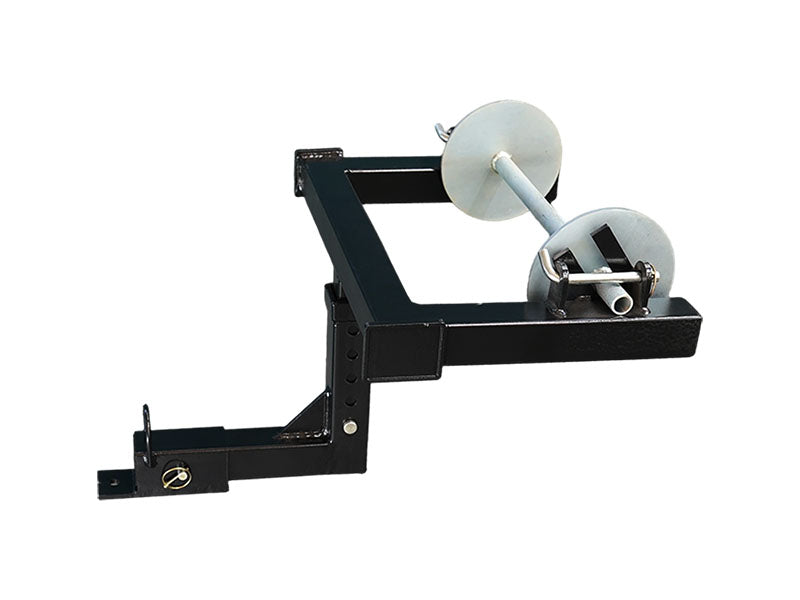

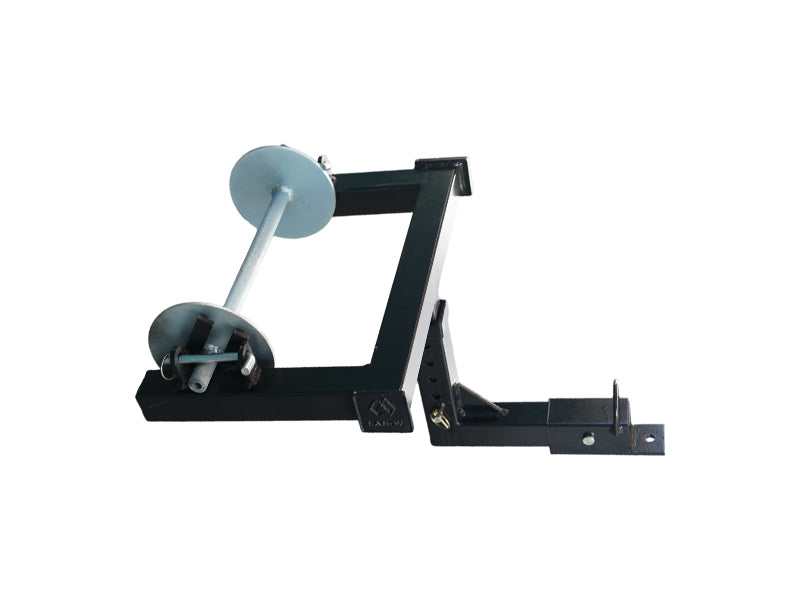

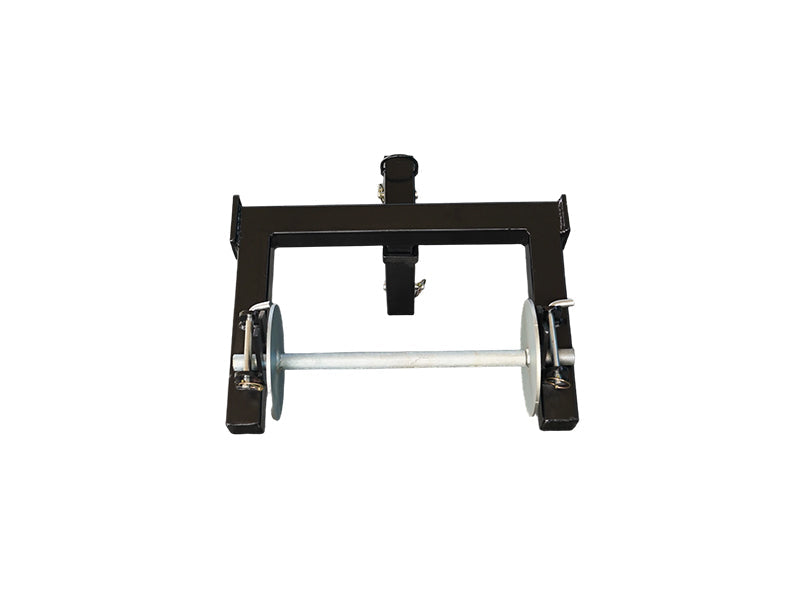

LANDYINDUS Hitch Mount Barbed Wire Unroller | 80 Rod (1,320 ft) | 16" Spool | Tractor ATV UTV Pickup | Fence Installation | T-BWU24

LANDYINDUS T-BWU24 Hitch Mount Barbed Wire Unroller | 80 Rod (1,320 ft / 402m) Capacity | 16" (410mm) Max Spool Width | Standard Receiver Hitch | Tractor, ATV, UTV & Pickup | Single-Operator Fence Installation

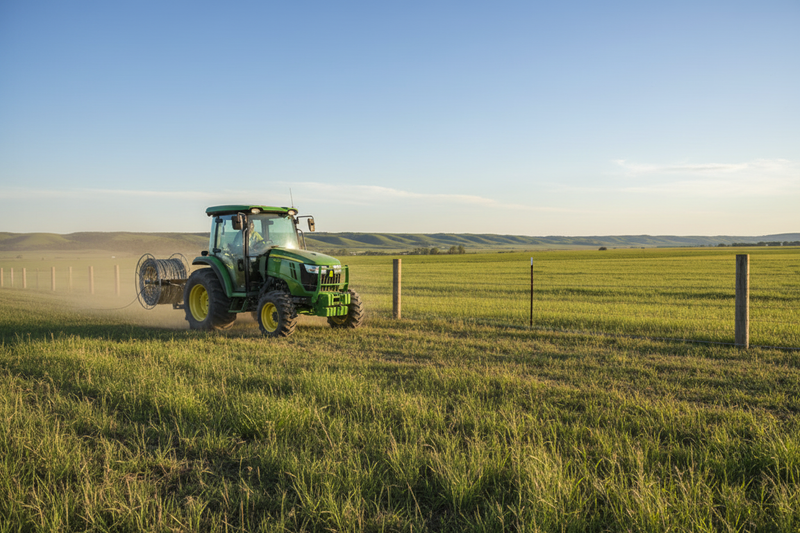

Stringing barbed wire across a pasture or property boundary by hand is one of the most physically demanding and hazardous tasks in agricultural fencing — managing a heavy spool of barbed wire on foot while keeping tension consistent and avoiding the snap-back injuries that come with manual unrolling. The LANDYINDUS T-BWU24 Hitch Mounted Barbed Wire Unroller eliminates that risk by mounting directly to your tractor’s receiver hitch and dispensing wire at a controlled rate as you drive the fence line, turning a multi-person manual job into a single-operator tractor task.

80 Rod (1,320 ft / 402m) Capacity — Full Fence Section Without Stopping to Reload, Fewer Splices

The unroller is rated to hold one spool up to 80 rod in length — equivalent to 1,320 feet (approximately 402 meters) of continuous wire. This capacity means you can run a full 80-rod fence section without stopping to reload, significantly reducing the number of splices and the time spent repositioning equipment along the fence line.

16" (410mm) Max Spool Width — Standard Barbed Wire, Smooth Wire and Electric Fence Wire Across Most Major Brands

With a maximum spool width of 16 inches (410mm), the T-BWU24 accommodates the standard spool dimensions used for barbed wire, smooth wire, and electric fence wire across most major brands — making it a genuinely versatile wire unroller for mixed fencing operations without requiring spool adapters or custom spacers.

Standard Receiver Hitch — Tractor, ATV, UTV and Pickup, Transfer Between Vehicles Without Dedicated Hardware

Attachment is via standard receiver hitch — the most universally available hitch interface on tractors, ATVs, UTVs, and pickup trucks used in agricultural and ranch operations. No special adapters or tools are required for mounting, and the receiver hitch connection means the unroller can be transferred between vehicles on the same property without dedicated mounting hardware on each machine.

20kg | 780 x 610 x 530mm — Lightest in Class, Easy to Load, Unload and Store

The compact frame dimensions of 780mm long by 610mm wide by 530mm tall keep the attachment within the working footprint of most compact and utility tractors. At 20kg, the T-BWU24 is one of the lightest hitch-mount wire unrollers in its class — easy to load, unload, and store when not in use, and manageable for a single person without lifting equipment.

Key Features

• 80 rod (1,320 ft / 402m) capacity — full fence section without reloading, fewer splices
• 16" (410mm) max spool width — barbed wire, smooth wire and electric fence wire
• Standard receiver hitch — tractor, ATV, UTV and pickup, no adapters required
• Transfer between vehicles — no dedicated mounting hardware per machine
• Single-operator from tractor seat — eliminates manual handling injury risk
• 20kg frame — lightest in class, easy to load, unload and store
• 780x610x530mm — compact, fits most compact and utility tractor footprints
• New perimeter fencing, pasture boundary repair and large open acreage wire runs

Technical Drawing:

Specifications
