LANDYINDUS Hydraulic Adjustable Pallet Fork Attachment for Excavator | 1–18 Ton

LANDYINDUS E-TJ Series Hydraulic Adjustable Pallet Fork Attachment for Excavator | 1–18T

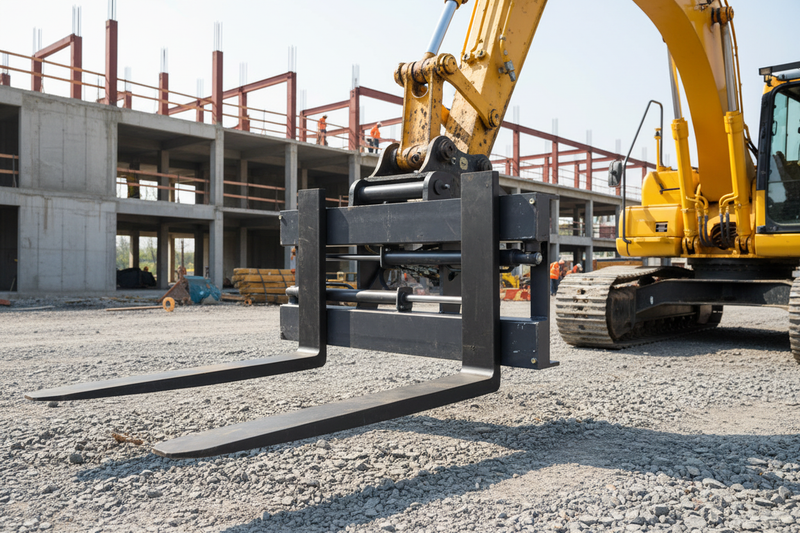

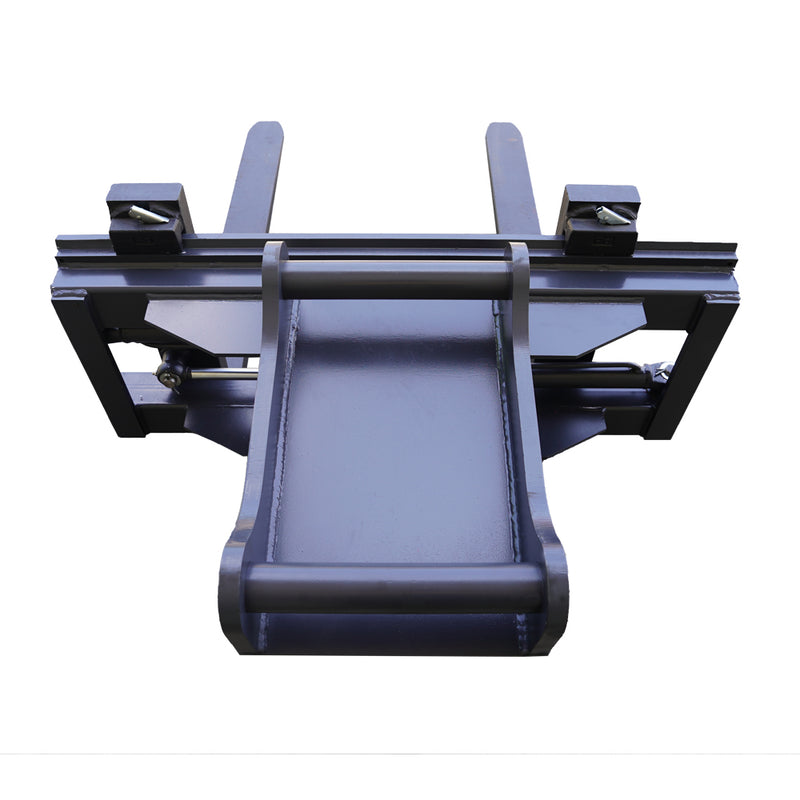

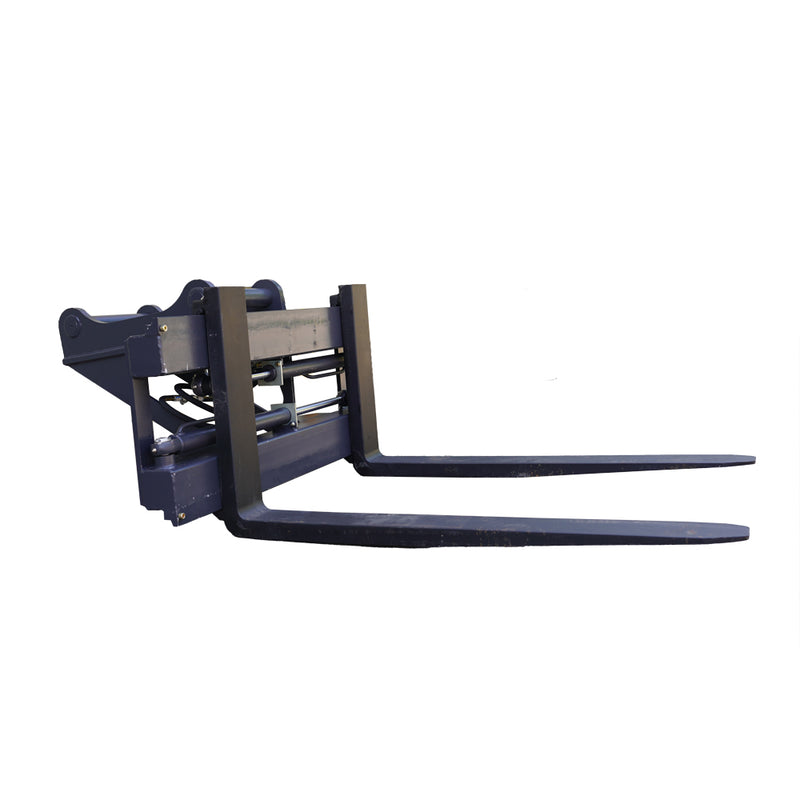

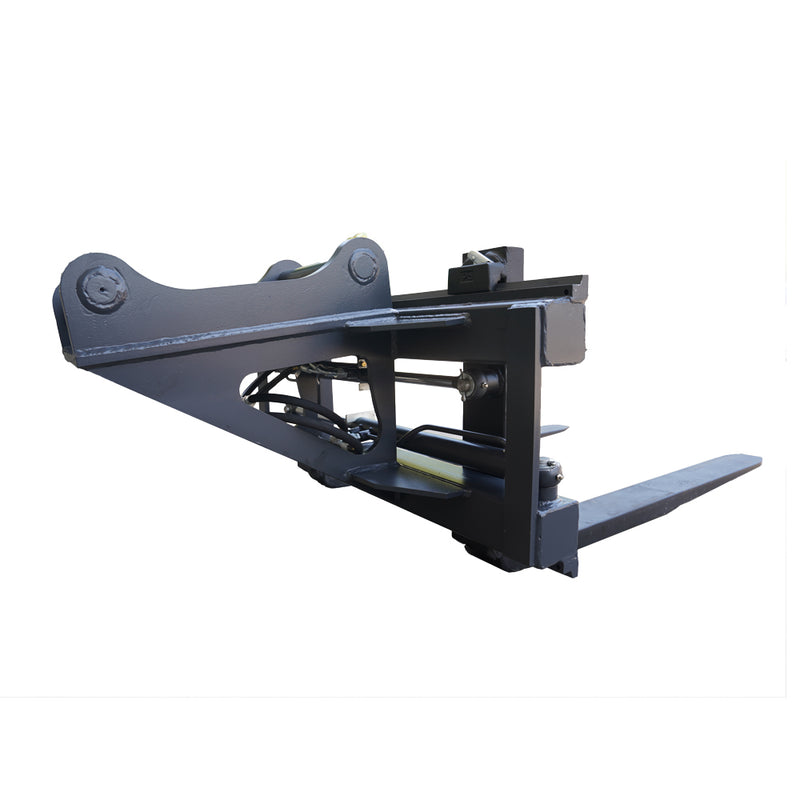

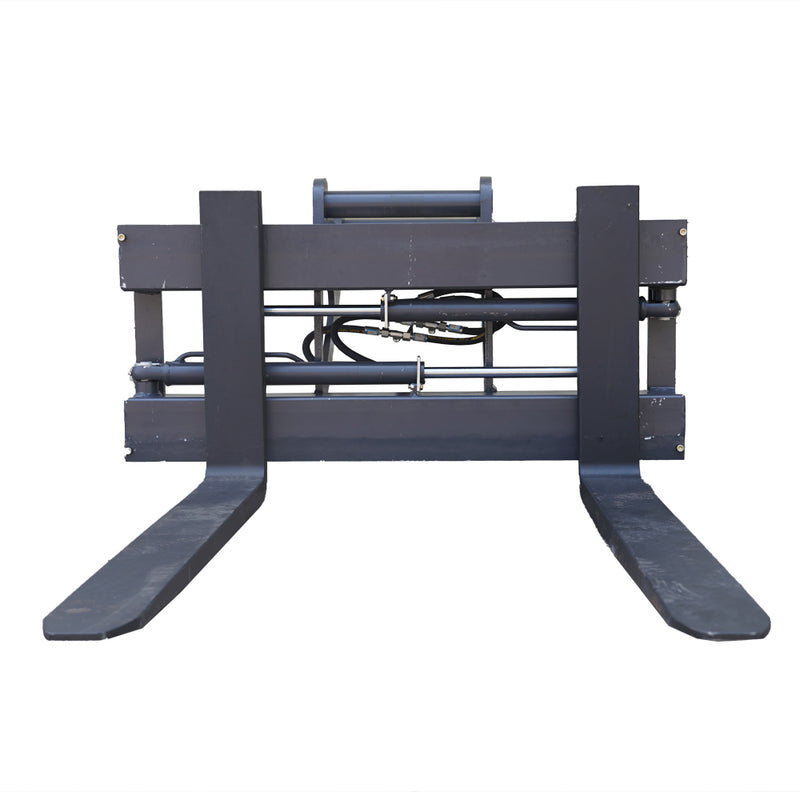

The LANDYINDUS E-TJ Series is a professional-grade hydraulic pallet fork frame that allows the operator to adjust fork tine spacing continuously from the excavator cab using the machine's auxiliary hydraulic circuit — eliminating the need to exit the cab, manually reposition tines, or stop work between loads on busy construction sites, agricultural operations, and material handling jobs.

Cab-Controlled Hydraulic Tine Adjustment — No Cab Exit Required

Unlike standard mechanical pallet fork frames that require manual tine adjustment on the ground, the E-TJ hydraulic system operates at 16 MPa with a flow rate of 60 LPM to deliver smooth, precise, and infinitely variable tine positioning across the full frame width. Operators switch instantly between narrow pallet configurations and wide load spreads without interrupting workflow or compromising operator safety.

Class 2A, 3A & 4A — SWL 1,500 kg to 8,000 kg

Available in Class 2A, 3A, and 4A configurations with safe working loads from 1,500 kg to 8,000 kg and frame widths of 1,200 mm and 1,500 mm, the E-TJ series covers the complete range of excavator material handling requirements — from compact 1–2 ton mini excavators on residential sites through to 16–18 ton machines on large-scale commercial construction, logistics, and civil engineering projects.

Broad Bracket Compatibility — S30 to S70 & B20

Compatible with S30, S40, S45, S50, S60, S70, and B20 bracket types, the E-TJ frame installs directly onto standard excavator quick couplers across all major makes and models without custom adapters. Also available without a bracket with a flat mounting surface for operators who prefer to fit their own existing coupler system for maximum fleet flexibility. Custom widths of 1,500 mm, 1,800 mm, and 2,000 mm are available on request.

Important: Fork Tines Ordered Separately

Fork tines are not included with the frame and must be ordered separately. Please specify your required tine dimensions (100×40 mm, 125×50 mm, or 150×60 mm depending on Class) and preferred bracket type when placing your order, or contact our team to discuss custom width options.

Eight Models — 1T to 18T Excavator Classes

• ME-2A-1200-1.5T-TJ-S30 — 1200×367×461mm | SWL 1,500kg | Class 2A | S30 | 75kg | Suits 1–2T
• ME-2A-1200-2.5T-TJ-S40 — 1200×489×474mm | SWL 2,500kg | Class 2A | S40 | 104kg | Suits 2–3.5T
• E-2A-1200-2.5T-TJ-S45 — 1200×616×487mm | SWL 2,500kg | Class 2A | S45 | 126kg | Suits 4–6T
• E-2A-1200-2.5T-TJ-S50 — 1200×616×487mm | SWL 2,500kg | Class 2A | S50 | 149kg | Suits 6–8T
• E-3A-1200-5T-TJ-S60 — 1200×719×614mm | SWL 5,000kg | Class 3A | S60 | 205kg | Suits 10–14T
• E-3A-1200-6T-TJ-S70 — 1200×861×657mm | SWL 6,000kg | Class 3A | S70 | 298kg | Suits 16–18T
• E-3A-1500-6T-TJ-S70 — 1500×861×657mm | SWL 6,000kg | Class 3A | S70 | 279kg | Suits 16–18T
• E-4A-1500-8T-TJ-B20 — 1500×1053×837mm | SWL 8,000kg | Class 4A | B20 | 302kg | Suits 10–14T

Key Features

• Hydraulic cab-controlled tine adjustment — no cab exit required
• 16 MPa / 60 LPM — smooth, infinitely variable tine positioning
• Class 2A, 3A, 4A — SWL 1,500 kg to 8,000 kg
• Frame widths 1,200 mm and 1,500 mm standard; 1,500/1,800/2,000 mm on request
• S30, S40, S45, S50, S60, S70, B20 bracket options
• Available without bracket — flat surface for own coupler fitment
• Black paint finish; suits all major excavator brands
• Fork tines ordered separately — 100×40 / 125×50 / 150×60 mm options

Technical Drawing:

Specifications
