LANDYINDUS Hydraulic Angle Rotary Broom Sweeper | 72" or 83" | Waste Collector | 30° Tilt | Floating Head | Euro, SMS & Cat 2 | T-AB

LANDYINDUS T-AB Hydraulic Angle Rotary Broom Sweeper | 72" (1,830mm) or 83" (2,110mm) | Integrated Hydraulic Waste Collector | 30° Tilt | Floating Head | Euro, SMS Trima & Cat 2 3-Point | Tractor Front Loader

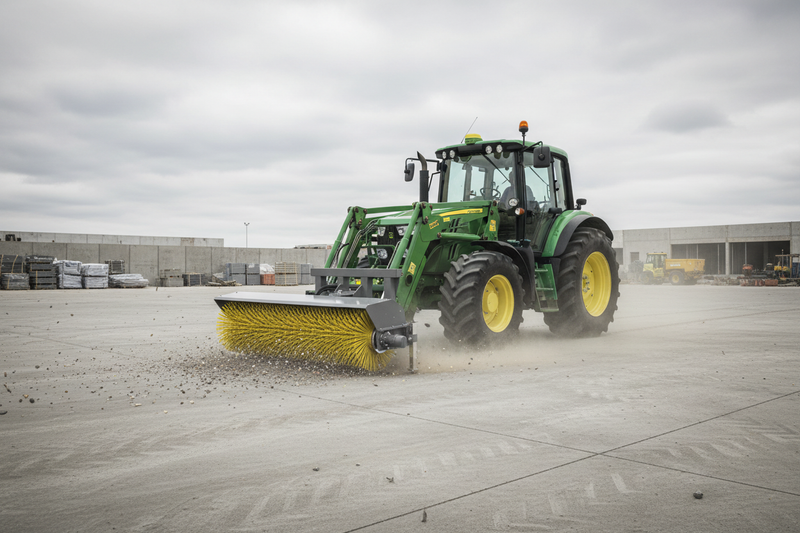

The LANDYINDUS T-AB Hydraulic Angle Rotary Broom Sweeper combines sweeping, collecting, and dumping functions in a single attachment for tractor front loaders and three-point hitch systems. Available in 72-inch (1,830mm) and 83-inch (2,110mm) sweeping widths, this tractor rotary broom is designed for construction sites, industrial yards, municipal roads, and agricultural operations where efficient debris clearance is a daily requirement.

Integrated Hydraulic Waste Collector — Sweep and Collect in One Pass, No Separate Collection Run

The integrated hydraulic waste collector captures swept material on the go, eliminating the need for a separate collection pass and significantly reducing the time and labor required to clear large surface areas. Combined with the 30° tilt angle capability, the operator has full control over where swept material is directed and collected — without stopping or repositioning the tractor.

Floating Attachment Design — Follows Uneven Ground Contours, Consistent Contact Pressure Across Full Width

The angle broom features a floating attachment design that allows the brush head to follow uneven ground contours without operator input, maintaining consistent contact pressure across the full sweeping width regardless of surface irregularities. This floating action is critical for effective sweeping on construction sites and yard surfaces where ground levels vary continuously.

30° Tilt Angle — Direct Debris to One Side, Road Edges, Collection Points and Drainage Channels

The 30° tilt angle capability allows the operator to angle the broom head relative to the direction of travel, sweeping debris to one side rather than pushing it straight ahead. This is particularly useful when clearing roads, pathways, and yard surfaces where material needs to be directed to a specific collection point or edge rather than redistributed across the work area.

550mm Diameter Rotary Brush | 38 or 44 Brush Elements | 16 MPa | 60 LPM

The 550mm diameter rotary brush is driven hydraulically, requiring an operating pressure of 16 MPa and a hydraulic flow of 60 LPM, compatible with the auxiliary hydraulic circuits of most modern agricultural and construction tractors. The brush assembly on the 72-inch model carries 38 individual brush elements, while the 83-inch model carries 44, ensuring dense, even coverage across the full working width.

Euro, SMS Trima & Cat 2 3-Point — Front Loader and Three-Point Hitch Configurations

Available with Euro quick attach, SMS Trima, and Category 2 three-point hitch mounting configurations, covering the most widely used tractor attachment interfaces in European and North American markets. The Euro and SMS front loader versions integrate directly with compatible tractor front loaders for maximum maneuverability, while the three-point hitch version suits tractors without a front loader setup.

Key Features

• Integrated hydraulic waste collector — sweep and collect in one pass, no separate run
• 30° tilt angle — direct debris to edges, collection points and drainage channels
• Floating head — follows uneven ground, consistent contact pressure across full width
• 72" (1,830mm) or 83" (2,110mm) sweeping width
• 550mm diameter rotary brush — 38 elements (72") or 44 elements (83")
• 16 MPa | 60 LPM — compatible with most tractor auxiliary hydraulic circuits
• Euro, SMS Trima & Cat 2 3-point — front loader and three-point hitch configurations
• Construction sites, industrial yards, municipal roads and agricultural operations

Technical Drawing:

Specifications
