LANDYINDUS Hydraulic Bale Lifter | Roller Arms | 1,000kg SWL | 450–1,800mm Opening | Cat 2 & SMS | Removable Tubes | Tractor Attachment

LANDYINDUS T-HSBH(1300x850-1200)-3Point-SMS Hydraulic Bale Lifter | Hydraulic Roller Arms | 1,000kg SWL | 450–1,800mm Opening Range | Removable Steel Tubes | Cat 2 and SMS 3-Point Attachment

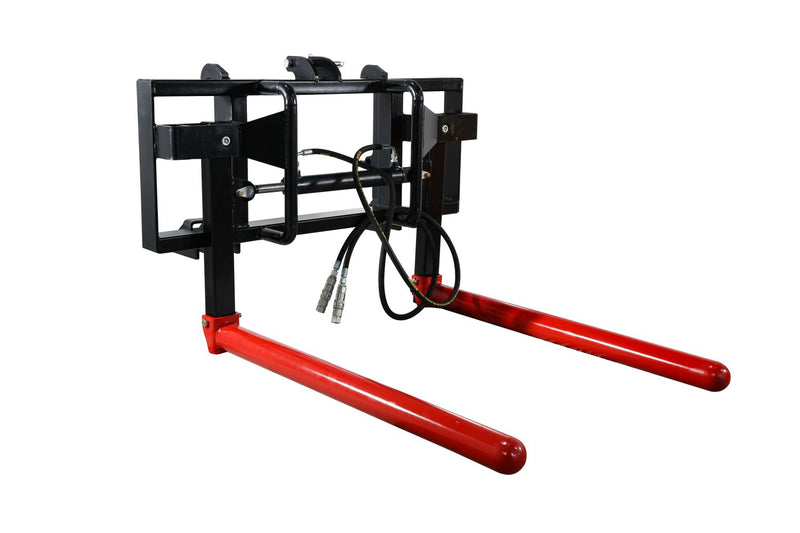

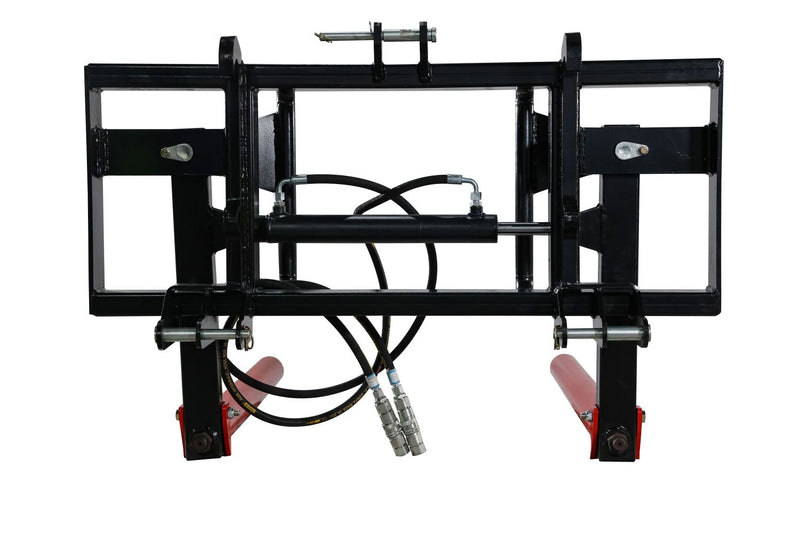

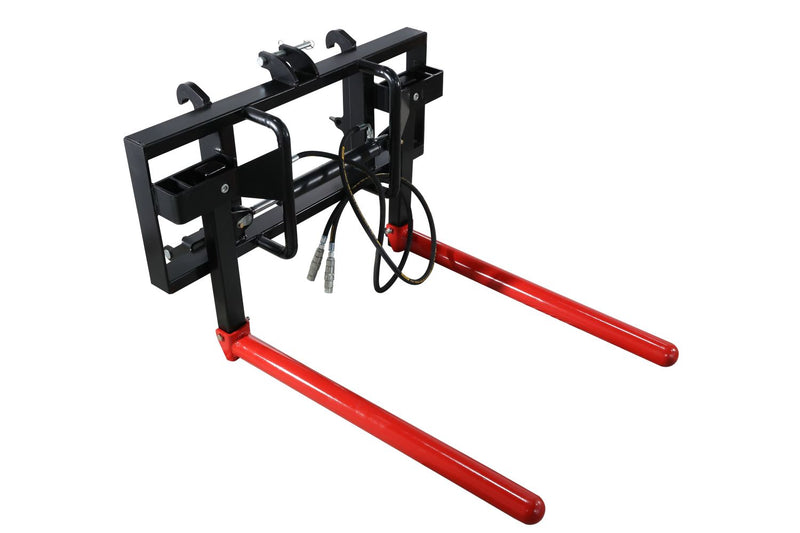

The LANDYINDUS T-HSBH Hydraulic Bale Lifter is a professional-grade tractor attachment designed for efficient and damage-free bale handling across a wide range of agricultural operations. Unlike conventional clamping-style bale handlers, this lifter uses hydraulically operated roller arms that smoothly roll under the bale from both sides, providing a secure and evenly distributed lift without applying concentrated pressure to any single point on the bale surface.

Hydraulic Roller Arms — Roll Under the Bale from Both Sides, No Concentrated Pressure, No Clamp Damage

The hydraulically operated roller arms smoothly roll under the bale from both sides, providing a secure and evenly distributed lift without applying concentrated pressure to any single point on the bale surface. This roller-arm approach is fundamentally different from conventional clamping-style handlers that grip the bale sides under high point load — the T-HSBH distributes the full 1,000kg load across the entire bale contact area, eliminating the deformation and film puncture risk that clamping creates.

Removable Steel Tubes — Silage Film Protection Mode and Dry Bale Mode, No Tools Required

The generous length and diameter of the steel tubes distribute pressure evenly across the entire bale, effectively preventing damage to plastic wrapping and silage film during every lift and transport cycle. When transporting straw or hay bales where plastic protection is not required, the steel tubes can be quickly and easily removed, converting the lifter into a streamlined handler suited for dry bale operations without any tools or complex adjustments.

450–1,800mm Opening Range — Broadest Bale Size Compatibility on the Market

With an exceptionally wide opening range of 450 to 1,800mm, this hydraulic bale lifter accommodates the broadest variety of bale sizes available on the market — from compact small-farm bales to large commercial round bales. This 1,350mm total opening span is significantly wider than standard bale handlers, making the T-HSBH the most versatile single bale lifter in the LANDYINDUS lineup for mixed-fleet and multi-crop operations.

Cat 2 and SMS Dual Attachment — Direct Fitment to Most Standard Tractors, No Adapters Required

Compatible with both Cat 2 three-point linkage and SMS bracket attachment systems, this bale lifter fits directly onto most standard tractors without the need for additional adapters or custom fabrication. The dual-standard compatibility makes the T-HSBH suitable for the widest possible range of tractor brands and models in professional agricultural fleets.

16 MPa | 60 LPM | 175kg | 1,540 x 1,320 x 905mm

The hydraulic system operates at 16 MPa with a flow requirement of 60 LPM, delivering smooth, responsive, and consistent arm movement under full load conditions. At 175kg with overall dimensions of 1,540 x 1,320 x 905mm, the compact yet robust build balances strength with ease of tractor mounting and daily field use.

Hydraulic Bale Lifter Comparison — Choosing the Right Handler

Key Features

• Hydraulic roller arms — roll under bale from both sides, no concentrated clamp pressure
• Removable steel tubes — silage film protection mode and dry bale mode, no tools
• 450–1,800mm opening range — widest bale size compatibility in the lineup
• 1,000kg SWL — compact to large commercial round bales
• Cat 2 and SMS dual attachment — most standard tractors, no adapters
• 16 MPa | 60 LPM | 175kg | 1,540x1,320x905mm

Technical Drawing:

Specifications
