LANDYINDUS Hydraulic Brick & Block Clamp | 3,000kg SWL | 180° Hydraulic Rotation | 0–1,350mm Opening | Wear-Resistant Rubber Pads | Class 3A | 3–3.5T Forklift | Brick Factory, Building Yard & Construction | F-ZKJ3A30-1300

LANDYINDUS F-ZKJ3A30-1300 Hydraulic Brick & Block Clamp | 3,000kg SWL | 180° Hydraulic Rotation | 0–1,350mm Full-Closure Opening | Wear-Resistant Rubber Pads — Surface Protection for Finished Bricks | Class 3A | 3–3.5T Forklift | 2 Auxiliary Hydraulic Circuits

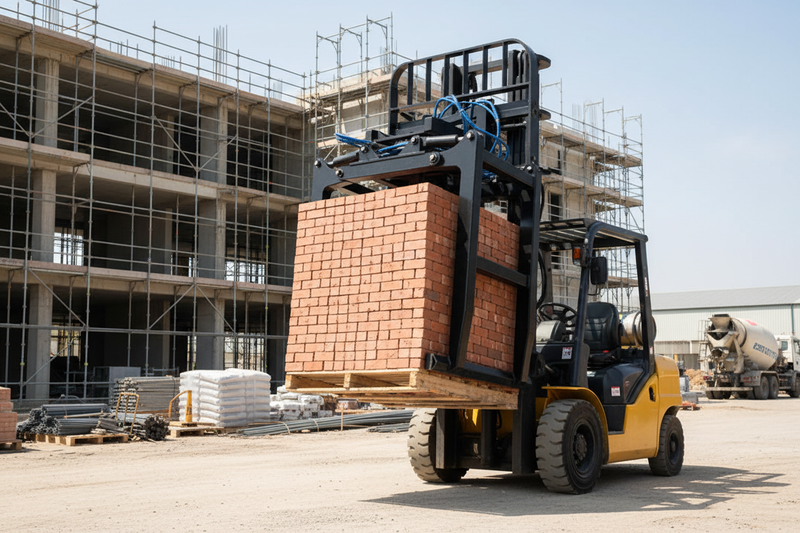

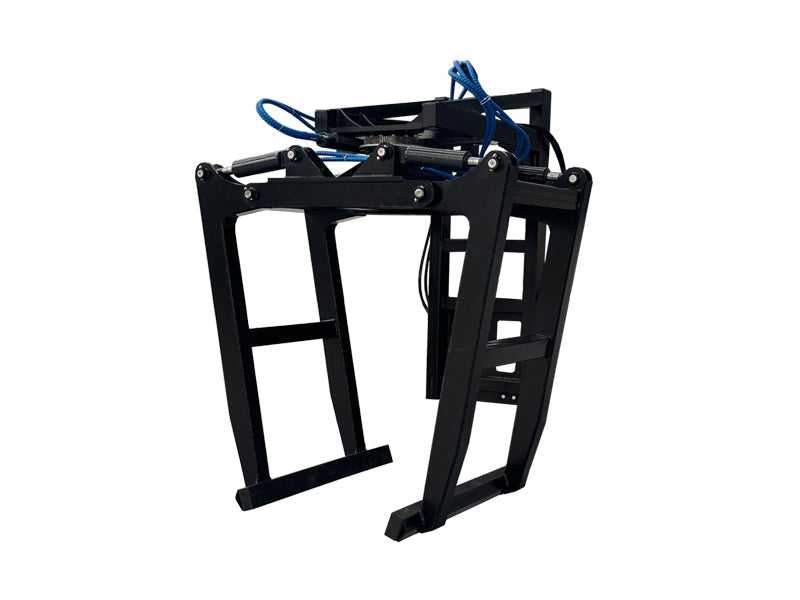

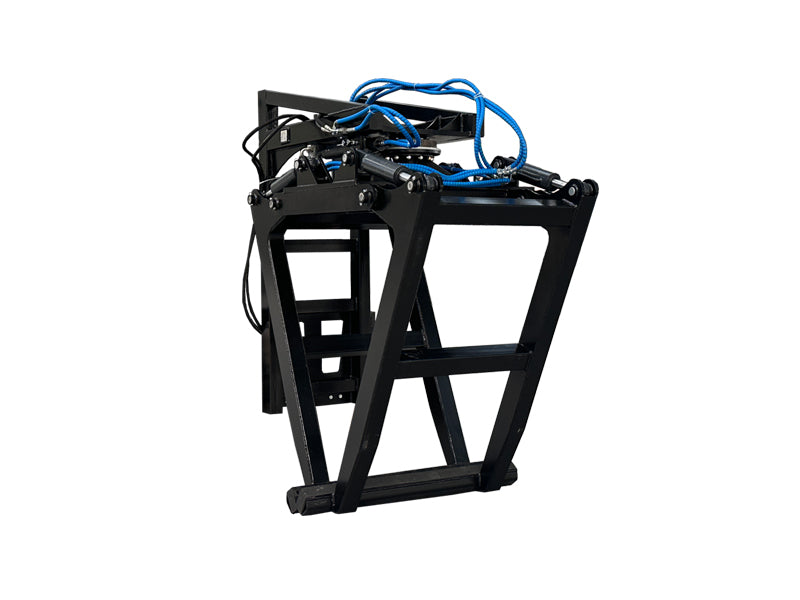

The LANDYINDUS F-ZKJ3A30-1300 Hydraulic Brick & Block Clamp is a heavy-duty forklift attachment designed for high-volume brick handling in brick factories, building material yards, and construction sites. With a 3,000kg SWL and a wide opening range of 0–1,350mm, this clamp handles large quantities of bricks and blocks in a single lift — maximising efficiency and reducing cycle times on busy production floors.

0–1,350mm Full-Closure Opening — From Fully Closed to Widest Stack in One Attachment

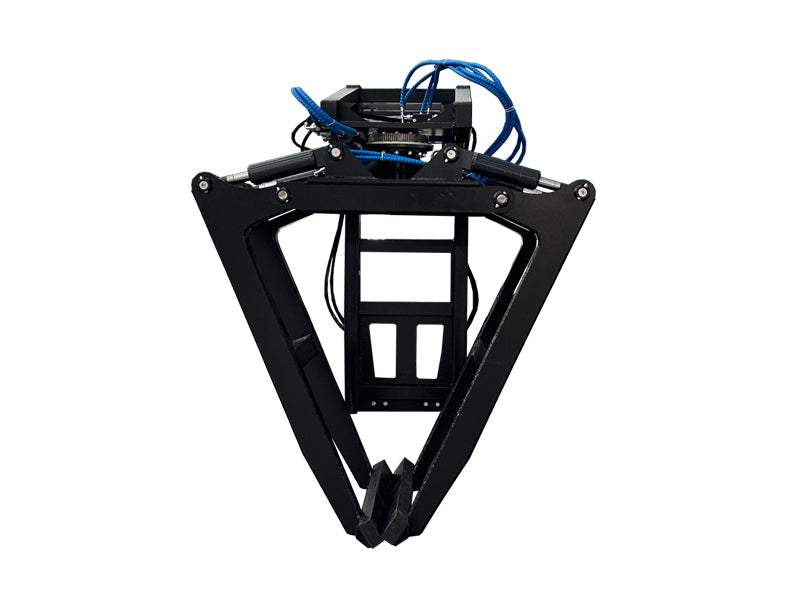

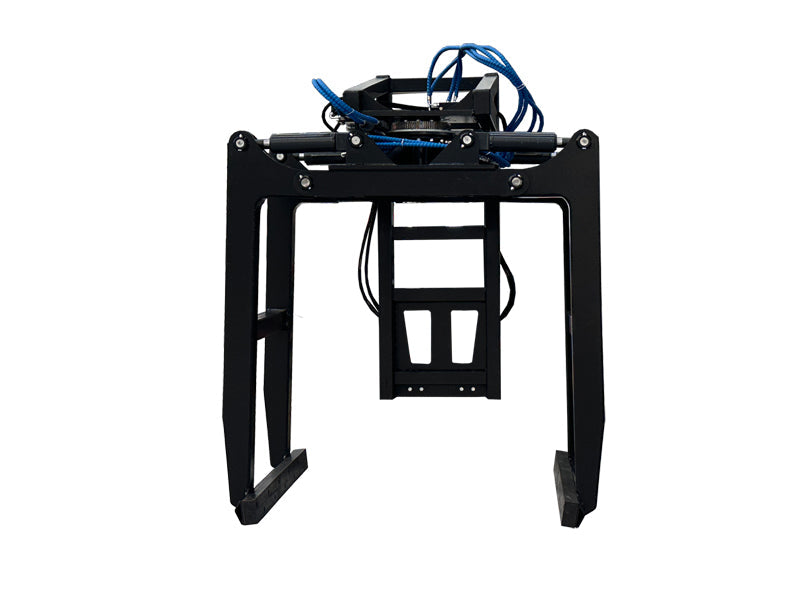

The 0–1,350mm opening range — including full closure to 0mm — gives the F-ZKJ3A30-1300 exceptional versatility across different load widths. The arms can close completely, allowing precise, controlled grip on narrow stacks and individual brick courses without requiring a minimum stack width. At 1,350mm maximum opening, it handles wider block stacks than the F-ZKJ3A30-1100 (1,100mm maximum).

Wear-Resistant Rubber Pads — Surface Protection for Finished & Faced Bricks

The clamping arms feature wear-resistant rubber pads that cushion and protect bricks throughout the lifting and transport process, preventing surface damage to freshly manufactured or faced bricks — reducing product loss and improving handling quality. Rubber pads are the preferred contact surface for finished, faced, or surface-critical bricks where metal-to-brick contact or abrasion from mesh frames would cause visible surface marks or chipping on the exposed face.

F-ZKJ3A30-1100 vs F-ZKJ3A30-1300 — Mesh Frame Guards vs Rubber Pads, Choose by Brick Type

180° Hydraulic Rotation — Stack Multiple Orientations Without Repositioning

The 180° hydraulic rotation allows operators to reposition and stack loads in multiple orientations without moving the forklift, significantly improving flexibility across varying site layouts and stacking requirements. On brick production floors where alternating stack orientations are required for structural stability, the rotator eliminates forklift repositioning between layers.

Applications

• Brick factories — finished and faced brick handling, surface quality critical
• Building material yards — wide block stacks, mixed stack widths
• Construction sites — faced brick placement, surface-sensitive brick handling
• High-value brick handling — engineering bricks, faced bricks, feature bricks

Key Features

• 3,000kg SWL — high-volume brick and block handling
• 180° hydraulic rotation — any stack orientation without repositioning
• 0–1,350mm opening range — full closure to wide block stacks
• Wear-resistant rubber pads — surface protection for finished and faced bricks
• Class 3A | 3–3.5T forklift | 16 MPa | 60 LPM
• 2 auxiliary hydraulic circuits required — clamp + rotator
• 961kg | 1,681×1,806×2,284mm (W×D×H)

Technical Drawing:

Specifications
