LANDYINDUS Hydraulic Brick & Block Clamp | 3,000kg SWL | 180° Hydraulic Rotation | 480–1,100mm Opening | Mesh Frame Guards | Class 3A | 3–3.5T Forklift | Brick Factory, Building Yard & Construction | F-ZKJ3A30-1100

LANDYINDUS F-ZKJ3A30-1100 Hydraulic Brick & Block Clamp | 3,000kg SWL | 180° Hydraulic Rotation — Stack in Any Orientation Without Repositioning | 480–1,100mm Opening | Mesh Frame Guards — Protects Unpackaged Bricks | Class 3A | 3–3.5T Forklift | 2 Auxiliary Hydraulic Circuits Required

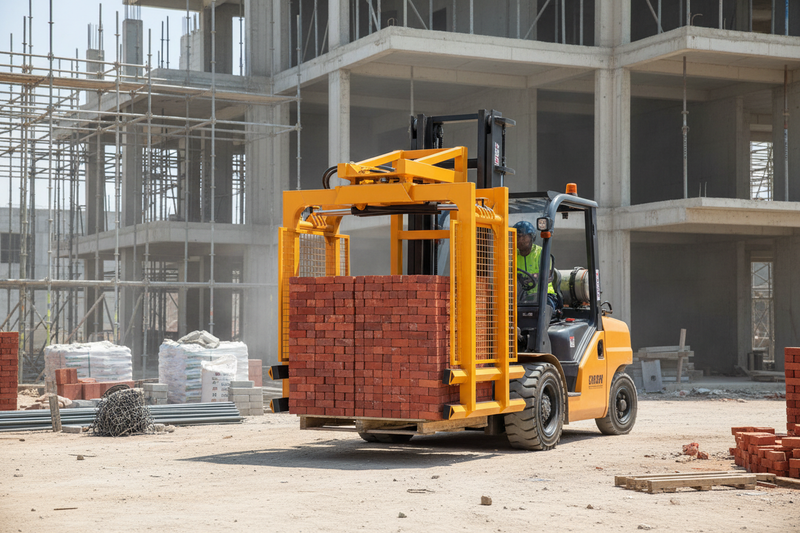

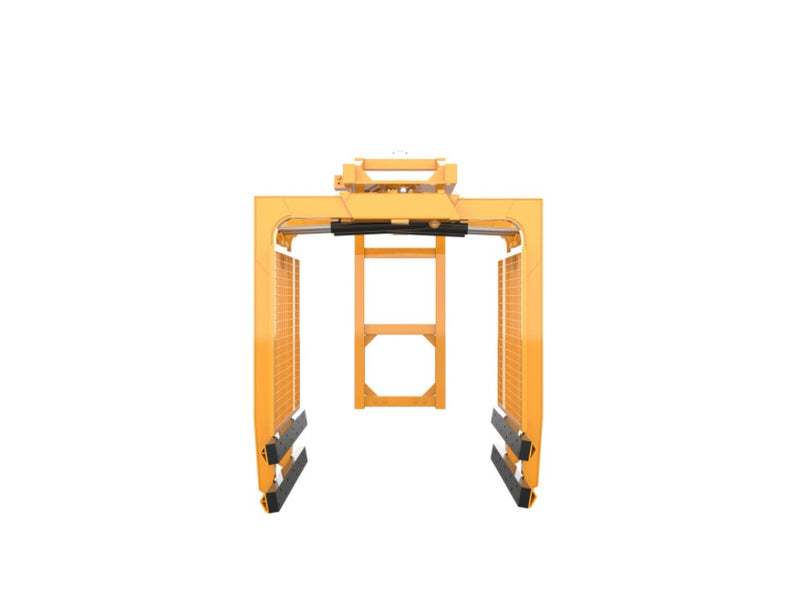

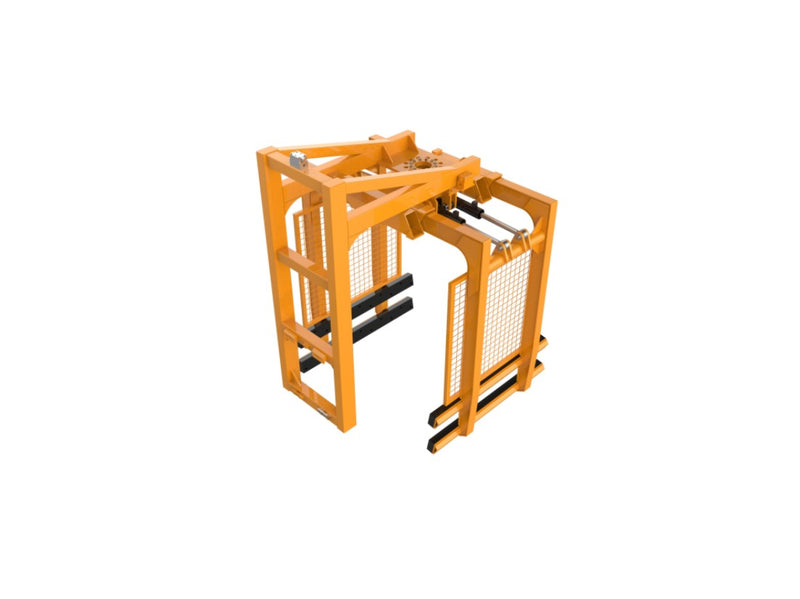

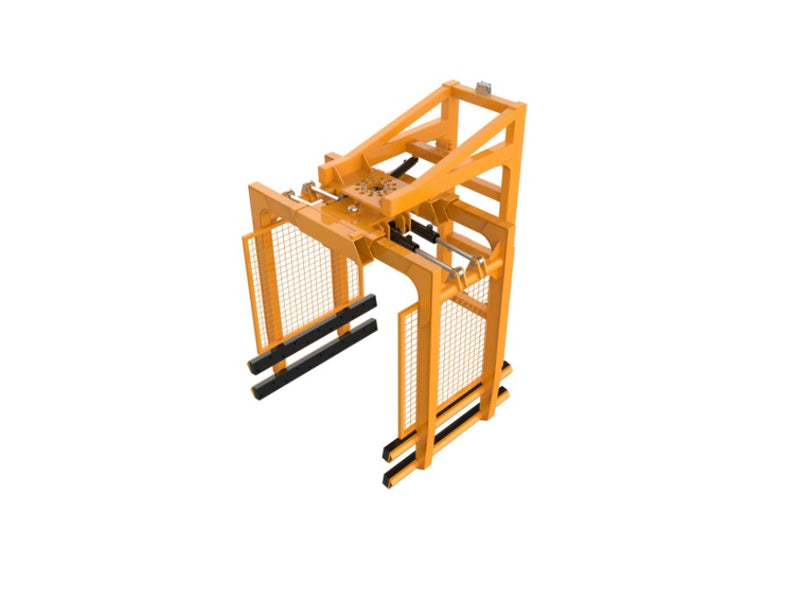

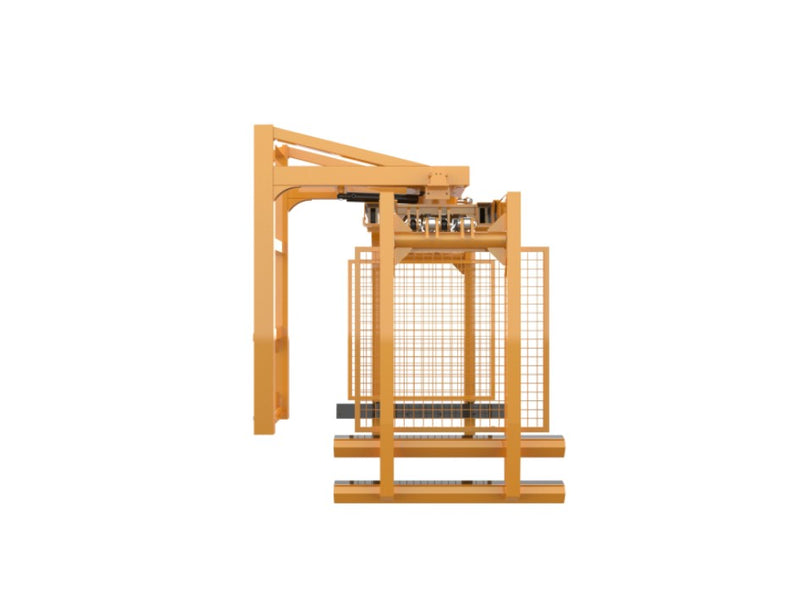

The LANDYINDUS F-ZKJ3A30-1100 Hydraulic Brick & Block Clamp is a heavy-duty forklift attachment designed for brick factories, building material yards, construction sites, and industrial handling environments. With a 3,000kg SWL and a wide opening range of 480–1,100mm, this clamp handles large volumes of bricks and blocks efficiently and safely in a single lift.

180° Hydraulic Rotation — Stack in Multiple Orientations Without Repositioning the Forklift

The 180° hydraulic rotation capability allows operators to reposition and stack loads in multiple orientations without repositioning the forklift, significantly reducing cycle times and improving operational flexibility across varying site layouts and stacking requirements. On a brick production line or building material yard where bricks must be stacked in alternating orientations for stability, the 180° rotator eliminates the need to drive the forklift around the stack between each layer.

Mesh Frame Guards — Protect Freshly Manufactured, Unpackaged Bricks During Lifting & Transport

Both clamping arms are fitted with mesh frame guards that cradle and protect freshly manufactured, unpackaged bricks throughout the lifting and transport process. This prevents bricks from shifting, falling, or breaking during handling — reducing product loss and improving workplace safety on busy production floors. Freshly fired bricks are particularly vulnerable to chipping and breakage from impact or movement during handling — the mesh frame guards contain the load and maintain brick position throughout the clamp cycle.

480–1,100mm Opening Range — Single Clamp Handles Multiple Brick & Block Stack Widths

The wide opening range of 480–1,100mm allows the F-ZKJ3A30-1100 to handle a broad range of brick and block stack configurations without adjustment or attachment changes — from narrow single-course stacks at 480mm through to wide multi-course block stacks at 1,100mm.

Hydraulic Brick Clamp vs Manual Fork Handling — Safety, Efficiency & Product Protection

Class 3A | 3–3.5T Forklift | 2 Auxiliary Hydraulic Circuits Required

The attachment connects via two additional hydraulic circuits on the forklift — one for the clamping arms and one for the 180° rotator. It is compatible with Class 3A forklifts in the 3–3.5 tonne range. Confirm your forklift has two available auxiliary hydraulic outlets before ordering.

Applications

• Brick factories — freshly fired, unpackaged brick handling off kilns and onto storage
• Building material yards — brick and block stock handling, yard organisation
• Construction sites — brick and block delivery, placement, and stacking
• Industrial handling — high-volume block material movement

Key Features

• 3,000kg SWL — high-volume brick and block handling
• 180° hydraulic rotation — stack any orientation without repositioning forklift
• 480–1,100mm opening range — single clamp, multiple stack widths
• Mesh frame guards — unpackaged brick protection, no shifting or breakage
• Class 3A | 3–3.5T forklift | 16 MPa | 60 LPM
• 2 auxiliary hydraulic circuits required — clamp + rotator
• 898kg | 1,103×1,555×2,238mm (W×D×H)

Technical Drawing:

Specifications
