LANDYINDUS Hydraulic Crane Jib | 5t (5,000kg) | 2.25–3.57m Telescopic | 3-Section Hydraulic Arm | Swivel Safety Hook | Big BM | T-HCJ5.0

LANDYINDUS T-HCJ5.0 Hydraulic Crane Jib | 5,000kg at 2.25m | 1,600kg at 5.00m | 2.25–3.57m 3-Section Hydraulic Telescopic Arm | Precision-Tolerance Sections | Swivel Safety Hook | Big BM | 583kg

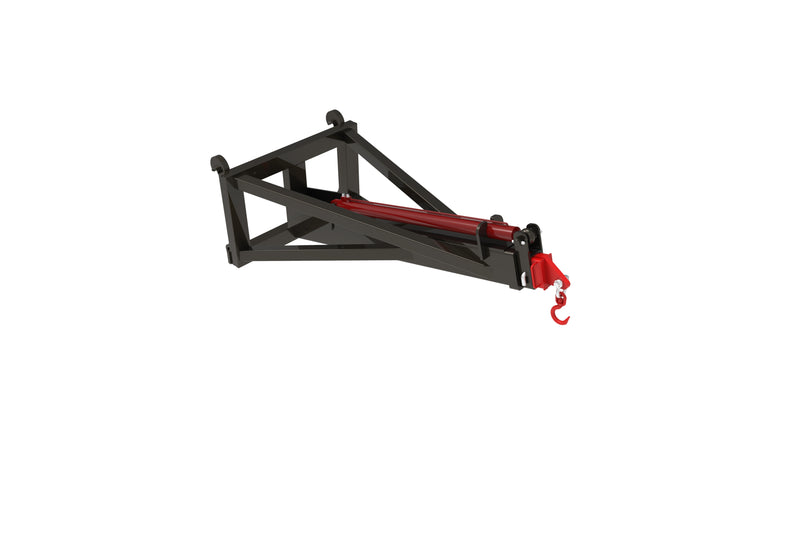

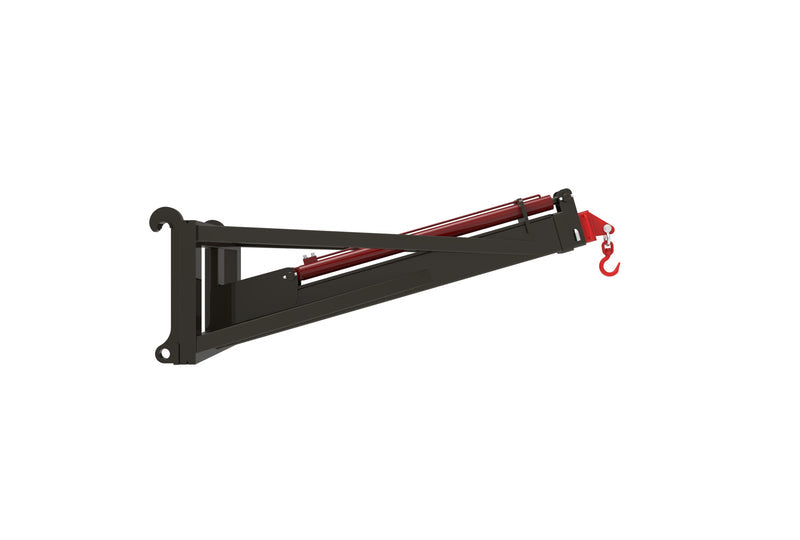

The LANDYINDUS T-HCJ5.0 Hydraulic Crane Jib is a heavy-duty front loader lifting attachment rated at 5,000kg at minimum reach and 1,600kg at maximum reach, with a three-section hydraulic telescopic arm that extends from 2.25 meters to 3.57 meters. Designed exclusively for Big BM front loader bracket systems, this hydraulic lifting jib delivers the combination of high rated capacity, extended reach, and precise hydraulic control required for serious construction, agricultural, and industrial lifting operations.

Hydraulic Reach Adjustment — 2.25 to 3.57m Continuously Variable, Without Leaving the Cab

The three-section telescopic arm allows the operator to adjust the working radius continuously between 2.25 and 3.57 meters using the tractor’s hydraulic circuit, without leaving the cab or manually repositioning the attachment. This hydraulic reach adjustment is the defining operational advantage of the T-HCJ5.0 over fixed-arm crane jibs, allowing the operator to fine-tune the working radius to match the exact position of the load relative to the tractor — reducing tractor repositioning movements and significantly improving cycle efficiency on confined or complex job sites.

Precision-Tolerance Telescoping Sections — Zero Lateral Play, Direct Load Control at Full Extension

The arm profiles are precision-engineered with minimal clearance between telescoping sections, a design feature that eliminates lateral play and flex under load and gives the operator direct, predictable control over load movement throughout the full range of arm extension. This tight-tolerance construction is particularly important when:

• Positioning loads in confined spaces
• Lowering components onto precise mounting points
• Working at maximum reach where small arm flex translates into significant load displacement at the hook

The result is a level of load control noticeably superior to standard-tolerance crane jib designs under demanding working conditions.

Swivel Safety Hook — Generous Clearance for Standard Industrial Straps, Chains and Shackles

The swiveling safety hook is fitted with generous clearance for lifting straps, chains, and shackles of standard industrial dimensions, allowing the operator to use a wide range of rigging configurations without being constrained by hook geometry. The swivel function allows the load to rotate freely during lifting and positioning, preventing twist accumulation in chains and straps and reducing the risk of load instability during transport.

T-HCJ5.0 vs T-CJ Series — Manual vs Hydraulic Telescopic Reach

Key Features

• 5,000kg SWL at 2.25m | 1,600kg at 5.00m
• 3-section hydraulic telescopic arm — 2.25 to 3.57m, cab-operated
• Precision-tolerance sections — zero lateral play, direct load control at full extension
• Swivel safety hook — standard industrial straps, chains and shackles
• Big BM bracket — direct fit, no custom adapters
• 583kg | 2,250×1,160×910mm

Technical Drawing:

Specifications
