LANDYINDUS Hydraulic Excavator Rake Thumb | Open-Tine Sorting & Separation | 203–610mm Rake Width | 711–1,473mm Length | 16 MPa | 60 LPM | Weld-On | Rocks, Roots, Rebar & Rubble | E-PD Series

LANDYINDUS E-PD Hydraulic Excavator Rake Thumb | Open-Tine Design — Soil & Fine Debris Pass Through, Rocks, Roots & Rebar Retained | 203–610mm Rake Width | 711–1,473mm Length | Single Cylinder | 16 MPa | 60 LPM | Weld-On | High-Strength Alloy Steel

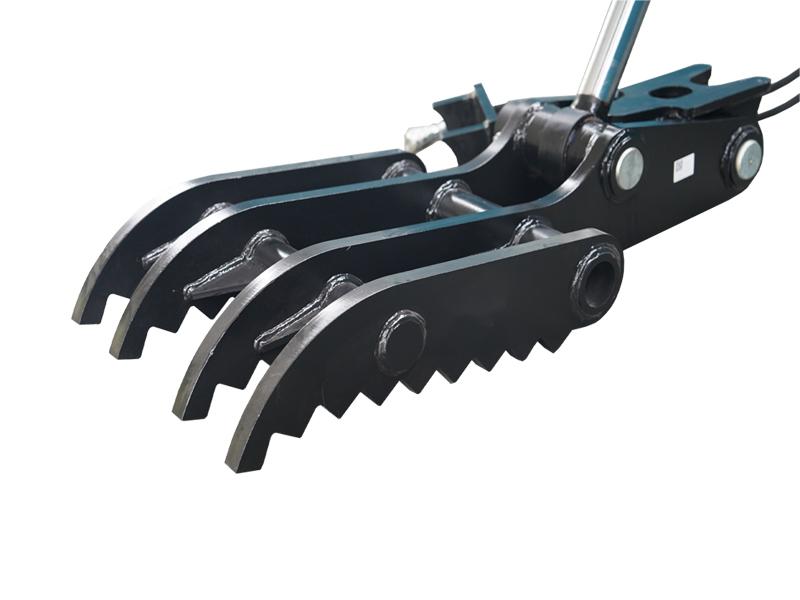

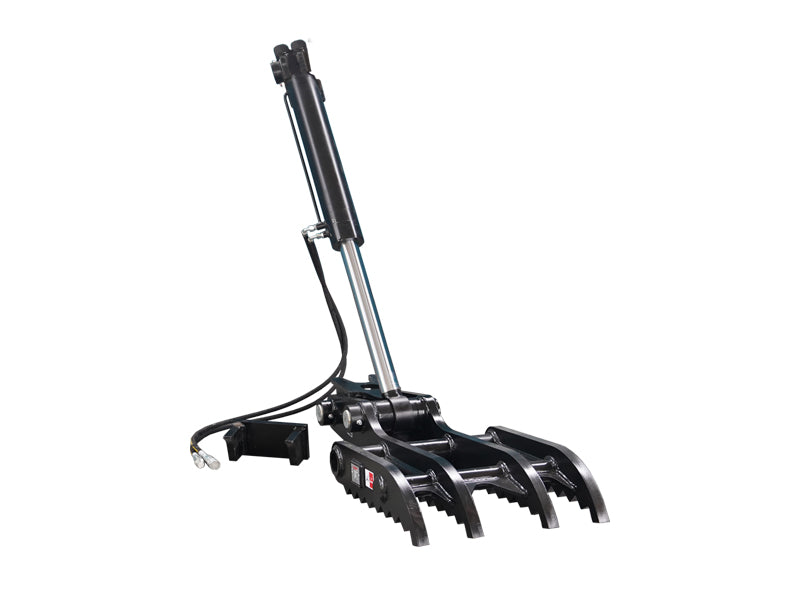

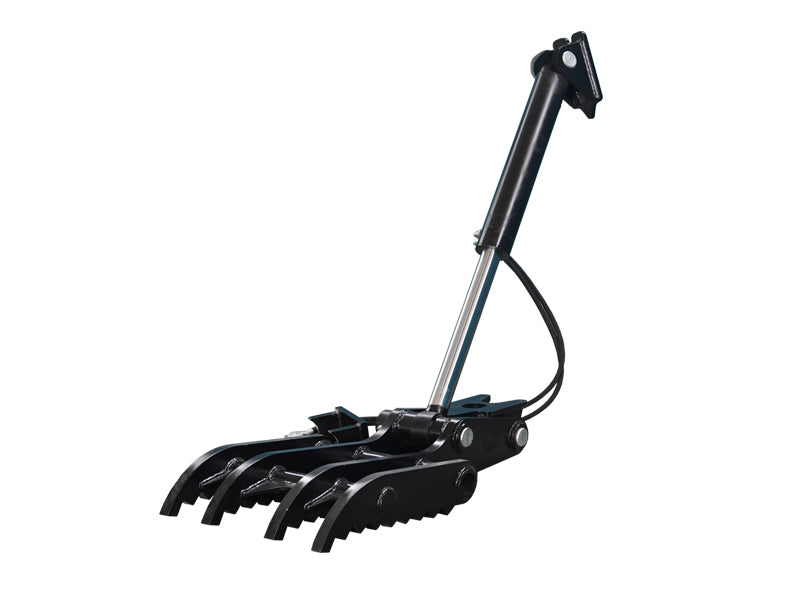

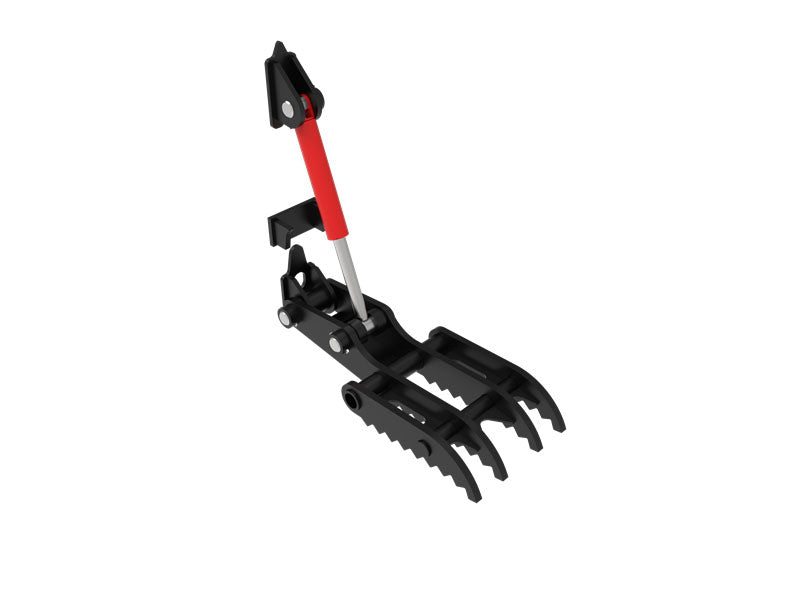

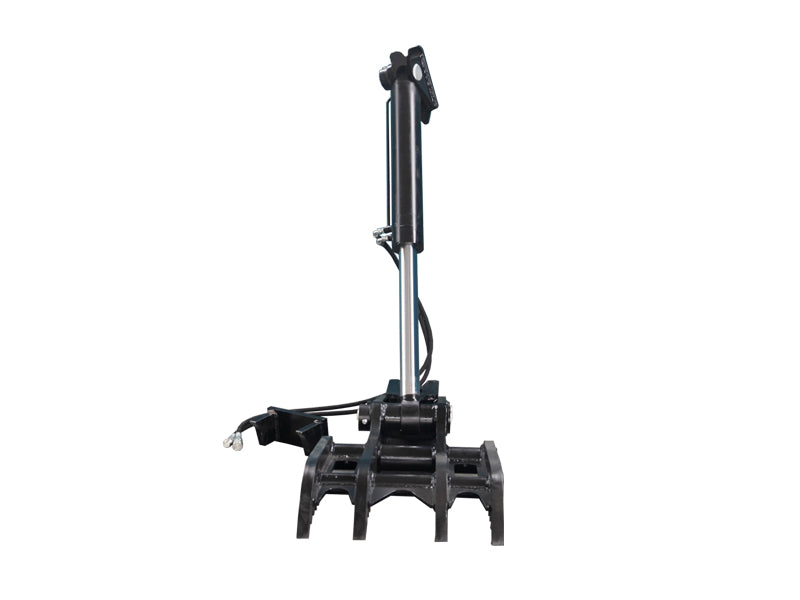

The LANDYINDUS E-PD Hydraulic Excavator Rake Thumb delivers the open-tine rake design that makes light work of sorting, sifting, and separating materials that solid thumbs simply cannot handle. Built from high-strength alloy steel with precision-welded construction, the E-PD series is designed for continuous heavy-duty use on construction sites, demolition projects, land-clearing operations, and agricultural applications.

Open-Tine Rake Design — Soil & Fine Debris Pass Through, Rocks, Roots, Rebar & Bulky Materials Retained

Where a solid thumb grips and holds, the rake thumb does more. The open-tine configuration allows soil, sand, and fine debris to pass through freely while retaining rocks, roots, stumps, rebar, and other bulky materials — making it the preferred choice for operators who need to sort and separate on the go:

• Demolition site clearing — separate rubble from soil, retain rebar and concrete chunks
• Tree root grubbing — soil falls through, root systems retained for removal
• Topsoil separation from rubble — recover usable topsoil, retain stones and debris
• Sorted aggregate loading — sift and load sized material without fines contamination
• Land clearing — stumps, roots, rocks retained; soil returned to ground

Rake Thumb vs Solid Thumb — Sorting & Separation vs Grip & Hold

Four Models — 203mm to 610mm Rake Width, 711mm to 1,473mm Length

Model selection guidance: E-PD19251 and E-PD17541 share the same 203mm rake width but differ in length (711mm vs 864mm) — select based on required reach and excavator arm geometry. E-PD14466 (457mm) and E-PD14464 (610mm) suit larger excavators handling wider material volumes.

Single Cylinder | 16 MPa | 60 LPM — Standard Excavator Hydraulic Integration

Each model is single-cylinder operated, running at 16 MPa with a hydraulic flow requirement of 60 LPM — ensuring smooth, responsive clamping force that integrates seamlessly with most standard excavator hydraulic systems. The single-cylinder design provides reliable, consistent clamping force across the full rake width without the complexity of dual-cylinder synchronization.

Weld-On Bracket — Secure, Stable, No Play or Flex Under Load

The weld-on bracket design provides a secure, stable mounting solution that eliminates play and flex under load, giving operators the confidence to work at full capacity without worrying about attachment integrity. Professional welding installation required — see compatibility note below.

Applications

• Demolition — rubble sorting, rebar separation, concrete chunk handling
• Land clearing — root grubbing, stump handling, debris sorting
• Construction — topsoil recovery, aggregate sorting, site cleanup
• Agricultural — rock removal, root clearing, field preparation
• Landscaping — stone separation, debris collection, material sorting

Key Features

• Open-tine rake design — soil/sand/fines pass through, rocks/roots/rebar retained
• 203–610mm rake width | 711–1,473mm rake length — 4 size configurations
• Single cylinder | 16 MPa | 60 LPM — standard excavator hydraulic integration
• Weld-on bracket — no play or flex under load
• High-strength alloy steel — precision welding, wear/impact/corrosion resistance
• 44–344kg | continuous heavy-duty use

Technical Drawing:
