LANDYINDUS E-SG12 Hydraulic Excavator Sorting Grapple | Timber & Stone Grab | 2–6T

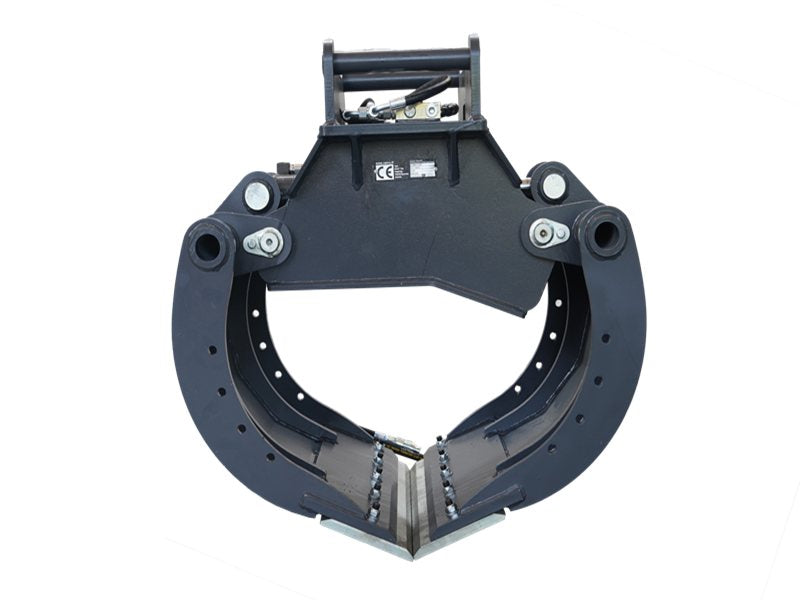

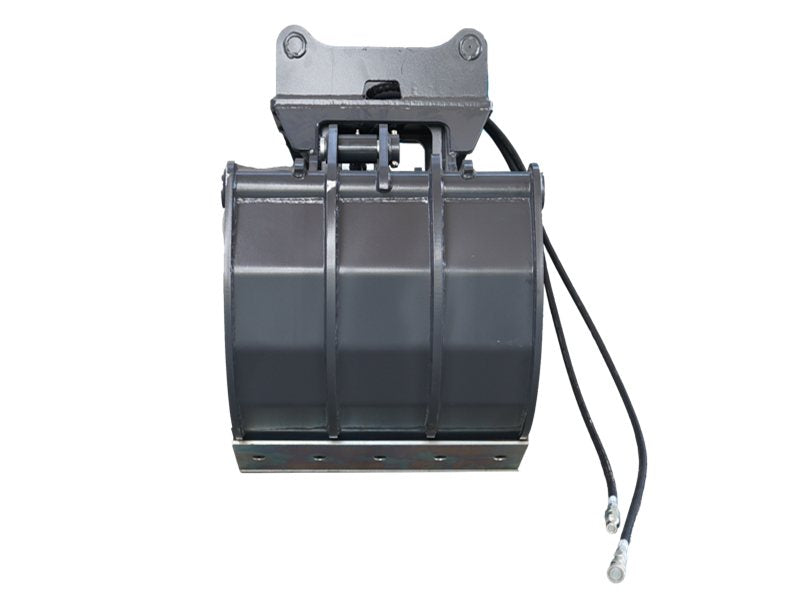

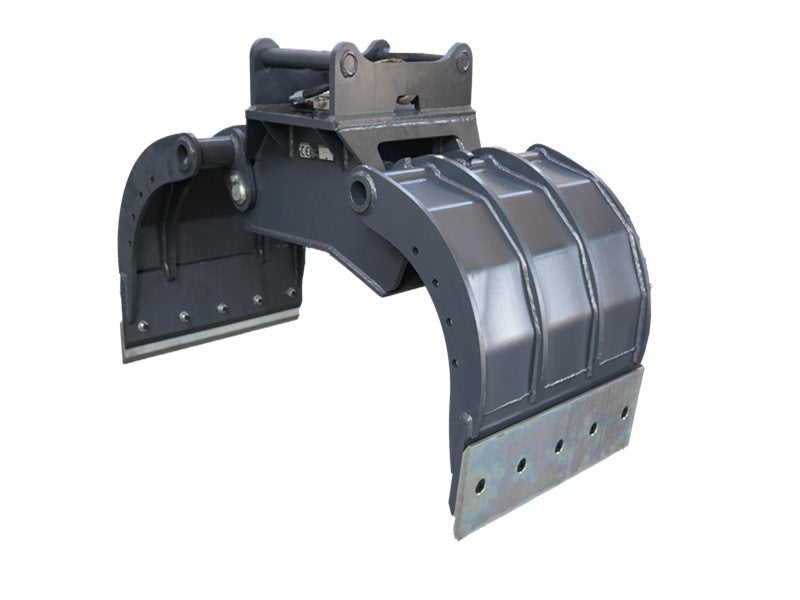

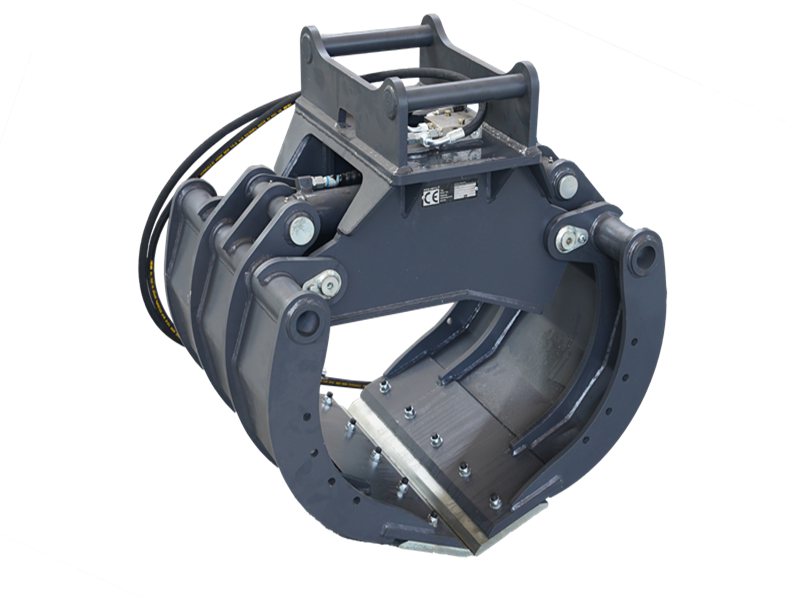

The LANDYINDUS E-SG12 Hydraulic Excavator Sorting Grapple is a versatile multi-function grab engineered for 2–6 ton mini and compact excavators, combining powerful hydraulic gripping force with a wide opening range of up to 1,615 mm to handle timber sorting, stone screening, construction debris separation, and light demolition clearing tasks that require a strong, precise, and controllable grab attachment on forestry, construction, and recycling job sites.

1,615mm Opening Range — From Single Logs to Bulk Demolition Debris

Operating at 16 MPa with a hydraulic flow rate of 60 LPM, the E-SG12 delivers consistent gripping force across the full opening range — from fully closed for securing individual logs, pipes, and structural members through to the maximum 1,615 mm spread for capturing large timber bundles, oversized stone blocks, and bulky demolition debris in a single controlled grab cycle without repositioning or multiple attempts.

Multi-Tine Claw Design — Effective Across Irregular Shapes

The multi-tine claw design provides excellent load retention across irregular shapes including round logs, angular stone, mixed demolition rubble, and bundled timber offcuts. The E-SG12 is equally effective for:

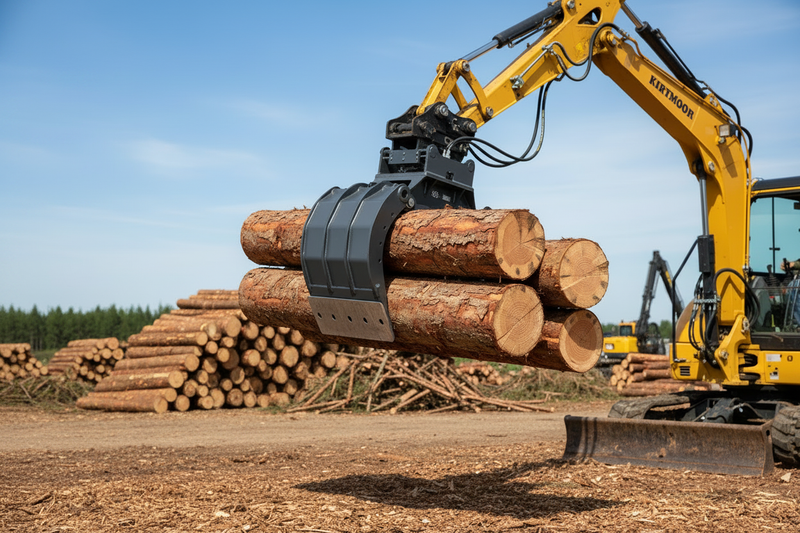

• Log loading and unloading at forestry processing sites
• Stone and aggregate sorting on quarry and construction sites
• Scrap metal and waste material separation at recycling facilities
• Light structural demolition debris clearance on urban redevelopment projects

S40 & S45 Bracket — Direct Quick Coupler Mounting

S40 and S45 bracket configurations ensure direct compatibility with standard excavator quick couplers across all major 2–6 ton mini excavator makes and models, allowing fast, tool-free attachment changes on site without custom adapters — enabling operators to switch between the sorting grapple and other attachments as job site tasks change throughout the working day.

High-Strength Structural Steel — Built for Continuous Heavy-Cycle Operation

Weighing 417–432 kg depending on bracket configuration and built from high-strength structural steel, the E-SG12 is engineered for continuous heavy-cycle operation in demanding forestry, construction, and demolition environments where reliable gripping performance, structural durability, and broad material compatibility are essential for productive daily operation.

Key Features

• Hydraulic sorting grapple for 2–6 ton mini excavators
• Opening range 0–1,615 mm — single logs to bulk debris in one grab
• Multi-tine claw design for irregular shapes: logs, stone, rubble, scrap
• 16 MPa / 60 LPM hydraulic drive — consistent gripping force
• S40 & S45 bracket — direct quick coupler mounting, no adapters required
• High-strength structural steel — continuous heavy-cycle durability
• Suits forestry, construction, demolition, quarry, and recycling applications

Technical Drawing:

Specifications
