LANDYINDUS Hydraulic Five Finger Grapple for Excavator | 1–8 Ton | Timber Grab Attachment

LANDYINDUS E-DG Series Hydraulic Five Finger Grapple for Excavator | 1–8 Ton | Timber & Demolition Grab

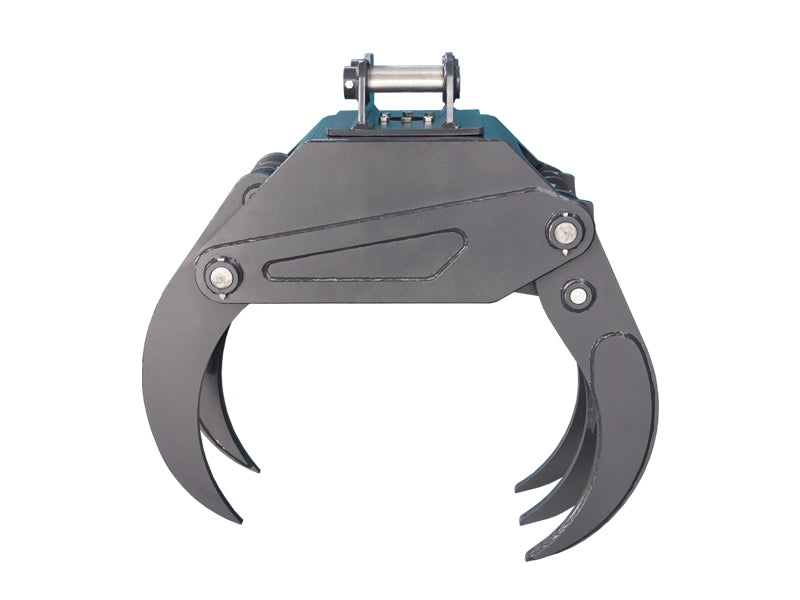

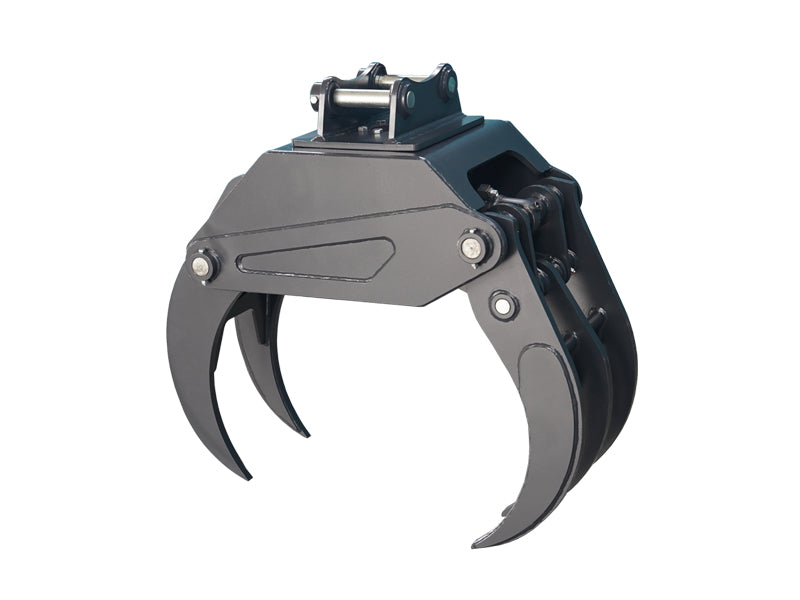

The LANDYINDUS E-DG Series Hydraulic Five Finger Grapple is a versatile, high-capacity excavator attachment built for operators who work across a constantly changing variety of materials and jobsite conditions. With six size configurations covering excavators from 1 to 8 tons and safe working loads from 800 kg to 8,000 kg, the E-DG series delivers the reach, grip area, and clamping force needed to handle everything from small timber bundles to large demolition debris — all within a single, purpose-engineered attachment platform.

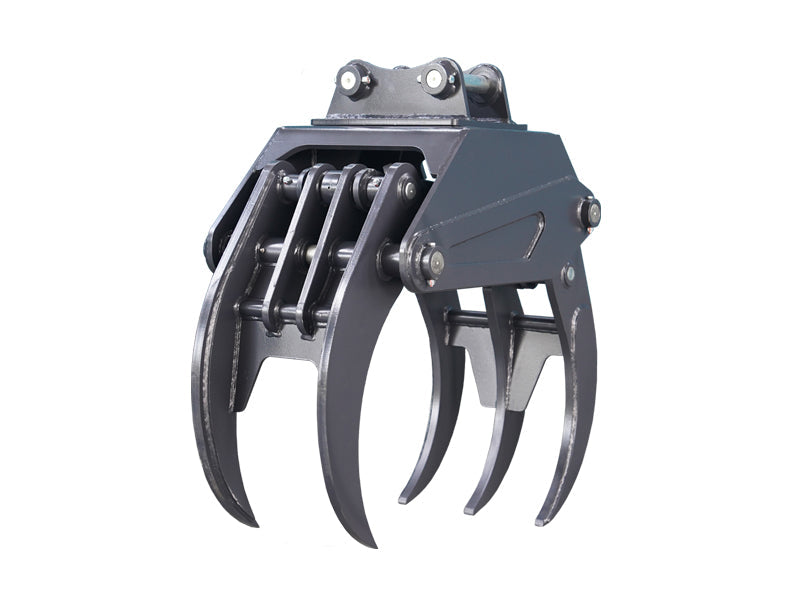

Five-Finger Design — Up to 1,945mm Opening, 0.12–0.42m² Grip Area

The wide-spread five-finger configuration allows the grapple to open to a maximum of 1,945 mm, enabling operators to scoop up large volumes of loose material, timber, brush, or mixed debris in a single pass. At the same time, the fingers close tightly enough to handle smaller, irregular items with precision — giving operators the flexibility to switch between bulk material handling and detailed sorting without changing attachments or losing productivity. Grip area ranges from 0.12 m² to 0.42 m² depending on model, ensuring maximum material capture per cycle.

Multi-Application Performance — Timber, Demolition & Land Clearing

The E-DG five finger grapple excels across multiple demanding applications:

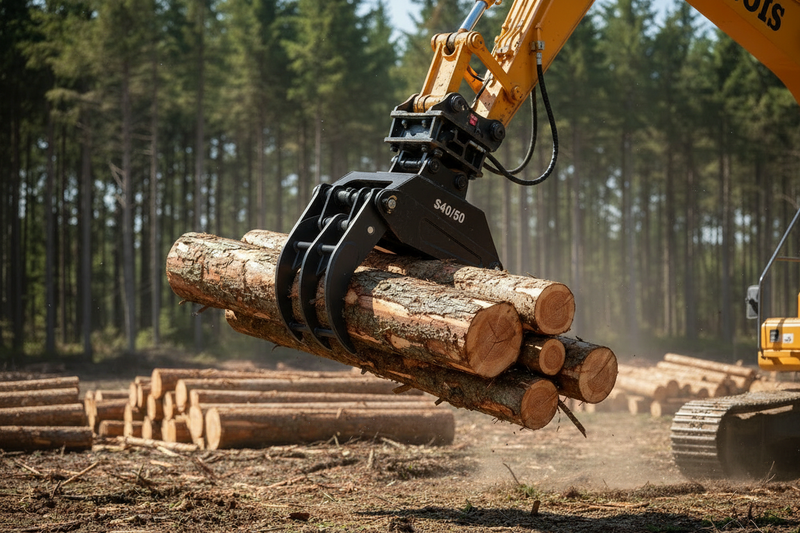

• Timber & forestry — grabs, lifts, and loads logs, branches, and root balls efficiently
• Demolition & construction — sorts concrete rubble, rebar, mixed waste, and salvage material
• Land clearing — wide grip area captures maximum brush and debris per cycle
• Recycling yards & scrap handling — reduces passes and cuts overall cycle times significantly

16 MPa / 60 LPM — Seamless Integration with Standard Hydraulic Systems

All E-DG models operate at 16 MPa with a hydraulic flow requirement of 60 LPM, ensuring smooth, responsive performance that integrates seamlessly with standard excavator hydraulic systems. No additional hydraulic modifications required.

S30, S40, S50 & S60 Bracket Compatibility

Bracket compatibility spans S30, S40, S50, and S60 coupler standards across the model range, covering the most common quick-coupler configurations used on mini and mid-size excavators worldwide. Match your excavator tonnage to the appropriate E-DG configuration and verify your coupler standard before ordering.

Six Models — 1T to 8T Excavator Classes

• ME-DG12 — 621×305×328mm | SWL 800kg | OR 40–690mm | 0.12m² | S30/S40 | 71kg | Suits 1–2T
• ME-DG16 — 635×394×353mm | SWL 1,000kg | OR 40–935mm | 0.16m² | S30/S40 | 97kg | Suits 1–2T
• ME-DG22 — 828×440×466mm | SWL 3,000kg | OR 40–1,255mm | 0.20m² | S40 | 189kg | Suits 2–3.5T
• ME-DG25 — 830×500×553mm | SWL 3,000kg | OR 40–1,475mm | 0.25m² | S40 | 233kg | Suits 2–3.5T
• E-DG35 — 1044×638×582mm | SWL 7,000kg | OR 40–1,860mm | 0.35m² | S50/S60 | 410kg | Suits 6–8T
• E-DG42 — 1144×645×675mm | SWL 8,000kg | OR 40–1,945mm | 0.42m² | S50/S60 | 530kg | Suits 6–8T

Key Features

• Five-finger design — up to 1,945mm opening, superior to 2- or 4-tine alternatives
• SWL 800kg to 8,000kg across six models
• Grip area 0.12–0.42m² — maximum material capture per cycle
• 16 MPa / 60 LPM — standard excavator hydraulic circuit compatible
• S30, S40, S50, S60 bracket options
• High-strength alloy steel construction throughout
• Robust hydraulic cylinder and finger pivot — consistent clamping across thousands of cycles
• Suits timber, demolition, land clearing, and recycling applications

Technical Drawing:

Specifications
