LANDYINDUS Hydraulic Forestry Timber Grapple for Excavator | 2–8 Ton | Reinforced Heavy-Duty Log Grab

LANDYINDUS E-TG Series Hydraulic Forestry Timber Grapple for Excavator | 2–8 Ton | Reinforced Heavy-Duty Log Grab

The LANDYINDUS E-TG Series Hydraulic Forestry Timber Grapple is the purpose-built excavator attachment for operators who specialize in round timber handling, log loading, and light forestry sorting tasks. Engineered specifically for the demands of forestry and timber work, the E-TG series combines a high-capacity hydraulic clamping system with a reinforced steel frame designed to withstand the repeated impact, abrasion, and stress loads that define professional logging and land-clearing operations. With four size configurations covering excavators from 2 to 8 tons, there is a LANDYINDUS timber grapple matched to your machine and your workload.

Curved Tine Design — Optimised for Round Timber & Log Handling

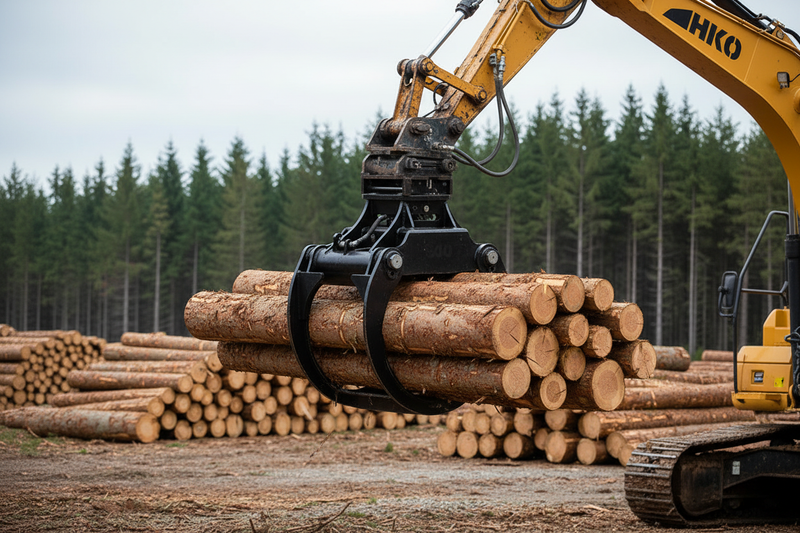

The curved tine design of the E-TG series conforms naturally to the shape of logs, poles, and root balls to maximize contact area and grip security during lifting, loading, and transport. Whether loading a timber truck, sorting logs by diameter at a processing yard, clearing felled trees from a harvest site, or handling large root balls during land clearing, the E-TG delivers the controlled, secure grip that prevents load shift and keeps every lift safe and efficient.

SWL 5,000–7,000 kg | Opening Range 95–2,065mm

Safe working loads span from 5,000 kg on the ME-TG22S and ME-TG28S models up to 7,000 kg on the E-TG42S — providing the lifting capacity needed for heavy round timber and large-diameter logs without compromising structural integrity under sustained use. Opening ranges extend from 95 mm on the smallest model up to 2,065 mm on the largest, giving operators the flexibility to handle everything from small-diameter poles and branches to full-size sawlogs and large timber bundles within a single attachment platform.

Reinforced Construction — Built for Continuous Forestry Conditions

Key stress points including the tine pivot joints, hydraulic cylinder mounts, and frame weld zones are engineered with additional material thickness and structural reinforcement to extend service life in the demanding conditions of continuous forestry work. The high-strength alloy steel construction resists wear, impact, and corrosion through thousands of operating cycles with minimal maintenance requirements.

S30, S40, S45 & S50 Bracket — 2T to 8T Excavator Compatibility

All models operate at 16 MPa with a hydraulic flow requirement of 60 LPM, and bracket compatibility spans S30, S40, S45, and S50 coupler standards — covering the most common quick-coupler configurations used on mid-size and large excavators in forestry applications worldwide.

Four Models — 2T to 8T Excavator Classes

• ME-TG22S — 794×362×490mm | SWL 5,000kg | OR 95–1,320mm | 0.20m² | S30/S40 | 123kg | Suits 2–3.5T
• ME-TG28S — 872×539×562mm | SWL 5,000kg | OR 100–1,500mm | 0.28m² | S40 | 262kg | Suits 2–3.5T
• E-TG35S — 995×554×673mm | SWL 5,000kg | OR 140–1,855mm | 0.35m² | S40/S45/S50 | 321kg | Suits 6–8T
• E-TG42S — 1138×560×677mm | SWL 7,000kg | OR 140–2,065mm | 0.42m² | S40/S45/S50 | 417kg | Suits 6–8T

Key Features

• Purpose-built for round timber, log loading & forestry sorting
• Curved tine design — maximises contact area on logs, poles & root balls
• SWL 5,000–7,000 kg | Opening range 95–2,065mm across four models
• Reinforced tine pivots, cylinder mounts & weld zones for extended service life
• High-strength alloy steel — wear, impact & corrosion resistant
• 16 MPa / 60 LPM — standard excavator hydraulic circuit compatible
• S30, S40, S45, S50 bracket options — suits 2–8T excavators
• Compatible with a variety of attachments and tools

Technical Drawing:

Specifications
