LANDYINDUS Hydraulic Fork Positioner | Class 2A & 3A | 1–4.5 Tonne Forklifts | No-Welding Hang-On Installation | Continuous In-Cab Fork Spacing Adjustment | Mixed Pallet Handling

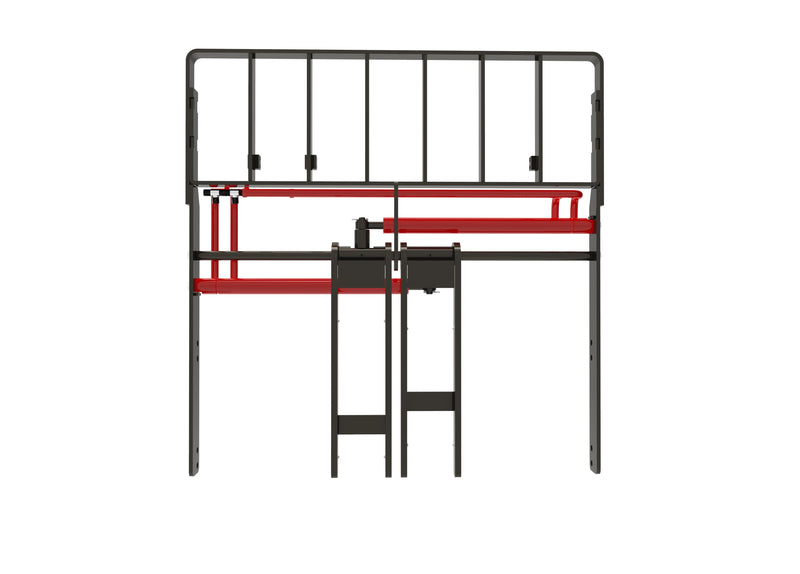

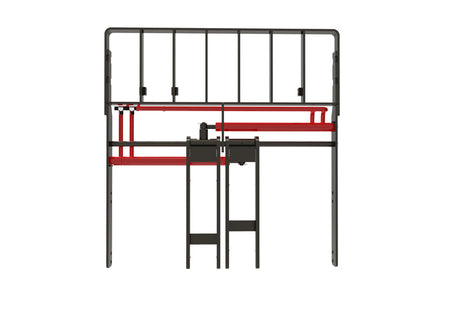

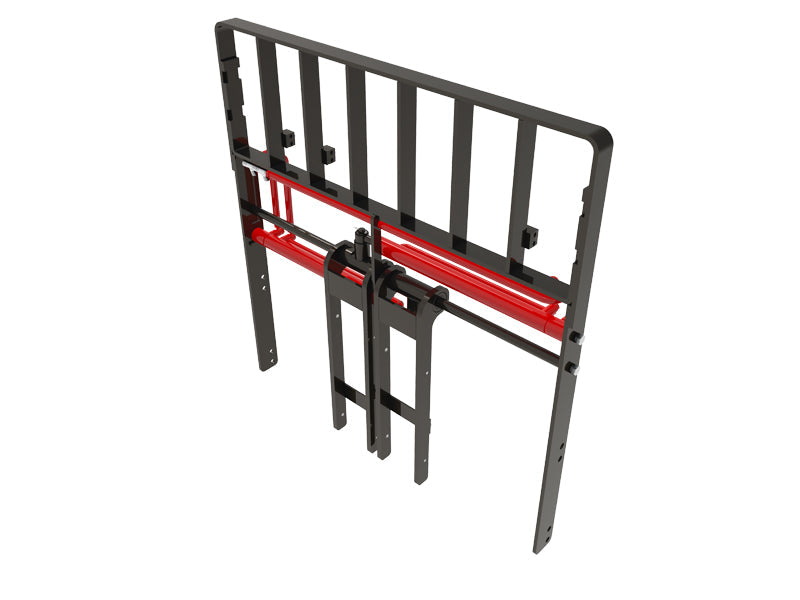

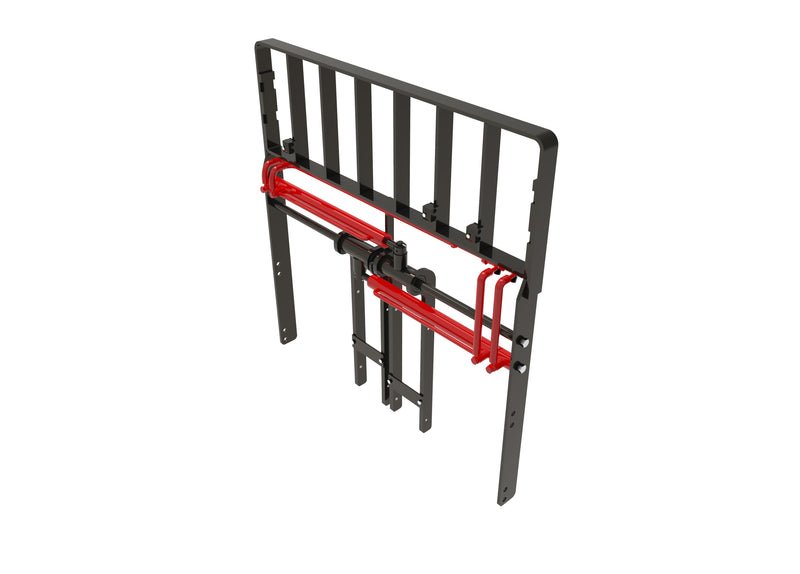

The LANDYINDUS Hydraulic Fork Positioner is a precision-engineered forklift attachment designed to adjust fork spacing quickly, accurately, and continuously from the operator's seat — eliminating the need to dismount the forklift, manually reposition forks, or interrupt the handling cycle when switching between pallets of different widths. Available in Class 2A configurations for 1–2.5 tonne forklifts and Class 3A configurations for 3–4.5 tonne forklifts, this attachment covers the full range of standard counterbalance forklift classes used in warehouses, distribution centres, manufacturing facilities, and high-throughput logistics environments where multiple pallet sizes are handled within a single shift.
No-Welding Hang-On Installation — Plug-and-Play Fleet Upgrade
The external hang-on mounting design is the defining installation advantage of this fork positioner. The attachment mounts directly onto the existing standard fork carriage using an external hanging bracket — requiring no welding, no carriage modification, no drilling, and no structural alteration to the host forklift.
Installation is completed using standard mechanical fastening, allowing the positioner to be fitted and operational without specialist workshop time or forklift downtime for modification. This plug-and-play installation approach makes the LANDYINDUS fork positioner one of the most accessible hydraulic fork positioning solutions available for operations that need to upgrade their forklift fleet's handling versatility without committing to permanent carriage modifications.
Continuous In-Cab Adjustment — Eliminates Manual Repositioning Cycle Time
The hydraulic positioning system delivers continuous, stepless fork width adjustment across a positioning range from 45mm to up to 1,195mm (depending on model) — covering the full spectrum of standard pallet widths from narrow single-entry pallets to wide double-entry and non-standard pallet configurations. The operator controls fork spacing via the forklift's auxiliary hydraulic circuit directly from the cab, making precise width adjustments in real time as the forklift approaches each pallet load.
This seated, in-motion adjustment capability eliminates the 30–60 second manual repositioning cycle required with fixed-width forks, delivering measurable cycle time reductions in operations that regularly handle mixed pallet width inventories across multiple product lines or storage zones. It also eliminates the manual handling strain and pinch-point injury risks associated with physically pushing heavy steel tines along a carriage rail.
Class 2A Models (1–2.5 Tonne Forklifts) — F-TJQ2A Series
Engineered for 1–2.5 tonne forklifts with a 100mm pocket width, covering the standard pallet width range used in light to medium warehouse and retail logistics operations.
| Model | Suit Forklift | Class | Dimensions W×D×H (mm) | Positioner Range (mm) | Pocket Width (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| F-TJQ2A15-970 | 1–1.5 T | 2A | 1,010×140×1,100 | 45–810 | 100 | 65 |
| F-TJQ2A20-1040 | 2–2.5 T | 2A | 1,080×140×1,100 | 45–880 | 100 | 67 |
| F-TJQ2A20-1200 | 2–2.5 T | 2A | 1,240×130×1,100 | 45–1,045 | 100 | 72 |
Class 3A Models (3–4.5 Tonne Forklifts) — F-TJQ3A Series
Engineered for 3–4.5 tonne forklifts, stepping up to 120–150mm pocket widths to accommodate the wider pallet configurations and heavier load formats typical of heavy industrial, manufacturing, and large-format distribution operations.
| Model | Suit Forklift | Class | Dimensions W×D×H (mm) | Positioner Range (mm) | Pocket Width (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| F-TJQ3A30-1100 | 3–3.5 T | 3A | 1,212×102×1,200 | 45–940 | 120 | 74 |
| F-TJQ3A38-1200 | 3–3.8 T | 3A | 1,312×102×1,200 | 45–1,015 | 150 | 78 |
| F-TJQ3A40-1300 | 4–4.5 T | 3A | 1,412×102×1,200 | 45–1,115 | 150 | 80 |
| F-TJQ3A40-1350 | 4–4.5 T | 3A | 1,462×102×1,200 | 45–1,195 | 150 | 82 |
Hydraulic Integration & Visibility
The hydraulic system operates at a working pressure of 16 MPa with a flow requirement of 60 LPM, compatible with the auxiliary hydraulic circuits of standard counterbalance forklifts in the 1–4.5 tonne class. Connection to the forklift's third hydraulic valve circuit is required. The wide, unobstructed carriage design maintains clear operator sightlines to the fork tips and the load during approach and placement — a critical safety and precision requirement in high-density racking environments.
Applications
- E-commerce fulfilment centres — high-cycle handling of mixed-width pallets and irregular loads
- Multi-product distribution warehouses — eliminating manual repositioning time between different pallet formats
- Manufacturing facilities — precise fork positioning for custom material handling racks
- Logistics fleet upgrades — adding hydraulic versatility without permanent forklift modification
Key Features
- Continuous in-cab fork spacing adjustment — no dismounting, no manual pushing
- No-welding hang-on installation — standard mechanical fastening to existing carriage
- Class 2A (1–2.5T) and Class 3A (3–4.5T) configurations
- 45mm to 1,195mm maximum positioning range (varies by model)
- 16 MPa / 60 LPM hydraulic parameters — requires 3rd hydraulic valve
- Clear-view carriage design — maintains operator sightlines to fork tips
Technical Drawing
1. Auxiliary Circuit Required: This attachment requires one additional hydraulic circuit (3rd valve) on the forklift to operate the positioning cylinders.
2. Carriage Class Verification: Confirm your forklift carriage class (ISO Class 2A or 3A) and rated capacity before ordering. Do not mount a Class 3A attachment on a Class 2A carriage or vice versa.
3. Pocket Width: Verify that your existing fork tines are compatible with the pocket width specified for the chosen model (100mm, 120mm, or 150mm).
4. Load De-rating: Adding an attachment extends the load centre and adds weight (65–82kg). Check your forklift's de-rated capacity chart before lifting maximum loads.
