LANDYINDUS F-DB-H Series Hydraulic Forklift Dump Bucket | 500–1,000kg SWL | Full Backwards Tilt — Dry, Semi-Liquid & Liquid Materials | Hardened Steel Wear Edge | Single & Dual Cylinder | 0.22–0.90m³ | 16 MPa | 60 LPM | Slip-On

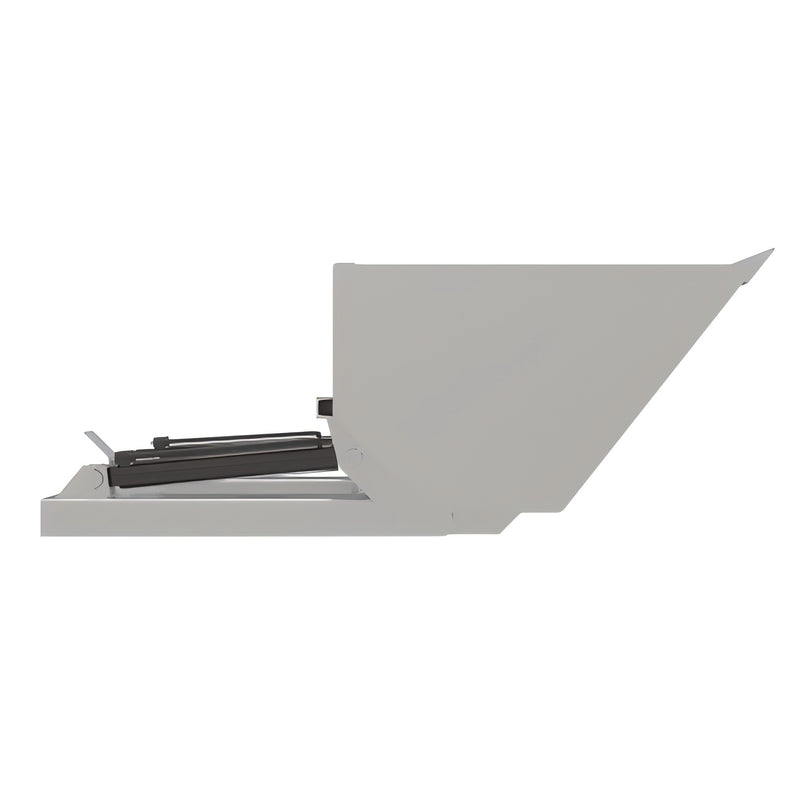

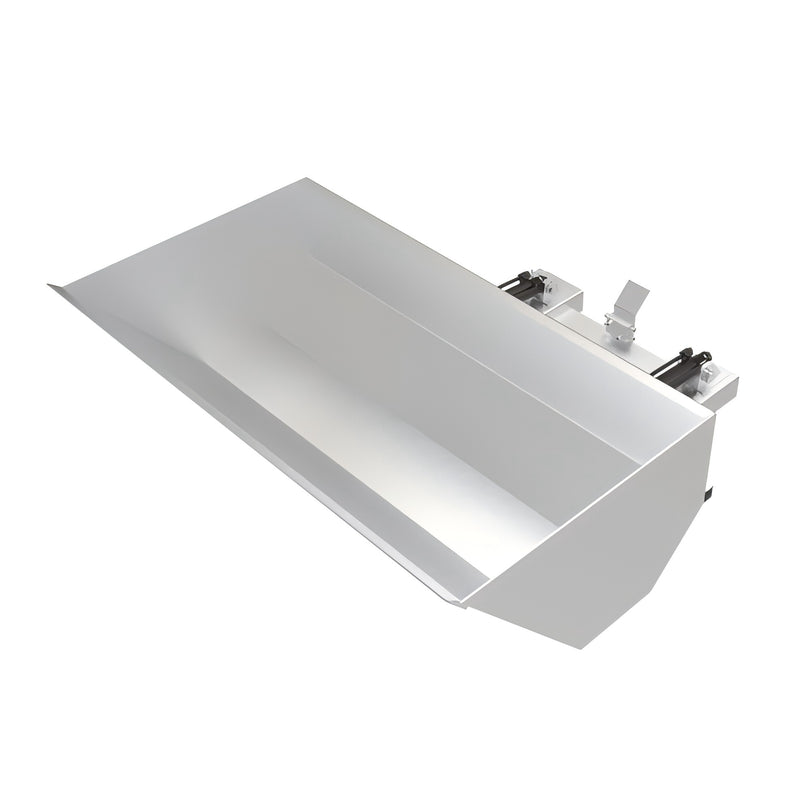

The LANDYINDUS F-DB-H Series Hydraulic Forklift Dump Bucket is a heavy-duty slip-on hydraulic bucket attachment designed for fast, versatile bulk material handling across construction sites, warehouses, agricultural operations, and industrial yards. Connecting directly to your forklift’s existing hydraulic system, this bucket requires no additional tools or complex installation — slip onto forks, connect hydraulic lines, begin work immediately.
Full Backwards Tilt — Dry, Semi-Liquid & Liquid Materials, Controlled Precise Dumping
The hydraulic tipping mechanism delivers full backwards tilt capability, making the F-DB-H series uniquely suited for handling not only loose dry materials but also semi-liquid and liquid products that require controlled, precise dumping. This versatility sets the hydraulic bucket apart from mechanical dump buckets (F-DB-M-12), which tip forward only and are limited to dry loose materials.
Complete Forklift Dump Bucket Comparison — Mechanical vs Hydraulic, Forward vs Backward Tip
| Feature | F-DB-M-12 Mechanical | F-DB-H Series Hydraulic (This) |
|---|---|---|
| Dump mechanism | Mechanical lever — forward tip | Hydraulic cylinder — full backwards tilt |
| Hydraulics required | No | Yes — 1 auxiliary circuit (16MPa/60LPM) |
| Material types | Dry loose only | Dry, semi-liquid & liquid |
| Dump precision | Lever-activated pivot | Hydraulic — fully controlled tilt speed & angle |
| Wear edge | Standard | Hardened steel — extended service life |
| Cylinder | None | Single (500kg) or dual (1,000kg) |
| SWL range | 500kg | 500–1,000kg |
| Volume range | 0.22m³ | 0.22–0.90m³ |
| Finish | Galvanized | Steel |
| Best for | Any forklift, no hydraulics, dry materials | Hydraulic forklifts, semi-liquid/liquid, high SWL |
Hardened Steel Wear Edge — Extended Service Life in High-Cycle Abrasive Environments
Fitted with a hardened steel wear edge along the cutting face, the bucket withstands repeated contact with abrasive ground surfaces, significantly extending service life and reducing replacement costs in high-cycle environments. The hardened wear edge is a critical feature for buckets used to scoop abrasive materials (gravel, aggregate, demolition rubble) directly from ground level — standard mild steel edges wear rapidly under these conditions.

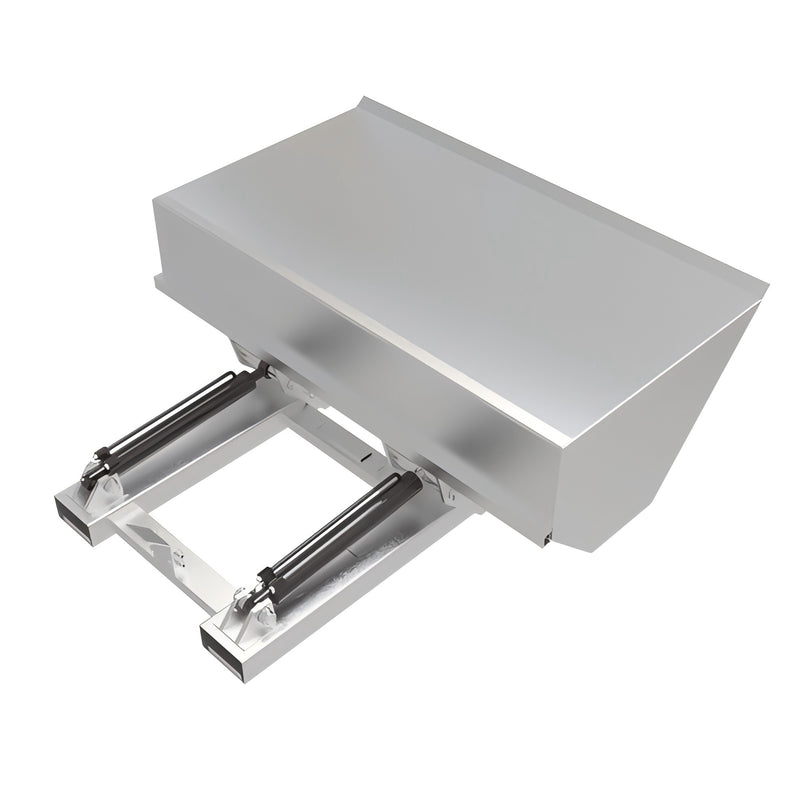

Three Models — Single Cylinder (500kg) and Dual Cylinder (1,000kg)
| Model | SWL (kg) | Cylinders | Dimensions W×D×H (mm) | Plate (mm) | Fork Pocket (mm) | Centres (mm) | Pressure | Flow | Volume (m³) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| F-DB-H-12 | 500 | 1 | 1,200×670×596 | 5 | 165×65 | 635 | 16 MPa | 60 LPM | 0.22 | 195 |
| F-DBHS2-12 | 1,000 | 2 | 1,200×670×596 | 6 | 185×65 | 750 | 16 MPa | 60 LPM | 0.50 | 308 |
| F-DBHS2-18 | 1,000 | 2 | 1,800×670×596 | 6 | 185×65 | 750 | 16 MPa | 60 LPM | 0.90 | 364 |
Model selection notes:
- F-DB-H-12 vs F-DBHS2-12: Same 1,200mm width, different SWL (500 vs 1,000kg), different fork pockets (165×65mm vs 185×65mm) and centres (635 vs 750mm) — select by forklift capacity and fork dimensions, not just SWL.
- F-DBHS2-12 vs F-DBHS2-18: Same SWL, same fork pockets — select by volume required: 0.50m³ (1,200mm wide) vs 0.90m³ (1,800mm wide).
Applications
- Construction sites — gravel, sand, aggregate, demolition rubble (hardened wear edge)
- Agricultural operations — grain, silage, liquid feed, semi-liquid waste
- Industrial yards — coal, aggregate, bulk material with liquid content
- Waste management — semi-liquid industrial waste, sludge, slurry handling
- Warehouses — controlled liquid and semi-liquid product transfer
Key Features
- Full backwards tilt — dry, semi-liquid & liquid materials, controlled dumping
- Hardened steel wear edge — extended service life on abrasive ground surfaces
- Single cylinder (500kg) or dual cylinder (1,000kg) — matched to SWL
- 0.22–0.90 m³ — three size/capacity configurations
- 16 MPa | 60 LPM — standard forklift auxiliary hydraulic circuit
- Slip-on fork pockets — no tools, installs immediately
- 195–364kg | 5–6mm steel plate
Technical Drawing:
• Requires 16 MPa / 60 LPM auxiliary hydraulic circuit.
• F-DB-H-12: fork pocket 165×65mm, 635mm centres.
• F-DBHS2-12 & F-DBHS2-18: fork pocket 185×65mm, 750mm centres — different from F-DB-H-12.
• Verify forklift rated capacity at load centre covers SWL plus bucket weight (195–364kg total).
• For semi-liquid or liquid materials, ensure bucket edges and seams are appropriate for your material viscosity. Custom sizes available on request.
