LANDYINDUS Hydraulic Forward Bin Tipper | 1,000kg SWL | 135° Forward Rotation | Stainless Steel Pivot Pins | Zero-Maintenance Bearings | Safety Catch | 16 MPa | 60 LPM | Forklift & Tractor | F-FXQ1000

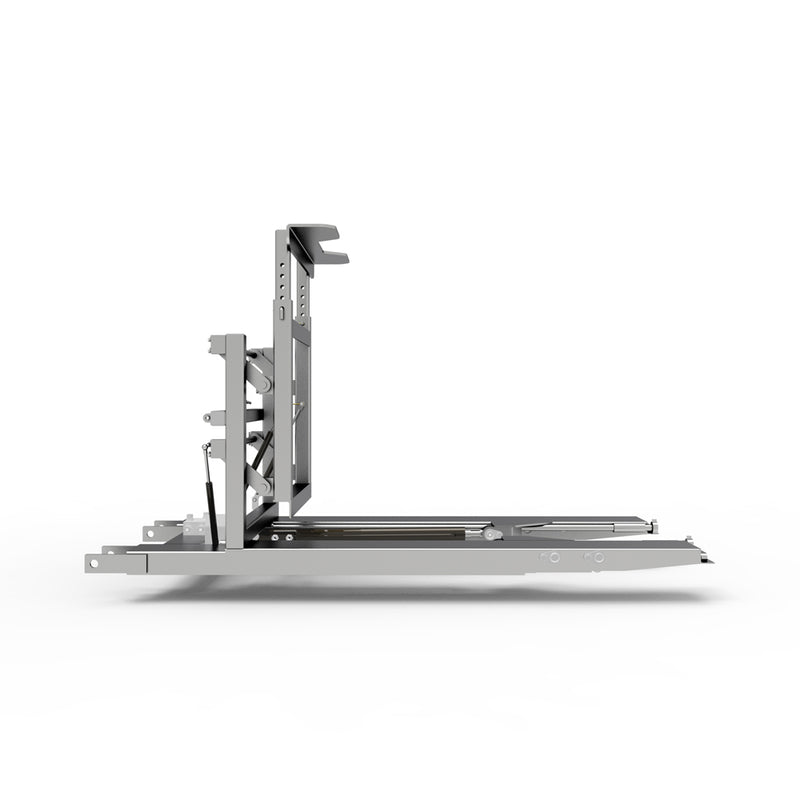

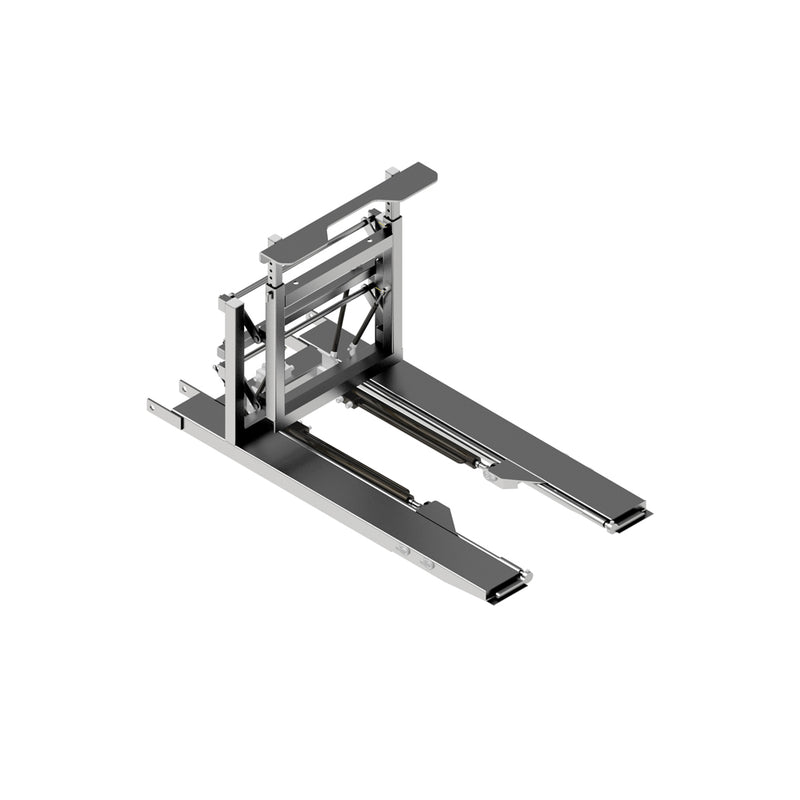

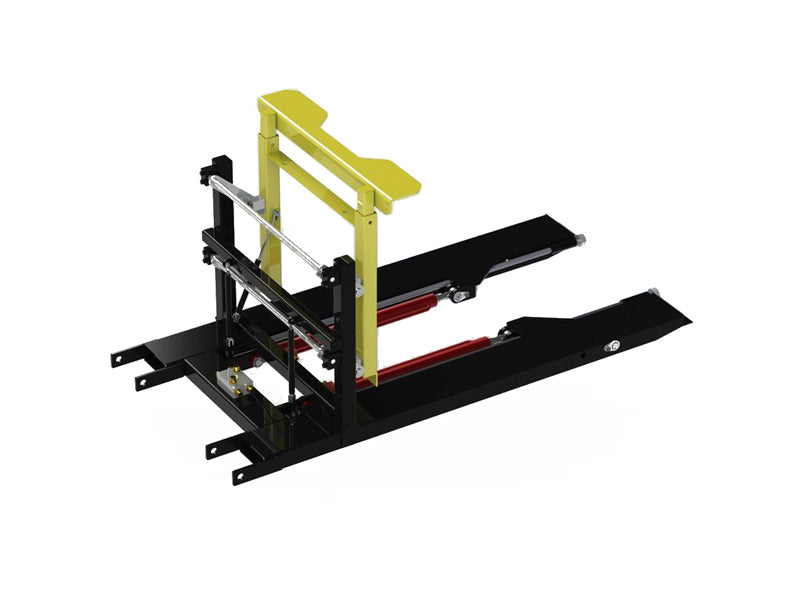

LANDYINDUS F-FXQ1000 Hydraulic Forward Bin Tipper | 1,000kg SWL | 135° Smooth Forward Rotation | Complete Bin Emptying, Zero Residual Material | Stainless Steel Pivot Pins | Zero-Maintenance Bearings | Safety Catch | 16 MPa | 60 LPM | Forklift & Tractor

The LANDYINDUS F-FXQ1000 Hydraulic Forward Bin Tipper delivers a fast, safe, and cost-effective solution for tipping bins of fresh produce, agricultural materials, industrial waste, and bulk goods — compatible with standard forklifts and tractors equipped with hydraulic circuits.

135° Hydraulic Forward Rotation — Complete Emptying, Zero Residual Material, No Manual Intervention

The hydraulic tipping action provides smooth, fully controlled forward rotation up to 135°, ensuring complete and consistent emptying of the bin with zero residual material — eliminating the need for manual intervention or secondary cleaning. At 135°, the bin tips well past vertical, allowing even sticky or clumping materials (wet produce, silage, moist grain) to discharge completely under gravity without operator assistance.

Stainless Steel Pivot Pins & Zero-Maintenance Bearings — No Lubrication, No Servicing Required

The tipper features stainless steel pivot pins and zero-maintenance pivot bearings that deliver exceptional durability with no lubrication or servicing required — significantly reducing total cost of ownership over the product’s lifetime. In agricultural and food processing environments where water, chemicals, and organic acids are present, standard carbon steel pins corrode and seize — stainless steel pins eliminate this failure mode entirely.

Built-In Safety Catch — Prevents Tipping if Bin is Not Correctly Seated on Tines

A built-in safety catch automatically prevents tipping if the bin is not correctly seated on the tines, protecting both the operator and the load from accidental discharge. This is a critical safety feature in high-cycle operations where bins are loaded and tipped repeatedly — the safety catch ensures that a misaligned or incompletely seated bin cannot be accidentally tipped, preventing load spillage, product loss, and potential operator injury.

Hydraulic Forward Bin Tipper vs Manual Bin Tipper vs Skip Hoist

Quick-Attach & Quick-Release — Fit or Remove in Minutes, Maximum Machine Uptime

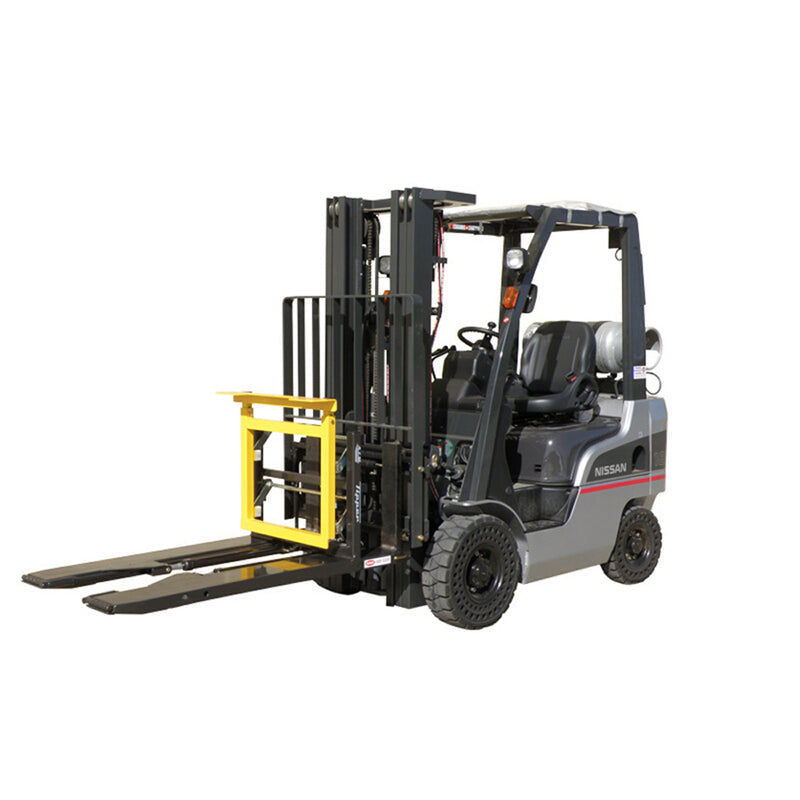

The quick-attach and quick-release design allows operators to fit or remove the tipper from the forklift in minutes, maximising machine uptime across multiple tasks. The slip-on fork pocket design (125×45mm, 609mm centres, 300mm load centre) fits standard forklift forks without tools or modifications.

Applications

• Food processing & fresh produce — fruit, vegetable, wet produce bin tipping
• Agriculture — grain, silage, feed bin emptying into hoppers
• Industrial waste management — controlled bin discharge into skips or conveyors
• Warehouse logistics — bulk goods tipping and transfer
• Recycling facilities — mixed waste bin tipping

Key Features

• 135° hydraulic forward rotation — complete emptying, zero residual material
• Stainless steel pivot pins — corrosion-free in wet, chemical & food environments
• Zero-maintenance pivot bearings — no lubrication or servicing required
• Built-in safety catch — prevents tipping if bin not correctly seated on tines
• Quick-attach / quick-release — fit or remove in minutes
• 1,000kg SWL | 16 MPa | 60 LPM | forklift & tractor hydraulic circuit
• 155kg | 1,680×770×930mm | fork pocket 125×45mm / 609mm centres / 300mm load centre

Technical Drawing:

Specifications
