LANDYINDUS Hydraulic Forward Bulk Bin Tipper | 1,000kg SWL | Dual Clamp Arms | Hydraulic Sequencing Valve — No Tip Until Bin Secured | Single Hydraulic Circuit | Standard Square Bins to 1,200×1,200mm | F-FBT-SH

LANDYINDUS F-FBT-SH Hydraulic Forward Bulk Bin Tipper | 1,000kg SWL | Dual Clamp Arms — Bin Secured Throughout Entire Tipping Motion | Hydraulic Sequencing Valve — Rotation Cannot Start Until Bin Fully Clamped | Single Hydraulic Circuit | Standard Square Bins to 1,200×1,200mm

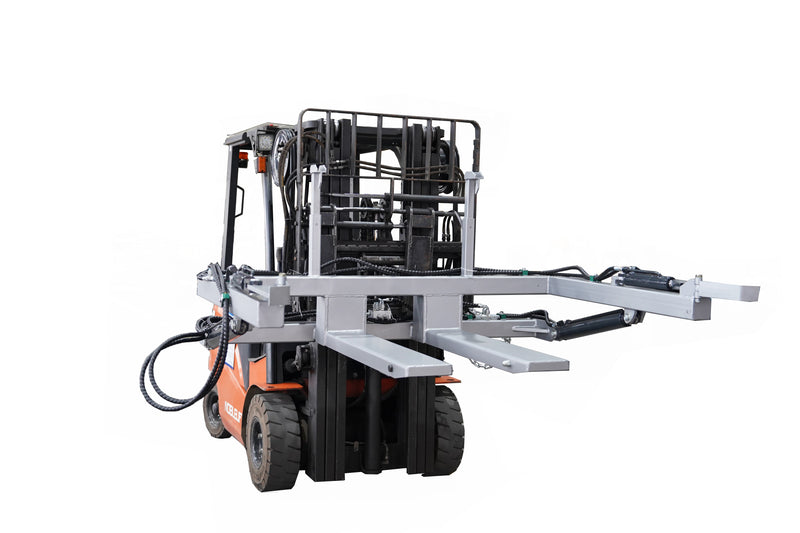

The LANDYINDUS F-FBT-SH Hydraulic Forward Bulk Bin Tipper is purpose-engineered for the safe, efficient handling and emptying of bulk bins in agricultural, food processing, manufacturing, and waste management operations. With a Safe Working Load (SWL) of 1,000kg, this heavy-duty slip-on tipper transforms any compatible forklift into a powerful bin-emptying machine — with no dedicated equipment required.

Hydraulic Sequencing Valve — Rotation Cannot Commence Until Bin is Fully Secured

The purpose-built hydraulic sequencing valve provides a critical safety layer: rotation cannot commence until the bin is fully secured in position, completely eliminating the risk of accidental bin drop during the tipping cycle. This is an engineered hardware interlock — not a software check or operator procedure — meaning the sequencing valve physically prevents the tipping cylinder from activating until the clamp circuit has reached full clamping pressure. This hardware-level safety cannot be bypassed by operator error.

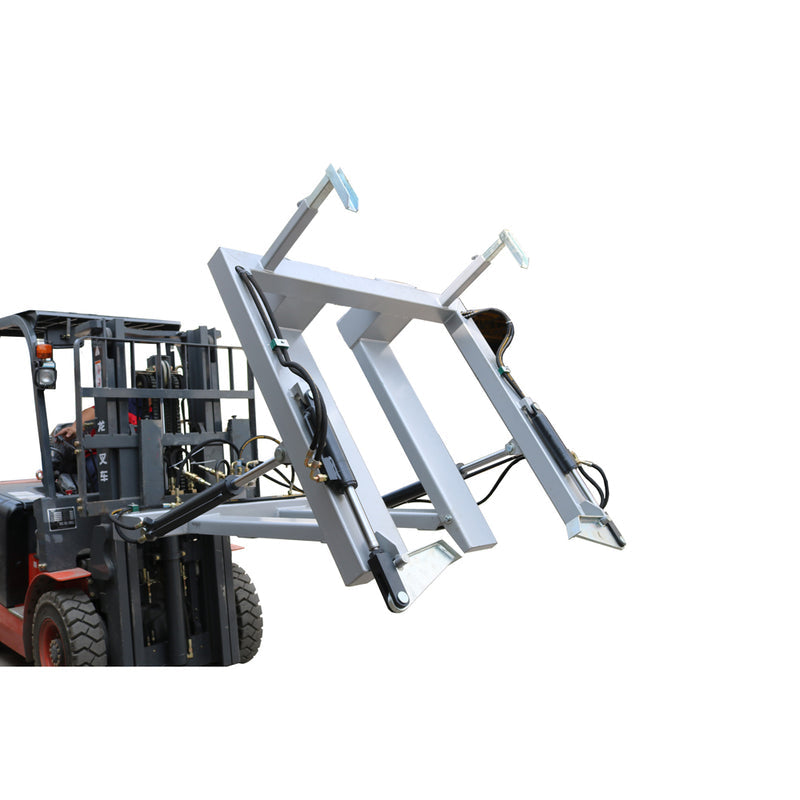

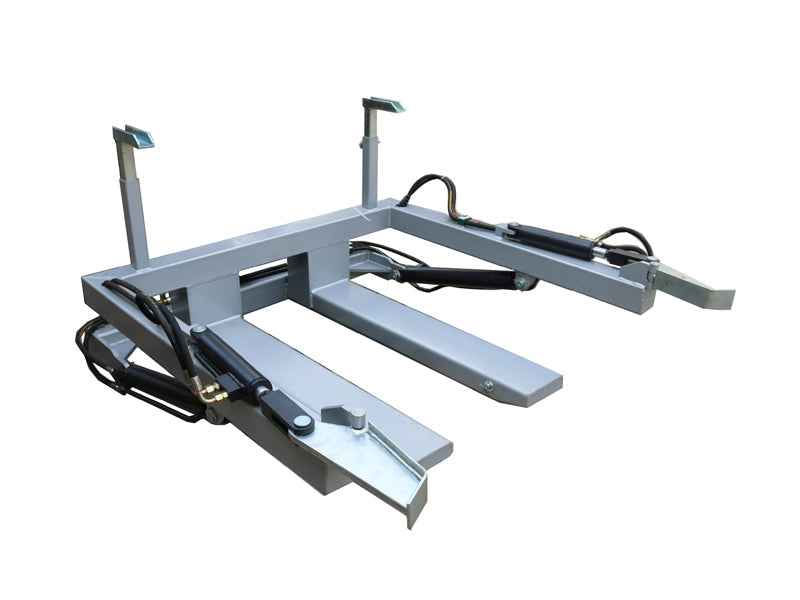

Dual Clamp Arms — Bin Secured Throughout Entire Tipping Motion, No Bin Movement or Damage

The dual clamp arms gently but firmly secure the bin throughout the entire tipping motion, preventing bin movement, damage, or spillage — making this attachment ideal for:

• High-value containers — clamped securely, no impact or drop risk
• Delicate produce bins — fruit, vegetable bins protected from impact during tipping
• Reusable plastic bulk bins — no impact damage, extended bin service life
• Partially filled bins — clamp arms prevent bin shift during off-centre loads

F-FXQ1000 vs F-FBT-SH — Tine-Only vs Clamp Arm Bin Tipper

Single Hydraulic Circuit — Compatible with Wide Range of Standard Forklifts

The F-FBT-SH requires only one hydraulic circuit on the forklift — the hydraulic sequencing valve internally manages the clamp-then-tip priority sequence using a single hydraulic supply, making installation straightforward and compatible with a wide range of standard machines that have only one auxiliary hydraulic outlet.

Standard Square Bins to 1,200×1,200mm, Height 675–925mm

Designed to suit standard square bins up to 1,200×1,200mm with a height range of 675–925mm, the F-FBT-SH accommodates the most common bulk bin sizes used in agriculture and industry. Non-standard sizes and custom capacities are available upon request.

Applications

• Agriculture — fruit, vegetable, produce bulk bin tipping into hoppers
• Food processing — ingredient bin emptying, reusable bin protection
• Manufacturing — component, waste, and bulk material bin discharge
• Waste management — controlled bulk bin emptying into skips or conveyors
• Cold storage & logistics — bin tipping without bin damage in high-cycle operations

Key Features

• Dual clamp arms — bin secured throughout entire tipping motion
• Hydraulic sequencing valve — hardware interlock, clamp before tip, cannot be bypassed
• Single hydraulic circuit — compatible with standard forklifts, one auxiliary outlet
• Standard square bins to 1,200×1,200mm, height 675–925mm
• 1,000kg SWL | 16 MPa | 60 LPM
• 290kg | 1,200×1,220×600mm | fork pocket 173×60mm / 540mm centres / 880mm load centre / 300mm ET

Technical Drawing:

Specifications
