LANDYINDUS Hydraulic Multi-Claw Grapple Bucket | 1.7m³ Capacity | Class 3A (3–3.5T) | F-FLPD Series
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!

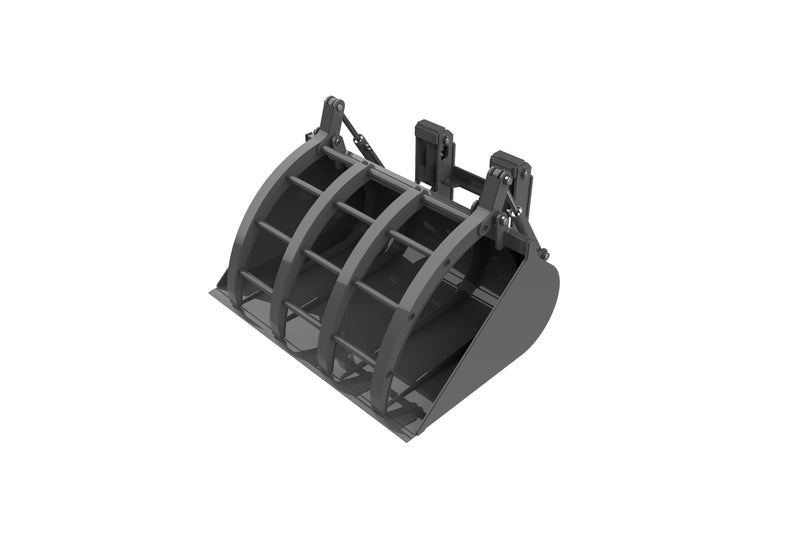

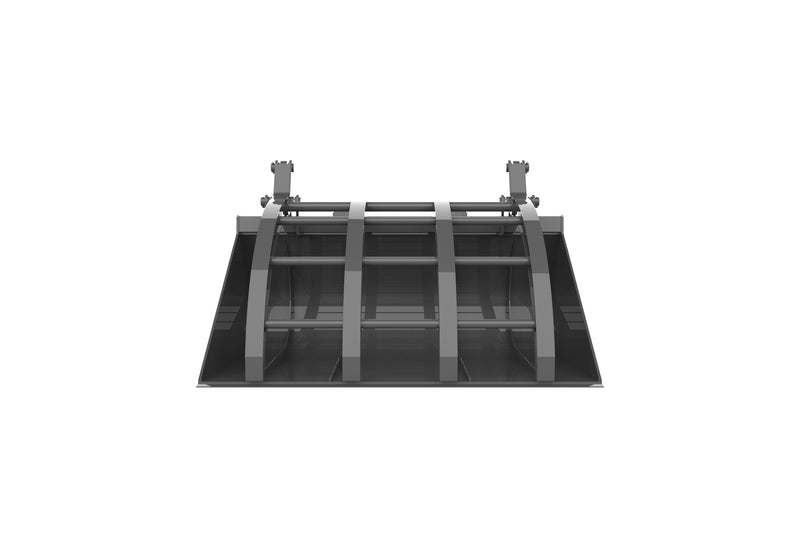

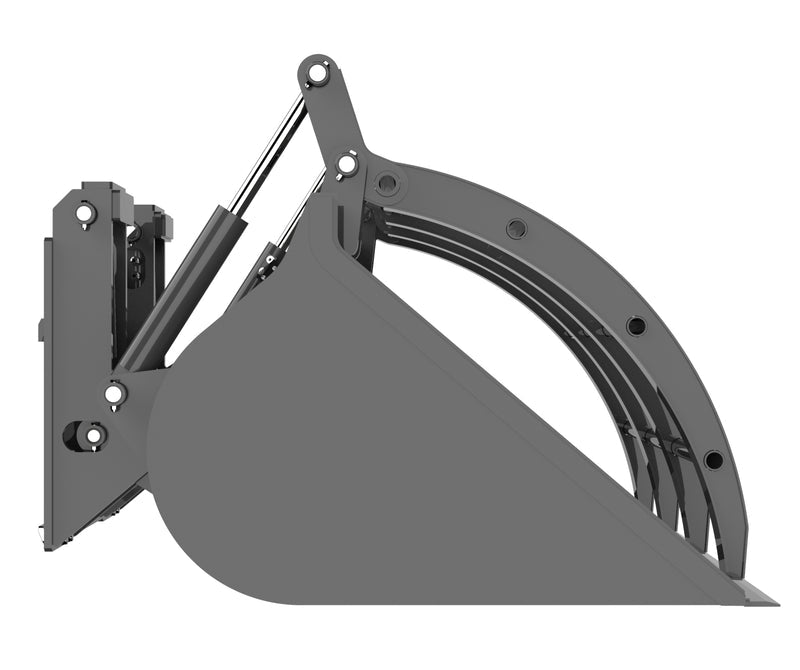

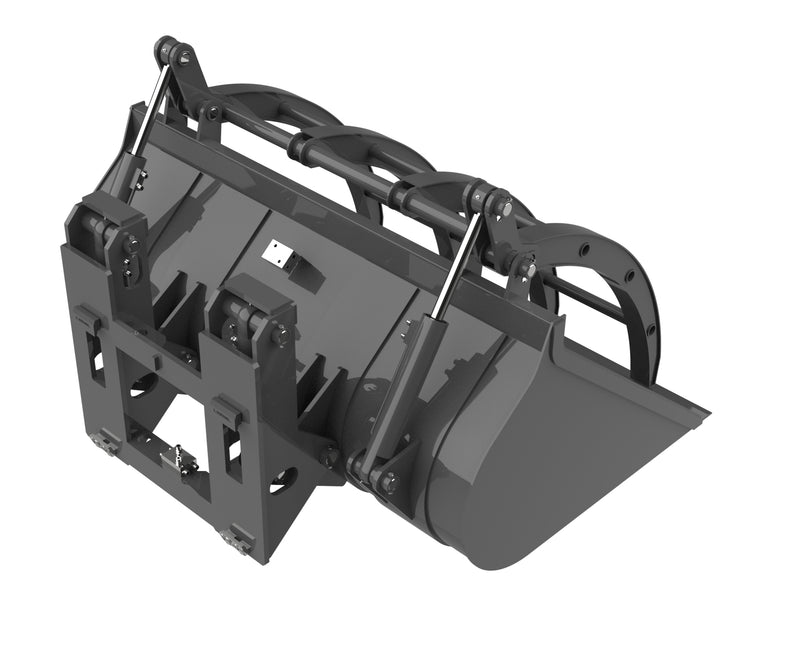

LANDYINDUS F-FLPD3A30-2000 Hydraulic Multi-Claw Grapple Bucket | 1.7m³ Massive Capacity | Class 3A (3–3.5T) | For Waste & Loose Material Handling
The LANDYINDUS Forklift Grapple Bucket Attachment (F-FLPD Series) is a heavy-duty hydraulic clamp engineered for high-volume handling of waste, loose materials, and uneven bulk loads across construction, demolition, recycling, and logistics operations. With a massive 1.7 m³ bucket volume and an opening range of 0–1,887mm, this grapple bucket accommodates large volumes of material in a single pass — maximizing throughput for 3–3.5T Class 3A forklifts.
Multi-Claw Grab Mechanism — Maximum Load Retention
Designed with a strong, abrasion-resistant steel structure, the F-FLPD grapple bucket safely grabs and secures materials of varying consistencies — from compacted waste and demolition rubble to loose aggregates, timber offcuts, and irregular industrial scrap.
The multi-claw grab mechanism applies even, downward pressure across the load surface. This locks the material into the bucket, minimizing spillage and ensuring stable, controlled transshipment from pickup to placement, even when traversing uneven yard terrain.
High-Volume 1.7m³ Capacity & Class 3A Carriage Mount
Unlike standard slip-on buckets, this attachment mounts directly to the forklift's ISO Class 3A carriage, providing a much closer load centre and a more secure structural connection. The generous 2,032mm width and 1.7 cubic metre capacity drastically reduce the number of loading cycles required to clear a site or fill a transport truck, directly reducing fuel consumption and operating hours.
16 MPa / 60 LPM Hydraulic Integration
Operating at 16 MPa hydraulic pressure with a flow rate of 60 LPM, the hydraulic grapple bucket integrates seamlessly with the forklift's auxiliary hydraulic circuit. This delivers responsive, precise claw control in fast-paced operational environments. The robust main plate construction at 6mm thickness provides long-term structural integrity under repeated heavy-load cycles.
Applications
- Recycling & Waste Facilities — loading high volumes of municipal waste and scrap
- Demolition Sites — scooping and securing rubble, timber, and irregular debris
- Bulk Logistics — handling loose agricultural feed, mulch, and green waste
- Construction — moving large quantities of aggregate, sand, and gravel
Key Features
- Massive 1.7 m³ volumetric capacity — reduces loading cycle times
- 0 to 1,887mm hydraulic opening range
- Multi-claw top grab — prevents load shift and material spillage during transit
- Class 3A carriage mount — engineered for 3–3.5T forklifts
- 6mm heavy-duty steel plate construction
- 16 MPa / 60 LPM hydraulic parameters
- 1,046kg attachment weight
Specifications
| Model | Class | Volume (m³) | Dimensions W×D×H (mm) | Opening Range (mm) | Plate (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| F-FLPD3A30-2000 | 3A | 1.7 | 2,032×1,782×1,266 | 0–1,887 | 6 | 1,046 |
Technical Drawing
1. Severe Load De-rating Warning (1,046kg Self-Weight): This is an extremely heavy attachment. The bucket itself weighs 1,046 kg. When mounted on a 3–3.5T forklift, it consumes nearly one-third of the machine's total lifting capacity before any material is even loaded. Furthermore, the large 1,782mm depth pushes the load centre significantly forward. You must consult your forklift's de-rated capacity chart to ensure safe operation to prevent tipping.
2. Auxiliary Circuit Required: Requires one additional hydraulic circuit on the forklift to operate the grab claws.
3. Carriage Mount: This is NOT a slip-on attachment. It mounts directly to an ISO Class 3A carriage. Confirm your forklift's carriage class before ordering.
