LANDYINDUS Hydraulic Positioning Skid Steer Pallet Forks | Class 2A | 2,000kg SWL | Cab-Controlled Tine Spacing | MP1140

LANDYINDUS S-HPPF2A-1160(46IN)-2.0T-MP1140 Hydraulic Positioning Skid Steer Pallet Forks | Class 2A | 2,000kg SWL | Cab-Controlled Tine Spacing | MP1140 Universal Quick Attach

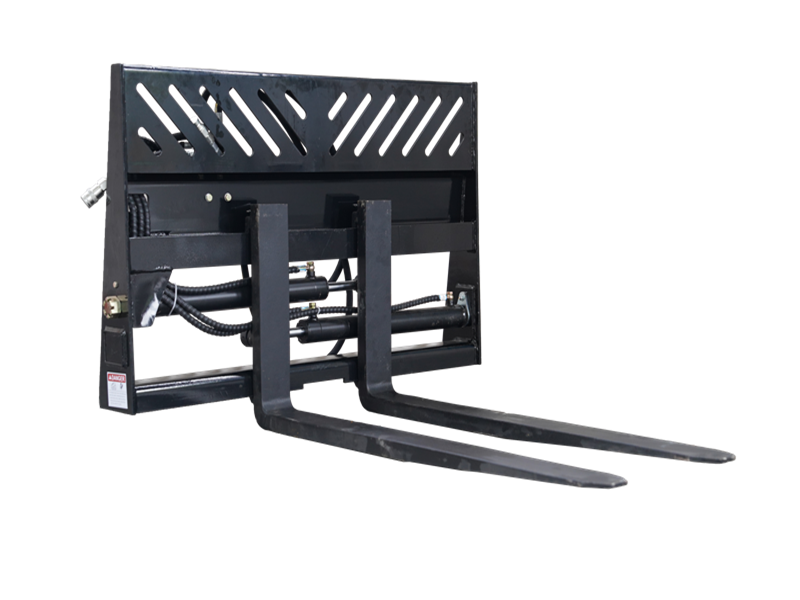

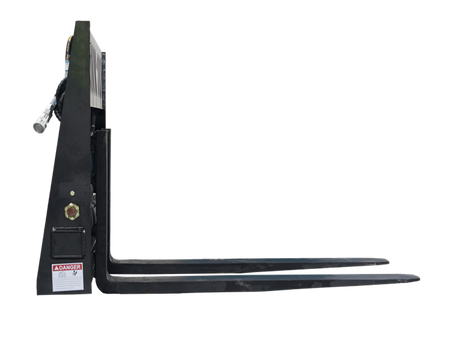

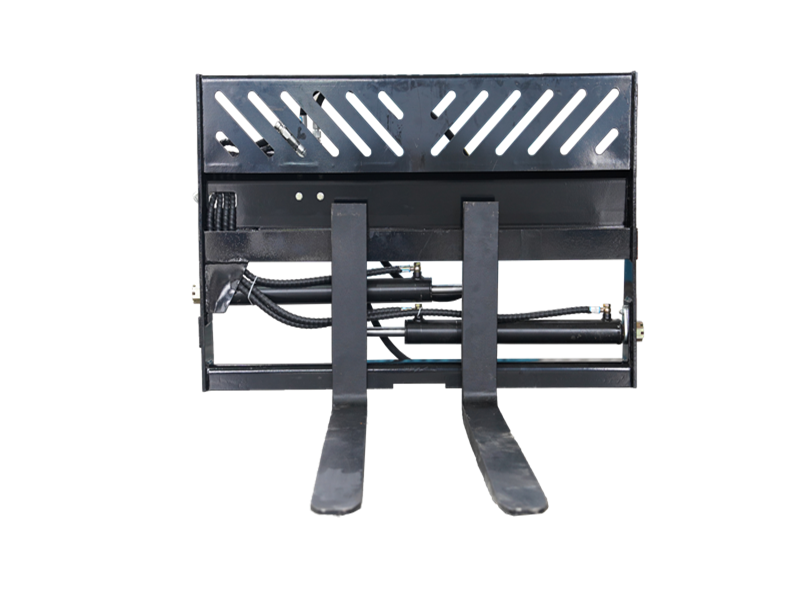

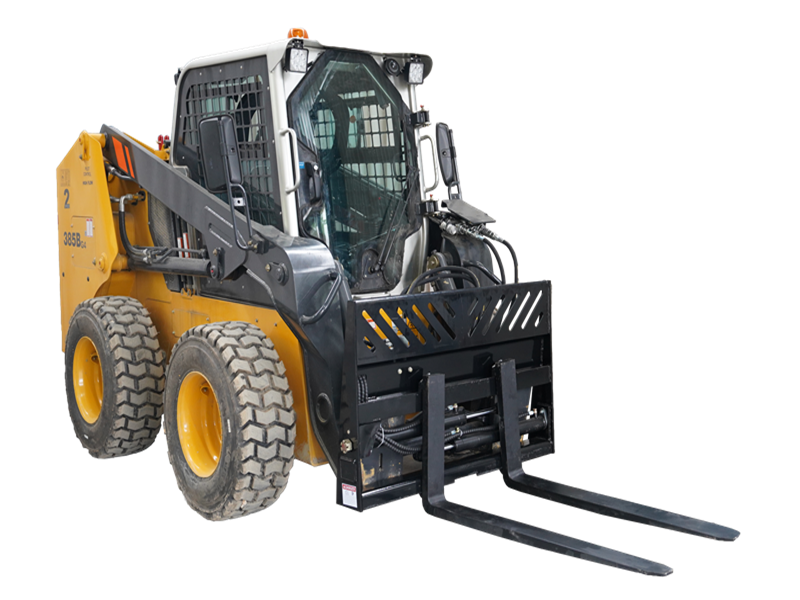

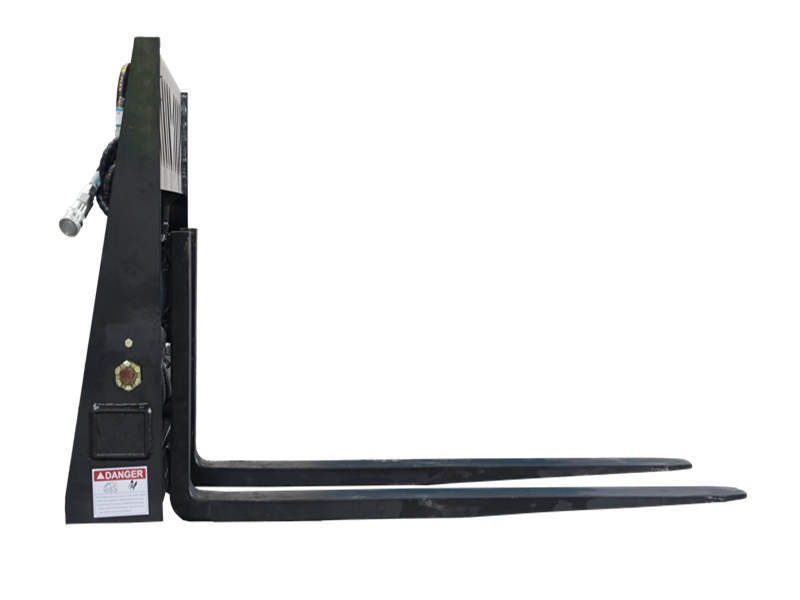

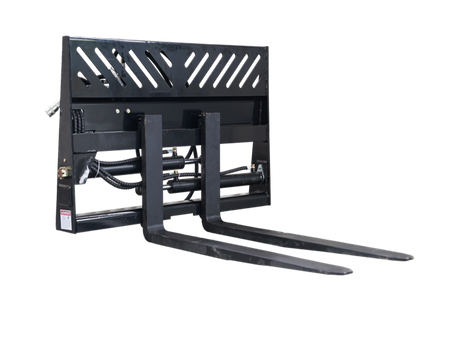

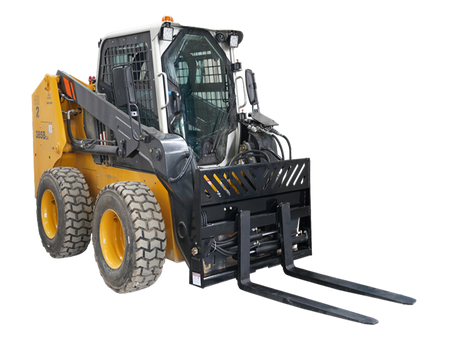

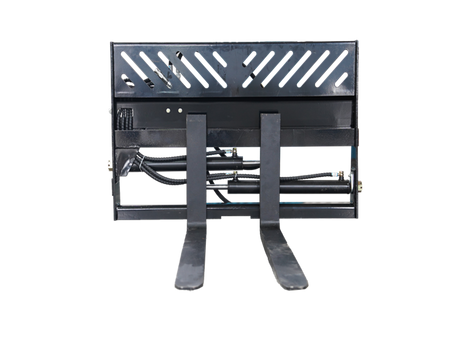

The LANDYINDUS S-HPPF2A Hydraulic Positioning Skid Steer Pallet Forks are a Class 2A heavy-duty pallet fork attachment that eliminates the need to dismount the machine when adjusting fork tine spacing — delivering a significant productivity advantage in high-cycle material handling operations where pallet sizes vary frequently. Compatible with the MP1140 universal quick-attach interface, these hydraulic pallet forks integrate seamlessly with most mid-to-large skid steer loaders and provide operators with full tine positioning control directly from the cab.

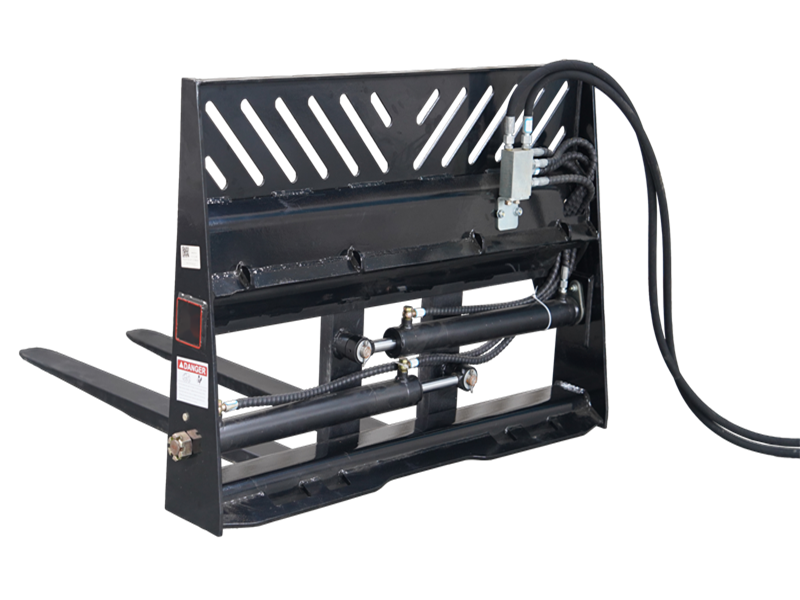

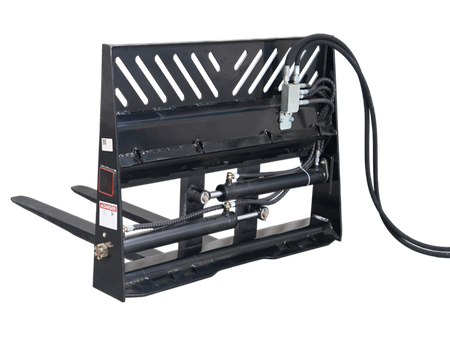

Hydraulic Tine Positioning — Adjust Tine Spacing Instantly from the Cab, No Dismounting, No Manual Unlocking

The core advantage of hydraulic tine positioning over manual adjustment is operational efficiency. With conventional pallet forks, repositioning tines for a different pallet size requires the operator to stop, dismount, manually unlock and slide each tine, re-lock, and remount — a process that adds minutes to every configuration change and compounds into significant lost productivity over a full working day. With these hydraulic positioning pallet forks, tine spacing is adjusted instantly from the operator’s seat using the skid steer’s auxiliary hydraulic circuit — allowing continuous operation across mixed pallet sizes without interruption. In high-throughput environments handling diverse load footprints, this capability directly reduces cycle times and operator fatigue.

Class 2A | 2,000kg SWL | Heavy-Duty Load Guard — Sustained High-Capacity Lifting for Mid-to-Large Skid Steers

Rated to a safe working load of 2,000kg (approx. 4,400 lbs) at Class 2A specification, these skid steer pallet forks are built for the heavier duty cycles and load capacities associated with mid-to-large skid steer machines. The Class 2A frame construction provides the structural rigidity and safety margin needed for sustained high-capacity lifting, while the heavy-duty load guard prevents rearward load shift during transport and elevation.

16 MPa | 60 LPM | 46" Tine Length — Standard Auxiliary Hydraulics, No Modifications Required

The attachment operates on a hydraulic flow of 60 LPM at up to 16 MPa, ensuring full compatibility with the auxiliary hydraulic systems of most standard and high-flow skid steer loaders without requiring additional hydraulic modifications. The 46" tine length accommodates standard and deep-footprint pallets across a wide range of load configurations. Class 2A fork tines in 100×40×1,220mm specification are available as an optional upgrade for operators requiring heavier tine cross-sections for more demanding load types.

OEM & Custom Manufacturing Available

LANDYINDUS supports full OEM and custom manufacturing for this hydraulic positioning pallet fork frame, including SWL rating, tine specification, frame width, and interface customisation. Contact us to discuss your requirements and request a quote.

Key Features

• Hydraulic tine positioning — adjust spacing instantly from cab, no dismounting or manual unlocking
• Class 2A | 2,000kg (4,400 lbs) SWL — mid-to-large skid steer machines, heavy duty cycles
• Heavy-duty load guard — prevents rearward load shift during transport & elevation
• 16 MPa | 60 LPM — standard auxiliary hydraulics, no modifications required
• 46" tine length — standard & deep-footprint pallets
• Optional 100×40×1,220mm Class 2A tines — heavier cross-section for demanding load types
• 127kg — manageable dead weight, maintains 2-ton rated structural capacity
• 1,160×179×800mm — compact frame profile
• MP1140 universal quick attach — most mid-to-large skid steer loaders
• OEM & custom manufacturing available — SWL, tine spec, frame width & interface

Technical Drawing:

Specifications
