LANDYINDUS Hydraulic Silage Grab | 1,500 & 1,800mm | Curved Tines | Removable Tapered Sleeves | 16MPa | 60LPM | Euro | Front Loader | T-SG & U-SG

LANDYINDUS Hydraulic Silage Grab | 1,500mm (T-SG1500) & 1,800mm (U-SG1800) | Curved Tines | Individually Removable Tapered Sleeves | Third Hydraulic Circuit | 16 MPa | 60 LPM | Euro Hitch | Front Loader

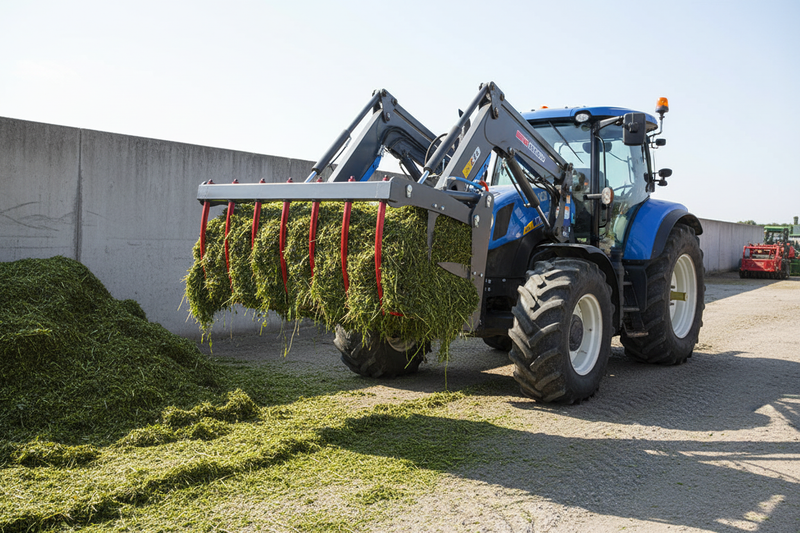

The LANDYINDUS Hydraulic Silage Grab is a heavy-duty tractor front loader attachment designed for efficient silage handling and clamping. Powered by a dedicated third hydraulic control circuit, the grab delivers powerful, controlled clamping force — making it ideal for professional contractors and farm operations demanding reliable daily performance.

Curved Tines | Smooth Circular Motion — Minimal Hydraulic Effort, Clean Cut, Reduced Material Loss

The curved tines penetrate silage with a smooth circular motion, requiring minimal hydraulic effort while ensuring a clean, efficient cut. Tine spacing is precisely engineered to minimize material loss during lifting and transfer, maximizing operational efficiency on every cycle. The curved geometry is a fundamental design advantage over straight tines — the arc motion follows the natural path of the hydraulic cylinder, reducing peak force requirements and wear on the hydraulic system.

Individually Removable Tines in Tapered Sleeves — On-Site Replacement, Minimal Downtime

All tines are individually mounted in tapered sleeves and are fully removable, simplifying on-site replacement and reducing downtime. When a single tine is damaged, only that tine needs to be replaced — no welding, no frame removal, no workshop visit required. This serviceability design is critical for operations where the grab is in daily use and downtime directly impacts productivity.

Third Hydraulic Circuit — Dedicated Clamping Control, Independent of Loader Lift and Tilt

Powered by a dedicated third hydraulic control circuit, the grab’s clamping action is independent of the loader lift and tilt functions, allowing the operator to clamp, lift, and position simultaneously without hydraulic conflict. Operating at 16 MPa with a flow rate of 60 LPM, the system delivers consistent clamping force across the full working cycle.

Two Width Options — 1,500mm or 1,800mm to Match Machine Capacity and Job Scale

Hydraulic Silage Grab vs T-SF Silage Forks vs T-MF1830 Manure Fork — Which for Silage?

Key Features

• Curved tines — smooth circular motion, minimal hydraulic effort, clean cut
• Individually removable tines in tapered sleeves — on-site replacement, no downtime
• Third hydraulic circuit — independent clamping, simultaneous lift and position
• 0–1,050mm clamp opening — wide range of silage block sizes
• T-SG1500: 750kg SWL | 6+6 tines | 239kg | 1,500mm
• U-SG1800: 900kg SWL | 7+7 tines | 267kg | 1,800mm
• 16 MPa | 60 LPM | Euro hitch — wide front loader compatibility

Technical Drawing:

Specifications
