LANDYINDUS Hydraulic Silage Grapple Bucket | Dual Cylinder | 1,500–2,200mm | 1.0–1.5m³ | Tool-Free Jaw Detach | Laser Cut & Robot Welded | Euro | T-SGB

LANDYINDUS T-SGB Hydraulic Silage Grapple Bucket | Dual Cylinder | 1,500–2,200mm | 1.0–1.5m³ | Tool-Free Upper Jaw Detach | Laser Cut & Robot Welded | 16 MPa | 60 LPM | Euro Bracket

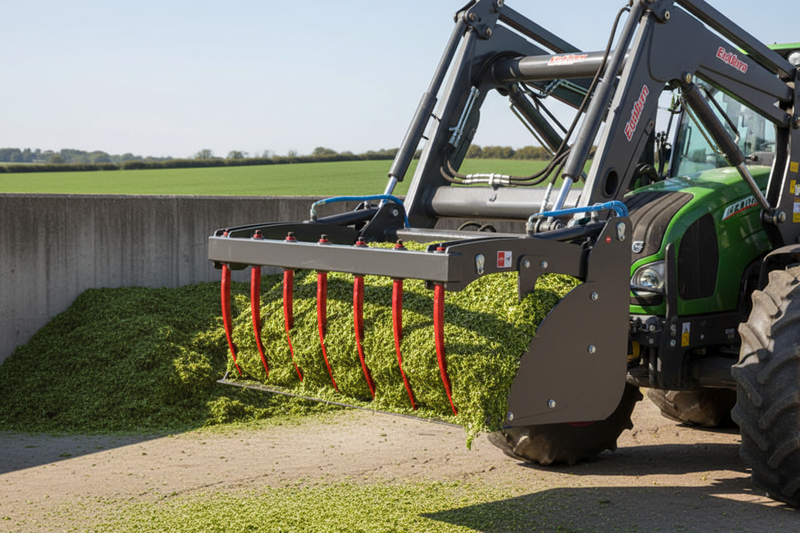

The LANDYINDUS T-SGB Hydraulic Silage Grapple Bucket is a heavy-duty, multi-functional front loader attachment designed for efficient silage handling, material loading, and bulk material management. Featuring a closed bucket bottom combined with a detachable upper clamp jaw fitted with a tooth-sleeve fork, this silage grapple bucket delivers exceptional versatility — operators can use it as a fully functional grapple for clamping and carrying silage, or detach the upper clamp jaw tool-free to use the bucket independently for scooping and loading tasks.

Dual Hydraulic Cylinders — Strong, Consistent Clamping Force Across Full Bucket Width

Powered by dual hydraulic cylinders, the T-SGB generates strong, consistent clamping force across the full width of the bucket, ensuring a secure grip on silage, loose material, and bulk loads even under demanding operating conditions. Single-cylinder designs can produce uneven clamping force across wider buckets — the dual cylinder configuration eliminates this by applying balanced force from both sides simultaneously.

Closed Bucket Bottom — Zero Material Loss During Transport vs Open-Tine Grab Designs

The closed bucket bottom prevents material loss during transport — a key advantage over open-tine grab designs. When carrying loose or semi-liquid silage, open tine grabs allow fine material to fall through during the carry cycle; the closed bottom retains 100% of the load from pickup to placement.

Tool-Free Upper Jaw Detach — Switch Between Grapple and Bucket Mode Without Tools

The tool-free disassembly of the upper clamp jaw means operators can switch between grapple and bucket modes quickly without needing additional tools or assistance. This dual-mode capability effectively gives the operator two attachments in one — a hydraulic grapple for clamping silage blocks and a standard bucket for scooping and loading tasks.

Laser Cut & Robot Welded — Dimensional Precision, Consistent Weld Quality, Superior Structural Integrity

Every T-SGB unit is manufactured using laser cutting and robotic welding technology, ensuring exceptional dimensional precision, consistent weld quality, and superior structural integrity compared to conventionally fabricated attachments. The use of premium steel materials throughout the frame and jaw assembly, combined with a durable powder coat finish, provides outstanding resistance to corrosion, impact, and wear in the harsh conditions of daily farm use.

Four Width Options — Match to Machine Capacity, Pit Width and Volume Requirements

T-SGB Grapple Bucket vs T-SG Silage Grab — Which Hydraulic Silage Attachment?

Key Features

• Dual hydraulic cylinders — even clamping force across full bucket width
• Closed bucket bottom — zero material loss vs open-tine grab designs
• Tool-free upper jaw detach — grapple mode and bucket mode in one attachment
• Laser cut & robot welded — dimensional precision, consistent weld quality
• 0–1,280mm opening range — compact to large-volume loads
• 1,500 / 1,800 / 2,000 / 2,200mm | 1.0–1.5m³ | 780–1,160kg SWL
• 16 MPa | 60 LPM | Euro bracket — wide front loader compatibility
• Premium steel + powder coat — corrosion, impact and wear resistant

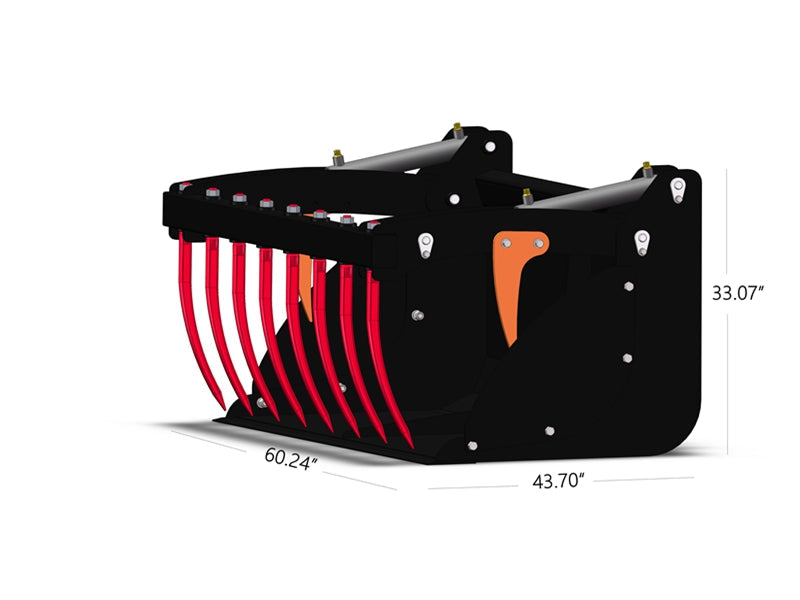

Technical Drawing:

Specifications
