LANDYINDUS Hydraulic Snow Bucket with Retractable Wings | 1,400-2,300mm | 1.30-2.20m³ | Independent Wing Control | Direct Truck Dump | SMS, Euro & Z602 | T-SWB

LANDYINDUS T-SWB Hydraulic Snow Bucket with Retractable Wings | 1,400–2,300mm | 1.30–2.20m³ | 1,580–3,075mm Wing Span | Independent Hydraulic Wing Control | Direct Truck Dump | SMS, Euro & Z602

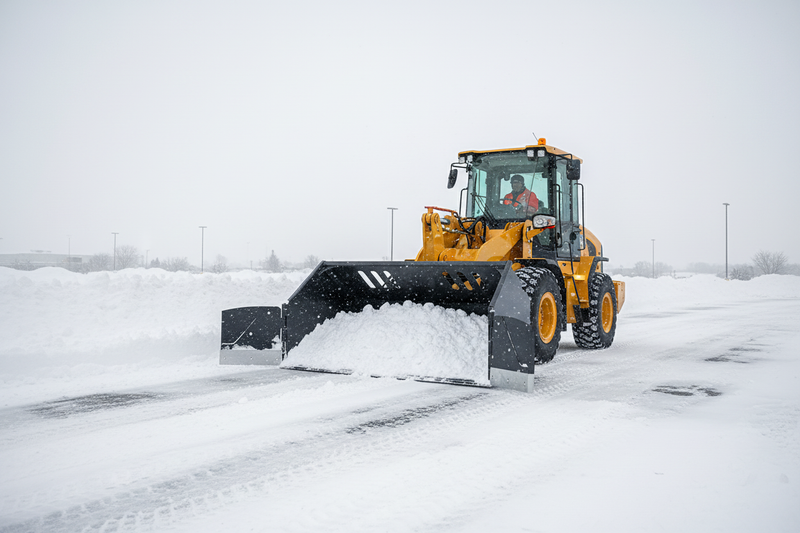

The LANDYINDUS T-SWB Heavy Duty Snow Bucket with Hydraulic Wings is engineered for efficient, large-scale snow removal across wide open areas, parking lots, and busy urban streets. Designed to handle extreme winter conditions, this powerful loader attachment clears snow faster and more effectively than a standard snow pusher, making it the ideal solution for municipalities, contractors, and facility managers who need reliable performance when it matters most.

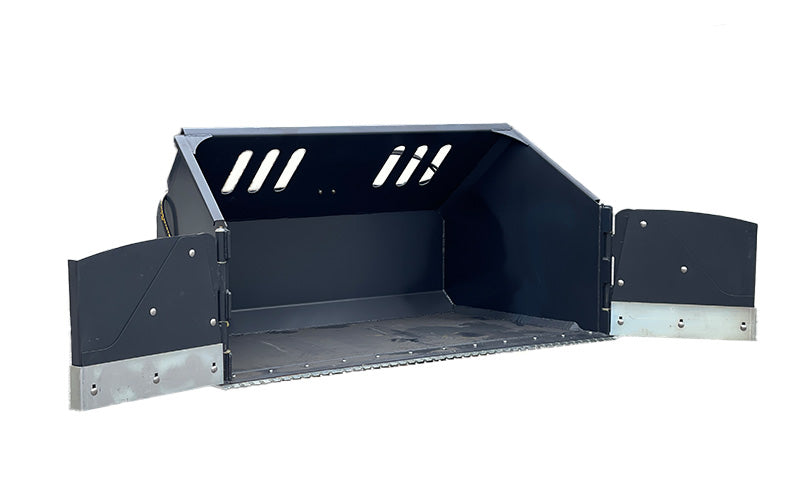

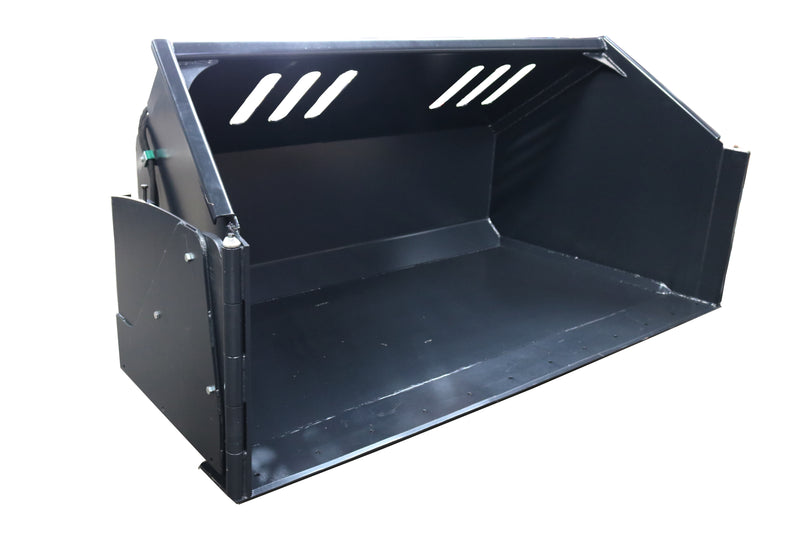

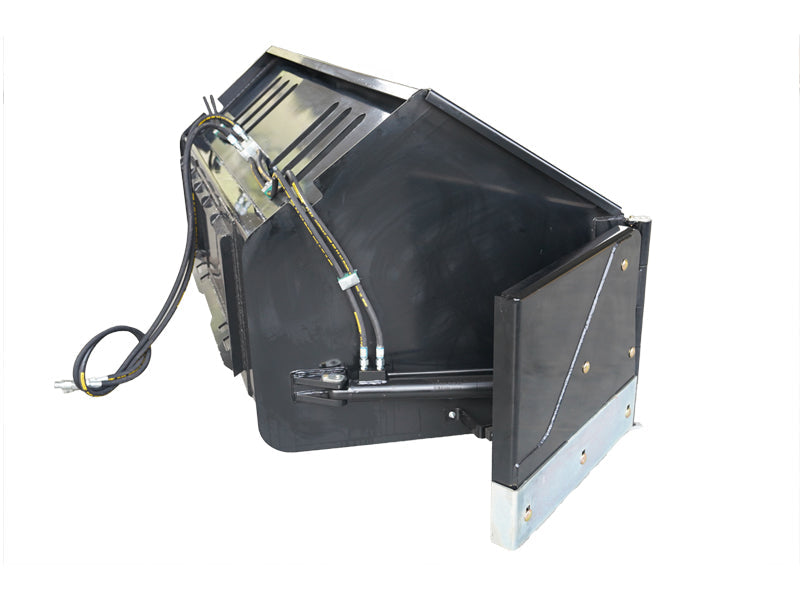

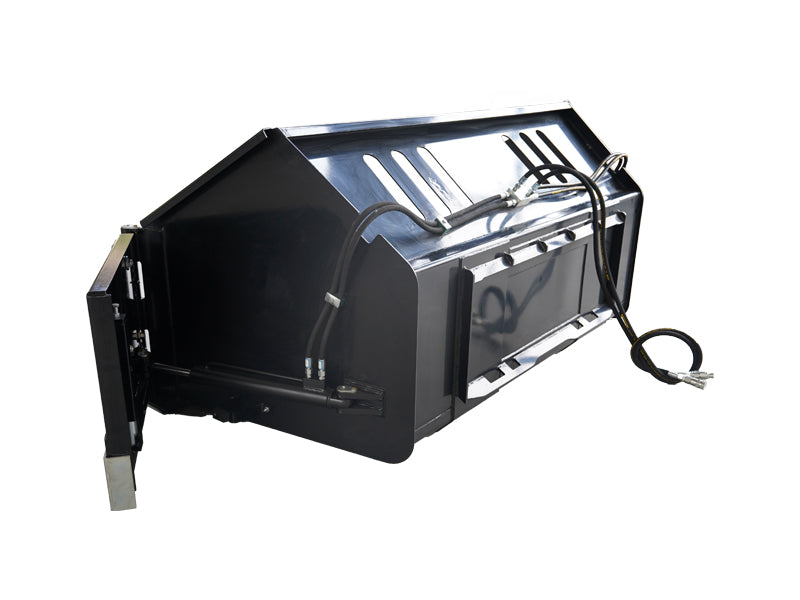

Retractable Hydraulic Side Wings — Opened and Closed Independently, Adapt to Any Working Environment

What sets this snow wing bucket apart is its retractable hydraulic side wings, which can be opened and closed independently to adapt to any working environment. Whether you are clearing a wide road or maneuvering between vehicles in a crowded parking lot, the adjustable wing span gives you the precision and flexibility to get the job done without damaging surrounding property. The wings also allow you to dump snow directly into the back of a truck or lorry, streamlining your workflow and reducing the number of passes needed.

Wing Span Range — Compact to Maximum Coverage in a Single Attachment

• T-SWB1400 — 1,580 to 2,175mm wing span | compact loaders and skid steers
• T-SWB1700 — 1,880 to 2,475mm wing span | mid-size loaders
• T-SWB2300 — 2,480 to 3,075mm wing span | large loaders, municipal road clearing

Direct Truck Dump — Snow Loaded Straight into Lorry, Fewer Passes, Faster Cycle Times

The wing configuration allows the operator to dump snow directly into the back of a truck or lorry without repositioning — a critical productivity advantage on municipal and commercial snow removal operations where haul trucks are running alongside the loader. This direct-dump capability eliminates the intermediate stockpiling step and significantly reduces overall cycle time per load.

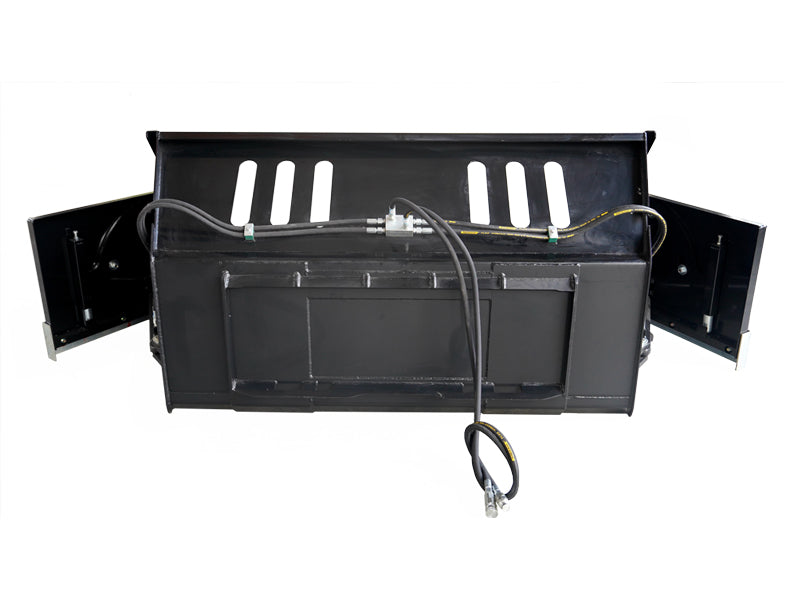

16 MPa | 60 LPM | Heavy Gauge Steel — Extreme Winter Conditions, Season After Season

Built with heavy gauge steel plate construction (5mm on compact models, 6mm on 2,300mm models) and operating at a hydraulic pressure of 16 MPa with 60 LPM flow, this snow bucket attachment is made to withstand the toughest conditions season after season.

SMS, Euro & Z602 — Wide Loader and Skid Steer Compatibility

Compatible with SMS, Euro, and Z602 coupler systems, it fits a wide range of loaders and skid steer machines, making it a versatile and long-lasting investment for any professional snow removal operation.

T-SWB vs Standard Snow Buckets — Why Hydraulic Wings?

Key Features

• Retractable hydraulic wings — open/close independently, adapt to any environment
• Direct truck dump — snow straight into lorry, no intermediate stockpiling
• 1,580 to 3,075mm wing span range across three bucket sizes
• 1.30 to 2.20m³ capacity | 5–6mm heavy gauge steel
• 16 MPa | 60 LPM — compatible with most loader hydraulic circuits
• SMS, Euro & Z602 — wide loader and skid steer compatibility
• Municipal roads, parking lots, urban streets and large open areas

Technical Drawing:

Specifications
