LANDYINDUS Hydraulic Telescoping Jib Boom Skid Steer Attachment | 385kg SWL | 3.4–7.95m Extension | MP1140

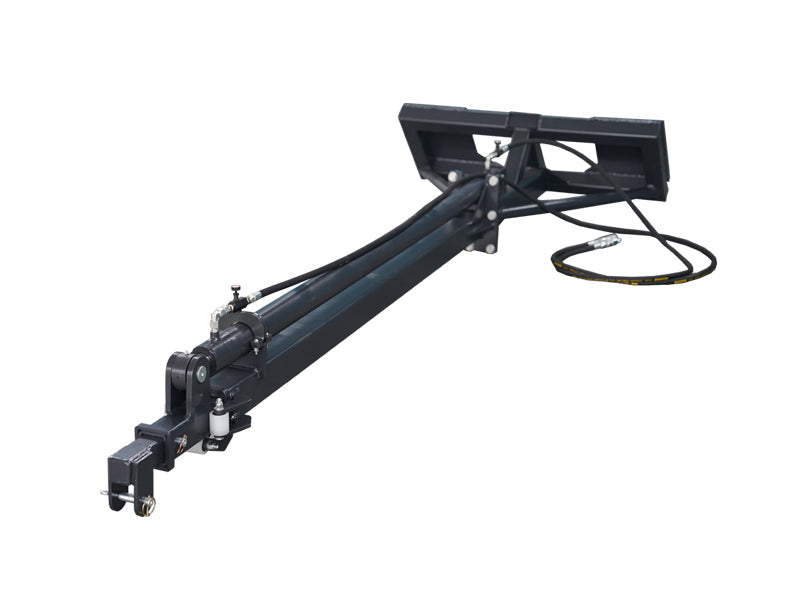

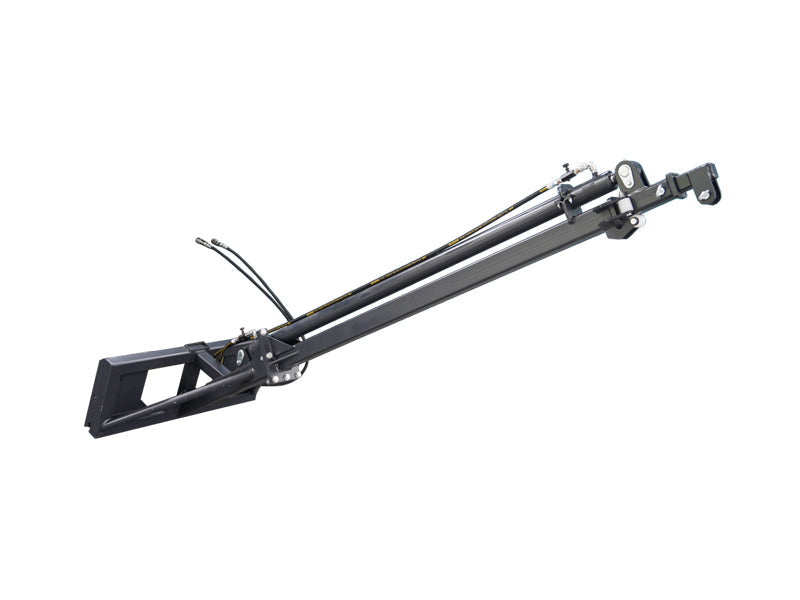

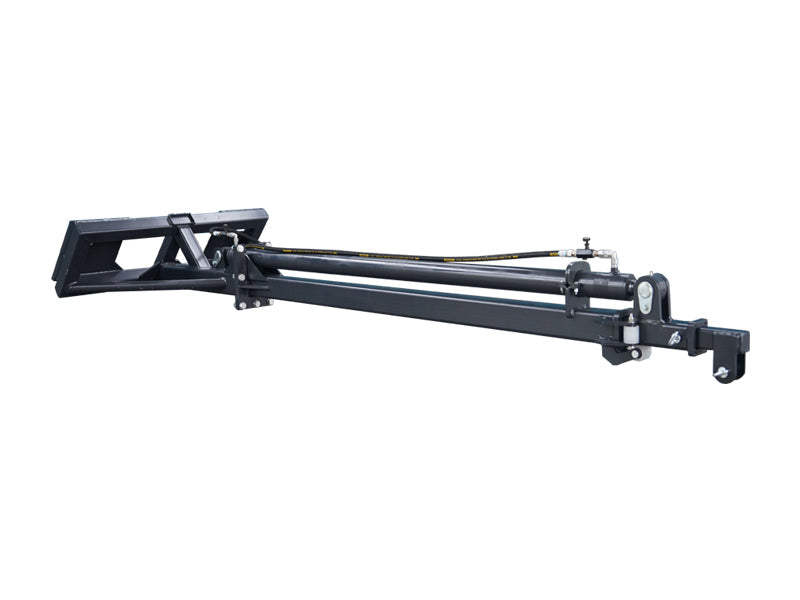

LANDYINDUS S-HLJ400 Hydraulic Telescoping Jib Boom Skid Steer Attachment | 385kg SWL | 3.4–7.95m Extension | MP1140 Universal Quick Attach

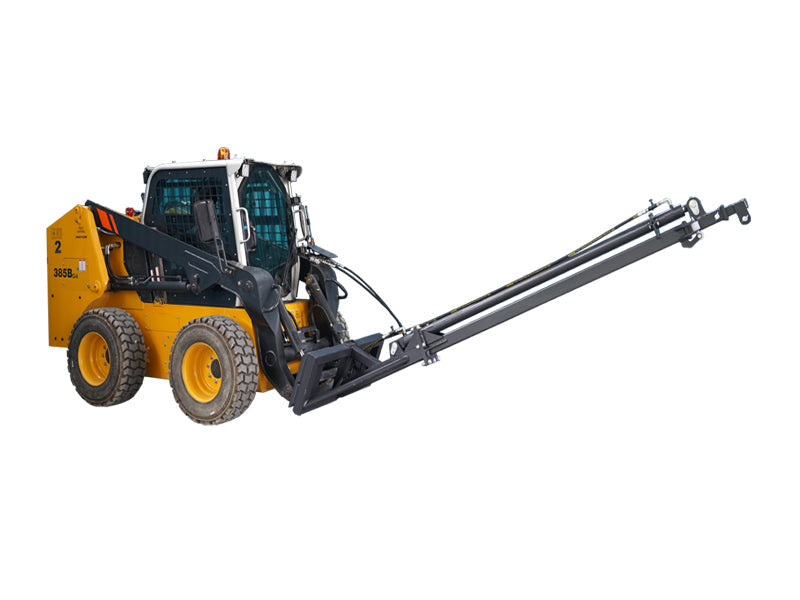

The LANDYINDUS S-HLJ400 Hydraulic Telescoping Jib Boom is a heavy-duty hydraulic lifting attachment designed for skid steers, compact track loaders, wheel loaders, and tractors equipped with a third-function hydraulic valve. Purpose-built to dramatically improve lifting speed, efficiency, and reach on construction sites, farms, and agricultural operations — this hydraulic lifting jib transforms your existing skid steer into a versatile, high-reach lifting machine capable of accessing elevated areas that standard skid steer attachments cannot reach.

3,400–7,950mm Hydraulic Telescoping Extension — Rooftops, Over Fencing, Hard-to-Reach Locations, Cab-Controlled

With a telescoping boom extension range of 3,400–7,950mm (11.2–26.1ft) and a Safe Working Load of 385kg, the S-HLJ400 enables lifting to elevated areas, over fencing and railings, onto rooftops, and into hard-to-reach locations that standard skid steer attachments cannot access. The hydraulic extension is controlled directly from the cab via the third-function lever — no manual adjustment, no leaving the seat, no stopping the work cycle to reposition the boom.

Third-Function Hydraulic Control | Hoses Included — Connect & Operate Without Additional Hardware

Connect the included hydraulic hoses to the machine’s third-function valve and extend the boom via the cab lever — ready to operate without additional hardware purchases. The hydraulic system operates at up to 16 MPa with a recommended flow of 60 LPM, integrating with standard third-function hydraulic circuits on most skid steers, compact track loaders, wheel loaders, and tractors without modification.

Universal Quick Attach — Bobcat, Case, Cat, John Deere, Kubota, New Holland & More

Compatible with nearly all skid steer brands and models via universal MP1140 quick attach, including Bobcat, Case, Caterpillar, John Deere, Kubota, New Holland, and more. At 358kg with overall dimensions of 2,735 × 1,156 × 2,646mm, the S-HLJ400 provides the structural mass needed for stable high-reach lifting without counterweight additions on most standard skid steer machines.

Typical Lifting Applications

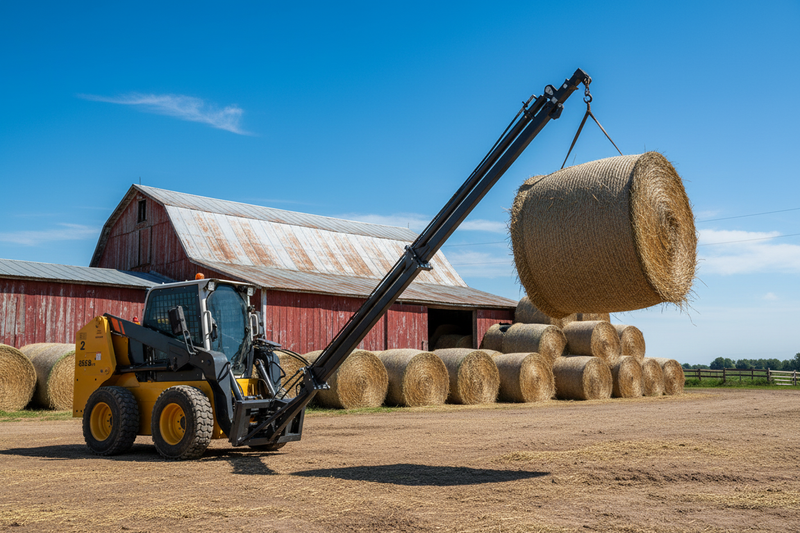

• Hay bales, feed bags & agricultural supplies to elevated storage
• Trusses, beams & drywall onto rooftops & upper floors
• Materials over fencing, railings & barriers without repositioning
• Precision placement in hard-to-reach locations on construction sites
• Farm & agricultural operations requiring repeated overhead lifting

Key Features

• 3,400–7,950mm telescoping extension — 11.2–26.1ft, cab-controlled via third-function lever
• 385kg SWL — hay bales, trusses, beams, drywall & heavy agricultural materials
• Hydraulic hoses included — connect to third-function valve, no additional hardware
• Third-function hydraulic control — extend & retract from cab, no manual adjustment
• 16 MPa | 60 LPM — standard third-function hydraulic circuits
• 2,735×1,156×2,646mm | 358kg — stable high-reach lifting on standard skid steers
• Universal MP1140 quick attach — Bobcat, Case, Cat, JD, Kubota, New Holland & more

Technical Drawing:

Specifications
