LANDYINDUS ME-GB / E-GB Hydraulic Tilt Grading Bucket | 2×45° Hydraulic Tilt | 500HB Lehborit Cutting Edge & Side Edges | Complete Hydraulic Kit Included | Lehmatic & Symlock Quick-Coupler Compatible | S30, S40 & S50 | 1–8T | 16 MPa | 60 LPM

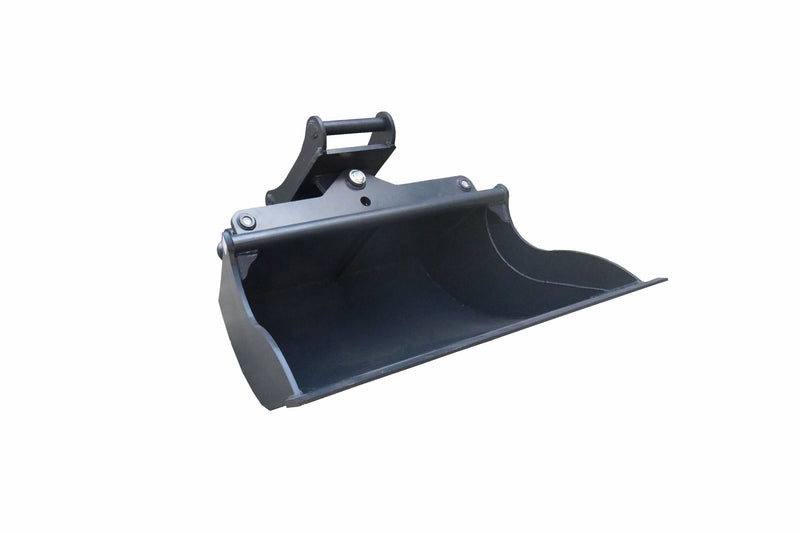

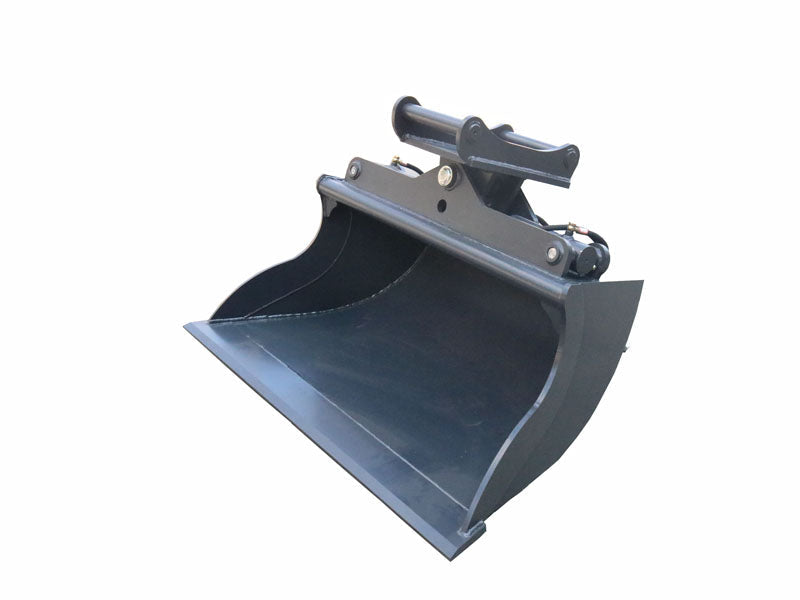

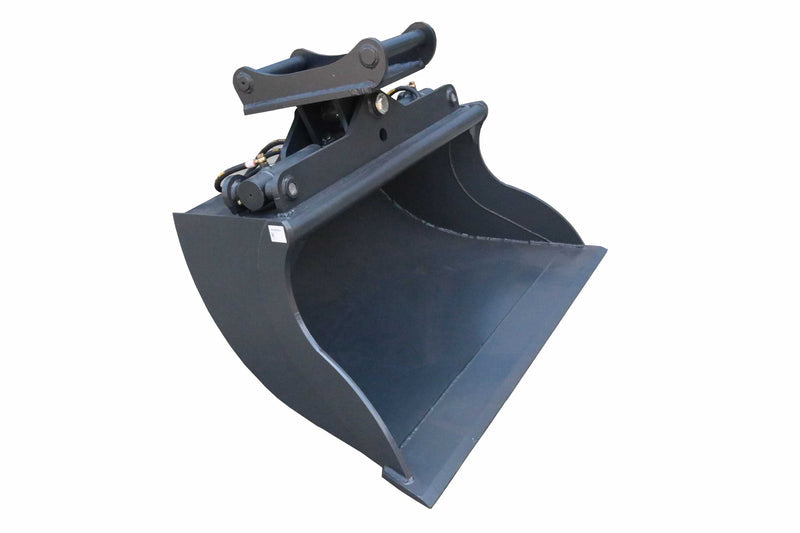

The LANDYINDUS ME-GB / E-GB Hydraulic Tilt Grading Bucket combines the functionality of a standard grading bucket with the added versatility of a 45° hydraulic tilt mechanism operable in both directions (2×45° total range). Designed for excavators in the 1T to 8T class, it allows operators to accurately angle the bucket to match slope gradients, channel profiles, and uneven terrain without repositioning the machine.
500HB Lehborit Cutting Edge — Highest-Grade Wear Material, Substantially Longer Service Life vs Standard Edges
A standout feature of this tilt grading bucket is its Lehborit 5000 (500HB) hardness cutting edge and side cutting edges, which provide exceptional wear resistance under continuous abrasion from compacted soil, gravel, and clay. The 500HB rating places this cutting edge among the highest-grade wear materials available for excavator buckets, ensuring a substantially longer service life compared to standard cutting edges and reducing the frequency and cost of replacement on high-utilization job sites.
| Cutting Edge Grade | Hardness (HB) | Relative Wear Life | Typical Application |
|---|---|---|---|
| Standard structural steel | ~200HB | Baseline | Light-duty, infrequent use |
| Hardox 400 | 400HB | ~2× standard | General heavy-duty |
| Hardox 500 / Lehborit 5000 | 500HB | ~3× standard | High-utilization, abrasive ground |
Complete Hydraulic Kit Included — Cylinder, Pressurizing Valve & Hoses Pre-Fitted to Tilting Head

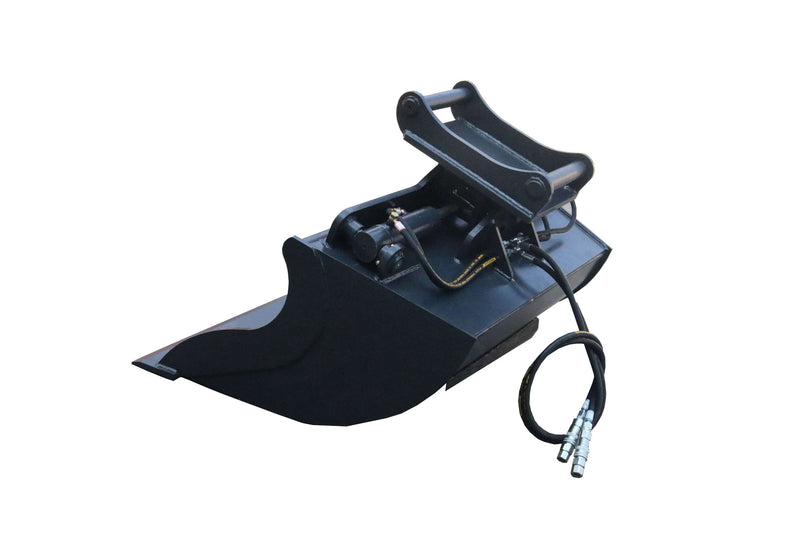

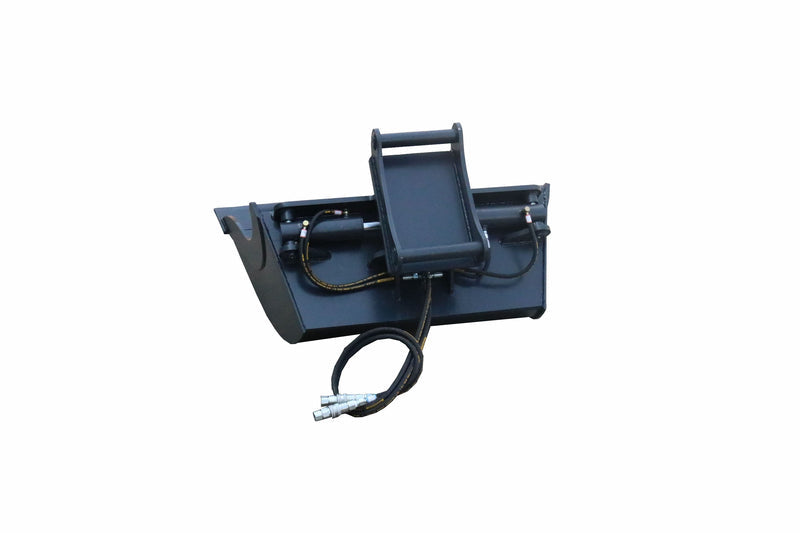

Each unit ships as a complete hydraulic kit, including the hydraulic cylinder, pressurizing valve, and hoses pre-fitted up to the tilting head, enabling straightforward installation without the need to source additional hydraulic components separately. This is a significant advantage over bare bucket configurations that require the operator to source and fit hydraulic components independently — reducing installation time and eliminating compatibility risk between components.
Lehmatic & Symlock Quick-Coupler Compatible — Plus Direct Suspension Mounting
The bucket is compatible with Lehmatic and Symlock quick-coupler adapters as well as direct suspension mounting, providing broad flexibility across different excavator brands and coupler systems. This three-way mounting compatibility means the ME-GB / E-GB can be fitted to virtually any excavator in the S30–S50 bracket range without custom fabrication.
Tilt Grading Bucket vs Standard Tilt Bucket — Grading Geometry + 500HB Edge
| Feature | ME-TB / E-TB Standard Tilt Bucket | ME-GB / E-GB Tilt Grading Bucket (This) |
|---|---|---|
| Tilt range | 2×45° | 2×45° |
| Bucket profile | Standard digging profile | Grading profile — wider, flatter base |
| Cutting edge grade | Wear-resistant steel | 500HB Lehborit — highest grade |
| Hydraulic kit | Not specified | Complete kit included — cylinder, valve, hoses |
| Quick-coupler | S30–S70 bracket | Lehmatic, Symlock & direct suspension |
| Excavator range | 1–18T | 1–8T |
| Best for | Ditching, slope finishing, general tilt | Precision grading, high-wear conditions, quick-coupler setups |
Three Models — S30 to S50, 1T to 8T
| Model | Cylinders | Width (mm) | Dimensions W×D×H (mm) | Plate (mm) | Tilt (°) | Bracket | Excavator | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ME-GB1000-1HY-S30 | 1 | 1,000 | 1,000×563×626 | 6 | 45 | S30 | 1–2T | 103 |
| ME-GB1320-1HY-S40 | 1 | 1,320 | 1,320×751×792 | 8 | 45 | S40 | 2–3.5T | 210 |
| E-GB1470-2HY-S50 | 2 | 1,470 | 1,470×957×895 | 10 | 45 | S50 | 6–8T | 317 |
Key Features
- 2×45° bidirectional hydraulic tilt — slopes, channels, embankments without repositioning
- 500HB Lehborit cutting edge & side edges — ~3× wear life vs standard steel
- Complete hydraulic kit — cylinder, pressurizing valve & hoses pre-fitted to tilting head
- Lehmatic & Symlock quick-coupler + direct suspension — broad excavator compatibility
- Single cylinder (1–3.5T) & dual cylinder (6–8T) — torque matched to class
- 6 / 8 / 10mm main plate — matched to excavator weight class
- S30 / S40 / S50 | 16 MPa | 60 LPM | 103–317kg
- Technical drawings available | custom sizes & brackets on request
Technical Drawing:
Specifications
| Model | Cyl. | Dimensions W×D×H (mm) | Plate (mm) | Tilt (°) | Pressure (MPa) | Flow (LPM) | Bracket | Weight (kg) | Excavator |
|---|---|---|---|---|---|---|---|---|---|
| ME-GB1000-1HY-S30 | 1 | 1,000×563×626 | 6 | 45 | 16 | 60 | S30 | 103 | 1–2T |
| ME-GB1320-1HY-S40 | 1 | 1,320×751×792 | 8 | 45 | 16 | 60 | S40 | 210 | 2–3.5T |
| E-GB1470-2HY-S50 | 2 | 1,470×957×895 | 10 | 45 | 16 | 60 | S50 | 317 | 6–8T |
