LANDYINDUS Hydraulic Timber Grab | FEM 2A & 3A Pallet Fork | No Welding | 380–1,140mm Opening | Removable Lower Hook | 16 MPa | 60 LPM | T-TG2A & T-TG3A

LANDYINDUS T-TG Hydraulic Timber Grab | FEM 2A & 3A Pallet Fork Frame | No Welding, No Permanent Modification | 380–1,140mm Opening | Removable Lower Hook | 16 MPa | 60 LPM | 127–129kg

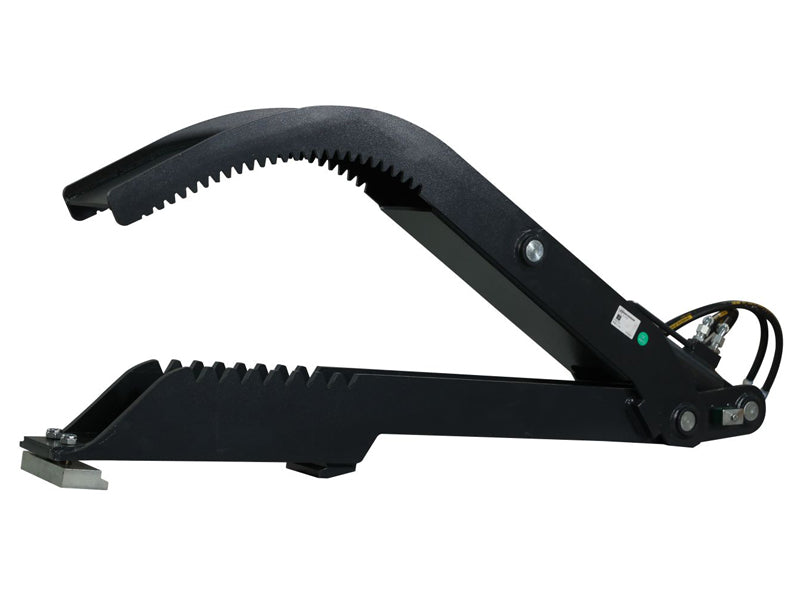

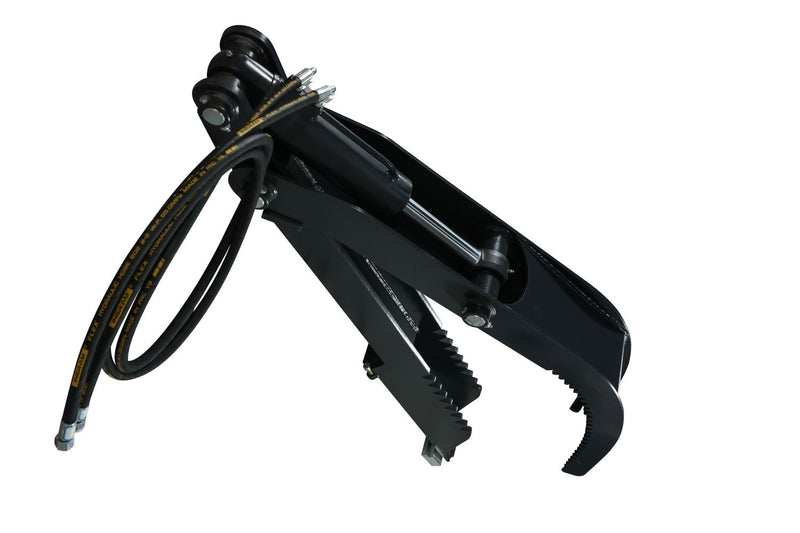

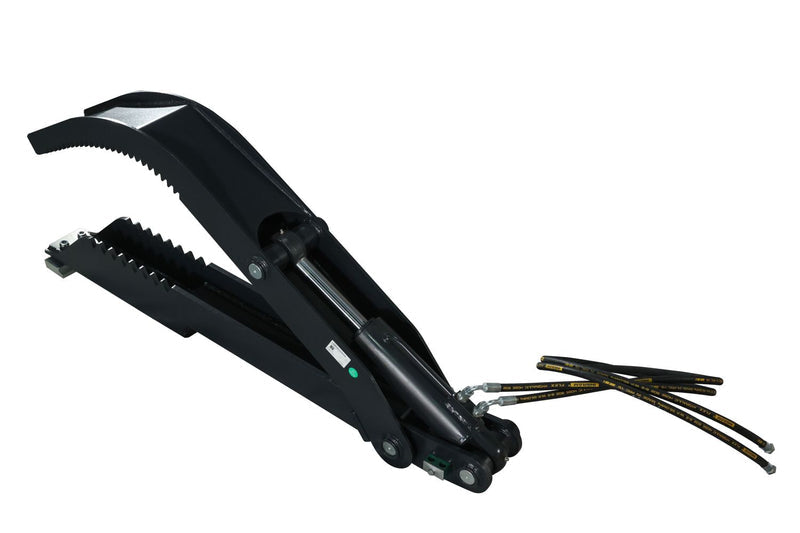

The LANDYINDUS T-TG Hydraulic Timber Grab is a purpose-built forklift attachment designed to mount directly onto existing FEM 2A pallet fork frames, allowing operators to clamp, lift, and transport logs, timber, and irregularly shaped loads without any welding or permanent modifications to the machine. The external hanging design makes installation and removal quick and straightforward, so you can switch between standard pallet fork operations and timber handling in minutes, maximizing the versatility of your existing forklift equipment without additional investment.

No Welding, No Permanent Modification — External Hanging Design, Switch Between Pallet and Timber in Minutes

The external hanging design mounts directly onto the existing FEM 2A pallet fork frame without any welding or structural changes to the machine. This means the forklift retains its full pallet fork functionality when the timber grab is removed — one machine handles both standard pallet operations and timber handling without compromise. Installation and removal takes minutes, not hours.

380–1,140mm Opening Range — Wide Variety of Log Diameters and Timber Bundle Sizes

With a maximum opening range of 380mm to 1,140mm, this hydraulic log grab clamp accommodates a wide variety of log diameters and timber bundle sizes, providing a secure and stable grip throughout the lift and transport cycle. The 760mm total opening travel gives operators the flexibility to handle everything from small-diameter logs to large timber bundles in a single attachment.

Removable Lower Hook — Fast Assembly and Disassembly, Routine Maintenance Without Downtime

The removable lower hook further simplifies assembly and disassembly, reducing downtime and making routine maintenance fast and hassle-free. When the lower hook needs replacement due to wear, it can be swapped without removing the entire grab assembly from the forklift.

Additional Oil Circuit Only — No Structural Changes to Forklift Required

This hydraulic timber grab attachment requires only a standard additional oil circuit connection to the forklift hydraulic system, with no structural changes needed to the machine. Operating at 16 MPa hydraulic pressure with a flow rate of 60 LPM, the grab delivers smooth, responsive clamping force that keeps loads firmly in place even over uneven ground or during extended transport runs.

Class 2A vs Class 3A — Select by Fork Frame Dimensions

T-TG Timber Grab vs T-HS Slip-On Hay Bale Spear — Two Forklift Pallet Fork Converters

Applications

• Timber yards — log sorting, stacking, loading
• Sawmills — log infeed, timber bundle handling
• Construction sites — structural timber, irregular load transport
• Agricultural operations — fence posts, poles, round timber

Key Features

• No welding, no permanent modification — external hang on FEM 2A pallet fork frame
• Switch between pallet and timber handling in minutes
• 380–1,140mm opening range — small logs to large timber bundles
• Removable lower hook — fast assembly, easy maintenance
• Additional oil circuit only — no structural forklift changes
• Class 2A (127kg) & Class 3A (129kg) — match to fork frame
• 16 MPa | 60 LPM | timber yards, sawmills, construction, agriculture

Technical Drawing:

Specifications
