LANDYINDUS T-RGR Series Hydraulic Timber Grab Heavy Duty Log Grapple | 72" & 84" | Euro Hitch Loader Attachment

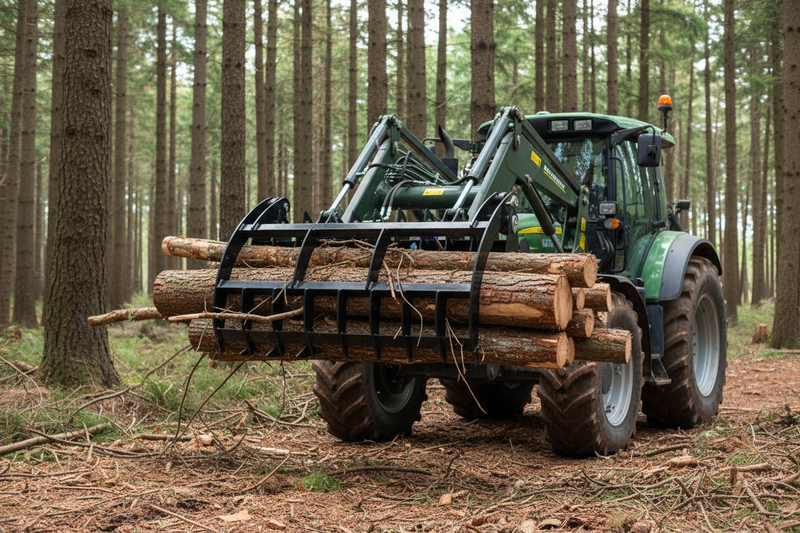

The LANDYINDUS T-RGR Series Hydraulic Timber Grab is a versatile and powerful loader attachment designed for picking up, moving, and handling logs, dead trees, large rocks, debris, and oddly shaped materials that are difficult to lift with standard equipment. Built for heavy-duty agricultural, forestry, and land-clearing applications, this log grapple gives operators precise control over bulky and irregular loads — reducing manual handling and dramatically improving on-site efficiency. Available in 72" (1,830mm) and 84" (2,130mm) working widths with Euro coupler compatibility.

12 Heavy-Duty Rake Teeth | 0–1,060mm Opening Range — Secure Grip on Logs, Rocks & Root Masses

Featuring 12 heavy-duty rake teeth and a wide opening range of 0 to 1,060mm, the T-RGR securely clamps around logs, rocks, and root masses of varying sizes without slipping or losing grip during transport. The rake tooth geometry penetrates and locks around irregular material profiles — handling everything from round timber and large rocks to tangled root masses and mixed demolition debris that smooth-jaw grapples cannot hold securely.

16 MPa / 60 LPM — Smooth, Consistent Response Under Load

Operating at 16 MPa hydraulic pressure with a flow rate of 60 LPM, the grab responds smoothly and consistently under load, giving operators confident, reliable control in even the most demanding field conditions. The hydraulic system is compatible with standard tractor and front loader auxiliary circuits — no custom hydraulic modifications required.

Robust Steel Construction — Engineered for Repeated Heavy Impact

The robust steel construction is engineered to withstand repeated heavy impacts and long-term use in tough forestry and construction environments. Whether clearing fallen timber after a storm, digging out deep-rooted stumps, or moving large rocks on a construction site, the T-RGR delivers the grip and structural durability to perform consistently across continuous heavy-cycle operation.

Two Models — 72" & 84" | Euro Hitch | Additional Configurations on Request

• T-RGR1830 (72") — 1,830×786×980mm | 12mm rake teeth | OR 0–1,060mm | 16MPa / 60LPM | EURO | 401kg
• T-RGR2130 (84") — 2,130×786×980mm | 12mm rake teeth | OR 0–1,060mm | 16MPa / 60LPM | EURO | 428kg

Key Features

• 72" & 84" working widths — matched to different machine sizes and job requirements
• 12 heavy-duty rake teeth — secure grip on logs, rocks, root masses & irregular debris
• 0–1,060mm opening range — handles small timber to large-diameter logs and rocks
• 16 MPa / 60 LPM — smooth, consistent hydraulic response under load
• Compatible with standard tractor & front loader auxiliary hydraulic circuits
• Euro coupler — secure, straightforward fit on a wide range of tractors & front loaders
• Robust steel construction — repeated heavy impact and long-term forestry use
• Additional configurations available on request

Technical Drawing:

Specifications
