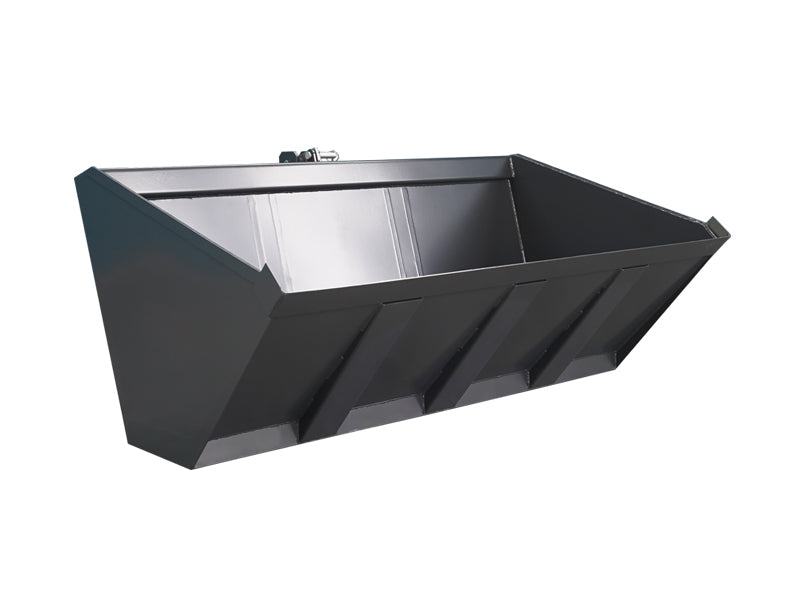

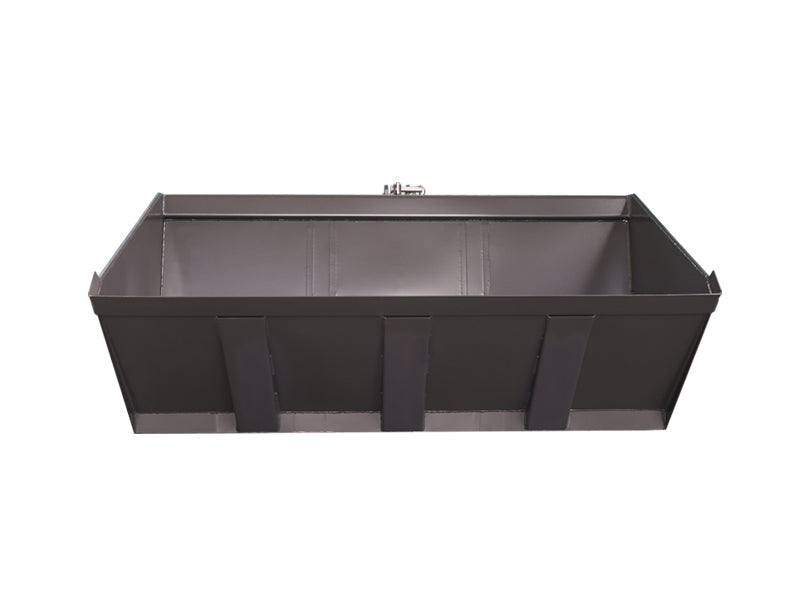

LANDYINDUS Hydraulic Tipping Bucket | 1.16m³ | 93° Tip Angle | Dual Cylinder | Cat 2 3-Point Hitch | Full-Penetration Welds | 16MPa | T-GH20

LANDYINDUS T-GH20 Hydraulic Tipping Bucket | 1.16m³ (1,160L) | 93° Tipping Angle | Dual Hydraulic Cylinders | Cat 2 3-Point Hitch | Full-Penetration Welds | Reinforced Pivot Points | 16 MPa | 430kg

The LANDYINDUS T-GH20 Hydraulic Tipping Bucket is a heavy-duty 3-point hitch tractor attachment engineered for efficient loading, transport, and unloading of bulk materials across agricultural and construction sites. Designed for intensive daily use, this bucket handles soil, gravel, sand, manure, silage, and loose materials with ease — making it an essential tool for professional operators.

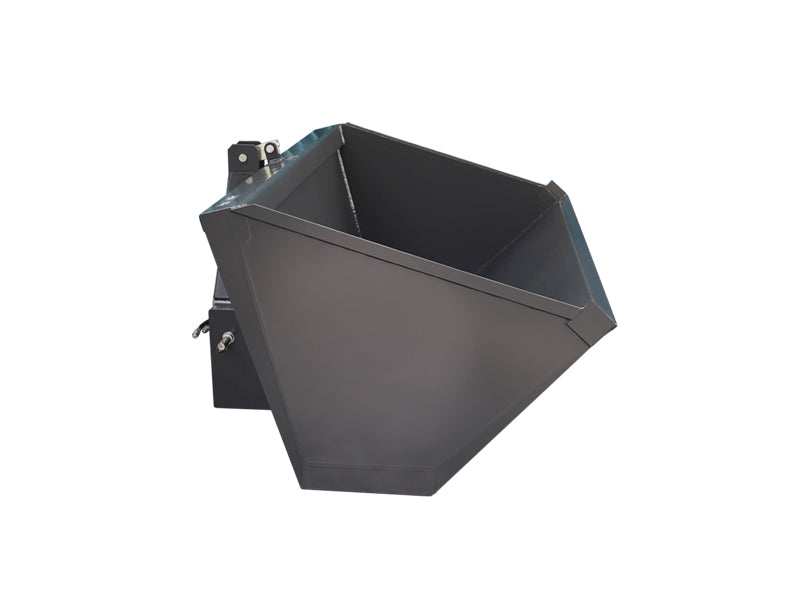

Dual Hydraulic Cylinders | 93° Tipping Angle — Complete Material Discharge, No Manual Effort

Powered by dual hydraulic cylinders, the bucket delivers a powerful and controlled 93° tipping angle, allowing complete material discharge without manual effort. The twin-cylinder configuration distributes tipping force evenly across the full bucket width, preventing the lateral twist and uneven discharge that can occur with single-cylinder designs under heavy or unevenly distributed loads.

1.16m³ (1,160L) — Maximum Productivity Per Cycle, Fewer Trips Across the Worksite

The large 1.16m³ (1,160L) capacity maximizes productivity per cycle, reducing the number of trips needed across the worksite. At 1.7× the capacity of the T-HDB1320 (0.68m³), the T-GH20 is the right choice for mid-to-large tractor operators who need to move significantly more material per pass on high-volume agricultural and construction tasks.

Full-Penetration Welds + Reinforced Pivot Points — Long-Term Structural Integrity Under Heavy-Load Operation

The robust steel frame is engineered to withstand the stresses of heavy-load operation, with full-penetration welds and reinforced pivot points ensuring long-term structural integrity. These structural details are critical on a dual-cylinder tipping bucket where the pivot points and frame joints are subjected to high cyclic loads during repeated tipping operations at full capacity.

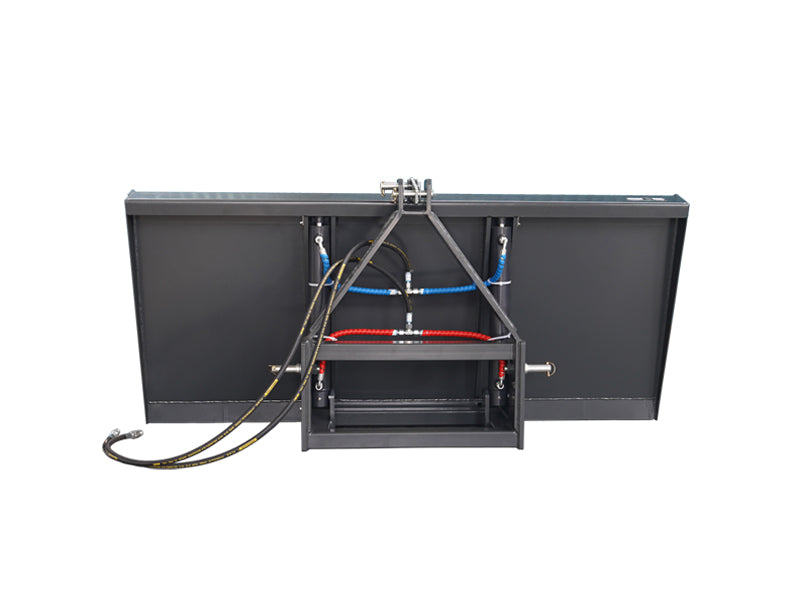

Cat 2 3-Point Hitch — Wide Standard Tractor Compatibility, No Additional Adapters

Built for Cat 2 three-point hitch systems, this hydraulic tipping bucket fits a wide range of standard tractors with no additional adapters required. Cat 2 is the standard rear hitch specification on mid-size to large agricultural tractors across European and North American markets.

T-HDB vs T-GH20 — Which Hydraulic Tipping Bucket?

Key Features

• Dual hydraulic cylinders — even tipping force, no lateral twist under full load
• 93° tipping angle — complete material discharge, no manual intervention
• 1.16m³ (1,160L) — 1.7× capacity vs T-HDB, fewer trips per task
• Full-penetration welds + reinforced pivot points — long-term structural integrity
• Cat 2 3-point hitch — mid-to-large tractor compatibility, no adapters
• 16 MPa | 60 LPM — seamless integration with most tractor hydraulic systems
• 430kg | 2,029×1,383×938mm
• Soil, gravel, sand, manure, silage and loose bulk materials

Technical Drawing:

Specifications
