LANDYINDUS Large Personnel Crane Cage 500–750kg SWL 4–6 Person Work Cage AS1418.17 WS-WP-NC Series
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!
Product Overview
Need to safely elevate work crews at scale? The LANDYINDUS Large Personnel Crane Cage delivers certified AS1418.17 compliance and high-capacity lifting for 4 to 6 workers.

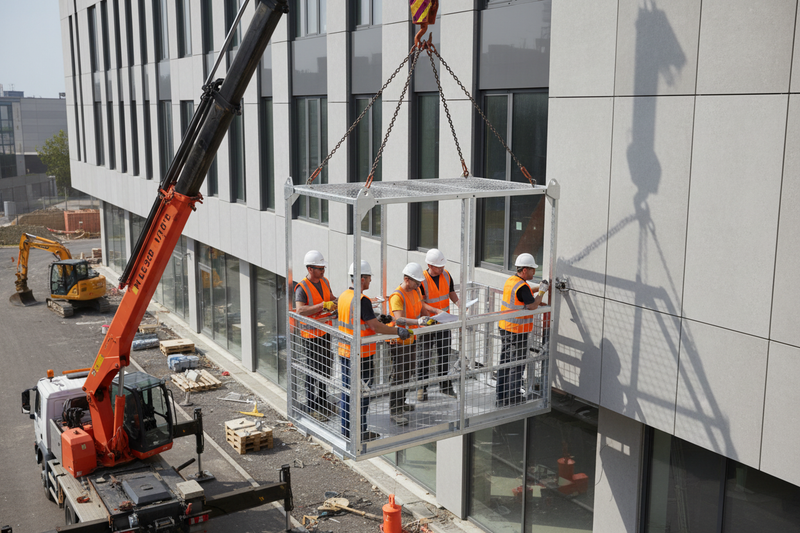

The LANDYINDUS Large Personnel Crane Cage is a heavy-duty, high-capacity aerial work solution designed for the safe simultaneous lifting of 4 to 6 workers on large-scale construction sites, heavy industrial facilities, infrastructure projects, and major building maintenance operations. Engineered and manufactured in strict compliance with Australian Standard AS1418.17, it delivers the certified safety performance demanded by professional contractors and site safety managers. Available in 4-person (500kg SWL) and 6-person (750kg SWL) configurations, this large-format crane cage reduces cycle times and enhances crew productivity.
Core Selling Points
- High Crew Capacity (4–6 Person): Purpose-built for multi-worker operations with certified Safe Working Loads of 500kg (4-person) and 750kg (6-person).
- Strict AS1418.17 Compliance: Engineered and built to meet rigorous Australian Standards for crane-lifted personnel work platforms.
- Roofed & Non-Roofed Options: Available with structural steel overhead protection against falling debris or open-top configurations for tight vertical clearance.
- Flat-Pack Portability: Flat-pack design allows cost-effective transportation, compact depot storage, and straightforward on-site bolted assembly.
Specifications
| Type | SWL / kg | Dimension (L×W×H) / mm | Pocket Size (a×b) / mm | Pocket Centres / mm | Configuration | Weight / kg |
|---|---|---|---|---|---|---|
| WS-WP-NC | 500 | 1100×1200×1244 | 200×100 | 680 | 4 person cage, no roof | 253 |

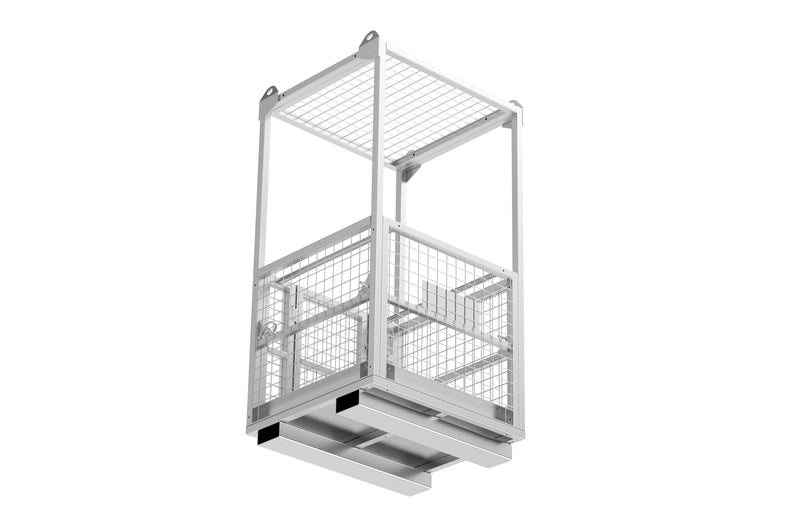

| WS-WP-NCR | 500 | 1100×1200×2395 | 200×100 | 680 | 4 person cage, with roof | 306 |
| WS-WP-NC2 | 750 | 2400×1200×1244 | 200×100 | 590 | 6 person cage, no roof | 415 |

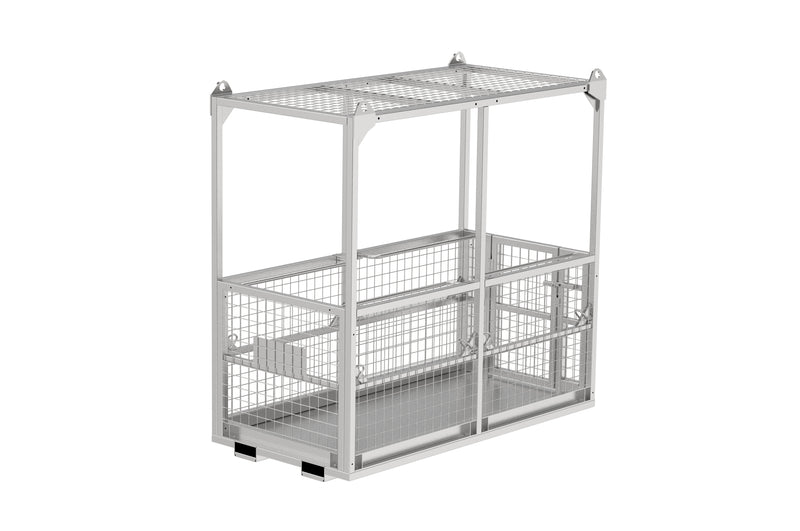

| WS-WP-NC2R | 750 | 2400×1200×2346 | 200×100 | 590 | 6 person cage, with roof | 510 |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- CRANE LIFTING ONLY — NOT FOR FORKLIFT ELEVATION: The integrated fork pockets (200×100mm) are strictly intended for ground-level handling and transport. Never elevate personnel using a forklift.
- Mandatory Fall Arrest Tethering: Every occupant (up to 4 or 6 persons) must wear an approved full-body harness tied off to certified internal anchor points at all times during flight.
- Dedicated Crane Rigging: Must be suspended using a certified 4-leg chain sling rated to handle the full load (SWL + tare weight). Pre-lift rigging inspections are mandatory.
- Strict SWL Limits: Never exceed 500kg (4-person models) or 750kg (6-person models) total gross load, including all personnel, tools, and materials.
