LANDYINDUS F-CRN80 Low-Profile Container Loading Ramp | 8,000kg SWL | 83mm Ultra-Low Platform Height — Shallowest Entry Angle in the Series | 8mm Steel — Maximum Plate Gauge | Flip-Up Front Tine Pockets + Fixed Side Fork Pockets | 2,200mm Wide | Low-Clearance & Ground-Level Container Access

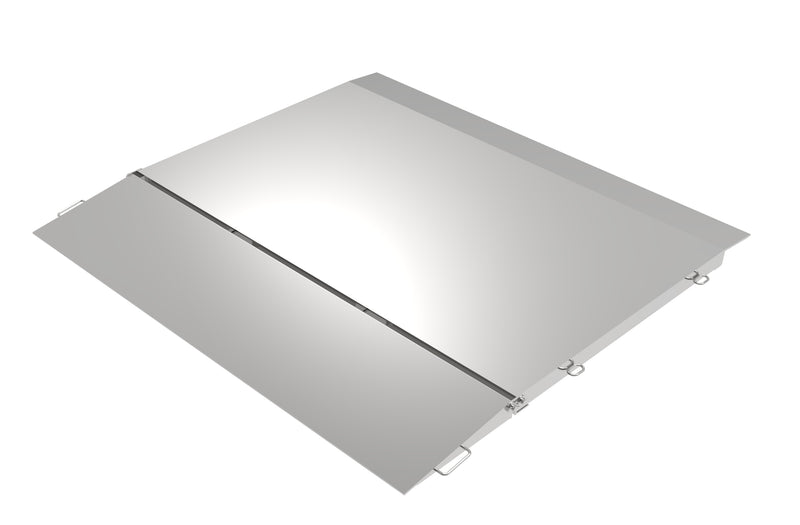

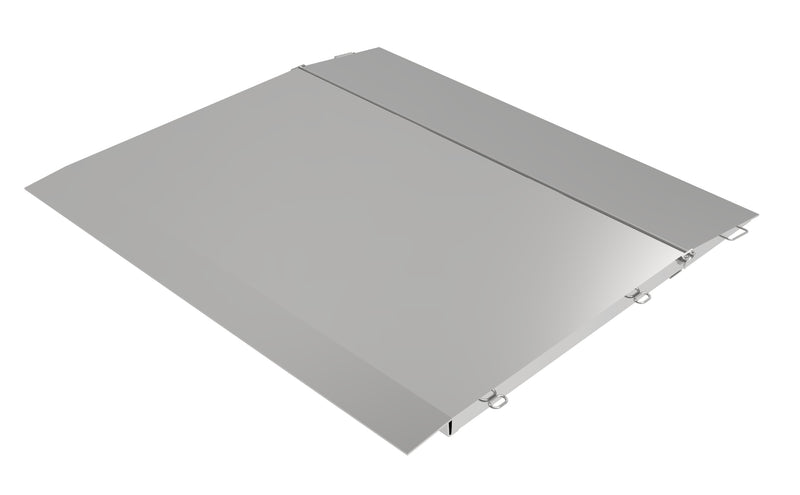

The LANDYINDUS F-CRN80 is a heavy-duty steel container loading ramp engineered for operations where ground clearance is limited and a minimal ramp height is essential for safe, efficient container access. With an ultra-low platform height of just 83mm — significantly lower than the 150–220mm height of all other models in the LANDYINDUS container ramp series — the F-CRN80 creates an exceptionally shallow entry angle that reduces forklift approach stress, minimises load shock, and enables smooth, controlled container access across a wide range of ground surface conditions.

83mm Ultra-Low Height — Shallowest Entry Angle in the Series, Lowest Load Shock

At 83mm, the F-CRN80 platform height is less than half that of the next-lowest model in the series (F-CRN65: 80mm lip — note: F-CRN80 at 83mm overall height vs F-CRN65's 80mm lip on a different profile). The ultra-low profile delivers three simultaneous operational advantages:

• Shallowest entry angle: bridging the same container floor height over a 2,047mm run at just 83mm platform height creates the most gradual gradient in the series — reducing the risk of forklift undercarriage contact, load instability, and pallet damage during entry
• Minimum load shock: the shallow transition from ground to container floor means fully loaded forklifts experience the least dynamic weight transfer of any ramp in the series
• Low-clearance access: essential for facilities where container floors sit close to ground level, where dock levellers are unavailable, or where loading area surfaces are uneven

8mm Steel Plate — Maximum Gauge in the Series, Zero Deformation at 8,000kg SWL

Constructed from high-strength structural steel with an 8mm main plate thickness — matching the F-CRS8 as the heaviest gauge in the LANDYINDUS container ramp series — the F-CRN80 supports 8,000kg SWL with exceptional rigidity and zero deformation under maximum load. At a low-profile 83mm height over a 2,047mm span, the 8mm plate is critical to preventing mid-span deflection that would occur with standard 5mm or 6mm plate at this geometry.

F-CRN80 vs Series 8T Models — Low-Profile vs Standard Height

Complete Container Ramp Series — Full 10-Model Comparison

Flip-Up Front Tine Pockets + Fixed Side Fork Pockets — Three-Directional Repositioning

At 476kg, the F-CRN80 requires forklift repositioning — the flip-up front tine pockets add a third directional access point for manoeuvring in confined loading bays, narrow container yards, and restricted dock areas where lateral access is limited. The flip-up design folds flush when not needed, eliminating protrusions during loading operations.

Applications

• Low-clearance warehouses — container floors close to ground level, minimal ramp height required
• Ground-level logistics yards — no dock leveller, ultra-low entry angle
• Uneven loading surfaces — low profile reduces instability risk from surface variation
• Heavy pallet loads — 8,000kg SWL, 8mm plate, zero deformation
• High-cycle distribution centres — minimum load shock, maximum throughput

Key Features

• 83mm ultra-low platform height — lowest in the series, shallowest entry angle
• 8,000kg SWL — maximum series capacity
• 8mm high-strength steel plate — maximum gauge, zero deformation under load
• Flip-up front tine pockets + fixed side fork pockets — three-directional repositioning
• 2,200mm wide platform — standard forklift tine span and wide-load pallets
• 476kg | 2,047×2,200×83mm

Specifications

Technical Drawing
