LANDYINDUS Manual Snow Plow | No Hydraulics Required | 1.5–2.4m | 473mm Blade | 5mm Plate | Hardened Edge | Cat 1 | 20–45HP Compact Tractor | T-SP-NHY

LANDYINDUS T-SP-NHY Manual Snow Plow | No Hydraulic Circuit Required | 1.5–2.4m Blade | 473mm Blade Height | 5mm Main Plate | Hardened Steel Cutting Edge | Optional Depth Wheels | Cat 1 | 20–45HP Compact Tractor | 3-Point Linkage | 170–211kg

The LANDYINDUS T-SP-NHY Manual Snow Plow is a reliable and straightforward 3-point linkage tractor attachment designed specifically for compact tractors in the 20 to 45 horsepower range. Built to Category 1 three-point hitch specifications, this manual snow plow is an ideal choice for small farm operators, rural property owners, and anyone looking for a dependable, no-frills snow clearing solution that gets the job done without the complexity or cost of a hydraulic system.

No Hydraulic Circuit Required — Mechanical Angle Adjustment, Works with Any Compact Tractor

The moldboard angle on the T-SP-NHY is adjusted mechanically, allowing the operator to set the blade direction before starting work and lock it securely in position for consistent, straight-line clearing. This straightforward design significantly reduces the overall cost of the attachment and eliminates the need for a dedicated hydraulic circuit on the tractor — making the T-SP-NHY a practical and accessible option for smaller tractors that may not have auxiliary hydraulic outputs available. For operators with predictable, regular clearing routes, the mechanical angle system delivers reliable performance with minimal maintenance requirements.

Snow Plow Series — Which Model for Your Tractor and Clearing Requirements?

473mm Blade Height | 5mm Main Plate — Structural Rigidity for Compact Tractor Pushing Forces

The T-SP-NHY features a hardened steel cutting edge running the full width of the blade, engineered to maintain effective ground contact and scraping performance even after extended use on rough or uneven surfaces. With a blade height of 473mm and a main plate thickness of 5mm, the moldboard provides solid structural rigidity to handle the pushing forces generated during snow clearing, while keeping the overall weight manageable for smaller tractors. At 170kg to 211kg depending on blade width, the T-SP-NHY is well within the lift capacity of most Category 1 compact tractors.

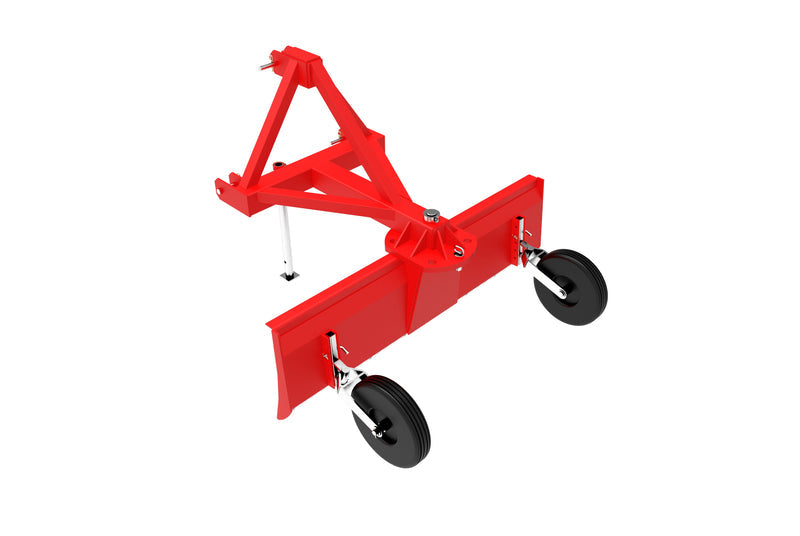

Optional Depth Control Wheels — Gravel Driveways, Unpaved Farm Tracks, Surface Protection

For operators working on gravel driveways, unpaved farm tracks, or surfaces where blade depth control is important, the T-SP-NHY is available with optional support wheels that prevent the cutting edge from digging too deep into the surface below the snow. This practical option protects both the surface and the attachment, extending the working life of the cutting edge and reducing the risk of surface damage during clearing. Contact us to specify depth control wheels when ordering.

Three Blade Width Options — Narrow Farm Tracks to Wider Driveways and Yard Areas

Key Features

• No hydraulic circuit required — works with any compact tractor, including those without aux hydraulics
• Mechanical angle adjustment — pre-set and lock before work, reliable for regular clearing routes
• Cat 1 | 20–45HP compact tractor — 170–211kg, within lift capacity of most compact tractors
• Hardened steel cutting edge — full blade width, effective scraping after extended rough-surface use
• 473mm blade height | 5mm plate — structural rigidity for compact tractor pushing forces
• Optional depth control wheels — gravel driveways, unpaved tracks, surface protection
• 1.5 / 2.0 / 2.4m blade widths — narrow tracks to wider driveways

Technical Drawing:

Specifications
