LANDYINDUS

LANDYINDUS Mini Excavator Rake | 10mm Hardened Tines | 70mm Gap | 1,200–2,000mm | S30, S40 & S45 | 1–6T | Gravel, Ditch Cleaning & Landscaping | E-RK Series

SKU: ME-RK1200-S30

Got questions?

Feel free to get in touch

Ask an expert!

Chat Email +(1) 657-271-9801

LANDYINDUS E-RK / ME-RK Mini Excavator Rake | 10mm Hardened Steel Tines | 70mm Gap — Debris Retained, Fine Material Passes Through | 1,200–2,000mm | S30, S40 & S45 | 1–6T | Gravel, Ditch Cleaning, Landscaping & Surface Raking

The LANDYINDUS E-RK Series Mini Excavator Rake is a light-duty land rake engineered for 1–6 ton compact and mini excavators, purpose-built for gravel path maintenance, branch and debris collection, ditch cleaning, landscape material spreading, and surface raking tasks where a precise, controlled raking action is needed across residential properties, garden sites, municipal green spaces, and light commercial landscaping projects.

70mm Tine Gap — Fine Material Passes Through, Larger Debris Retained for Collection

The open tine design with ~70mm gaps allows fine material to pass through freely while retaining larger debris for collection and removal, making the E-RK particularly effective for:

  • Separating stones from topsoil on garden beds — fine soil falls through, stones stay on tines
  • Cleaning drainage ditches of accumulated organic matter — silt passes through, branches and debris retained

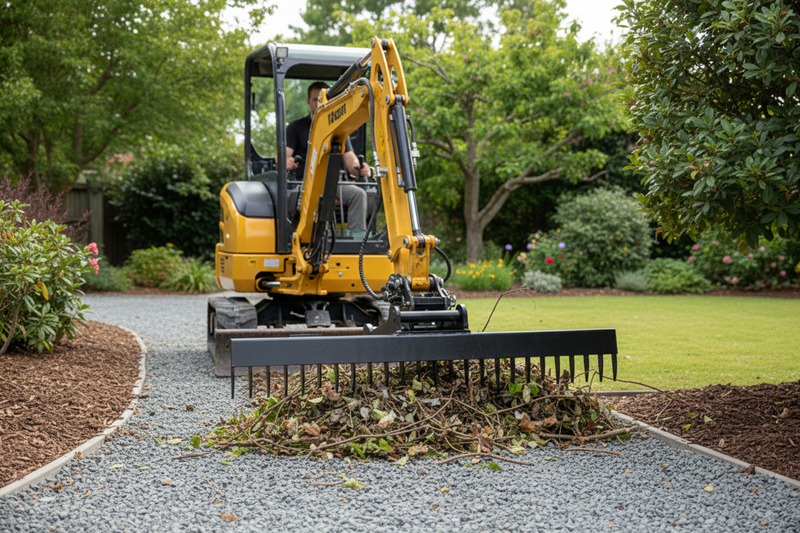

  • Tidying gravel driveways and pathways after storm debris or seasonal maintenance — gravel stays, leaf litter and twigs collected
  • Spreading wood chips and landscape materials — controlled distribution without burying material

10mm Hardened Steel Tines — Durable for Light-Duty Surface Raking, Not for Digging or Ripping

The 10mm hardened steel tines are engineered for consistent performance across light-duty surface raking and material collection tasks. Important: The E-RK is designed specifically for surface raking and material collection — it is not intended for soil digging, ripping, or heavy-duty ground-breaking applications. Using the rake for digging or ripping will damage the tines and void the design intent. For soil ripping or heavy-duty ground engagement, see the LANDYINDUS ripper or digging bucket range.

E-RK Rake vs E-LB Grading Beam — Raking vs Grading

Feature E-LB Grading Beam E-RK Rake (This)
Primary function Grade, level, spread material Rake, sort, collect surface debris
Material separation No — pushes all material Yes — 70mm gap filters fine from coarse
Ditch cleaning Limited Yes — organic matter collection
Gravel path maintenance Spreading only Rake, redistribute, collect debris
Soil disturbance Surface grading Minimal — tines skim surface
Excavator class 2–18T 1–6T — mini & compact excavators

Five Models — S30 to S45, 1T to 6T

Model Width (mm) Depth (mm) Height (mm) Tine Thickness (mm) Tine Gap (mm) Bracket Excavator Weight (kg)
ME-RK1200-S30 1,200 310 250 10 70 S30 1–2T 50
ME-RK1200-S40 1,200 400 250 10 70 S40 2–3.5T 60
ME-RK1600-S40 1,600 400 250 10 70 S40 2–3.5T 71
E-RK1600-S45 1,600 540 250 10 69 S45 4–6T 93
E-RK2000-S45 2,000 540 274 10 71 S45 4–6T 103

Applications

  • Gravel path & driveway maintenance — redistribute gravel, collect storm debris
  • Ditch & drainage cleaning — remove organic matter, leaves, small branches
  • Garden bed preparation — separate stones from topsoil, spread compost
  • Landscape material spreading — wood chips, bark mulch, gravel, sand
  • Municipal green space maintenance — parks, verges, sports fields
  • Light construction site tidying — surface debris collection before finishing

Key Features

  • 10mm hardened steel tines — durable light-duty surface raking
  • ~70mm tine gap — fine material passes through, debris retained
  • 1,200–2,000mm working width — mini excavator coverage
  • S30 / S40 / S45 — direct bracket fitment, no custom adapters
  • 1–6T excavator class — compact and mini excavators
  • 50–103kg | light-duty design — not for digging or ripping

Technical Drawing:

ℹ️ Light-Duty Design Note: The E-RK rake is engineered for surface raking, material collection, and debris sorting only. It is not suitable for soil digging, ground ripping, or heavy-duty ground engagement. For digging applications, see the LANDYINDUS digging bucket range.
⚠️ Compatibility Note: Specify your excavator bracket type (S30/S40/S45) and weight class when ordering. ME-RK1200-S30 suits 1–2T; ME-RK1200-S40 and ME-RK1600-S40 suit 2–3.5T; E-RK1600-S45 and E-RK2000-S45 suit 4–6T. Contact us for custom width configurations.
