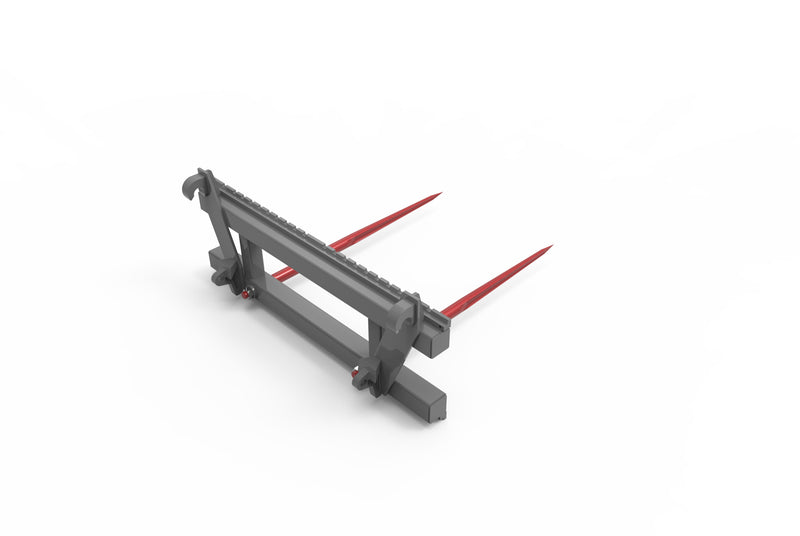

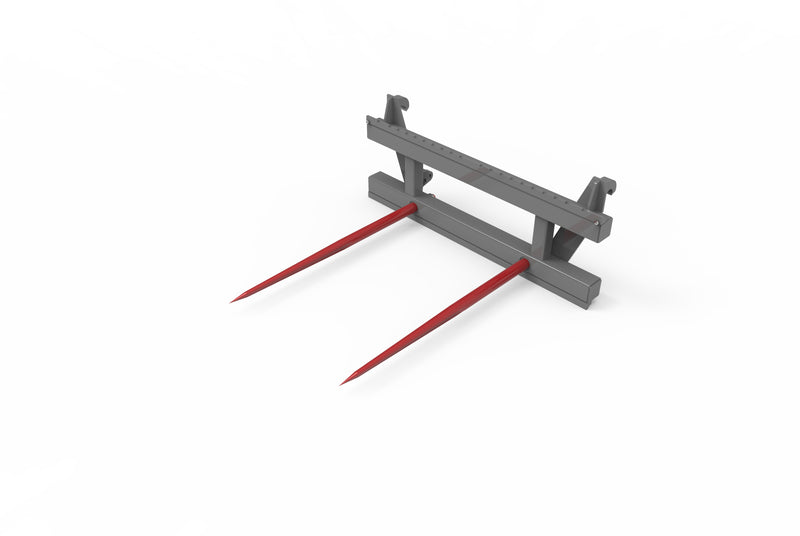

LANDYINDUS Pallet Forks Frame with Hay Spear | 2,500kg SWL | Class 2A | φ45×1,100mm Spear | Pallet Forks + Bale Spear Combo | Euro | T-2A-HS

LANDYINDUS T-2A-HS Pallet Forks Frame with Hay Spear | 2,500kg SWL | Euro Class 2A | φ45×1,100mm Main Spear | Pallet Forks + Bale Spear in One Frame | Euro Hitch

The LANDYINDUS T-2A-HS Forks Frame with Hay Spear is a versatile, multi-function attachment designed for farmers, ranchers, and operators who need one frame that can do it all. Built to Euro Class 2A standards with a safe working load of 2,500kg, this frame can be configured with pallet forks, a hay spear, or both at the same time — giving you the flexibility to switch between material handling and bale work without swapping attachments.

φ45×1,100mm Solid Main Spear — Round Bales and Square Bales, Consistent Penetration Under Repeated Heavy Use

The integrated hay spear features a solid φ45mm main spear at 1,100mm in length, providing the penetration depth and structural strength needed to handle round bales and square bales with confidence. Whether you are moving hay across a field or stacking bales in a barn, the spear delivers consistent, secure performance under repeated heavy use. The φ45mm diameter is the standard industrial bale spear specification — compatible with most bale spear sleeve receivers if used as a standalone spear.

Pallet Forks + Hay Spear Simultaneously — One Attachment, Two Functions, No Swap Required

The T-2A-HS can be configured with pallet forks, a hay spear, or both at the same time. Running both simultaneously means you can handle palletized goods and bale work in the same session without dismounting or swapping attachments — a significant time saving on mixed-task farm days where both functions are needed.

2,500kg SWL | Euro Class 2A — Full Pallet Handling Capacity Alongside Bale Work

When configured with pallet forks, the frame handles the full range of warehouse and farm logistics tasks — loading, unloading, and transporting palletized goods with a 2,500kg rated capacity. The Euro hitch mounting system ensures fast, tool-free connection to compatible tractor front loaders, reducing downtime between jobs and making the attachment practical for daily use across multiple tasks.

T-2A-HS vs T-PF2A vs T-Series — Euro Class 2A Fork Frame with Hay Spear vs Without

Custom Options Available — Spear Length, Fork Tine Size, Frame Configuration

If you need a different spear length, fork tine size, or frame configuration, custom options are available on request. Contact us to discuss your specific requirements.

Key Features

• φ45×1,100mm solid main spear — round & square bales, repeated heavy use
• Pallet forks + hay spear simultaneously — one frame, two functions, no swap
• 2,500kg SWL | Euro Class 2A
• Euro hitch — fast, tool-free connection
• 77kg | 1,170×1,200×496mm — compact, clear visibility
• Custom spear length, tine size and bracket available on request

Technical Drawing:

Specifications
