LANDYINDUS Personnel Crane Cage 250–500kg SWL 1–4 Person Work Cage AS1418.17 WS-WP-C Series
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!
Product Overview

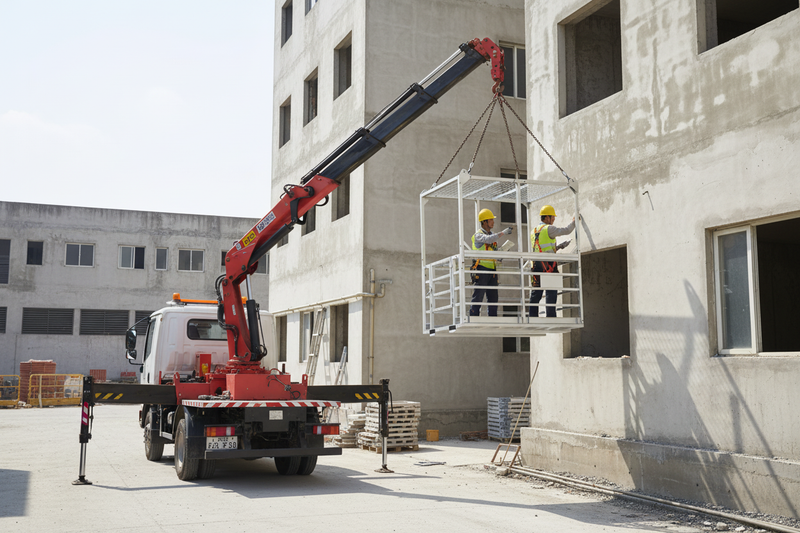

Ensure certified safety for overhead aerial work with the LANDYINDUS Personnel Crane Cage, engineered in strict accordance with Australian Standard AS1418.17.
The LANDYINDUS Personnel Crane Cage is a heavy-duty work-at-height solution engineered for the safe aerial lifting of workers during construction, building maintenance, industrial inspection, and short-duration elevated tasks. Designed and manufactured in strict compliance with Australian Standard AS1418.17, it provides the safety assurance and regulatory confidence required for professional and commercial site operations. Available in 1-person, 2-person, and 4-person configurations, with Safe Working Loads of 250kg or 500kg, the range covers a wide variety of on-site requirements — with both roofed and open variants available to suit diverse site environments.
Core Selling Points
- Strict AS1418.17 Compliance: Engineered and manufactured to meet rigorous Australian Standards for crane-suspended personnel work platforms.
- 1 to 4 Person Configurations: Scalable options (250kg and 500kg SWL) in single, double, or four-worker footprints to match diverse maintenance and construction tasks.
- Roofed & Non-Roofed Models: Overhead protection versions safeguard against falling debris, while open-top models accommodate low overhead clearance areas.
- Flat-Pack Transport: Supplied in a compact flat-pack format for economical freight, space-saving site storage, and straightforward assembly.
Specifications
| Type | SWL / kg | Dimension (L×W×H) / mm | Pocket Size (a×b) / mm | Pocket Centres / mm | Configuration | Weight / kg |
|---|---|---|---|---|---|---|

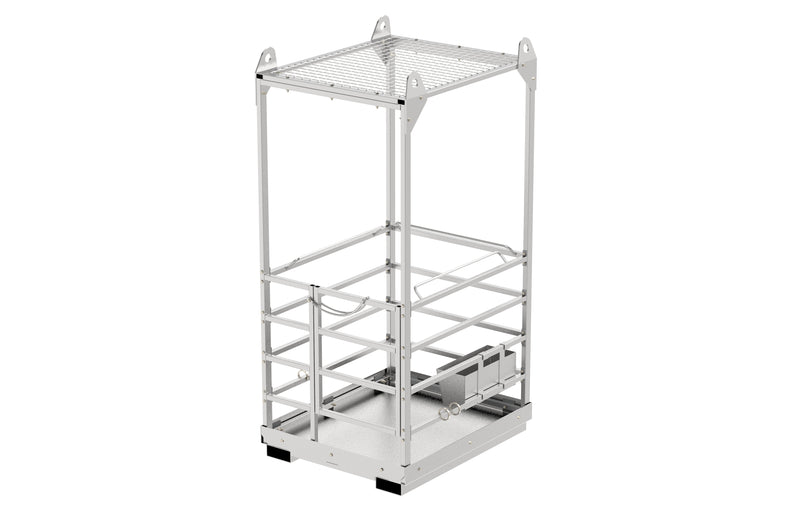

| WS-WP-C4 | 250 | 765×765×1205 | 165×65 | 550 | 1 person cage, no roof | 147 |

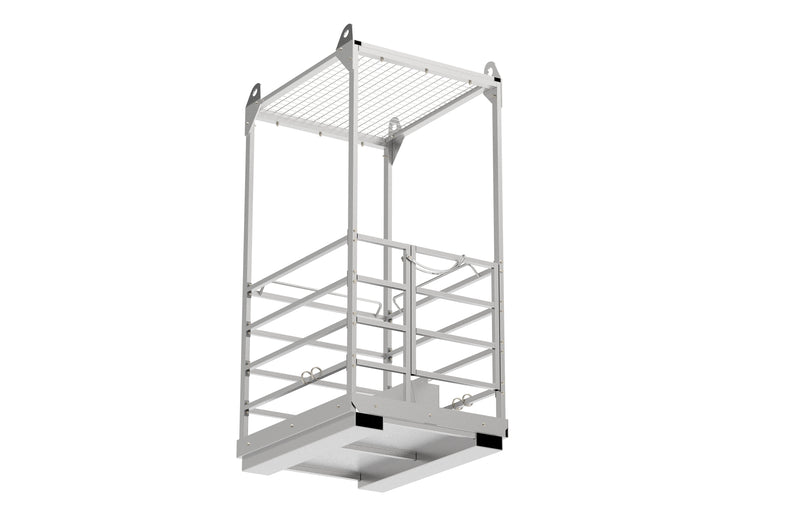

| WS-WP-C11 | 250 | 1200×1000×1180 | 165×65 | 525 | 2 person cage, no roof | 179 |
| WS-WP-C | 250 | 1200×1000×2340 | 165×65 | 775 | 2 person cage, with roof | 214 |

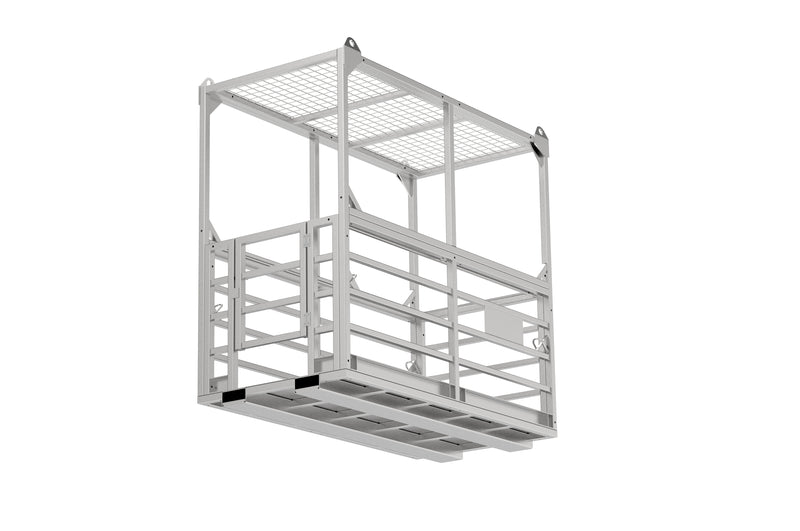

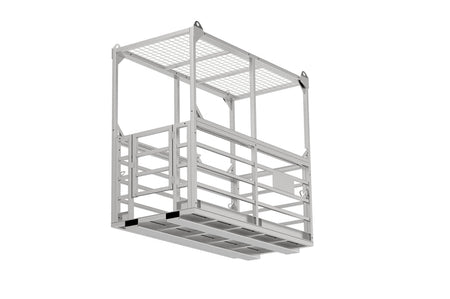

| WS-WP-C12 | 500 | 2400×1200×1180 | 245×65 | 590 | 4 person cage, no roof | 320 |

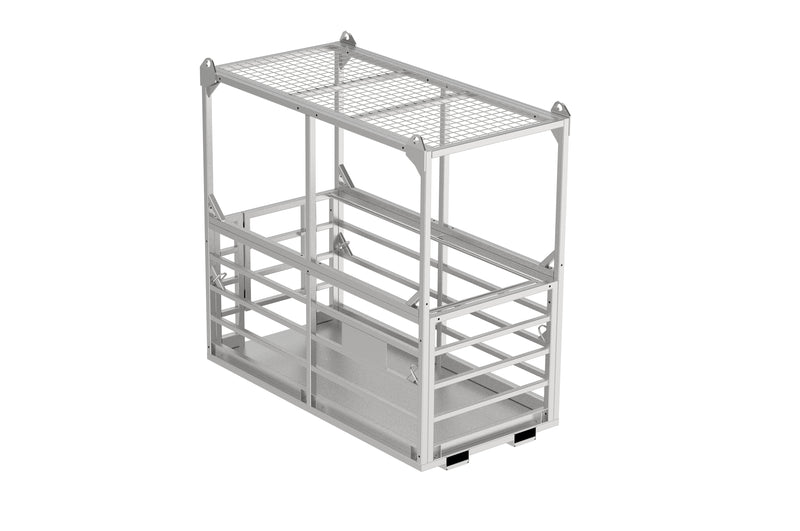

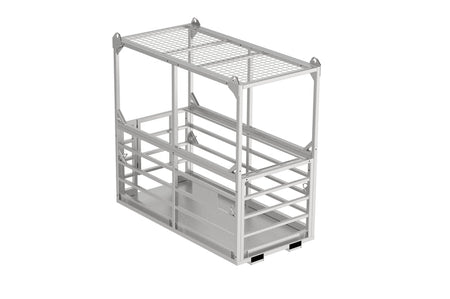

| WS-WP-C2 | 500 | 2400×1200×2295 | 245×65 | 590 | 4 person cage, with roof | 537 |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- CRANE LIFTING ONLY — NOT FOR FORKLIFT ELEVATION: The integrated fork pockets are designed strictly for ground-level positioning and transport. Never use a forklift to lift personnel in this cage.
- Mandatory Fall Arrest Equipment: All occupants must wear a certified full-body safety harness tethered to the designated internal anchor points via an energy-absorbing lanyard at all times during flight.
- Certified Rigging & Slings: Must be suspended using a dedicated, certified 4-leg chain sling assembly rated for the full SWL plus tare weight. Rigging inspections must be carried out prior to each lift.
- Strict SWL Limits: Never exceed the rated Safe Working Load (250kg for 1–2 person models; 500kg for 4 person models) including personnel, clothing, tools, and equipment.
