LANDYINDUS T-HS1240 Quick Tach Hay Spear | 1,360kg SWL | HD Forged φ45×1,100mm Main Spear | 2×φ40×432mm Stabilizer Spears | Tool-Free Quick Tach Mount | Euro Bracket | 78kg
The LANDYINDUS T-HS1240 Quick Tach Hay Spear is a heavy-duty front loader attachment designed for fast, efficient, and reliable hay bale handling on farms and agricultural operations of all sizes. Built to fit most tractors equipped with removable buckets and a quick tach system, this hay spear offers tool-free mounting and dismounting, allowing operators to switch between attachments rapidly and keep productivity high throughout the working day.
HD Forged φ45×1,100mm Main Spear — Superior Strength vs Welded, Clean Penetration Without Pushing Bale Off Stack
At the heart of the T-HS1240 is an HD forged main spear measuring φ45×1,100mm, engineered to penetrate bales cleanly and hold them securely without pushing the bale off the stack — a common problem with round spears. The forged steel construction provides superior strength and impact resistance compared to welded alternatives, ensuring the spear maintains its shape and performance under repeated heavy-duty use. With a safe working load of 1,360kg, the T-HS1240 handles large and heavy bales with confidence.
2×φ40×432mm Stabilizer Spears — Lateral Support, Prevents Bale Roll Mid-Lift

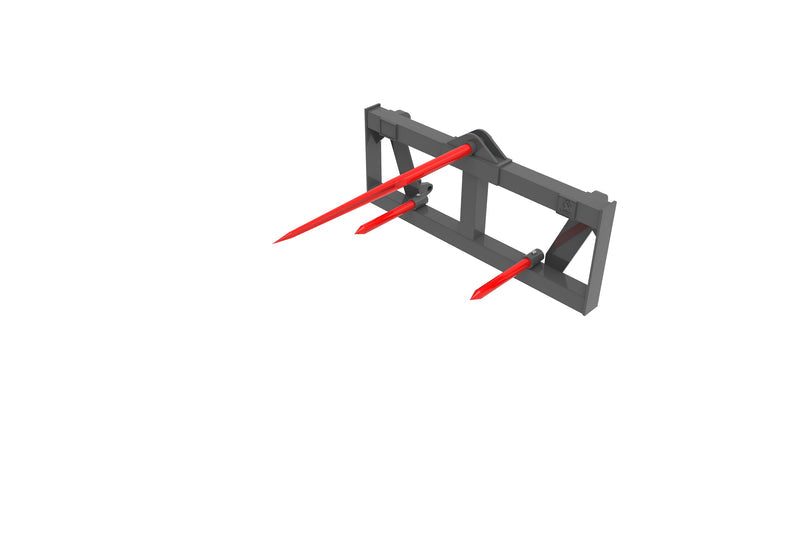

The T-HS1240 features two φ40×432mm stabilizer spears positioned on either side of the main spear, providing additional lateral support to keep bales stable and centered during lifting and transport. This three-spear configuration significantly reduces the risk of bale roll or shift mid-lift, improving both safety and handling precision in the field.
Tool-Free Quick Tach — Switch Between Attachments in Seconds, No Tools Required
The quick tach system allows tool-free mounting and dismounting, compatible with most tractors equipped with removable buckets and a quick tach system installed. Switch between the hay spear and other attachments in seconds, keeping productivity high throughout the working day without stopping to find tools or hardware.
Forged vs Welded Spear — Why Forging Matters for Heavy Bale Handling
| Feature | Welded Spear (standard) | T-HS1240 HD Forged (This) |
|---|---|---|
| Construction | Welded steel sections | Single-piece forged steel |
| Strength | Weld joints = stress points | No joints — uniform grain structure |
| Impact resistance | Weld can crack under impact | Forged steel absorbs impact |
| Shape retention | Can deform at weld under load | Maintains shape under repeated heavy use |
| Service life | Standard | Extended — no weld failure points |
Quick Tach Hay Spear vs Other Bale Handling Attachments — Which for Your Setup?
| Feature | T-BFF Foldable Fork | T-RBS12 SMS Spear | T-HS1240 (This) |
|---|---|---|---|
| Mount | Cat 1&2 3-point/A frame | SMS skid steer | Euro quick tach |
| Spear type | Standard | Standard + conical casing | HD forged — no weld joints |
| Stabilizers | None | 1×φ36×690mm | 2×φ40×432mm |
| SWL | — | 1,000kg | 1,360kg |
| Mount speed | Standard 3-point | SMS quick attach | Tool-free quick tach |
| Weight | 53kg | 69kg | 78kg |
Key Features
- HD forged φ45×1,100mm main spear — superior strength vs welded, no weld failure points
- Clean bale penetration — no pushing bale off stack (common round spear problem)
- 2×φ40×432mm stabilizer spears — anti-roll, lateral stability mid-lift
- Tool-free quick tach — switch attachments in seconds
- 1,360kg SWL | Euro bracket — wide front loader compatibility
- 78kg | 1,240×480mm frame
Technical Drawing:
Specifications
| Model | SWL (kg) | Width W (mm) | Height H (mm) | Main Spear | Stabilizer Spears | Weight (kg) |
|---|---|---|---|---|---|---|
| T-HS1240(49IN)-1100(43IN)-EURO | 1,360 | 1,240 | 480 | φ45×1,100mm | φ40×432mm ×2 | 78 |
