LANDYINDUS F-CRN6RR Refrigerated Container Ramp | 6,000kg SWL | 1,731mm Length | 224mm Lip Height — Purpose-Built for Reefer Container Floor Height | 5mm Steel | Cold-Chain, Food Distribution & Cold Storage | Forklift

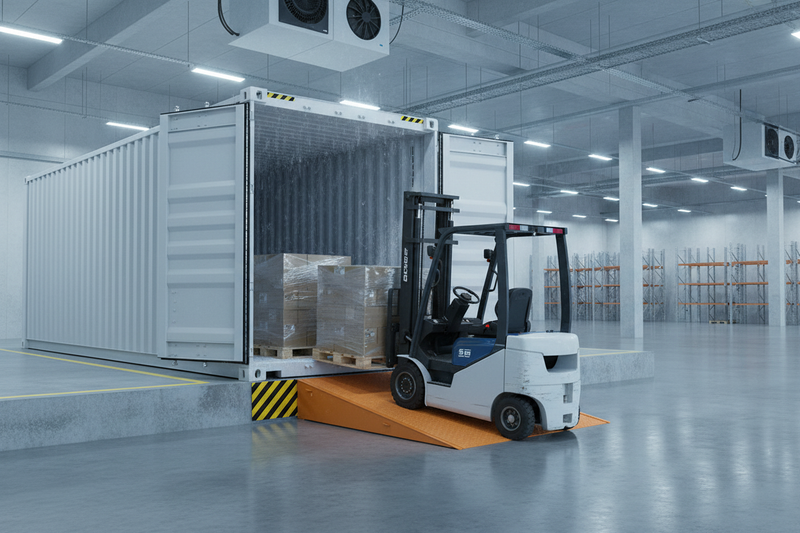

The LANDYINDUS F-CRN6RR is a heavy-duty container loading ramp purpose-built for safe forklift loading and unloading of refrigerated (reefer) containers, with a rated capacity of 6,000kg SWL. The 5mm thick steel main plate and welded frame construction deliver reliable performance in cold-chain, food distribution, and warehouse operations where standard container ramps are not compatible with the elevated floor height of reefer units.
224mm Lip Height — Purpose-Built for Reefer Container Floor Height
The defining specification of the F-CRN6RR is its 224mm lip height — purpose-built to bridge the greater floor height of refrigerated containers. Reefer containers have a raised floor compared to standard dry freight containers, due to the insulation layer, refrigeration floor channels, and T-bar aluminium floor decking that run beneath the load surface. This elevated floor height means standard container ramps with 158–160mm lips (F-CRL6, F-CRN6) create an excessive approach angle or fail to bridge the gap altogether — making the F-CRN6RR the correct ramp for cold-chain operations.
Full Container Ramp Series — Choose by Container Type & Operation
| Feature | F-CRL6 Standard | F-CRN6 Standard | F-CRN6RR Reefer (This) |
|---|---|---|---|
| Container type | Standard dry freight | Standard dry freight | Refrigerated (reefer) containers |
| Lip height | 158mm | 160mm | 224mm — matches reefer floor height |
| Length | 2,400mm (incl. 1,500mm flat top) | 1,250mm compact | 1,731mm |
| Flat top platform | 1,500mm | None | None |
| Chain included | No | Yes | — (confirm with supplier) |
| SWL | 6,000kg | 6,000kg | 6,000kg |
| Width | 2,200mm | 2,200mm | 2,200mm — same |
| Weight | 356kg | 176kg | 236kg |
| Best for | Max fill rate, dry freight | Mixed fleet, compact storage | Cold-chain, reefer, food distribution |
1,731mm Length — Matched to Reefer Container Approach Requirements
The 1,731mm ramp length is longer than the F-CRN6 (1,250mm) to accommodate the steeper approach gradient created by the higher reefer container floor. The additional length reduces the approach angle, ensuring a stable, controlled forklift entry into the reefer container without the risk of undercarriage contact or load instability on the steeper incline.
5mm Steel | Welded Frame | Cold-Chain Environments
The 5mm thick steel main plate and welded frame construction deliver reliable performance across repeated forklift loading cycles in cold-chain, food distribution, and cold storage environments. The all-steel construction is suitable for the temperature extremes, moisture, and cleaning chemical exposure typical of refrigerated logistics facilities.
Applications
- Refrigerated (reefer) container loading/unloading — cold-chain logistics, import/export
- Cold storage facilities — temperature-controlled product handling
- Food distribution centres — fresh, chilled, and frozen product loading
- Food processing plants — finished product dispatch into reefer containers
- Pharmaceutical & cold-chain logistics — temperature-sensitive product handling
Key Features
- 6,000kg SWL — forklift-rated, cold-chain operations
- 224mm lip height — purpose-built for reefer container elevated floor
- 1,731mm length | 2,200mm width — compatible with standard reefer openings
- 5mm high-strength steel plate | welded frame — cold-chain environment durability
- 236kg — forklift repositionable
Specifications
| Model | SWL (kg) | Dimensions L×W×H (mm) | Plate (mm) | Weight (kg) |
|---|---|---|---|---|
| F-CRN6RR | 6,000 | 1,731×2,200×224 | 5 | 236 |

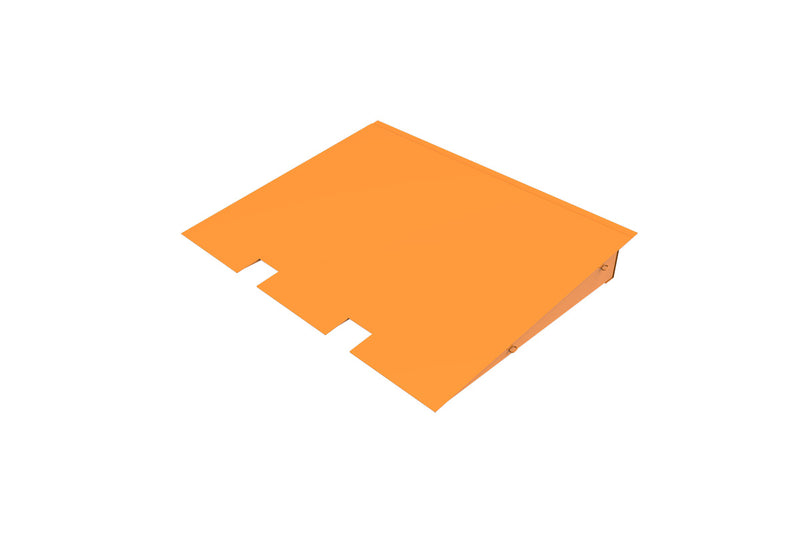

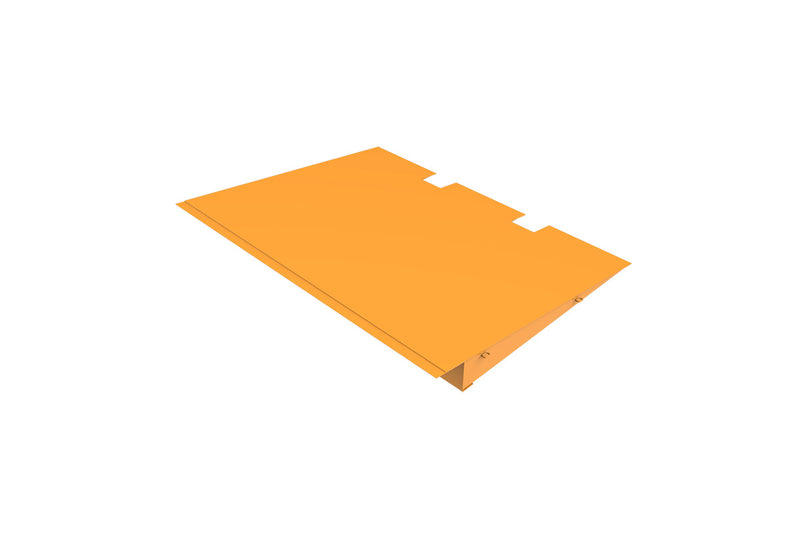

Technical Drawing
• Reefer containers only: the F-CRN6RR is designed for the elevated floor height of refrigerated containers. Do not use on standard dry freight containers — the 224mm lip height will create an incorrect approach angle on lower-floor standard containers. For standard dry containers, use F-CRL6 or F-CRN6.
• Reefer container floor height varies by manufacturer and age — confirm your specific reefer container floor height is compatible with the 224mm lip before ordering.
• Confirm forklift and container compatibility prior to use. Custom sizes available on request.
