LANDYINDUS S-AP1140 Skid Steer Trailer Receiver Hitch Plate | 2" Quick Tach Hitch Attachment

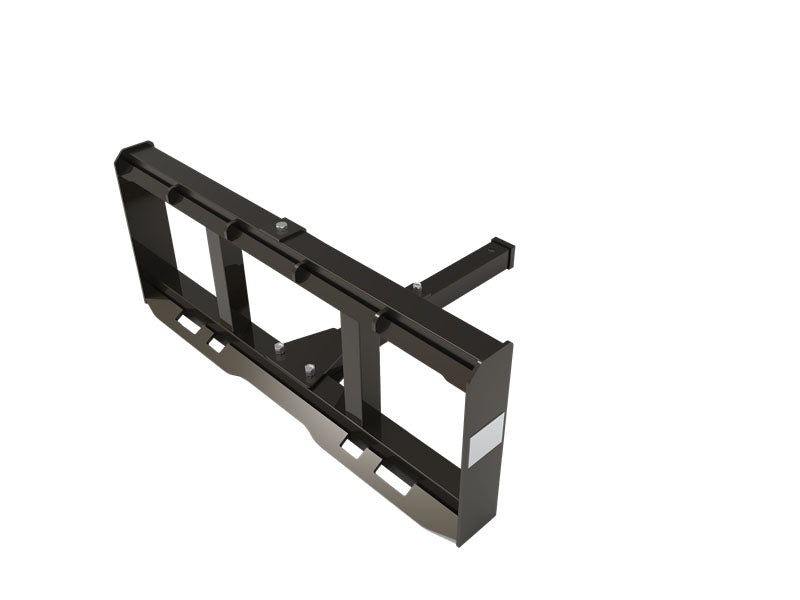

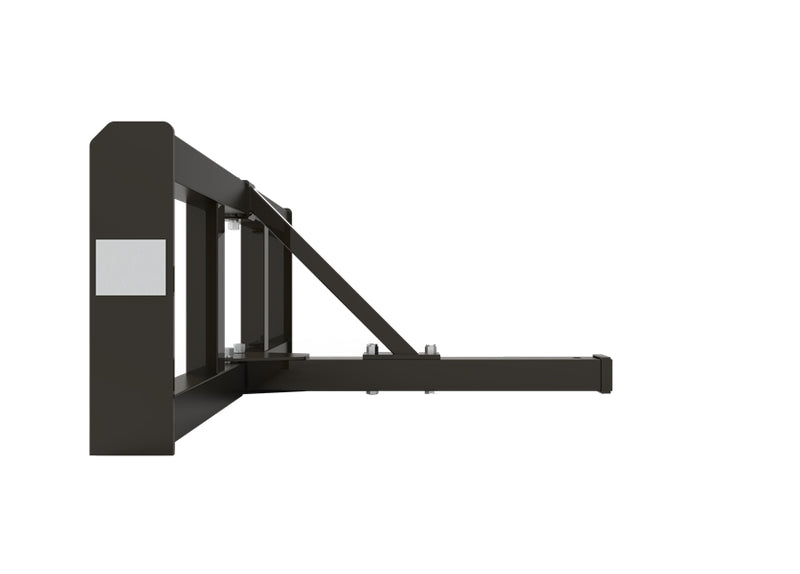

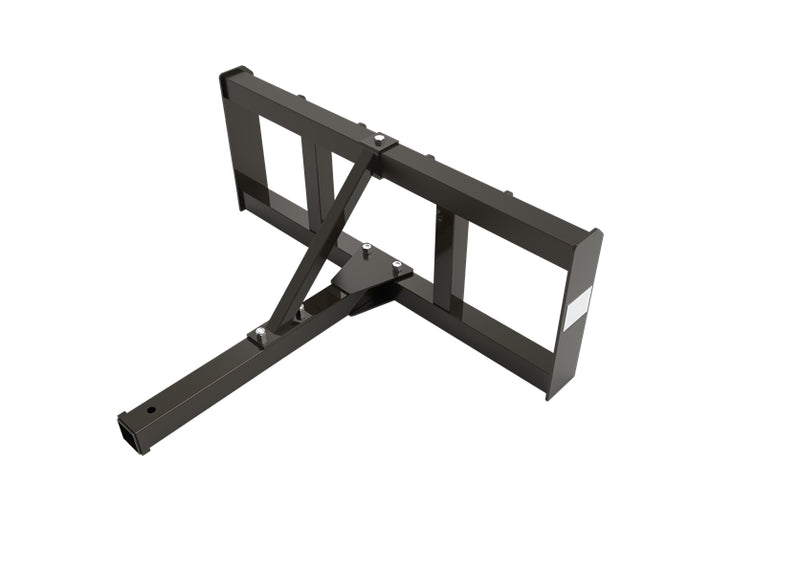

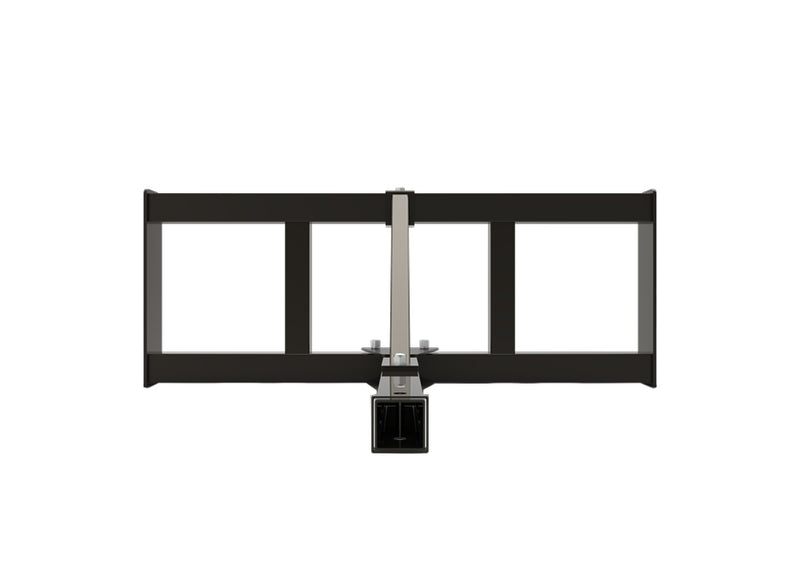

LANDYINDUS S-AP1140 Skid Steer Trailer Receiver Hitch Plate

Expand your skid steer's capabilities with the LANDYINDUS S-AP1140 Skid Steer Trailer Receiver Hitch Plate — a heavy-duty quick tach attachment engineered for operators who demand greater frame depth, extended hitch reach, and uncompromising structural strength. Whether you're hauling hay wagons across a farm, towing equipment trailers on a construction site, or moving utility carts around a large property, the S-AP1140 delivers the performance and reliability your towing applications require.

Extended Frame Profile for Demanding Applications

At 1140mm wide × 930mm deep × 480mm tall, the S-AP1140 offers a wider and deeper frame profile than standard low-profile receiver hitch plates. This extended geometry provides additional offset and structural clearance — making it the purpose-built solution when a standard mount simply doesn't reach far enough or lacks the depth your implement setup demands.

Heavy-Duty Gusseted Construction

The reinforced frame features 4 heavy-duty gussets that deliver superior strength and structural integrity under real-world towing loads. These gussets prevent flex and distortion even when hauling heavy or unbalanced implements across uneven terrain, giving you confidence that your hitch connection stays solid from job start to finish.

Standard 2" Receiver Hitch Compatibility

The 2-inch receiver hitch opening is compatible with a wide range of standard trailer balls, pintle hooks, and tow accessories — maximizing the versatility of your skid steer as a towing machine without requiring specialized or proprietary hardware.

Integrated Tow Chain Anchor Points

Integrated oblong holes for tow chains provide a secure and convenient anchor point for chain-securing loads, adding an extra layer of safety during transport across job sites, farms, and large properties.

Tool-Free Quick Tach Mounting

At 47kg, the S-AP1140 mounts directly to your skid steer's universal quick tach system with no modifications required. Attach and remove it as needed — fast, reliable, and ready when you are.

Key Features

• Trailer receiver mount plate hitch for skid steers
• 4 heavy-duty gussets for superior strength and structural integrity
• Standard 2" trailer receiver hitch opening
• Integrated oblong holes for tow chain attachment
• Universal quick tach compatible — no modifications required

Technical Drawing:

Specifications
